Summary of Contents for Jet-Pro Royal

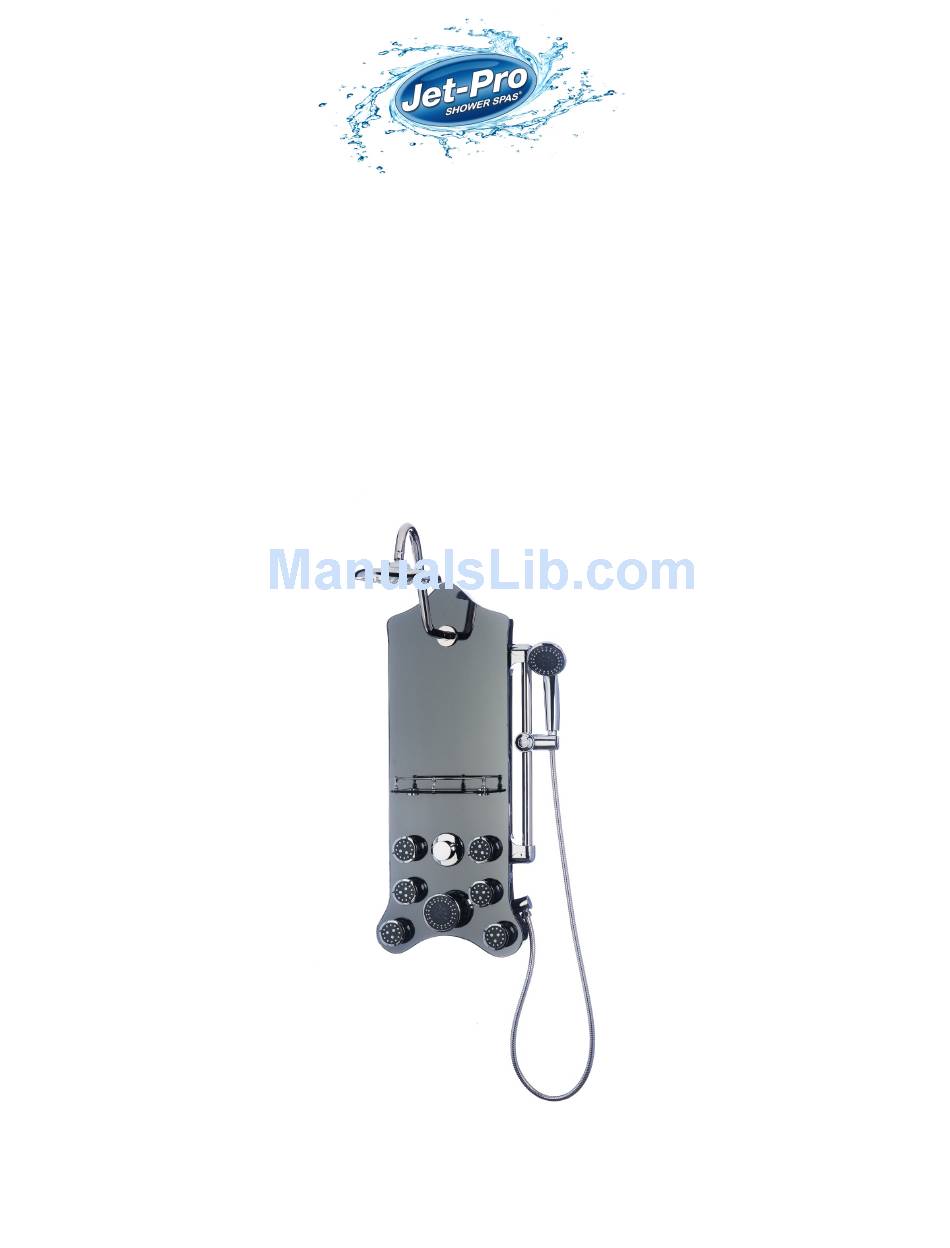

- Page 1 Meijer.com “Make Everyday a Spa Day” USER GUIDE & INSTALLATION INSTRUCTIONS Royal Model...
- Page 2 Meijer.com GETTING TO KNOW YOUR JET-PRO SHOWER SPA ROYAL MODEL Rain Style Shower Arm Rain Style Showerhead 5 Function Removable Hand Sprayer Royal Shelf Vertical Sliding 4 Function Diverter Valve 2 Function Adjustable 2 Function Comfort Jets Adjustable Comfort Jets...
- Page 3 Meijer.com JET-PRO SHOWER SPA ROYAL PARTS LIST PART DESCRIPTION QUANTITY Rain Style Shower Arm Standard Shower Arm Rains Style Shower Head Hand Spray Shower Head Braided Stainless Steel Hand Spray Shower Head Hose Turbo Jet (5-Function) Threaded CPVC (Schedule 80) Shower Wall Water Supply Pipe...
- Page 4 Meijer.com INTRODUCTION CONGRATULATIONS on purchasing your new Royal Jet-Pro Shower Spa! Before you begin installing your new shower spa, it is very important that you read through all of the docu- mentation provided in this package and carefully follow the step-by-step installation instructions.
- Page 5 Meijer.com 3. Leverage a screwdriver between escutcheon and wall to remove escutcheon. 4. Once old shower head pipe/arm is removed, thread the CPVC (Schedule 80) Nipple Wall Pipe (G) into the wall fitting. The length of the CPVC Pipe should be a distance of 1 inch from the wall. Using a black marker to mark the CPVC Pipe.
- Page 6 Meijer.com Reminder: This spa is designed specifically to target and benefit the upper body, neck, back and shoulders. The installation position of your spa unit should allow the series of jets to be facing the upper body. The ad- justable jets allow you to position the jet spray to a specific target area on your upper body.
- Page 7 Meijer.com 15. Attach the Stainless Steel Hand Spray Water Hose (E) to the existing connection stub on the right-hand side of the spa unit. 16. Connect the Hand Spray Shower Head (D) to water hose by hand tightening it clockwise.
- Page 8 Meijer.com “Make Everyday a Spa Day” Jet-Pro Shower Spas A Division of Life Touch Innovations, LLC 953 Tower Place Santa Cruz, CA 95062 Phone: (831) 462-9682 ●● FAX: (831) 477-9606 Toll Free: 888-753-8776 www.jetproshowerspas.com...
