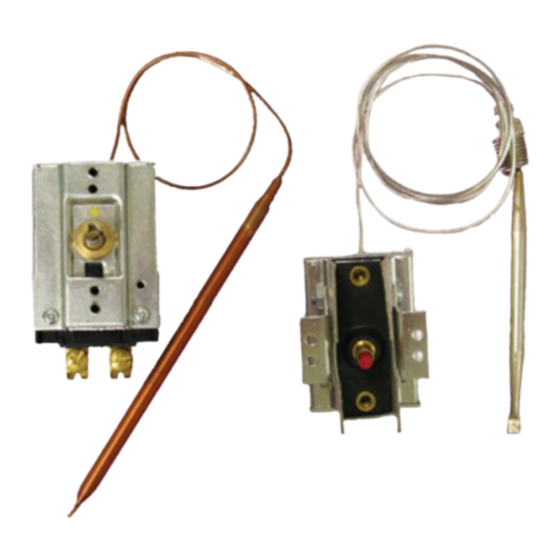

Peco T103 Quick Manual

T E M P E R A T U R E R E G U L A T I N G
A N D L I M I T I N G C O N T R O L S
T 1 0 3 , L 1 0 7 , L 1 1 7 , T 1 2 5 S E R I E S
HIGHLIGHTS
• Construction Variables to Meet Diverse Specifications
• High Level of Accuracy and Sensitivity
• Remote Sensing
• Multi-Positional Mounting Offers Flexibility in New or
Existing Installations
• UL, UL Canada, CSA, CE Approved
P E C O A U T O M A T I O N A N D C O N T R O L S
PECO regulating and limiting controls are designed and manufactured to meet
a wide variety of specifications. These variables include mounting brackets,
capillary fittings, switch terminations, and either copper, stainless steel, or
plated copper bulb and capillary. The information on this sheet is intended to
be general in nature. PECO has the capability to meet your specifications for
required construction variables and applications.
REGULATING/ LIMITING CONTROLS
Regulating controls are used as the primary operating control. Limiting controls
are back-up controls used in combination with temperature regulating controls.
The operating point of limit controls is normally set higher than regulating
controls and is determined by requirements of the equipment manufacturer.
Common applications for PECO regulating and limiting controls include:
commercial cooking equipment such as coffee brewers, fryers, cookers, and
ovens; industrial equipment such as liquid heating, plating tanks, and processing
equipment; immersion heaters, duct heaters, booster heaters, etc.
