Introduction - Harman Stove Company TL300 Installation & Operating Manual

Thank you for purchasing the Harman TL300 Wood Stove. We are confident that you will enjoy the warmth and convenience
of your Harman Stove for decades to come.
With the TL300 you will notice even heat throughout your home and long burn times. This is possible because of
Harman's special FireDome Non-Catalytic Combustion System, designed into the TL300 to promote clean burning and even
heat output. This equates to unvarying heat over a longer period of time without the temperature peaks and valleys of other
wood stoves. The FireDome continues Harman's reputation of high efficiency while saving you the expense associated with
catalytic stoves. The top load door makes adding wood easier and allows more wood to fit into the large firebox. You can
view your beautiful fire through the extra large glass door. The glass stays cleaner because of the special IR coated glass and
the exclusive Harman Air Wash System.
The Harman TL300 has an ash pan with its own ash door which allows removal of ashes while the stove is in operation. This
means you can keep a fire all winter if you desire.
The Harman TL300 offers a cooking grill that can be placed in the top of the stove while in operation. This allows you to grill
your favorite meats all year long even when the weather is not suitable for outside grilling. If you haven't already purchased
the cooking grill, you can do so from your Authorized Harman Dealer.
Due to the fact that the TL300 is hot while in operation, gloves should be worn while tending to the fire.
For your reference, please copy
your serial number from the label
on your stove to the box below.
sERIAL nUMBER
Report#/Rapport # 135-S-18-6
Tested to/Teste a: UL 1482, UL 737
Meets requirements of ULC S627-00/Selon les exigences de ULC S627-00
Certified for USA and Canada/Certifie pour les Etats-Unis et le Canada
Room Heater, Solid Fuel Type, Also For Use In Mobile Homes In US only
PREVENT HOUSE FIRES: Install and use only in accordance with manufacturer's installation and operation
instructions and local codes. In absence of any local codes, installation must meet minimum requirements of
NFPA 211 in USA. Refer to manufacturer's instructions and local codes for precautions required for passing
chimney through a combustible wall or ceiling.
FOR USE WITH SOLID WOOD FUEL ONLY.
Don't connect this stove to a chimney serving another appliance.
Flue connector pipe must be 6" diameter, minimum 24 MSG black or 26 MSG blue steel.
Chimney must be factory built UL 103HT or masonry.
NOTE: Replace glass only with 5mm ceramic glass available from your dealer.
Inspect and clean chimney frequently. Under certain conditions of use, creosote buildup may occur rapidly.
DO NOT OVERFIRE - IF HEATER OR CHIMNEY CONNECTOR GLOWS, IT IS OVERFIRING.
Prevention des incendies:
Respectez scrupuleusement les instructions du constructeur pour l'installation et l'utilisation.
Respectez les regles et normes applicables dans votre region. Dans tous les cas, l'installation devra au
minimum satisfaire aux exigences de NFPA 211 AUX Etats-Unis.
Reportez vous aux instructions du fabricant et aux regles locales pour les precautions necessaires lors du
passage des tuyaux de fumee a travers un mur ou un plafond combustible. Controlez et nettoyez frequem-
ment la cheminee et les tuyaux de fumee selon les instructions du fabricant.
N'UTILISIXZ QUE DU BOIS EN BUCHES:
Ne pas raccorder ce poele a un conduit de fumee utilise pour un autre appareil.
Le tuyau de fumee doit avoir 6" de diametre minimum, et etre en acier de qualite 24 MSG noir ou 26 MSG
bleu.
Le conduit de fumee peut etre maconne ou de fabrication industrielle type ULC S629.
Nota: Ne remplacer la vitre qu'avec une vitre ceramique de 45 mm disponible chez votre fournisseur.
Controlez et nettoyez frequemment la cheminee et les tuyaux de fumee. Dans certaines conditions
d'utilization, des accumulations de cresote peuvent se produire rapidement.
NE PAS SUR CHAUFFER - SI LE POELE OU LE TUYAU ROUGISSENT, VOUS SURCHAUFFEZ
Harman TL300
4

introduction

Listed soLid FueL FirepLace stove or room Heater
appareiL de cHauFFage ou poeLe a combustibLe soLide
Model/Modele: Tl300
Serial NuMber/NuMero de Serie:

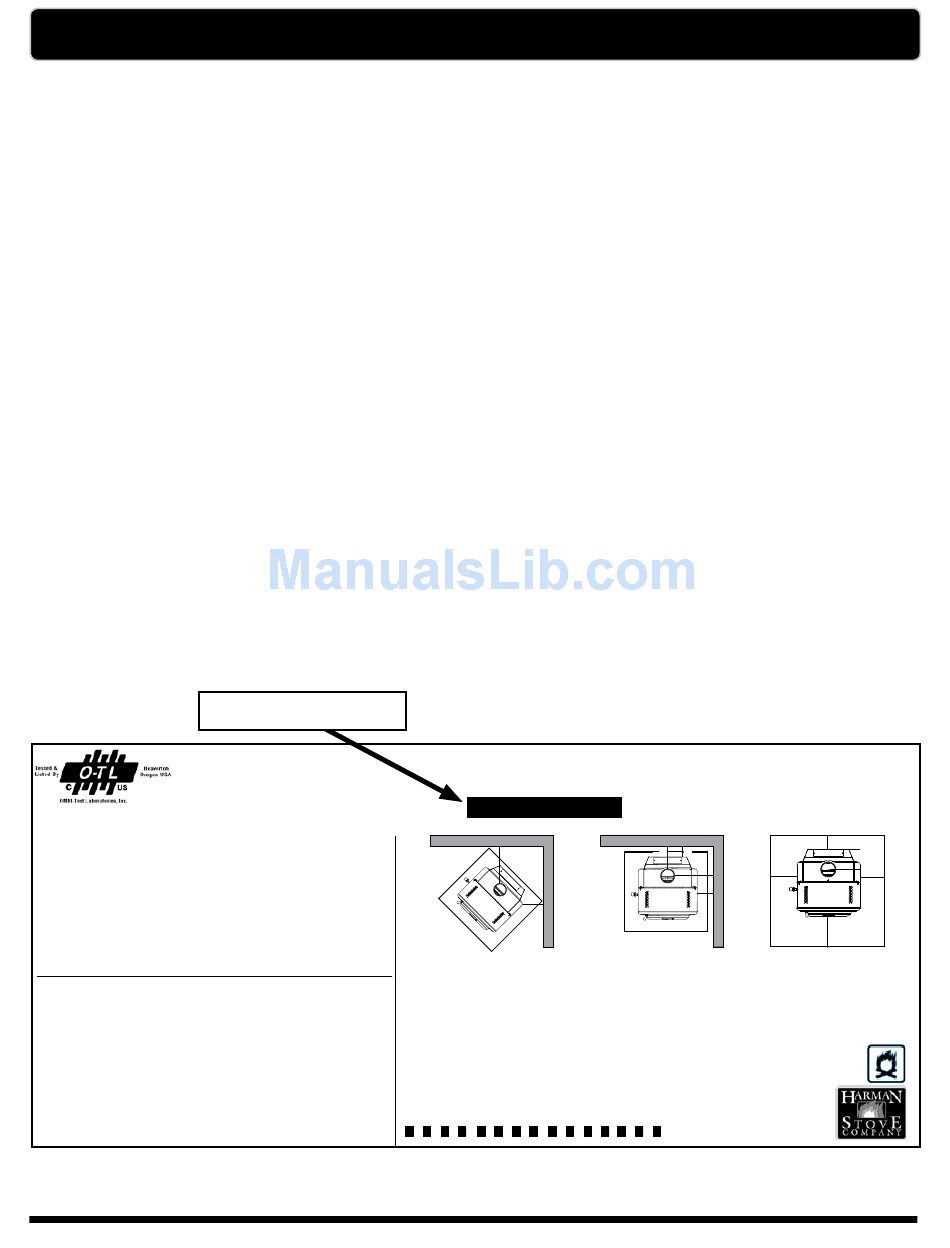

CLEARANCE TO COMBUSTIBLE SURFACES
A - Unit to Sidewall
B - Unit to Backwall
C - Chimney Connector to Sidewall
D - Chimney Connector to Backwall
E - Unit to Adjacent Wall
F - Chimney Connector to Adjacent Wall
* See manual for additional installation configurations
CAUTION: HOT WHILE IN OPERATION. DO NOT TOUCH. KEEP CHILDREN AND CLOTHING AWAY. CONTACT MAY CAUSE SKIN BURNS. SEE NAMEPLATE
AND INSTRUCTIONS. KEEP FURNISHINGS AND OTHER COMBUSTIBLE MATERIALS A CONSIDERABLE DISTANCE AWAY FROM THIS APPLIANCE.
ATTENTION: CHAUD - NE PAS TOUCHER. TENIR LES ENFANTS ET LES VENTEMENTS A L'ECART. RISQUE DE BRULURE. VOIR INSTRUCTIONS SUR LA
plAqUE. lAiSSEr UnE diStAnCE SUffiSAntE EntrE l'AppArEil Et lES mEUblES oU AUtrES obJESt A riSqUE.
2007 2008 2009
appliance certification.
Model: TL300
Test Lab: Omni-Test Laboratories
Type: Solid Fuel Fireplace Stove or Room Heater
Standard(s): UL 1482, UL 737, ULC-S627
Note: This appliance is also approved for
installation into a shop.
F
E
DISTANCES MINIMALES DE SECURITE
20"
A - Entre le mur lateral et l'appareil
18"
B - Entre le mur arriereet l'appareil
31"
C - Entre le tuyau et le mur lateral
24"
D - Entre le tuyau et le mur arriere
18"
E - Entre le mur adjacent et l'appareil
27"
F - Entre le tuyau et le mur adjacent
U.S. ENVIRONMENTAL PROTECTION AGENCY
Certified to comply with July 1990 particulate emission standards.
Date of Manufacture/Date de fabrication:
JAN FEB MAR APR JUL AUG SEPT OCT NOV DEC
MAY JUN
CoNTaCT loCal buildiNg or fire offiCialS abouT
reSTriCTioNS aNd iNSTallaTioN iNSpeCTioN iN
your area.
CoNSulTeX leS adMiNiSTraTioNS eT orgaNiSMeS
CoMpeTeNTS pour la CoNSTruCTioN eT la pre-
VeNTioN deS iNCedieS afiN de reSpeCTer leS
regleS de SeCuriTe eN Vigueur.
8"
(200 mm)
D B
C
8"
(200 mm)
A
18"
Use a non-combustible floor protector extending
under the unit and to the sides, front, and back of
500 mm
unit as shown in floor protection diagram. mea-
450 mm
sure the front distance from the surface of the
775mm
glass door.
600 mm
Utiliser une protection de sol incombustible de-
pressent de l'appareil sur les cotes, l'arriere et le
450 mm
devant comme indique sur le schema. Le mea-
675 mm
sure doit etre prise a partir de la vitre.
Manufactured by/Fabriqué par :
Harman Stove Company
352 Mountain House Road
Halifax, PA 17032 (É.-U.)
8"
(200 mm)
(450 mm)
