Quick Start Guide

After reading the important safety information, you may wish to 'plug and go'. If, at
any time, you are in doubt as to the correct operation of the unit, all operational
points are covered in detail later in this manual, but as a quick start;
Basic functions

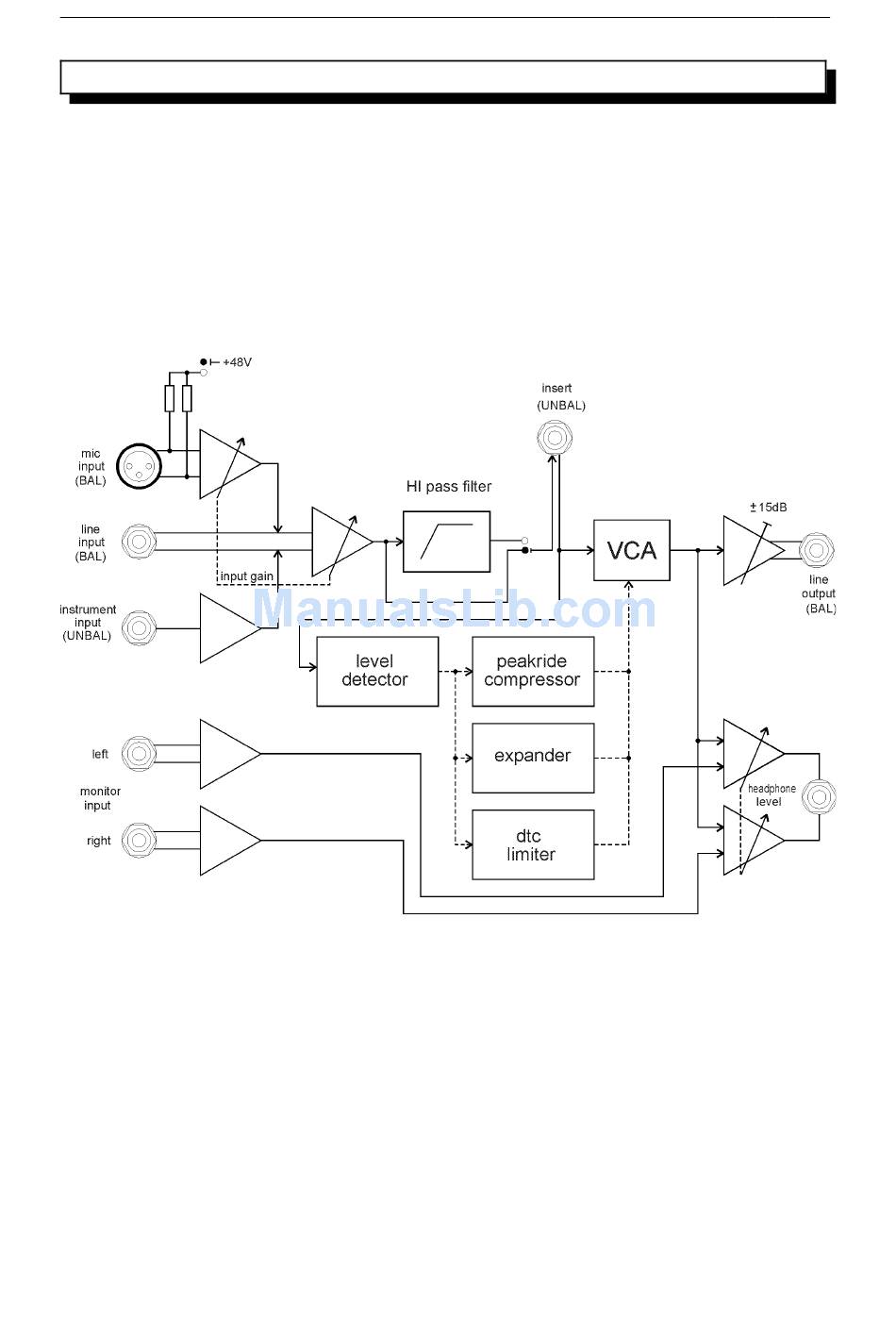

The P1 is a mono audio path processor with separate stereo monitoring facility, as
shown below;
The three audio inputs have separate connectors but only one of these inputs is
connected to the main processing chain at any one time. This is controlled by a
simple priority system through the actual plugging of the connectors.
The balanced LINE input (3 pole ¼" jack plug) will always have the highest priority.
The unbalanced INSTRUMENT input (2 pole ¼" jack plug) has priority over the
MICROPHONE input.
The balanced MICROPHONE input (3 pole XLR plug) has the lowest priority.
The connector wiring follows normal audio convention. Details are given later in this
manual.
