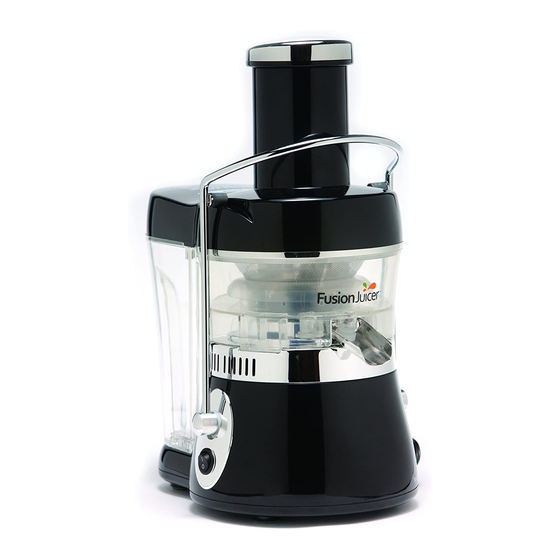

Summary of Contents for FusionJucer MT1020-1

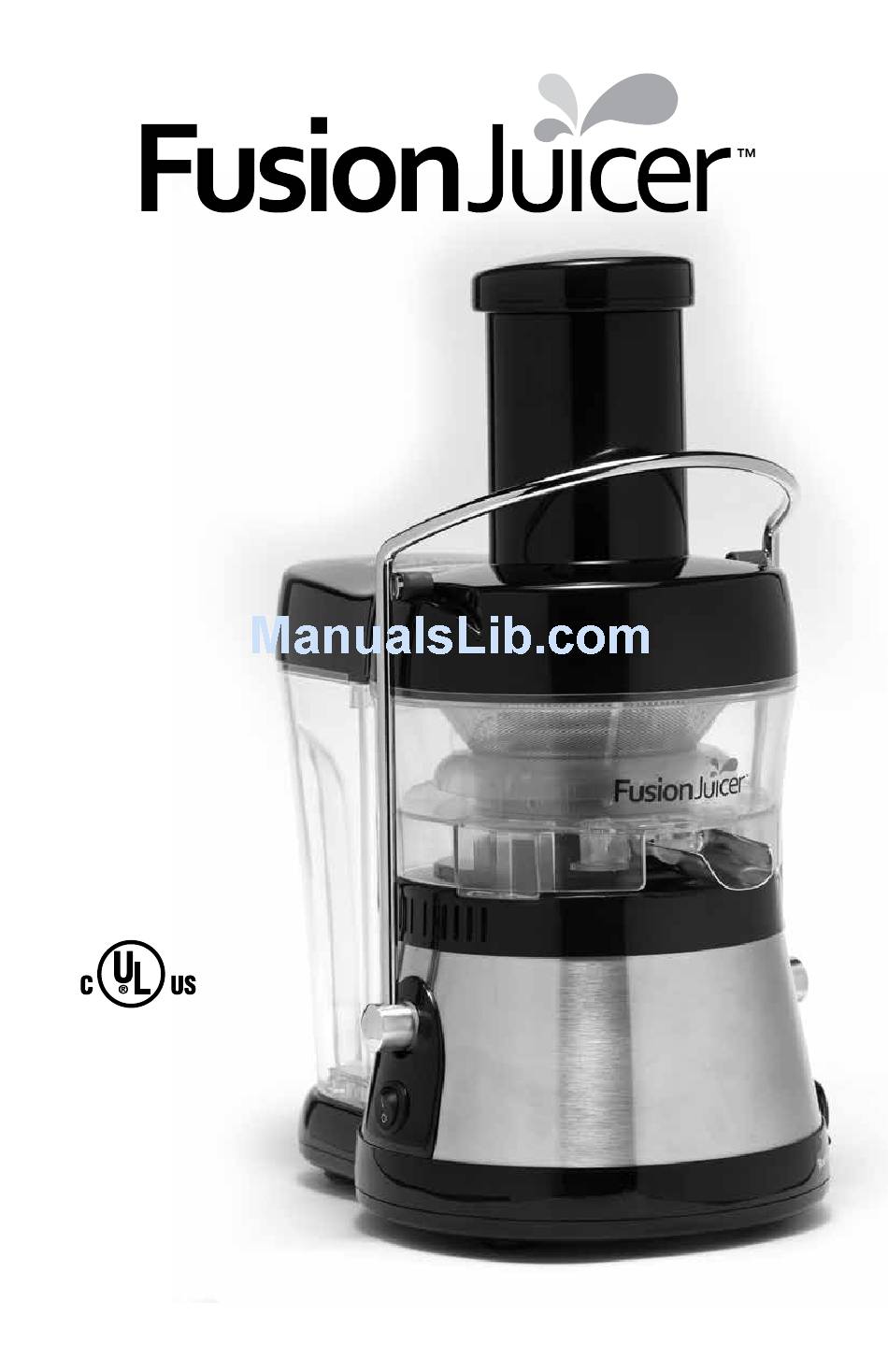

- Page 1 Operating Manual Model # MT1020-1 FOR HOUSEHOLD USE. Please read and save this manual. Warranty Information Inside...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Important Safeguards Safety Features Parts List Disassembly 6–7 Assembly 8–9 Step-by-Step Guide to Juicing 10–16 Cleaning Your Juicer 16–17 Troubleshooting Warranty Common Questions & Answers 20–21... -
Page 3: Important Safeguards
IMPORTANT SAFEGUARDS READ THESE SAFEGUARDS CAREFULLY BEFORE USING THIS PRODUCT! When using electrical appliances, basic safety precautions should always be followed including the following: • Read all instructions • NOT FOR USE BY CHILDREN! Keep out of the reach of children to avoid injury This appliance is not a toy •... -
Page 4: Safety Features
• If juicer jams, turn power switch off immediately and remove AC cord from electrical outlet, disassemble, and clean • Do not use outdoors • Be sure to turn switch to OFF position after each use of your juicer Make sure the motor stops completely before disassembling •... -
Page 5: Parts List
PARTS LIST Chute Pulp Guard Pusher Pulp Collector Lid with Built-in Pulp Guard Removable Non-Drip Spout Receptacle Safety Micro Switch (Located on reverse side) Filter/Blade Locking Bar Base... -
Page 6: Disassembly
DISASSEMBLY ImPORTANT: Before disassembling the unit make sure you turn the power OFF and unplug the AC cord from the electrical outlet. STEP 1 Pusher Remove pusher from the chute Chute STEP 2 Lower the locking bar (silver) Locking Bar into the disengaged position as shown STEP 3... - Page 7 DISASSEMBLY (Cont.) STEP 4 Remove pulp collector by sliding the bottom away from the base in the direction of the arrows while unhooking from under lip on receptacle Pulp Collector Base STEP 5 Remove filter/blade/receptacle Receptacle unit from base by grasping the receptacle with two hands (Lift and Twist) Then lift receptacle and twist in...
-
Page 8: Assembly
ASSEMBLY STEP 1 Place base on a dry flat surface with locking bar in Locking down position as shown. In front of the machine (spout side). IMPORTANT: There is a Safety MicroSwitch located in the back center of the base. This mechanism is an added safety feature. -
Page 9: Assembly
ASSEMBLY (Cont.) Filter/Blade Lid with Built-In Pulp Guard Receptacle Top Rim Receptacle Pulp Collector Juice Spout STEP 4 STEP 5 Place filter/blade inside receptacle. Rotate the filter/ Place lid with built-in pulp guard on top of receptacle, blade allowing it to settle into alignment. Press down making certain it is securely aligned with the pulp on rim of filter/blade firmly to secure. -
Page 10: Step-By-Step Guide To Juicing
STEP-BY-STEP GUIDE TO JUICING Congratulations on your purchase of the Fusion Juicer In order to assure that your first and every juicing experience will be a pleasant one, we have included this “Step-by-Step Guide to Juicing” Juicing is a quick and satisfying way to get the vitamins, nutrients, and minerals from fresh fruits and vegetables…... -
Page 11: Helpful Tips
Helpful Tips For easy to follow additional information, you can visit our website at www.powerjuicer.com and select: “Juicing Tips” for, instructional videos to “help you get started”, “how to make juice”, or “how to clean your Fusion Juicer” and more. Balancing The Blade, 5–10 Seconds is All it Takes It is necessary to run the machine for approximately 5–10 seconds before inserting any produce to be juiced This lets the blade balance itself before... - Page 12 Helpful Tips Noise and Vibration Sometimes when you juice you’ll hear a bit more noise than the normal whisper quiet juicing you’ve come to expect from your Fusion Juicer This noise may also be accompanied by a little extra vibrating This is alright; it is just the juicer processing the food Be patient and let the Fusion Juicer work The Benefits of Juicing We are not suggesting you replace the regular daily consumption of...
- Page 13 Helpful Tips Carrots Carrots can be a bit challenging to juice due to their dense nature and irregular shape Do not over stuff the chute Leave some room on the sides to be able to maneuver the carrots while juicing They tend to bounce around inside the chute Use the pusher to guide them to the blade Citrus Fruits In our Recipes for Healthy Living book we recommend you remove the...
- Page 14 Helpful Tips Berries and Small Fruits Juicing berries may seem a bit challenging at first but once you get the hang of it you will love the great flavors they add to your juice Not to mention the health benefits they have to offer When juicing berries (except cranberries) you will need to add something that contains a larger volume of juice such as an apple or orange Strawberries contain the most juice as they tend to be large For example, process the berries first (you may not see a lot of juice...
- Page 15 Fruits and Vegetables: Ideal for Juicing Apples Grapes Peaches (harder) Asparagus Guava Pears (harder) Brussels sprouts Honeydew Melon Peppers Cabbages Horseradish Pineapple Cantaloupe Jicama Pomegranate seeds Celery Kiwi Potatoes Cherries (pitted) Kohlrabi Pumpkin Clementines Lemon Radicchio Cranberries Lettuces Radishes Cucumber Lime Squashes Fennel...
-
Page 16: Cleaning Your Juicer
Fruits and Vegetables: Containing a Large Juice Content Apples Grapefruits Peppers Cantaloupe Grapes Pineapple Celery Honeydew Melon Tangerines Clementines Lemon Tomatoes Cranberries Lime Watermelon Cucumber Oranges DO NOT JUICE Some fruits and vegetables cannot be juiced due to their inability to produce juice Although they are unable to be juiced, that does not mean we should not enjoy them on a daily basis as part of a healthy diet Examples are: avocado, banana, and coconut... - Page 17 • Wipe base with a soft damp cloth or sponge Do not submerge base in water Do not spray the base with water or any other liquid Base is not dishwasher safe Important: Do not use abrasive sponges, cloths, or cleansers as these can damage the finish •...
-
Page 18: Troubleshooting
TROUBLESHOOTING Problem Possible Reasons and Solution • Check to see if unit is plugged in The motor does not run after being • Locking bar is not locked in place properly switched on. • Check if all parts are assembled properly •... -
Page 19: Warranty
Fusion Juicer Limited Lifetime Warranty The manufacturer warrants that your Fusion Juicer is free of defects in materials and workmanship and will, at its option, repair or replace any defective juicer that is returned. The Fusion Juicer motor is warranted for the lifetime of the original purchaser, and all other parts and components are warranted for 60 days from the original date of purchase. -
Page 20: Common Questions & Answers
Common Questions about the Fusion Juicer This summary briefly answers common questions. Read operating manual before use. Why won’t the power turn on? First, check that the switch is in the on position. Then, check that all parts are assembled properly. The unit has a built-in safety device that will not let the motor turn on if not assembled properly. - Page 21 Can I add ice or liquid to the Fusion Juicer? No, ice turns to water and any other liquid that is poured in will cause an abundance of liquid in the receptacle. It will overflow and run out the sides of the receptacle. Add these items separately in a glass, pitcher or blender. How can I get berry juice to come out of the receptacle? Follow the berries with a fruit or vegetable that contains a larger volume of juice.
- Page 22 NOTES...
- Page 24 www.fusionjuicer.com We are very proud of the design and quality of our Fusion Juicer This product has been manufactured to the highest standards Should you have any problem our friendly customer service staff is here to help you 973-287-5187 © 2013 Tristar Products, Inc All rights reserved Distributed By: Tristar Products, Inc...
