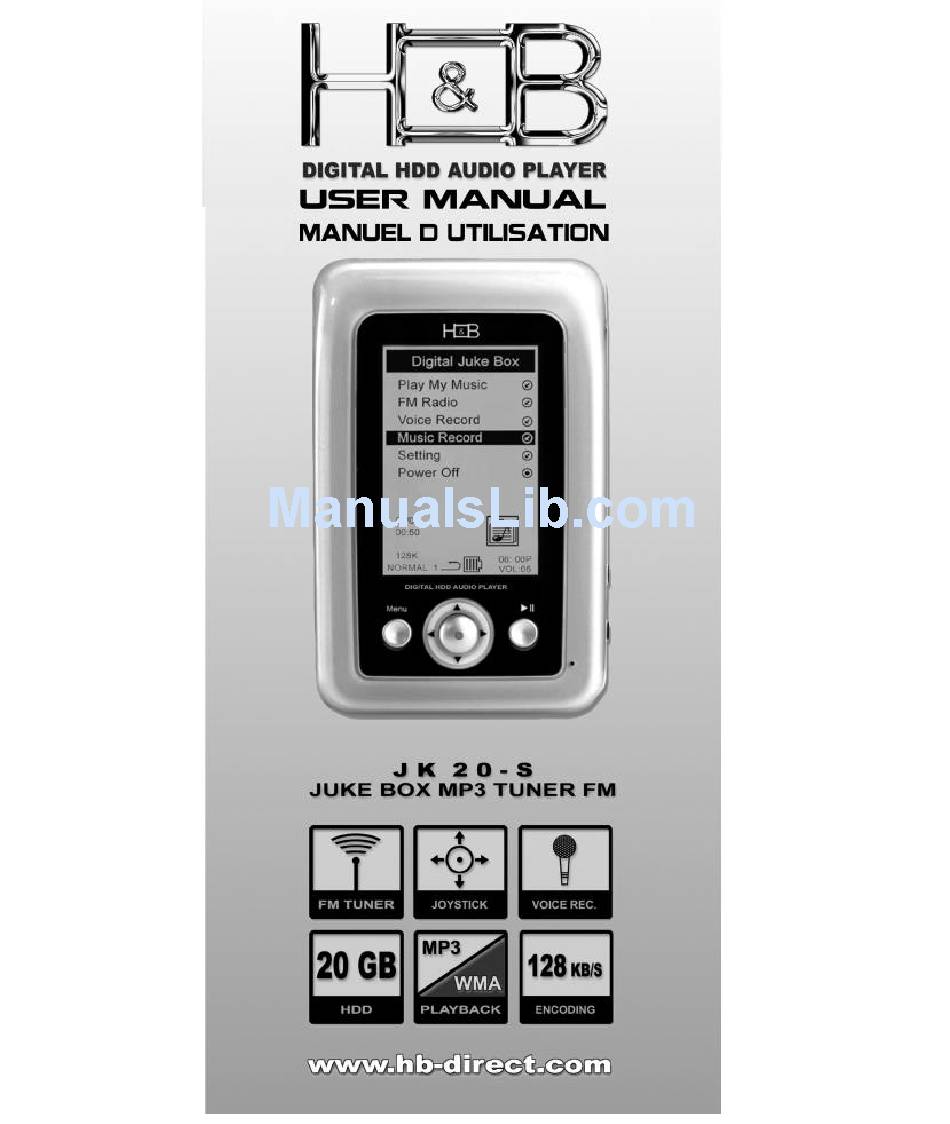

H&B JK 20-S User Manual

Digital hdd audio player juke box mp3 tuner fm

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Table of Contents

Need help?

Do you have a question about the JK 20-S and is the answer not in the manual?

Questions and answers

Summary of Contents for H&B JK 20-S

Page 2: Important Safety Information
DISCLAIMER The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaim any implied warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes.
Page 3: Packing List
INTRODUCTION WHAT IS MP3/WMA FORM AT? MP3 / WMA format files are compressed digital audio files, which consumers can listen to with near CD quality Commercial CD audio files can be compressed to MP3 / WMA format files, which are suitable for internet transmission due to their compact size and can be stored in a portable audio device.
Page 4: Minimum System Requirements
INSTALLING SOFTWARE MINIMUM SYSTEM REQUIREMENTS § Windows 98SE / ME / 2000 / XP. § Pentium 200 MHz or above. § Disk Drive 16MB free hard disk space (to download and upload files from the player). § 32MB system memory §...
Page 5 On the ”transfer” tab, you can do the following features described below by function-oriented items: To download files to your MP3 player Go click the specified folder and then the file name(s) saved in the folder will show up soon in the file list on PC. Select the desired MP3 file(s) shown in the file list on PC and then click the “Send to player”...
Page 6 Music list 1 Music list 2 Choose these items shown on the “Sorting Box” Click the “TAG” button to edit the ID3 Tag information, including title, album, artist and genre for the selected song. Click the “Delete” button to dismiss the specified song. Be careful. Deleting in the sorting box will also delete the music file on the user’s JukeBox.
Page 7 To change the start up picture If you would love to change the start up picture shown on the MP3 player’s LCD screen, click the “start up picture” button to get further setting as shown below. Choose the folder in which your favorite pictures are stored and then select a picture you want. At the same time, you can preview the picture demonstrated on the right box.
Page 8: Important Notes
USE AS PC DRIVE If you wish to use the JukeBox as an external Hard Disk Drive, please follow the below steps to finish. Connect the JukeBox to your PC’s or (Notebook’s) USB port with the supplied USB cable. Click on the My Computer icon, you will find one new removable drive such as “ E “ or “ F “drives. NB : Under win 98 operation system, if the new drive does not appear, please refer to page 1 to complete the installation procedure of driver.
Page 9: Playing Music
NOTE: Press “MENU” above two seconds and the device prompt user to press “? ¦ / ¦ ” to lock all buttons. Press “? ¦ / ¦ ” to confirm. To unlock the hold setting, press MENU” above two seconds and the device prompt user to press “? ¦ / ¦ ” to unlock all buttons. Press “? ¦...
Page 10: Playing Play Lists
Playing Play Lists 1. Scroll (? or ? ) to “Play Lists”, then press “SEL” My Music Menu (Idle) 2. Choose the favorite play list (? or ? ), then press “SEL” Play Lists FM Recorded Play List Menu Recorded songs 3.
Page 11: List Manager
4. While the playback is underway, press “ESC / Menu” to navigate songs and execute other operations. 5. While navigating is underway, use navigating function to My Music Menu. Scroll indicating bar to Now Playing, then press “SEL” or idle for 18 seconds to Song Content Display. My Music Menu (Playback) Songs...
Page 12 Creating Play List Scroll (? or ? ) to “Create Play List”, then press “SEL” to go into the “Create Play List “display. Under the edit box, select “Clear” to delete the default character string, “New Play List”. Scroll to select the first character of the desired Play list name and then press ”SEL” to save your choice. Continue to select the whole character string and press ”OK”...
Page 13: Playing Songs
Playing Songs 1. Scroll (? or ? ) to “Songs”, then press “SEL” My Music Menu 2. Scroll (? or ? ) to select the first character of each music title, then press “SEL” to confirm Songs Sort BCDEFGHIJKLMNOPQR All I Ask of you Amigos Para Si Any Dream Will Come As If We Never...
Page 14 Search for 1. Scroll (? or ? ) to “Search for“, then press “SEL” My Music Menu 2. Scroll (? or ? or ? or ? ) to select the first character of each music title, then press “SEL” to confirm, and so do other successive characters.
Page 15 Playing My Music Files 1. Scroll to “My Music Files”, then press “SEL” My Music Menu 2. Scroll to select favorite file name, then press “SEL” or “? ¦ / ¦ ” to playback 3. While navigating is underway, use navigating function to My Music Menu. Scroll indicating bar to Now Playing, then press “SEL”...
Page 16: Volume Control
Volume Control 1. Scroll (? or ? ) to “Volume”, then press “SEL” 2. Scroll (? or ? ) to adjust volume, press “SEL” to confirm or “MENU” to cancel Equalizer 1. Scroll (? or ? ) to “Equalizer”, then press “SEL” 2.
Page 17: Stop Record
FM-100.1MHz Volume FM Record Preset Channel Set Channel Search Channel Sleep Timer ß Auto Search --> Background Status Volume control 1. Scroll (? or ? ) to “Volume”, then press “SEL” Scroll (? or ? ) to adjust volume, press “SEL” to confirm or “MENU” to cancel FM Record 1.
Page 18: Preset Channel
Preset Channel 1. Scroll (? or ? ) to “Preset Channel”, then press “SEL” 2. Scroll (? or ? ) to select preset frequency, then press “SEL” to confirm or “MENU” to exit FM Channel Return Ch-1 96.7MHz Ch-2 88.0MHz Ch-3 90.1MHz Ch-4...
Page 19 Recording Voice Record (Recording by Built-in Mic) 1. Scroll (? or ? ) to “Voice Record”, then press “SEL” 2. Scroll (? or ? ) to “Do Record”, then press “SEL” to confirm 3. Scroll (? or ? ) to “Pause” and press “SEL” to pause recording. While pause-recording is underway, scroll to “Resume” and press “SEL”...
Page 20 4. While recording is underway, scroll to “Volume” and press “SEL” to adjust earphone output volume Scroll to “Stop Recording” and press “SEL” to terminate recording NOTE: You can follow the path: Preferences/ Record Quality to select your desired record quality. Preferences Scroll to “Preferences”, then press “SEL”...
Page 21 LCD Contrast 1. Scroll (? or ? ) to “LCD Contrast”, then press “SEL” 2. Press (? or ? ) to change the default LCD contrast while powered on, then press “SEL” to confirm or “MENU” to cancel Timer Scroll (? or ? ) to “Timer”, then press “SEL” 1.Backlight Timer 1.1 Scroll (? or ? ) to “Backlight Timer”, then press “SEL”...
Page 22: To Power Off
To Power Off Scroll (? or ? ) to “Power Off” under Main Menu, then press “SEL” to confirm Main Menu In the “Stop” mode(status of idle), you also can press “? ¦ / ¦ ” for 2 second to power off...
Page 23 Warranty and support More information updates or assistance on this product is available at H&B website under Jukebox Player product page: www.hb-direct.com Important safety information Read these instructions carefully and pay attention to all warnings and guidelines. Do not overload electrical sockets or extension cables. Overloading can result in fire or electric shock. Do not spill liquids on the Jukebox.
