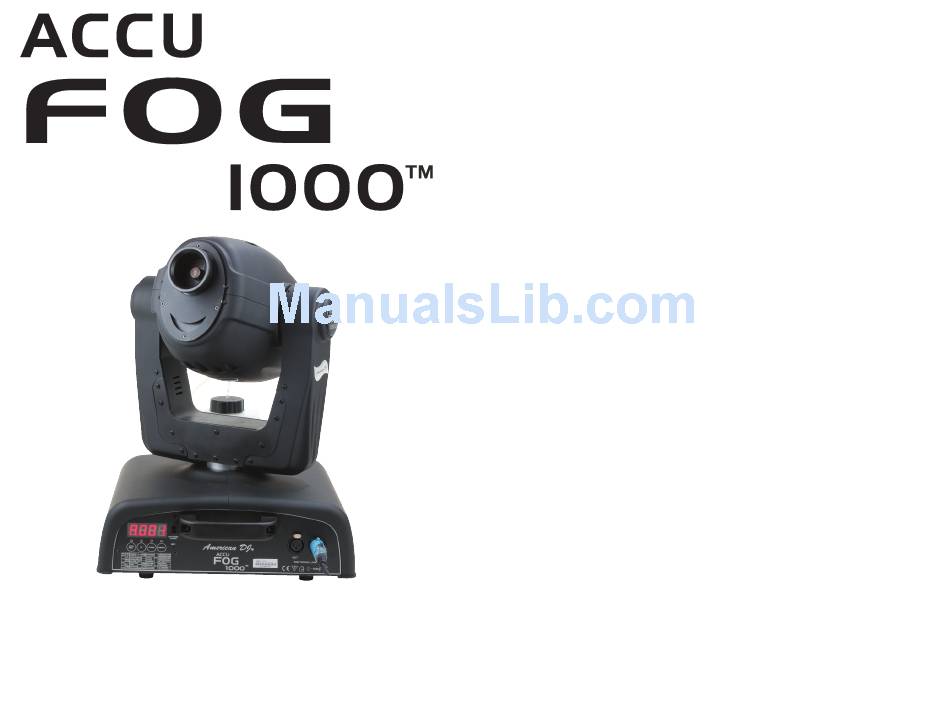

American DJ Accu Fog 1000 User Instructions

Fog machine
Hide thumbs
Table of Contents

Advertisement

Quick Links

Enlarged version
Caution: Fog Machines may set off Smoke Alarms!
User Instructions
Rev. 5/07
American DJ
®
4295 Charter Street
Los Angeles CA. 90058
www.americandj.com
American DJ

Table of Contents

Unpacking......................................................................3
Introduction....................................................................3
Customer Support......................................................................3
Safety Precautions......................................................................4
Handling Precautions..................................................................5
Registration......................................................................5
Features.........................................................................6
Set-Up.............................................................................7
System Menu............................................................................10
Editing Program.........................................................................24
Error Codes...............................................................................29
Operating Modes.......................................................................31
DMX Traits.................................................................................33
Fuse Replacement....................................................................36
Cleaning..................................................................36
Trouble Shooting.......................................................................36
Warranty.................................................................37
Specifications....................................................................39
American DJ
- www.americandj.com - Accu Fog 1000 Instruction Manual Page 2
®
®

Advertisement

Table of Contents
loading

Related Manuals for American DJ Accu Fog 1000

Summary of Contents for American DJ Accu Fog 1000

  • Page 1: Table Of Contents

    Trouble Shooting...............36 Warranty..............37 Specifications..............39 Caution: Fog Machines may set off Smoke Alarms! User Instructions American DJ ® 4295 Charter Street Los Angeles CA. 90058 Rev. 5/07 www.americandj.com American DJ - www.americandj.com - Accu Fog 1000 Instruction Manual Page 2 ®...

  • Page 2: Accu Fog

    • Never connect this unit to a dimmer pack Introduction: The Accu Fog 1000 is a 5 or 7 DMX channel (depend- • Do not attempt to operate this unit, if it becomes damaged in anyway ing on the mode you are in), moving head, intelligent DMX fog machine.

  • Page 3: Handling Precautions

    Accu Fog 1000 Product Registration The new Accu Fog 1000 fog machines features a fog juice level sen- sor. When the fog juice level reaches a low level, a built-in sensor will The Accu Fog 1000 carries a one year limited warranty. Please fill out automatically shut off the pump.

  • Page 4: Set-Up

    Before plugging your unit in, be sure the source volt- to use standard two conductor shielded cable (This cable may be age in your area matches the required voltage for your American DJ purchased at almost all professional sound and lighting stores). Your ®...

  • Page 5: System Menu

    XXX(001~999) Edit program via CEDT ON/OFF controller REC. RE.XX Auto Save ON/OFF Program test American DJ - www.americandj.com - Accu Fog 1000 Instruction Manual Page 9 American DJ - www.americandj.com - Accu Fog 1000 Instruction Manual Page 10 ® ®...
  • Page 6 MIC - With this function you can make the internal mic more or less sensitive to sound. American DJ - www.americandj.com - Accu Fog 1000 Instruction Manual Page 11 American DJ - www.americandj.com - Accu Fog 1000 Instruction Manual Page 12 ®...
  • Page 7 3. The display will show “T-01”. You can now press the up 1. Access the main menu. American DJ - www.americandj.com - Accu Fog 1000 Instruction Manual Page 13 American DJ - www.americandj.com - Accu Fog 1000 Instruction Manual Page 14 ®...
  • Page 8 - When you activate this reset function, the fixture will only reset the pan/tilt motor. 4. Press ENTER to confirm. American DJ - www.americandj.com - Accu Fog 1000 Instruction Manual Page 15 American DJ - www.americandj.com - Accu Fog 1000 Instruction Manual Page 16 ®...
  • Page 9 1. Access the main menu. 4. Tap the UP button until “D-ON” is displayed, press ENTER. American DJ - www.americandj.com - Accu Fog 1000 Instruction Manual Page 17 American DJ - www.americandj.com - Accu Fog 1000 Instruction Manual Page 18 ®...
  • Page 10 5. Press ENTER to confirm. must first set the address that is currently assingned to the unit. American DJ - www.americandj.com - Accu Fog 1000 Instruction Manual Page 19 American DJ - www.americandj.com - Accu Fog 1000 Instruction Manual Page 20 ®...
  • Page 11 - Use this function to display the Software version of settings of the device. All settings will be set back to the the unit. American DJ - www.americandj.com - Accu Fog 1000 Instruction Manual Page 21 American DJ - www.americandj.com - Accu Fog 1000 Instruction Manual Page 22 ®...

  • Page 12: Editing Program

    - With this function you can record the scenes auto- matically for the external controller. 1. Access the main menu. American DJ - www.americandj.com - Accu Fog 1000 Instruction Manual Page 23 American DJ - www.americandj.com - Accu Fog 1000 Instruction Manual Page 24 ®...
  • Page 13 12. Press ENTER to save the settings for the scene you are editing, the display will change to the next scene automatically. American DJ - www.americandj.com - Accu Fog 1000 Instruction Manual Page 25 American DJ - www.americandj.com - Accu Fog 1000 Instruction Manual Page 26 ®...
  • Page 14 11. Press MODE/ESC to exit. The number of steps can be defined under “Step” and the scenes can be called up under “Run”. American DJ - www.americandj.com - Accu Fog 1000 Instruction Manual Page 27 American DJ - www.americandj.com - Accu Fog 1000 Instruction Manual Page 28 ®...

  • Page 15: Error Codes

    (sensor failed or magnet is missing) or there is a stepper motor failure (defective motor or a defective motor IC drive on the main PCB). American DJ - www.americandj.com - Accu Fog 1000 Instruction Manual Page 29 American DJ - www.americandj.com - Accu Fog 1000 Instruction Manual Page 30 ®...

  • Page 16: Operating Modes

    XLR connector only - The last unit in the chain will use 1. The Accu Fog 1000 has a five and seven DMX channel mode. the male XLR connector only. For longer cable runs we suggest a See pages 33-35 for detailed description of the DMX traits.
  • Page 17 0 - 3 NORMAL 4 - 10 10 SECONDS 11 - 255 11 SECONDS 255 SECONDS American DJ - www.americandj.com - Accu Fog 1000 Instruction Manual Page 33 American DJ - www.americandj.com - Accu Fog 1000 Instruction Manual Page 34 ® ®...

  • Page 18: Fuse Replacement

    1. Low frequencies (bass) should cause the unit to react to sound. Tapping on the microphone, quiet or high pitched sounds may not activate the unit. American DJ - www.americandj.com - Accu Fog 1000 Instruction Manual Page 35 American DJ - www.americandj.com - Accu Fog 1000 Instruction Manual Page 36 ®...

  • Page 19: Warranty

    ® tive parts at its expense, and will absorb all expenses for warranty service and repair labor by reason of defects in material or workmanship. The sole responsibility of American DJ ® under this warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the sole discretion of American DJ .

  • Page 20: Specifications

    American DJ ® American DJ World Headquarters: 4295 Charter Street Los Angeles, CA 90058 USA Tel: 323-582-2650 / Fax: 323-582-2610 Web: www.americandj.com / E-mail: info@americandj.com American DJ - www.americandj.com - Accu Fog 1000 Instruction Manual Page 39 ®...
