Summary of Contents for Gigabyte GZ-FADA51-CJB

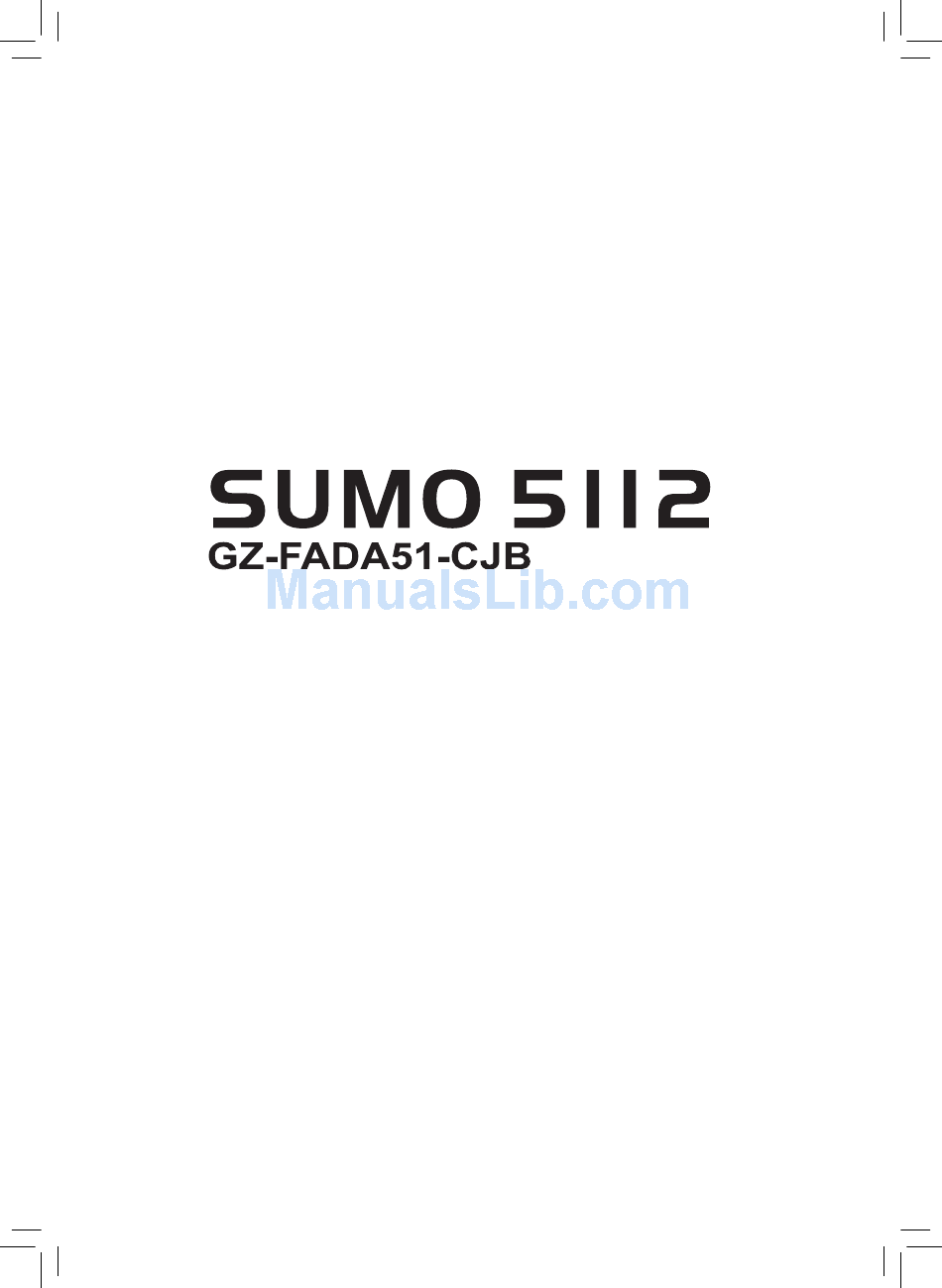

- Page 1 Black English User’s Manual...
- Page 2 Thank you for purchasing a GIGABYTE Chassis. GIGABYTE is dedicated to the integration of water/air-cooling chassis solutions to provide users with the most optimal solution for thermal dissipation. For further information and specifications of the “SUMO” series, please visit GIGABYTE website. (http://www.gigabyte.com.tw) The following is not covered by warranty: 1.
-
Page 3: Table Of Contents
4-9 Application of Removable/Dual Directional HDD Rack 4-10 Installation of 2.5” Enclosure 4-11 Application of DIY inter changeable LED lighting 4-12 Application of Security locks 4-13 Application of Foot Support 4-14 Application of Liquid Cooling System 4-15 Recommended GIGABYTE Thermal Solution products English... -
Page 4: Components Introduction
1. Components Introduction 1-1 Casing’s Internal Structure Power Supply Bay 5.25” Front Device Bay Dual Rear fans Motherboard tray and PCI Slot panel 3.5” Front Device Bay PCI Tool-Free Fastener 3.5” Internal Device Bay Piping Outlets Front intake Fan Foot Support Accessory Box (Refer to the figures below for the attachments in the accessory box) Copper Stand Off x 11... -
Page 5: Casing's Panel Structure
Cable Kit (Refer to the figures below for the cable connectors) eSATA USB 2.0 Audio (HD & AC’97) IEEE1394 (Multi-connectors) Fan 3-Pin Connector Power LED 4-pin Connector Power SW / Reset SW / Speaker Connector 1-2 Casing’s Panel Structure Red Led Disc Storage 2.5”... -
Page 6: Features
Complete Top panel multi-media support, includes 1 x eSATA, 2 x USB 2.0, 1 x IEEE1394, 1 x Audio Set (HD & AC’97). Full Support of GIGABYTE thermal solution LCS and Air cooling products lines. Supports E-ATX / CEB / ATX / Micro ATX motherboards. -
Page 7: Specifications
3. Specifications Model GZ-FADA51-CJB Case Type FULL TOWER Dimensions 205 x 522 x 560 (W x H x D) Front bezel material Aluminum Color Black Side panel Vent / Transparent Body material SECC (0.8mm) Net weight 12.1 KG 5.25" drive bay (External) 3.5"... -
Page 8: Installation Instruction
4. Installation Instruction Please follow the reference sections in order for installation. 4-1 Installation of Power Supply To facilitate the installation, it is recommended to set the chassis upright on the table. Required parts: power supply securing screws x 4 4-1.1 Remove side panel (see step 1-3.1on page 5). -
Page 9: Installation Of Front Multi-Media I/O Ports
4-4 Installation of Front Multi-Media I/O Ports Incorrect connection of sockets can cause the motherboard to malfunction or completely destroy the motherboard. Please observe the installation instructions in the manual carefully as incorrect installations or connection causing faults will void your warranty. The top panel includes: (1) 1 x eSATA, 2 x USB 2.0, 1 x IEEE 1394 and 1 x Audio Set (HD or AC’97) (2) Basic casing power switch control cable kit... -
Page 10: Connection Of Fan Power Cable
(2) Basic casing power switch control cable kit Follow the connectors list below for installation (see figure below) Connector Color Power LED Green(+) / Wite(-) Power SW Orange(+) / White(-) 4-5 Connection of Fan Power Cable This chassis has 1 x 12cm silent cooling fan at the front and 2 x 12 cm silent blue LED fans at the rear. -
Page 11: Application Of Removable/Dual Directional Hdd Rack
4-9 Application of Removable/Dual Directional HDD Rack This chassis includes a removable/dual directional HDD rack for preferred installation direction and optimal heat dissipation. Required Tools: None 4-9.1 4-9.2 Remove the thumbscrew Unlock tool-free fastener of the removable HDD rack by that secures the removable pushing it downwards. -
Page 12: Application Of Foot Support
4-14 Application of Liquid Cooling System This chassis fully supports GIGABYTE 3D Galaxy series liquid cooling system (also supports most of the liquid cooling systems currently available). While installing the liquid cooling system, please refer to it’s manual in advance.
