USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STRINGSTUDIO and is the answer not in the manual?

Questions and answers

Related Manuals for APPLIED ACOUSTICS SYSTEMS STRINGSTUDIO

Summary of Contents for APPLIED ACOUSTICS SYSTEMS STRINGSTUDIO

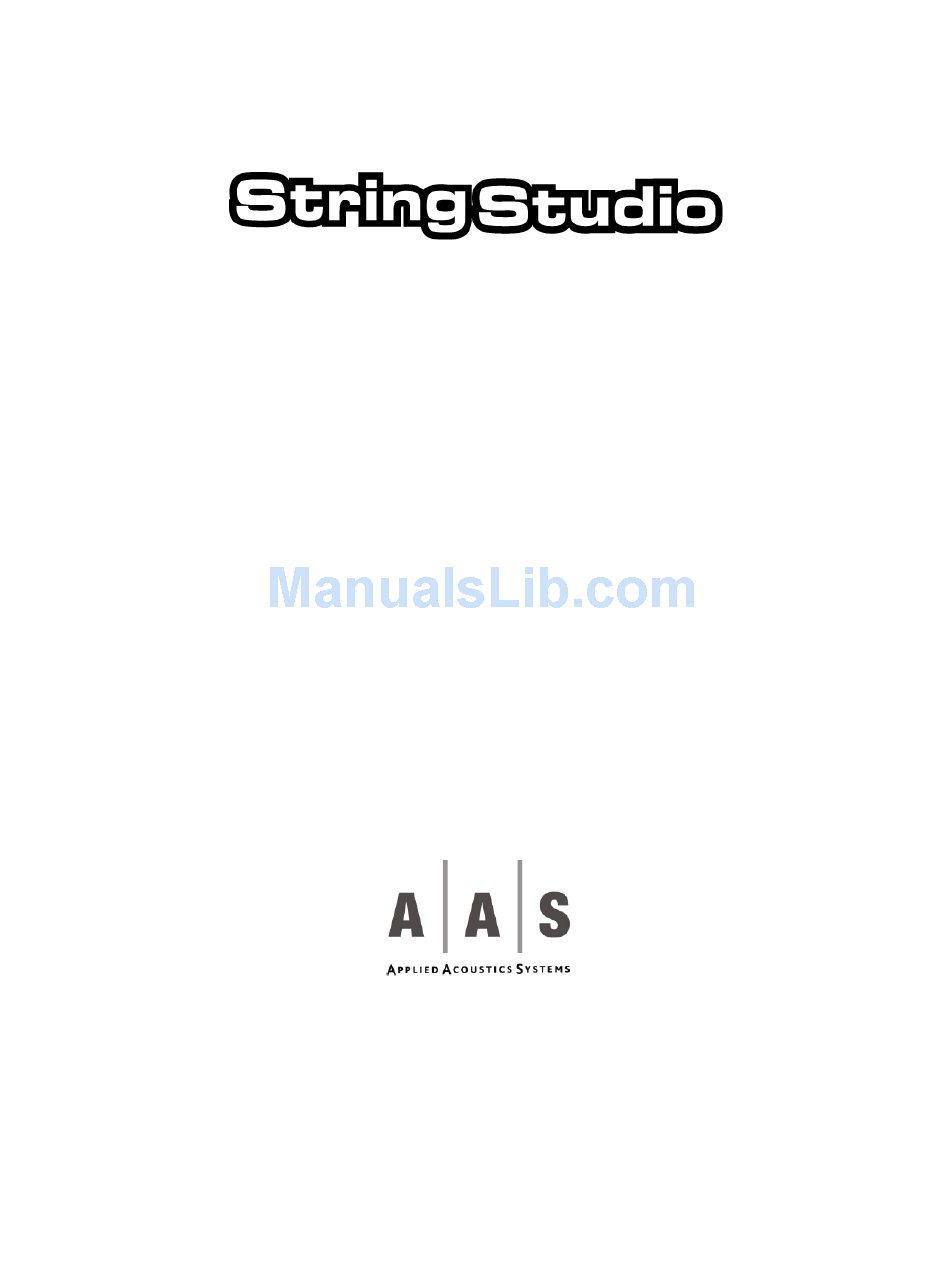

  • Page 1 USER MANUAL...
  • Page 2 Information in this manual is subject to change without notice and does not represent a commitment on the part of Applied Acoustics Systems DVM Inc. The software described in this manual is furnished under a license agreement. The software may be used only in accordance of the terms of this license agreement. It is against the law to copy this software on any medium except as specifically allowed in the license agreement.

  • Page 3: Table Of Contents

    Contents 1 Introduction 1.1 System requirements ....... . . 1.2 Installation ........1.3 Authorization and Registration .
  • Page 4 CONTENTS 4 Parameters 4.1 General Functioning of the Interface ......29 4.1.1 Tweaking Knobs ....... 29 4.1.2 Buttons .

  • Page 5: Contents

    CONTENTS 4.14 The Keyboard Module ....... . 46 4.14.1 Tuning ........46 4.14.2 Mode and Priority .
  • Page 6 CONTENTS 6 Audio and MIDI Settings 6.1 Audio Device Settings ....... . 55 6.2 MIDI Settings .

  • Page 7: Introduction

    Introduction 1 Introduction The String Studio is a synthesizer dedicated to the emulation of string instruments. The synthesizer is entirely based on the A A S physical modeling technology and uses no sampling nor wave tables. Instead it produces sound by solving, on the fly, mathematical equations modeling the different components involved in string instruments and how they interact.

  • Page 8: Installation

    Introduction MIDI Keyboard (recommended) Keep in mind that the computational power required by the String Studio depends on the num- ber of voices of polyphony and the sampling rate used. These computer configurations will enable you to play the factory presets with a reasonable number of voices. 1.2 Installation Mac OS Insert the String Studio program disc into your CD-ROM drive.

  • Page 9: Unlocking String Studio On Windows Xp

    1.3 Authorization and Registration 1.3.1 Unlocking String Studio on Windows XP Step 1: Generating the challenge key After launching the installer for the first time, a pop-up window will appear asking you to enter your serial number. Type your serial number as it appears on the back of the sleeve of the String Studio CD-ROM.
  • Page 10 Introduction Step 2: Generating the Response key and Registering your Product If your computer is connected to the internet, the installer will automatically launch your web browser and connect you to the unlock page of the A A S web server. Your serial number and challenge key will automatically be printed in the form.
  • Page 11 1.3 Authorization and Registration Figure 4: Generation of the response key on the A A S server. Step 3: Completing the unlock process The response key corresponding to your serial number and challenge key will be printed in your browser window. In order to complete the unlock process, copy the response key and paste it into the last field of the installer window of String Studio.

  • Page 12: Unlocking String Studio On Mac Os

    Introduction You change or upgrade your operating system You uninstall the program 1.3.2 Unlocking String Studio on Mac OS Generating the challenge key Automatically After launching the installer for the first time, a pop-up window with information on the unlock process will appear.
  • Page 13 1.3 Authorization and Registration Figure 7: Enter your email address. Figure 8: Enter your serial number. information about yourself including your mailing address and phone number. This information will be used to register your product. Note that only a valid email address is required to regis- ter your product.
  • Page 14 Introduction team is able to contact you to resolve any future support issues, and notify you of product updates promptly. This information is kept completely confidential. Registration of your product will en- title you to receive support and download updates when available, as well as take advantage of special upgrade prices offered from time to time to registered A A S users.
  • Page 15 1.3 Authorization and Registration Figure 11: Final step of the unlock process. Enter your response key in the window. Generating the challenge key Manually If your computer is not connected to the internet, choose Manually in the second page displayed by the installer, as shown in Figure 12, and click on the right arrow.
  • Page 16 Introduction Figure 12: Choose the manual unlock mode if your computer is not connected to the internet. Figure 13: Generation of the challenge key during manual installation. You change your computer You uninstall the program...

  • Page 17: Obtaining Your Response Key And Registering By Fax Or Over The Phone

    1.4 Getting started 1.3.3 Obtaining your response key and registering by fax or over the phone: Should you not have access to the internet, A A S support representatives are available to assist you in the unlock and registration process Monday to Friday, 9am to 6pm EST. You may contact us by phone at: North America Toll-free number: 1-888-441-8277 Outside North America: 1-514-871-8100...

  • Page 18: Using Midi Links

    Introduction MIDI Configuration Windows - Select your MIDI port from the list in the MIDI Configuration dialog from the Edit Preferences MIDI Settings . . . menu. Mac OS - Select your MIDI port from the list in the MIDI Settings dialog from the String Studio Preferences .

  • Page 19: Using String Studio As A Plug-In

    1.5 Getting help 1.4.3 Using String Studio as a Plug-in The String Studio integrates seamlessly into the industry most popular multi-track recording and sequencing environments as a virtual instrument plug-in. The String Studio works as any other plug-in in these environments so we recommend that you refer to your sequencer documentation in case you have problems running the String Studio as a plug-in.
  • Page 20 Introduction Bold characters are used to name modules, commands and menu names. Italic characters are used to name controls on the interface. Windows and Mac OS keyboard shortcuts are written as Windows shortcut/Mac OS shortcut.

  • Page 21: Browser And Presets

    Browser and Presets 2 Browser and Presets String Studio comes with several factory presets covering a wide range of sounds. This collection of presets lets you play and familiarize your- self with this synthesizer without having to tweak a single knob. Soon, however, you will be experimenting and creating your own sounds that you will need to archive or exchange with other users.

  • Page 22: Deleting Presets

    Browser and Presets Ctrl-S/Apple-S shortcut. Be careful, however, as using this command will overwrite the original preset. In order to create a new preset, use the Save Preset As command from the File menu and a window will appear asking for a name for the new preset. Once the preset is saved using this command, a new preset icon will appear directly under the String Studio folder.

  • Page 23: Defining A Default Preset

    2.5 Defining a Default Preset 2.5 Defining a Default Preset It is possible to define a default preset that will be loaded automatically when String Studio is launched. To define a default preset, select a preset by clicking on its icon in the browser. Then launch the Edit Preset Information window as explained in the preceding paragraph and select the Mark As Default option.

  • Page 24: Customizing The Browser

    Browser and Presets 2.9 Customizing the browser The Browser structure can be customized in various ways. New folders can be created from the File drop down menu using the Create New Folder command. One can also move presets, MIDI maps, and folders from one place in the browser to another by using the Copy and Paste commands from the Edit drop down menu, or by simply dragging objects from one folder and dropping them into the folder of your choice.

  • Page 25: Architecture Of String Studio

    Architecture of String Studio 3 Architecture of String Studio String Studio is a synthesizer built around a String module. The graphical interface of the different modules of the synthesizer have been grouped into two panels as shown in Figures 14 and 15. In the first page (Panel A), one can find the modules related to the control of the synthesizer and an output effect stage.

  • Page 26: General Signal Flow

    Architecture of String Studio Figure 15: Synthesis modules of String Studio (Panel B). 3.1 General Signal Flow The general architecture of String Studio is presented in Figure 16 and follows the functioning of a real string instrument. It is the vibration from the String which constitutes the main sound production mechanism of the instrument.

  • Page 27: Modulation Sources

    3.2 Modulation Sources Excitator Damper Finger ¡ ¡ ¡ ¡ Bridge or ¡ ¡ String ¡ ¡ Pickup Fret Body of the Instrument Figure 16: General representation of String Studio. Geometry, pitch Damper Geometry Env, LFO, pitch velocity pitch Excitator String Pickup Filter...

  • Page 28: Output Effect

    Architecture of String Studio 3.3 Output Effect At the end of the signal path, the audio signal from the instrument is sent to the output effect stage for further processing. A Reverb, Delay, and Chorus module are available in this effect stage allowing for a wide range of processing possibilities.

  • Page 29: Parameters

    Parameters 4 Parameters 4.1 General Functioning of the Interface 4.1.1 Tweaking Knobs All the knobs on the interface are selected by clicking on them. Once selected, they can be con- trolled in different ways depending on the effect you want to achieve. For coarse adjustment click-hold on a knob and drag the mouse upwards or downwards to move it clockwise or counter-clockwise.

  • Page 30: Inverting A Signal

    Parameters 4.1.4 Inverting a Signal The different modulation signals acting on the String, Excitator, Body, Termination, and Filter modules can easily be inverted by clicking on the small button appearing on the upper right of the corresponding gain knob. The signal is inverted when the button is on (LED lit on and value of 1). 4.1.5 Bypassing a Module The different modules of String Studio can be turned on or off by clicking on the button appearing on the right of the module label.

  • Page 31: The String Module

    4.2 The String Module low notes which is a feature found in many keyboard instruments. Clicking on the inverter LED at the top of the modulation knob inverts this behavior. 4.2 The String Module In a string instrument most of the sound we hear is radiated from the body of the instrument.

  • Page 32: The Excitator Module

    Parameters 4.3 The Excitator Module The String module can be played using different types of exci- tators in order to reproduce different types of instruments and play- ing techniques. The excitator is selected using the Type drop-down menu. The choices available are Plectrum, Hammer 1, Hammer2 or Bow.

  • Page 33: Hammer

    4.3 The Excitator Module 4.3.2 Hammer The Hammer is used to play instruments such as the piano or other percussive instruments. With this excitator, the string is set into free vibration following a force impact with the hammer. The hammer can be used in two modes, Hammer and Hammer 2, as illustrated in Figure 19. In the Hammer 1 mode, the hammer is located below the string and can only interact once with the string because of the action of gravity which brings it down after it has been raised to hit the string.

  • Page 34: The Body Module

    Parameters slip phase and moves in the opposite direction to that of the bow. When the string motion changes direction once more, it sticks to the bow again, moving with the bow until it breaks free and repeats the cycle. Note that the frequency of this stick-slip motion is exactly the same as that of the string oscillation;...

  • Page 35: The Damper Module

    4.5 The Damper Module of the Size drop-down menu from Tiny to Huge. Basically, reducing the size of the Body, shifts its frequency response toward higher frequencies while increasing it, results in a shift toward lower frequencies. In addition to its shape and size, the material of the body also influences its radiation and filtering effects.

  • Page 36: The Termination Module

    Parameters Mass Velocity Damping Stiffness Figure 21: Functioning of the Damper 4.6 The Termination Module This module is used to model the fret/finger/string interac- tion as illustrated in Figure 22. In a real instrument, this inter- action is used to change the effective length of the string and thereby fix the pitch of the note played.

  • Page 37: The Geometry Module

    4.7 The Geometry Module 4.7 The Geometry Module The Geometry module is used to set the location of the point of action of both the excitator and the damper on the string. These positions are adjusted with the Position knobs under the Excitator and Damper labels and can be set to any value between zero (the point of fixation of the string) and half the length of the string (value of 0.5).

  • Page 38: The Distortion Module

    Parameters 4.9 The Distortion module The Distortion module implements a simple distortion effect, such as that found in electric guitar distortion pedals for example. Different distortion algorithms, ranging from mellow to metal, can be selected from the Type drop-down menu. The Drive knob is a gain control used to adjust the level of the signal at the input of the Distortion module and hence the amount of saturation introduced in the signal.

  • Page 39: The Filter Module

    4.11 The Filter Module Amplitude (dB) Amplitude (dB) Gain = 30 dB Gain = 30 dB Gain = 20 dB Gain = 20 dB Gain = 10 dB Gain = 10 dB Gain = −30 dB Gain = −30 dB Freq Frequency (Hz) Freq...

  • Page 40: Resonant Low-Pass Filter

    Parameters The cutoff frequency and resonance of the filters can be modulated with different modulation sources. The modulation sources include the keyboard pitch signal (Kbd) and the output of the Filter Envenvelope generator (Env) and LFO modules. Modulation signals with a positive value will increase the cutoff frequency and Q-factor of the filters while a negative value will decrease them.

  • Page 41: Resonant High-Pass Filter

    4.11 The Filter Module 4.11.2 Resonant High-Pass Filter Q=10 Amplitude (dB) −3dB Slope (dB/Oct) Frequency (Hz) Cutoff Frequency Figure 26: Frequency response of the high-pass filter. The high-pass resonant filter works in exactly the opposite manner as the low-pass resonant filter by removing the frequency component of a signal located below the cutoff frequency while leaving those above the cutoff frequency unchanged.

  • Page 42: Notch Filter

    Parameters frequency and to attenuate the frequencies outside of this band as shown in Figure 27. The band- width of the band-pass filter is set with the Q knob while the center frequency is set with the Cutoff knob. The Order control sets the order of the filter. This parameter affects the slope of the roll-off on both sides of the center frequency.

  • Page 43: The Filter Env Module

    4.12 The Filter Env Module Amplitude (dB) Male Voice Female Voice Frequency (Hz) Formant Frequencies Figure 29: Frequency response of the formant filter. and child (right position). The Q knob is used to cycle between vowels. Note that changing these parameters can be automated by using the different modulation signals.

  • Page 44: The Lfo Module

    Parameters 1Volt attack decay release 1Volt key pressed key released Figure 30: Response curve of an envelope generator 4.13 The LFO Module The LFO module is used as a modulation source for the Filter mod- ule. On the LFO module, one can adjust the waveform, rate and fade-in behavior.

  • Page 45: Rate

    4.13 The LFO Module 4.13.2 Rate There are two ways to adjust the rate, or frequency, of the output of the LFO module. If the Sync control is in its off position, the rate is fixed with the Rate knob. When the Sync control is on, the frequency of the oscillator is fixed relative to the frequency (tempo) of the master clock (see 4.18.1) and the value displayed in the Sync control.

  • Page 46: The Keyboard Module

    Parameters 4.14 The Keyboard Module The Keyboard module controls how the synthesizer voices respond to the events coming from an external MIDI keyboard or from a MIDI sequencer. The first row of controls (Tuning, Oct, Semi) is used to fix the pitch of the keyboard, and transpose the overall keyboard by octaves or semi-tones.

  • Page 47: Unison

    4.15 The Portamento Module 4.14.3 Unison The unison mode allows one to stack voices, in other words, play two or four voices for each note played on the keyboard. This mode creates the impression that several instruments are playing the same note together, adding depth to the sound.

  • Page 48: The Arpeggiator Module

    Parameters when it is turned clockwise the depth of the vibrato will increase when the modulation wheel is used. The increase is always relative to the position of the Amount knob and will be greater as the Mod knob is turned clockwise. The vibrato can be adjusted not to start at the beginning of a note but with a little lag.

  • Page 49: Rhythmic Patterns

    4.18 The Output Effect Section 4.17.2 Rhythmic Patterns The rhythmic pattern is shown on the Pattern display. Different rhythmic presets are available through the utility menu. Notes will be played as the 16-step display is scanned and the corre- sponding step is selected (green button on). The little arrow on the top of the display is used to fix looping points from which the rhythmic pattern will start being played again from the beginning.

  • Page 50: The Clock Module

    Parameters 4.18.1 The Clock Module This module is used to control the tempo of the different effects of the output section as well as that of the LFO and Arpeggiator modules. The Source drop down menu is used to determine if the sync signal comes from an external source or from the internal clock of the module.

  • Page 51: The Reverb Module

    4.18 The Output Effect Section The Delay drop down menu is used to choose between different delay algorithms. The effect can be synchronized to the Clock module with the Sync drop-down menu. Sync values range from 1/8 of a quarter note (a thirty-second note) to 16 quarter notes (4 whole notes) where the duration of the whole note is determined by the value (in BPM) appearing in the Tempo display of the Clock module.

  • Page 52: The Output Module

    Parameters In the first configuration, the Chorus module is first applied, then the Delay and finally the Reverb module. In the second configuration, the signal is first processed by the Delay, then by the Chorus and the Reverb module. Note that each of the effects can be muted by selecting the Bypass preset in its respective algorithm selection drop down menu.

  • Page 53: Toolbar

    Toolbar 5 Toolbar The toolbar at the top of the String Studio interface allows you to monitor important information related to your current set-up. 5.1 Preset Display Displays the name of the currently opened preset. The buttons on the right of the preset name, or alternatively the keys on the computer keyboard, are used to navigate upwards and downwards in the preset hierarchy as found in the browser.

  • Page 54: Midi Led

    Toolbar 5.7 MIDI LED The red MIDI LED toggles when a MIDI signal is received by the String Studio. This is very useful to see if String Studio is receiving MIDI signal from your keyboard or other controllers. If the LED does not blink when you play your keyboard, check your connections and the transmit/receive channels you are using or the MIDI settings of String Studio as explained in Section 6.2.

  • Page 55: Audio And Midi Settings

    Audio and MIDI Settings 6 Audio and MIDI Settings This chapter explains how to select the audio and MIDI devices used by String Studio as well as how to create and edit MIDI links and MIDI maps. When referring to commands that are different on Windows and Mac OS systems, the commands are listed in the following order: Windows command/Mac OS command.

  • Page 56: Editing Midi Links

    Audio and MIDI Settings Move a knob or slider on your MIDI controller (this can be a keyboard, a knob box, or any device that sends MIDI). This will link the control of the String Studio to the MIDI controller you just moved.

  • Page 57: Deleting Midi Links

    6.2 MIDI Settings Click on the OK button and the link appears in the list of controllers linked to the control. Click on the OK button again to confirm the change and to leave the MIDI Links window. Note that the Minimum Value and Maximum Value of a MIDI link can also be set by right/control clicking on the corresponding control and selecting the Set MidiLink Mini- mum Value or Set MidiLink Maximum Value command.

  • Page 58: Audio Control Panel

    Audio and MIDI Settings 6.3 Audio Control Panel To launch the audio configuration panel, choose Audio Control Panel under Preferences of the Edit menu on Windows or the String Studio menu on Mac OS systems. This panel allows you to select the bit depth sample rate (22.05, 44.1, 48, or 96 kHz) and buffer size, which affects how quickly String Studio responds to the control information it receives.
  • Page 59 6.4 Latency Settings In order to optimize the resources allocated to the calculation of audio by String Studio, it is possible to decrease the ratio of resources devoted to the calculation of graphics for the interface in favor of audio related calculations. To adjust this ratio, choose the General command under Preferences in the Edit menu on Windows or String Studio menu on Mac OS and adjust the Per- formance slider to the desired value between better audio performance and smoother graphics.

  • Page 60: Using The String Studio As A Plug-In

    Using the String Studio as a Plug-In 7 Using the String Studio as a Plug-In String Studio is available in VST, DXi, AudioUnit and RTAS (for Mac OS only) formats and integrates seamlessly into the industry most popular multi-track recording and sequencing envi- ronments as a virtual instrument plug-in.

  • Page 61: Saving Projects

    7.6 Saving Projects 7.6 Saving Projects When saving a project in a host sequencer, information on the position of all the controls on the interface, the MIDI links, and the preset name are saved. Note that if the preset was modified after it was loaded, the original version of the preset is not overwritten.

  • Page 62: Quick Reference To Commands And Shortcuts

    Quick reference to commands and shortcuts 8 Quick reference to commands and shortcuts File Menu Command Windows Mac OS Description New Folder. . . Apple+Shift+N New Folder in the Browser Open Preset Ctrl+O Apple+Option+O Open the selected preset Save Preset Ctrl+S Apple+S Save the current preset...
  • Page 63 Quick reference to commands and shortcuts Edit Menu Command Windows Mac OS Description Undo Ctrl+Z Apple+Z Undo last command Redo Ctrl+Y Apple+Shift+Z Redo last command Ctrl+X Apple+X Cut selected item Copy Ctrl+C Apple+C Copy selected item Paste Ctrl+V Apple+V Paste Delete Delete selected item Select All...
