SS105 User's Manual
For both Gasoline
and Diesel Engines
0
12V / 24V

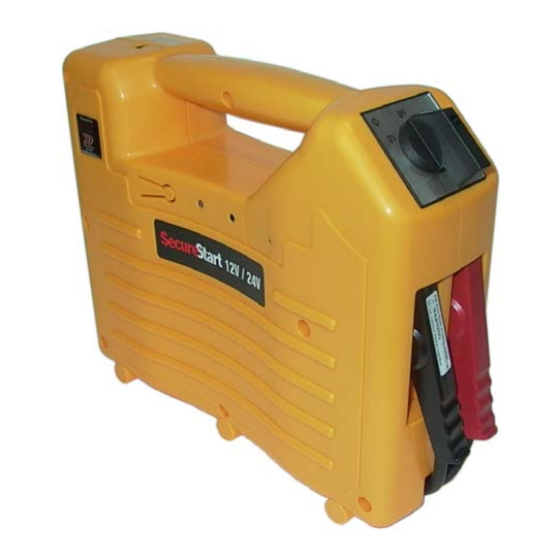

Portable Jump Starter
With Fuel-Gauge Indicator
Getting to Know Your SecureStart™
Fuel-Gauge
Switch
Fuel-Gauge
Indicator
13 cells D size alkaline
battery input jack
Jumper link cover
13 cells D size Alkaline Battery
Pack with connector wire
WARNING: DO NOT allow the cable clamps to TOUCH each other!
cable clamps carry electrical current at all times. If they touch each other, severe
!
sparks may cause personal injury and battery explosion.
adaptor supplied with your SecureStart™ for charging. To avoid damage, do not
use any other chargers or apply any other charging methods.
Prepare Your SecureStart™ Before First Use
STEP 1:
Upon purchase, disconnect the external 13-cell D size alkaline battery pack
that is connected with a wire connector to the SecureStart™ by pulling the connecting
wire out. Discard this 13-cell alkaline battery pack.
STEP 2:
Insert and connect the jumper link into the unit. Mount the jumper cover
plate with the screw. The jumper link is to connect the built-in NiMH battery to replace
the discarded 13 D-size cell alkaline battery for backup purpose.
Note: The 13 D-size cell alkaline battery is for backing up the SecureStart™ Lead Acid
battery during storage before sales for limited period only.
DC Charging
Socket
Wall Adaptor
Input: 100-240Vac 50/60Hz
auto switching
Output: 24V DC 2.5Amp
Selector switch
Cable Clamps
The
Use only the wall
1
Advertisement
Table of Contents
Related Manuals for SecureStart SS105
Summary of Contents for SecureStart SS105
- Page 1 The jumper link is to connect the built-in NiMH battery to replace the discarded 13 D-size cell alkaline battery for backup purpose. Note: The 13 D-size cell alkaline battery is for backing up the SecureStart™ Lead Acid battery during storage before sales for limited period only.
- Page 2 Turn vehicle ignition switch and start the engine. If you intend to crank another engine immediately it is recommended to leave the cable Fuel gauge indication: clamps of SecureStart™ connected for 3 minutes to allow a top up charge from the alternator • of the idling vehicle.
- Page 3 Severe electrical shock may result. 10. Do not charge the SecureStart™ in an airtight container, provide adequate ventilation during charging. 11. Do not attempt to disassemble the SecureStart™. Do not cut any cables or wires on this ® product. The TMF power pack contained within your unit is capable of generating very high current.
