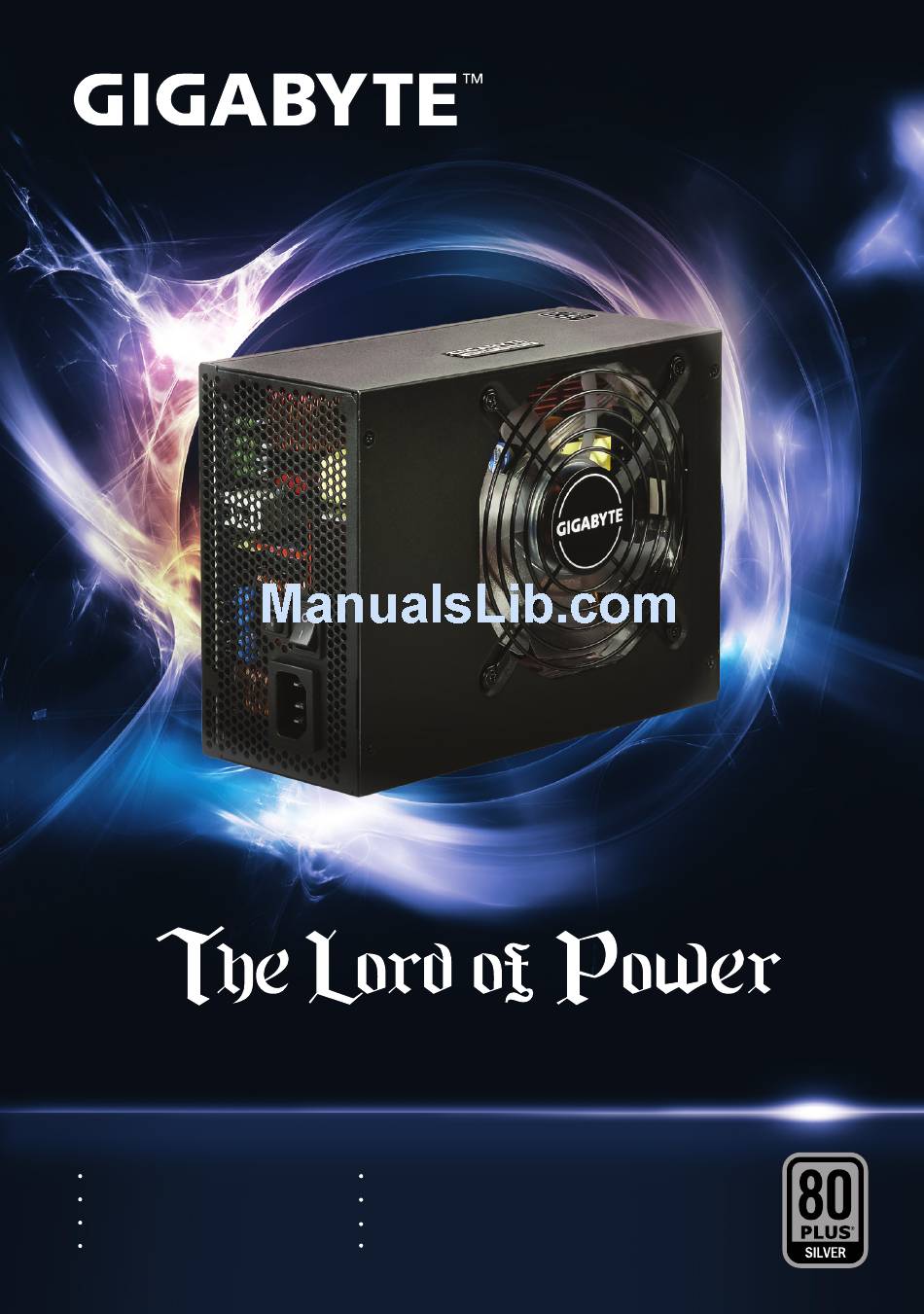

- Page 1 Sumo Power Silver 900W/ 1200W User Manual / English Руководство пользователя / России Handbuch / Deutsche 使用說明書 / 中文 Manual de l’utilisateur / Français 使用說明書 / 中文 Manual de usuario / Español ユーザーマニュアル / 日本語...
-
Page 2: Table Of Contents
Sumo Power Silver 900W/ 1200W Table of Contents Page Cautions and Warnings ....................2 Components Check ....................... 2 1. Product Introduction ....................3 1-1 Introduction ......................3 1-2 Product Highlights ....................3 1-3 Model Description ....................3 2. Product Specifications ....................4 2-1 Power Input Specifications .................. -
Page 3: Cautions And Warnings
Sumo Power Silver 900W/ 1200W Cautions and Warnings ※ Please unplug or switch off the power supply when installing it. ※ Make sure that the power source is consistent with the specifications labeled on the nameplate before turning on the power supply. ※... -
Page 4: Product Introduction
A power supply is the supply center for all power needs. With this component, the system operation may be supported so that its stability and reliability can be maintained. GIGABYTE launches the high-performance, 80 Plus Silver certified Sumo Power Silver 900W/1200W power supply that streamlines the operation of your computer by utilizing the best power source while enhancing the system liability to prevent power supply abnormalities resulting from surge, etc. -
Page 5: Product Specifications
Sumo Power Silver 900W/ 1200W 2. Product Specifications 2-1 Power Input Specifications ‧ Type: ATX 12V V2.3/SSI EPS 12V V2.91 ‧ Voltage: 900W-100~240Vac / 1200W-110~240Vac ‧ Current: 900W-12A@115Vac/6.3A@230Vac, 1200W-15A@115Vac/10A@230Vac ‧ Frequency: 60/50Hz ‧ Power good signal: 100ms~500ms ‧ Hold up time: > 17ms ‧... -
Page 6: Power Output Specifications
Sumo Power Silver 900W/ 1200W 2-2 Power Output Specifications Sumo Power 900W Model GE-H900A-D1 AC Input Voltage 100-240Vac, 12-6.3A Frequency 60/50Hz Power Factor Active PFC Correction type DC Output +3.3V +12V1 +12V2 +12V3 +12V4 +12V5 -12V +5Vsb Max. Output Current 0.5A 4.0A Max. -
Page 7: Description Of Power Connectors
Sumo Power Silver 900W/ 1200W 3. Description of Power Connectors 3-1 Number of Connectors Connector GE-H900A-D1 GE-HK20A-D1 24-pin Motherboard Connector (4+4)-pin +12V CPU Connector 8-pin +12V CPU Connector (6+2)-pin PCI-E2.0 Connectors SATA Connectors 4-pin Peripheral Connectors 4-pin Floppy Connector... -
Page 8: Description Of Standard Cables
Sumo Power Silver 900W/ 1200W 3-2 Description of Standard Cables 24-pin Connector (P1) Pin No. Description Color Pin No. Description Color +3.3V Orange Black +12V Yellow +12V Yellow +5Vsb Purple PWR_ok Gray ------ ----- Black Black Black Black Black PS-ON Green Black Black... -
Page 9: Descriptions Of Modular Cables
Sumo Power Silver 900W/ 1200W 3-3 Descriptions of Modular Cables Modular Backplane Sumo Power Silver 900W Sumo Power Silver 1200W Graphic Card Connectors: 6-pin PCI-E power connector to dual 6+2-pin PCI-E power connectors x 3 Pin No. Description Color +12V3/ +12V4... -
Page 10: Pin Peripheral 5
Sumo Power Silver 900W/ 1200W SATA Connectors: 5-pin power connector to quad SATA power connectors x3 Pin No. Description Color 3.3V Orange Black SATA Black +12V1 Yellow Pin No. Description Color 3.3V Orange Black Black +12V1 Yellow 4-pin Peripheral Power Connectors: 5-pin power connector to triple 4-pin peripheral power connectors x 1 Pin No. -
Page 11: Installation
Sumo Power Silver 900W/ 1200W 4. Installation ‧ Switch off the main power and unplug the power cord. ‧ Unfasten the case screws on the case to open the panel on the side of the housing. ‧ Unplug all power connectors from the motherboard and peripherals, such as system fans, hard disk drives, optical drives, floppy disk drives, etc. -
Page 12: Troubleshooting
(4) If the UPS is connected, ensure that it is open and working normally. If the power supply is not working properly after following the instructions above, please contact local stores or GIGABYTE offices for after-sale service. For more information about technical support, please visit the GIGABYTE website: www.gigabyte.com. -
Page 13: Introduction Of Protection Mechanism
Sumo Power Silver 900W/ 1200W 6. Introduction of Protection Mechanism ◎ Over-Current Protection: GE-H900A-D1 GE-HK20A-D1 Voltage Protection Point Protection Point +3.3V +12V 1.2.3.4.5 +12V6 ◎ Over-Voltage Protection: Protection Point Voltage 5.75V 7.0V +3.3V 3.76V 4.5V +12V 13.50V 16.0V 1.2.3.4.5.6 ◎ Over-Power Protection: 900W: 110 ~ 150% of Full-Loading ‧...
