Summary of Contents for Maximum Signal In-Vehicle

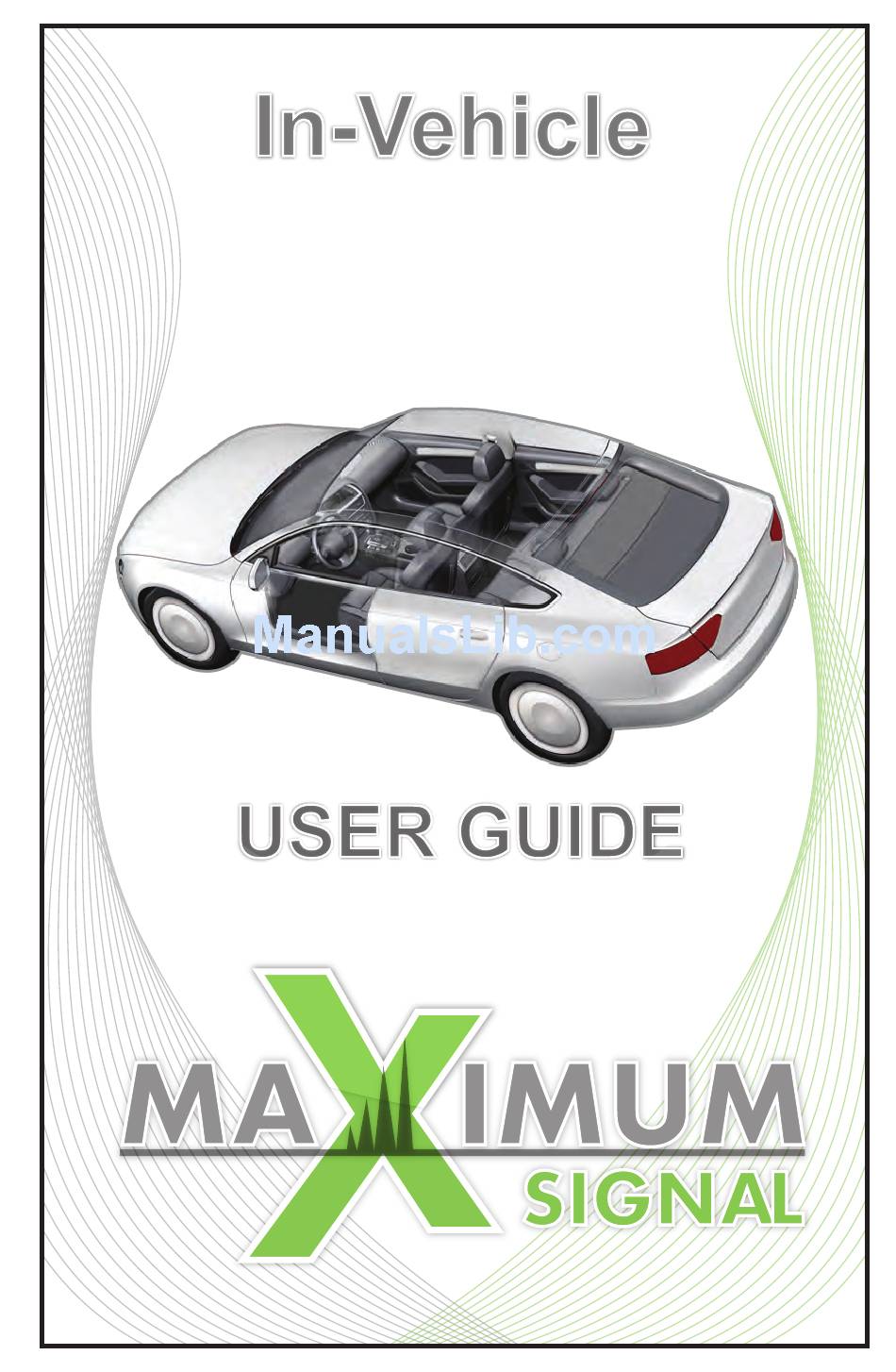

Page 1 In-Vehicle Wireless Dual Band Amplifier USER GUIDE...
Page 2 After reading the entire instruction manual and before actu- ally installing, Maximum Signal, Inc. strongly recom- mends that you visualize where each component will be placed.
Page 3 Doing so will violate Maximum Signal, Inc.™ and Federal guidelines and regulations which the user will be liable for, and will result in your warranty being voided.
Page 4 QuickStart Guide *Typical Installation Example (B4) (B3) (B2) Alcohol Prep Pad Tampon de preparation a l’alchool Mit Alkohol getrankter Lappen Cuscinetto preparatorio all’alcol Voorbereidingsdoekje met alcohol Compresa con alch For Professional and Hospital Use REF./Reorder No.B339 Alcohol Prep Pad Tampon de preparation a l’alchool Mit Alkohol getrankter Lappen Cuscinetto preparatorio all’alcol Voorbereidingsdoekje met alcohol...
Page 5 1. Choose a Location for your Wireless Amplifier Select a suitable location for your Wireless Amplifier (A). There are three cable lengths you should be aware of. The Wireless Amplifier must be located within the cable lengths of the supplied items. 1.
Page 6 2. Installing the Rear Glass Antenna OUTSIDE THE WINDOW INSIDE THE WINDOW Using the supplied Alcohol Glass cleaning pad, thoroughly, wipe both the inside/outside of the Glass surface where the antenna will be mounted. Remove the protective covering from the back of the Exterior Glass Attachment and attach it to the outside of the rear window.
Page 7 3. Installing the Front Area Patch Antenna Locate a suitable location within your vehicle to place the Front Area Patch Antenna. Note: The outside plastic covering the Front Area Patch Antenna MUST point towards the interior of your vehicle. This device utilizes antennas that require a horizontal separation of a minimum of Four (4ft.) feet and a minimum vertical separation of Four (4ft) feet.
Page 8: Powering On Your Device
4. Powering on your Device Fault Indicator Lights Micro USB BAND BAND POWER Power Port Plug the Micro USB connector power into the device labeled “power”. Plug the power supply cable into your vehicle power source. The blue LED light indicates your Maximum Signal Wire- ™...
Page 9: Year Warranty
1-Year Warranty Maximum Signal, Inc.™ warrants for a period of one (1) year this product is free from any defects in material or workmanship. If a defect is found by Maximum Signal, Inc.™, Maximum Signal, Inc.™ agrees to repair or replace the product at its own discretion EXCLUDING ALL SHIPPING CHARGES.
