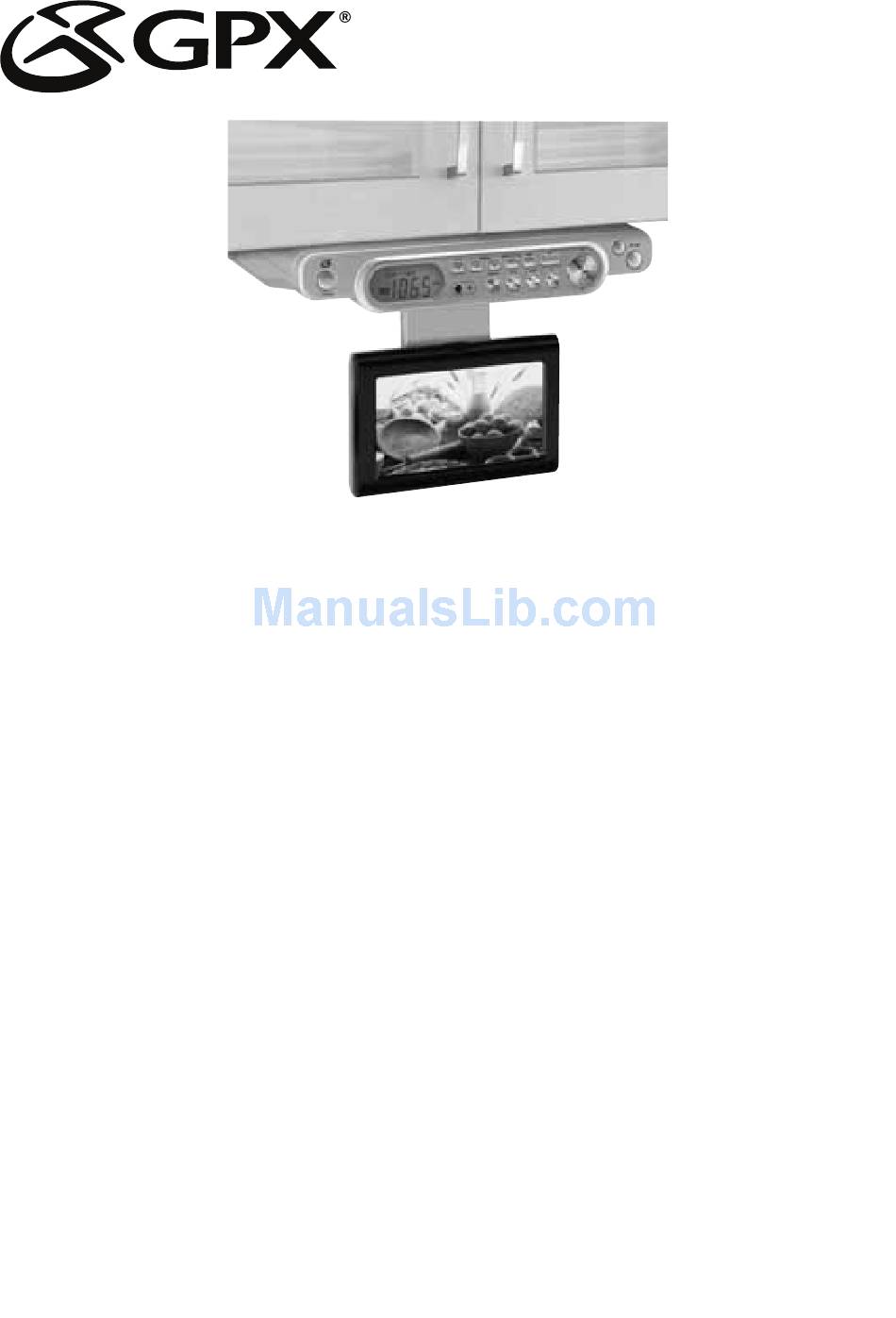

KCL8807DT INSTRUCTION MANUAL Contents Warnings & Precautions 2 Important Safety Instructions 3 What’s in the Box & Features 4 Mounting the Unit & Powering the Unit 5 Setting the Clock 6 Connecting to a TV Signal 7 AM / FM Radio & Station Presets 8 Setting the Timer 9 Audio &... -
Page 2: Warnings & Precautions
Warnings and Precautions TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. This symbol, located on back or bottom of the unit, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. -
Page 3: Important Safety Instructions
Important Safety Instructions 1. Read these instructions. All the safety and operating instruction should be read before the product is operated. 2. Keep these instructions. The safety and operating instruction should be retained for future reference. 3. Heed all warnings. All warning on the product and in the operating instructions should be adhered to. -
Page 4: What's In The Box & Features
What’s in the Box UnderCabinet LCD TV • UnderCabinet LCD TV • Remote Control • Mounting Template • 4 - Screws • 4 - Spacers • Documentation Features • Adjustable LCD TV Screen • 181-Channel Cable-Ready Tuner • Digital TV Tuner built in •... -
Page 5: Mounting The Unit & Powering The Unit
Mounting the Unit To mount the unit under a cabinet, follow the directions on the included Mounting Template. Powering the Unit 1. To power the unit, simply connect it to an AC outlet using the attached AC cord. . The plastic extensions on the back of the unit provide a holder for excess cord. DC 12V VIDEO IN AUDIO IN... -
Page 6: Setting The Clock
Setting the Clock 1. Plug the unit into a standard 10V outlet. See “Powering the Unit” on page 2. . Before pressing the Standby Button, press and hold the Mem/Clock Adj. Button for seconds. . Use the Tune/Clk Buttons to choose between 12HR and 24HR. -
Page 7: Connecting To A Tv Signal
Connecting to a TV signal The unit has a 181 Channel Cable-Ready TV Tuner and Digital (HD) TV Tuner. The Digital TV Tuner will only work with a connected HD TV Antenna. 1. Connect an Off Air Antenna or Cable TV Coaxial to the TV Antenna Input. -
Page 8: Am / Fm Radio & Station Presets
Tuning the AM & FM Radio & Creating Station Presets 1. Turn the unit on by pressing the Standby Button. . Press the Radio Button to switch to Radio Mode. . Press the Band Button to select AM or FM radio band. -
Page 9: Setting The Timer
Setting the Timer to Turn the Unit On or Off 1. Press the Timer Button consecutively to change the timer in 10 minute intervals starting at 40. Press the Tune/Clk Buttons to change the timer one minute at a time. . -
Page 10: Audio & Video Inputs
Audio/Video Input: from a DVD Player or Set-Top Box When connecting two products using an RCA Cable, match the colored ports with the same colored connection. (Red to Red, White to White, and Yellow to Yellow) 1. Connect an RCA Cable to the Audio/Video Inputs on the unit and the audio/video outputs on the DVD Player or Set-Top Box. -
Page 11: Battery Backup
LCD Swivel Screen Opening the LCD TV Screen AUDIO IN AUDIO IN R VIDEO IN VIDEO IN Swiveling the LCD TV Screen Battery Backup Use AAA Batteries to serve as a backup power source for the clock only. (Batteries not included) AUDIO IN AUDIO IN R... -
Page 12: Controls & Definitions
Location of Controls: Front View RADIO TIMER TUNE/CLK MEM/CLOCK ADJ. DISPLAY BAND RADIO SCAN MODE... - Page 13 Location of Controls: Side & Back Views AUDIO IN AUDIO IN AUDIO IN R VIDEO IN VIDEO IN VIDEO IN DC 12V VIDEO IN AUDIO IN FM ANT TV ANT...
- Page 14 Control Definitions: Front, Side, & Back Views Standby Button Press the Standby Button to turn the unit on and off. LCD Display The LCD displays clock and radio information. LCD TV Screen The LCD TV Screen displays a TV signal as well as TV information. Memory/Clock Adjust Button Press the Memory Button to save a radio station to the unit’s memory.
- Page 15 Control Definitions: Front, Side, & Back Views Video Input (Side) Use the Video Input to play video, from a DVD player, set-top box, or Mp player, on the unit. Audio Inputs (Back) Use the Audio Inputs to play audio, from a DVD player, set-top box, or Mp player, on the unit.
-
Page 16: Location Of Controls: Remote
Location of Controls: Remote STANDBY FUNCTION AIR/CATV TIMER ENTER VOL. SETUP TUNE/CLK ON/OFF MEM+ BAND DISP TV MODE AUDIO INFO MENU SCAN MEM/CLK WIDE... - Page 17 Control Definitions: Remote Function Button Press the Function Button to switch between AV Input Mode, Radio Mode, and TV Mode. Standby Button Press the Standby Button to turn the unit off and on. Number Keypad & Plus 10 Button Use the Number Keypad in TV Mode to select specific channels. Use the Plus 10 Button when entering a number that is greater than 10.
- Page 18 TV Setup Menu To access the TV Setup Menu, press the TV Menu Button. Language Screen Format Time Closed Caption Source Transparent Default MENU English... Auto...
-
Page 19: Tv Setup Menu
TV Setup Menu Language Press the Enter Button to choose between English, Spanish, and French languages for the TV Setup Menu. Screen Format Press the Enter Button to choose between Auto and 16:9 orientation. Auto The Auto setting will automatically size the incoming TV signal to fit on the LCD TV Screen. -
Page 20: Service Information
© 007 DPI, Inc. All trademarks appearing herein are the property of their respective owners. All products subject to change without notice. Para descargar este manual de instrucción en inglés, español, o francés visite la sección de la ayu- da en www.gpx.com. Pour télécharger manuel d’instruction en anglais, espagnol,...
