AEG FAVORIT 40650 User Information

Aeg dishwasher
Hide thumbs Also See for FAVORIT 40650:
Table of Contents

Advertisement

Quick Links

FAVORIT 40650
Dishwasher
User information

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FAVORIT 40650 and is the answer not in the manual?

Questions and answers

Related Manuals for AEG FAVORIT 40650

Summary of Contents for AEG FAVORIT 40650

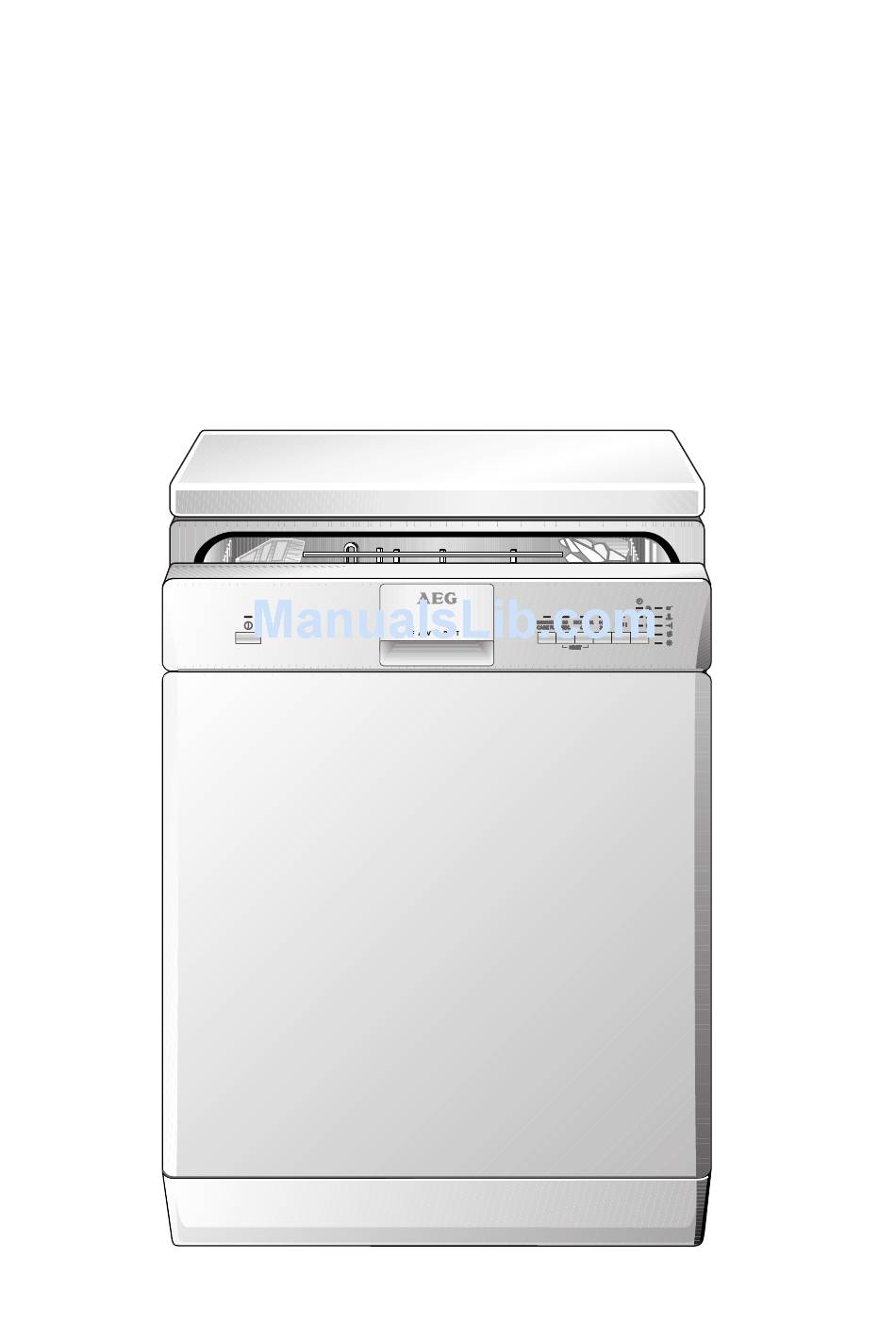

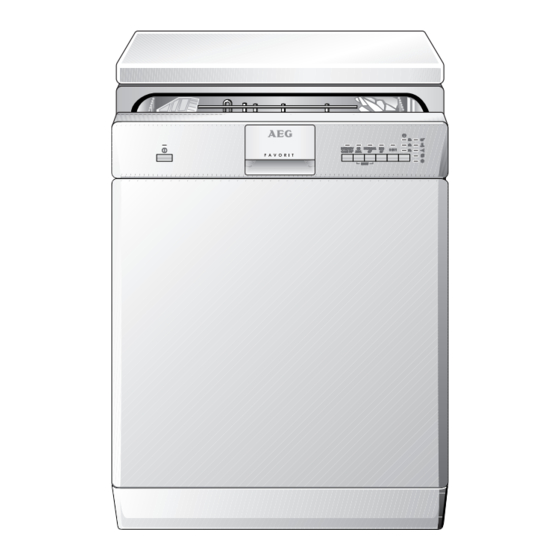

  • Page 1 FAVORIT 40650 Dishwasher User information...
  • Page 2 Dear customer, Please read this User Information carefully and keep it to refer to at a later date. Pass this User Information on to any subsequent owner of the appli- ance. The following symbols are used in the text: Safety instructions Warning: Notes that concern your personal safety.

  • Page 3: Table Of Contents

    Contents Operating Instructions ........Safety .

  • Page 4: Operating Instructions

    Operating Instructions 1 Safety Prior to using for the first time • Follow the ”Instructions for installation and connection”. Correct use • The dishwasher is only intended for washing domestic dishes. • Additions or modifications to the dishwasher are not permitted. •...

  • Page 5: Diagram Of Appliance

    Diagram of appliance Jets in roof Upper basket spray arm and floor spray arm Water hardness dial Dispenser for special salt Dispenser for detergent Dispenser for rinse aid Rating plate Filters Control panel ON/OFF button The ON/OFF button is used to turn the dishwasher on and off.
  • Page 6 Programme buttons End of cycle indicator Programme progress display delay timer Function buttons Select Control 3 in1 function indicators The Programme buttons are used to select the desired dishwashing cy- cle. Function buttons: In addition to the pre-set dishwashing cycle, the following functions can also be set using these buttons: Function button 1 Set the water softener...

  • Page 7: Prior To Using For The First Time

    Prior to using for the first time 1. Set the water softener 2. Fill up with special salt for water softeners 3. Fill up with rinse aid If you wish to use 3in1 detergent, do the following: – First read the section “Using 3in1 detergents”. –...
  • Page 8 2. Press function buttons 2 and 3 simultaneously and keep them pressed. The LED indicators for function buttons 1 to 3 will flash. 3. Press function button 1. The LED indicator for function button 1 will flash. The LED indicator for the end of the dishwashing cycle will flash simul- taneously: –...

  • Page 9: Adding Special Salt

    Adding special salt To decalcify the water softener, it must be filled up with special salt. Use only special salt suitable for domestic dishwashers. If you do not use 3 in1 detergent, fill up with special salt: – Before using the dishwasher for the first time. –...

  • Page 10: Filling Up With Rinse Aid

    Filling up with rinse aid With rinse aid the rinsing water drains away better and so you get smear-free, gleaming dishes and clear glasses. If you do not use 3in1 detergent, fill up with rinse aid: – Before using the dishwasher for the first time. –...

  • Page 11: Setting The Amount Of Rinse Aid Required

    Setting the amount of rinse aid required Only change the amount dispensed, if smears, milky spots (reduce the amount) or dried on water spots (increase the amount) can be seen on glasses and dishes. (See section “If dishwashing results are not satisfac- tory”.) The dosage can be set from 1-6.

  • Page 12: Activating/Deactivating The Inflow Of Rinse Aid

    Activating/deactivating the inflow of rinse aid If the 3 in1 button is pressed, you do not need to deactivate the inflow of rinse aid. 1. Press the ON/OFF button. If indicators other than the ON/OFF button are lit, a dishwashing cycle is activated.

  • Page 13: In Daily Use

    In daily use Loading cutlery and dishes Sponges, cleaning cloths and any other objects that can absorb water must not be washed in the dishwasher. Plastic and Teflon-coated dishes and pans tend to retain water droplets. These dishes and pans therefore do not dry as well as those made of china and stainless steel.

  • Page 14: Loading Cutlery

    Loading cutlery Warning: Sharp knives and other items of cutlery with sharp edges must be laid in the cutlery rack or in the upper basket to avoid the risk of injury. To ensure that all items of cutlery in the cutlery basket can be reached by the water, you should: 1.Place the grid insert on the cut- 2.Place forks and spoons in the...
  • Page 15 Pots, Pans, Large Plates Load larger and heavily soiled dishes and pans in the lower basket. (Max. diameter for plates 29 cm). To make it easier to load larger dish- es, the two plate rests on the right in the lower basket can be folded down.
  • Page 16 Cups, Glasses, Coffee Service Load smaller, fragile crockery and long, sharp cutlery in the upper bas- ket. • Arrange items of crockery on and under the folding cup racks so that they are offset from each other and water can reach all items.

  • Page 17: Adding Detergent

    Adding detergent Detergents remove the dirt from dishes and cutlery. The detergent must be added before the cycle starts. Only use detergent intended for do- mestic dishwashers. The detergent compartment is lo- cated on the inside of the door. 1. If the lid is closed: Press the release button.

  • Page 18: Using 3In1 Detergents

    Concentrated detergents Today’s detergents for dishwashers are almost exclusively low-alkaline concentrated detergents with natural enzymes in tablet or powder form. Using 50°C dishwashing cycles in conjunction with these concentrated detergents reduces pollution and is good for your dishes, as these dish- washing cycles are specially matched to the dirt-dissolving properties of the enzymes in concentrated detergents.

  • Page 19: Selecting The Dishwashing Cycle (Cycle Table)

    Selecting the dishwashing cycle (Cycle Table) Programme se- Consump- quence tion values Dishwashing Suitable Type of cycle for: soiling heavily soiled, Dinner serv- INTENSIVE dried-on food re- ice and • • • • CARE 70° mains, in particular cookware protein and starch Dishes, ex- 30MIN.

  • Page 20: Starting A Dishwashing Cycle

    Starting a dishwashing cycle 1. Check that the spray arms can turn freely. 2. Turn the water tap on fully. 3. Close the door. 4. Press the ON/OFF button. 5. Select the desired cycle. The programme display lights up. One or two lights will flash in the programme progress display.

  • Page 21: Setting The Delay Timer

    Setting the Delay Timer Using the delay timer you can delay the start of a dishwashing cycle for 3, 6 or 9 hours. 1. Press the ON/OFF button. Press the Delay Timer button repeatedly until the indicator next to the number of hours for which the start of the dishwashing cycle is to be delayed lights up, e.

  • Page 22: Care And Cleaning

    Removing the dishes It is normal for the inner door and the dispensers to be damp. • Empty the lower basket first, then the upper basket. This way you avoid dripping water from the upper basket onto dishes in the lower basket.

  • Page 23: What To Do If

    7. Place the coarse and fine filters in the micro-filter and press together. 8. Insert the filter system in place and lock it by turning the handle clock- wise as far as it will go. Ensure that the flat filter does not protrude above the base of the washing com- partment.
  • Page 24 Malfunction Possible cause Remedy The tap is blocked or furred Clean tap. with lime-scale. The tap is turned off. Turn the tap on. The filter (where present) in The programme indicator for Clean the filter in the the threaded hose fitting on the selected dishwashing cy- threaded hose fitting.

  • Page 25: If The Dishwashing Results Are Not Satisfactory

    Malfunction Possible cause Remedy The dishwashing compart- ment is made from rust-free stainless steel. Rust spots in the dishwashing compart- ment are due to rust parti- Only wash cutlery, dish- Rust spots are visible in the cles from external sources es and pans that are dishwashing compartment.

  • Page 26: Disposal

    Disposal Packaging material The packaging materials are environmentally friendly and can be recy- cled. The plastic components are identified by markings, e.g. >PE<, >PS<, etc. Please dispose of the packaging materials in the appropriate container at the community waste disposal facilities. Old appliance Please dispose of your old appliance in line with the guidelines for dis- posal in your community.

  • Page 27: Notes For Test Institutes

    Notes for Test Institutes Testing in accordance with EN 60704 must be carried out with the appliance fully loaded and using the test cycle (see “Cycle Table”). Tests in accordance with EN 50242 must be carried out when the salt dispenser in the water softener and the rinse aid dispenser have been filled with salt and rinse aid respectively, and using the test cycle (see “Cycle Table”).
  • Page 28 Lower basket with cutlery basket Cutlery basket...

  • Page 29: Installation And Connection Instructions

    Installation and connection instructions 1 Safety information for the installation • Only transport the dishwasher in an upright position, otherwise salt water may run out. • Before using the dishwasher for the first time, check for any damage caused in transport. Do not under any circumstances connect an ap- pliance that is damaged.

  • Page 30: Installing The Dishwasher

    Installing the dishwasher • The dishwasher must be installed on a firm floor and adjusted to en- sure that it is stable and level in all directions. • To compensate for unevenness in the floor and to match the height of the appliance to that of sur- rounding units, extend the thread- ed feet using a screwdriver.
  • Page 31 Free-standing appliances If the dishwasher is installed directly next to a cooker, a heat-insulat- ing, non-flammable panel (laminated with aluminium foil on the side next to the cooker) must be fitted flush with the top edge of the work surface (depth 57.5 cm). If the appliance is built-in under a kitchen work surface, the worktop supplied with the dishwasher can be...

  • Page 32: Connecting The Dishwasher

    Connecting the dishwasher Connecting to the water supply • The dishwasher can be connected to cold and hot water supplies up to max. 60°C. • The dishwasher must not be connected to open hot water appliances or instantaneous water heaters. Permitted water pressure Lowest permitted water pressure: Consult your plumber if the water pres-...

  • Page 33: Water Drainage

    Water drainage Drain hose The drain hose must not be kinked, crushed or entangled. Connecting the drain hose: – Maximum permitted height: 1 metre. – Minimum required height: 40 cm above the bottom edge of the ap- pliance. Extension hoses •...

  • Page 34: Electrical Connection

    If you wish to hang the drain hose in a wash basin, use a detachable hose elbow. You can obtain this from AEG customer service by referring to spare part number ET 646 069 190. 1. Fit the elbow to the drain hose.

  • Page 35: Connecting Systems

    Connecting systems The water inlet hose, drain hose and the mains cable must all be con- nected to the side of the dishwasher as there is no space for them be- hind the appliance. 2 connection pieces 45° or doublevalve water- waterinlet straight, outer ø...

  • Page 36: Guarantee Conditions

    Guarantee Conditions Belgium DECLARATION OF GUARANTEE TERMS. Our appliances are produced with the greatest of care. However, a defect may still occur. Our con- sumer services department will repair this upon request, either during or after the guarantee peri- od. The service life of the appliance will not, however, be reduced as a result. This declaration of guarantee terms is based on European Union Directive 99/44/EC and the provi- sions of the Civil Code.
  • Page 37 These guarantee terms are only valid for appliances purchased and used in Belgium. For exported appliances, the user must first make sure that they satisfy the technical conditions (e.g.: voltage, frequency, installation instructions, type of gas, etc.) for the country concerned and that they can withstand the local climatic and environmental conditions.

  • Page 38: Customer Service Centres

    Customer Service Centres Belgium Tel.: Fax.: Electrolux Home Products Belgium Consumer services 02/363.04.44 02/363.04.00 ELECTROLUX SERVICE 02/363.04.60 Bergensesteenweg 719 1502 Lembeek E-mail: consumer.services@electrolux.be...

  • Page 39: Service

    Service In the event of technical faults, please first check whether you can remedy the problem yourself with the help of the operating instruc- tions (section “What to do if…”). If you were not able to remedy the problem yourself, please contact the Customer Care Department or one of our service partners.
  • Page 40 USD 14 billion in more than 150 countries around the world. AEG Hausgeräte GmbH Postfach 1036 D-90327 Nürnberg http://www.aeg.hausgeraete.de © Copyright by AEG 822 961 171-00-190504-03 Subject to change without notice...

This manual is also suitable for:

Favorit 40750
