Mobistel EL400Dual User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

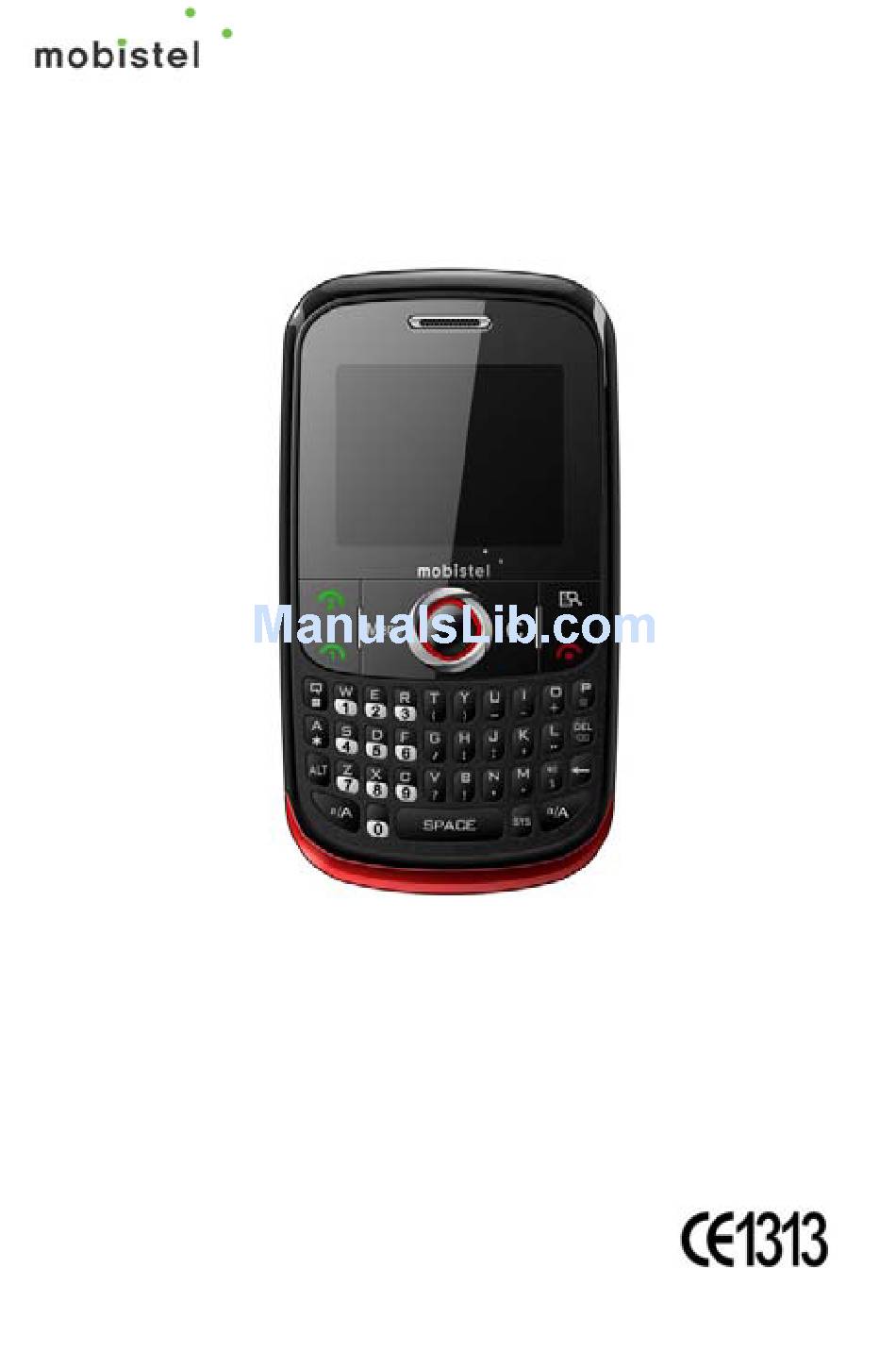

User Manual
EL400Dual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EL400Dual and is the answer not in the manual?

Questions and answers

Related Manuals for Mobistel EL400Dual

Summary of Contents for Mobistel EL400Dual

  • Page 1 User Manual EL400Dual...

  • Page 2: Table Of Contents

    Contents Contents...............2 Important safety precautions........3 Special features of your phone ........13 Get started..............14 Textentry..............18 How to use SIM card, battery, microSD etc…………..19 Overview of menu functions........25 Phonebook (Menu 1)...........28 Call Center (Menu 2)...........28 Extra (Menu 3).............30 Alarm (Menu 4)............30 Organizer (Menu 5)............31 Games (Menu 6)…............31 Media (Menu 7)…….............31 Message (Menu 8)………………………………………...

  • Page 3: Important Safety Precautions

    Important safety precautions This section contains important information on the safe and efficient operation of your mobile device. For your safety, please refer to the guideline prior to using the phone. Note: Failure to comply with the following precautions may be dangerous or illegal.
  • Page 4 Use only in the normal position (held to the ear). Avoid unnecessary contact with the antenna when the phone is switched on. Keep your phone away from small children Keep the phone and all its parts, including accessories, out of the reach of small children.
  • Page 5 Extreme temperatures will affect the charging capacity of your battery: it may require cooling or warming first. Do not leave the battery in hot or cold places because the capacity and lifetime of the battery will be reduced. Try to keep the battery at room temperature.
  • Page 6 in the normal operating position (held to your ear with the antenna pointing over your shoulder). Electronic devices Most modern electronic equipment is shielded from radio frequency (RF) signals. However, certain electronic equipment may not be shielded against the RF signals from your wireless phone. Consult the manufacturer to discuss alternatives.
  • Page 7 Absorption Rate (SAR). Specific Absorption Rate (SAR) is the unit of measurement for the amount of radio frequency energy absorbed by the body when using a mobile phone. The SAR value is determined at the highest certified power level in laboratory conditions, but the actual SAR level of the mobile phone while it is operating can be well below this value.
  • Page 8 The limit incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in measurements. The SAR values may vary, depending on national reporting requirements and the network band. SIM AT Service SIM Card provides several value-added services.
  • Page 9 Users are advised to switch off the phone while at a refueling point (service station). Users are reminded of the need to observe restrictions on the use of radio equipment in fuel depots (fuel storage and distribution areas), chemical plants, or where blasting operations are in progress.
  • Page 10 Only qualified personnel should service the phone or install the phone in a vehicle. Faulty installation or service may be dangerous and may invalidate any warranty applicable to the device. Check regularly that all wireless phone equipment in your vehicle is mounted and operating properly.
  • Page 11 Unpack Make sure you have each item • Phone • Travel Adapter • Battery • User’s Guide • Earphone • USB Data Cable. You can obtain various accessories from your local dealer. Note: The items supplied with your phone and the accessories available at your dealer may vary, depending on your country or service provider.
  • Page 12 Menu software keys Go to menu navigation and for operating functions Previous (Correction) or Back software keys Deletes numbers and letters, and for the step back to the standby screen. Navigation buttons To scroll through menu options. Move the cursor in the normal processing mode, scroll up or down. Move the cursor in all modes of operation to the left and right.

  • Page 13: Special Features Of Your Phone

    Power On / Off & End key Ends a call. Press and hold to on or off the phone (hold the button). Clears your entry in the menus and takes you back to the standby mode. Alphanumeric keys ( : To adjust the audio volume during play. : Press long and hold for vibration mode or general mode.

  • Page 14: Get Started

    Speakers on Call Next Line or Enter Key Space Key Symbol Search Phonebook Search Get started First steps to operating your phone SIM card information When you subscribe to a cellular network, you receive a plug-in SIM (Subscriber Identity Module) card loaded with your subscription details, such as your PIN, and available optional services.
  • Page 15 Power On or Off 1. Hold down the power on/off key for more than one second to switch on/off. 2. Enter your SIM card PIN, if requested. The phone searches for your network and when detected, will display the idle screen. The external display shows the signal strength, battery strength and current time and date.
  • Page 16 SYMBOLS The following icons may appear on the screen to indicate your phone’s status. The icons shown on the display may vary depending on your country or service provider. Signal strength: Shows the strength of the received signal. The more bars displayed, the stronger the signal. GPRS: Shows strength of the incoming GPRS signal.
  • Page 17 Lock: Appears when you lock the phone. Battery: Shows the state of battery charge. The more bars you see, the more power is left. Headset: Appears when you set up profiles on the headset. Home Zone: Appears when you are in the home area and use an O2 sim.

  • Page 18: Textentry

    Message MMS / SMS / EMS WAP Version 2.0 (Obigo browser) OMR DRM 1.0 Camera Variable Image Size White Balance Image Quality Effect Controls Scene Mode Video 3GP, VI Background BMP, WBMP, GIF, JPG Phonebook Phonebook with multi-segmentation Stores up to 300 phonebook entries E-book Reader TXT files Text entry...

  • Page 19: How To Use Sim Card, Battery, Microsd Etc

    SIM CARD, Battery, MicroSD card and USB Cable 1. How to insert SIM card 1. Slide the back cover to the bottom of the phone until they can be removed. 2. Remove the battery. 3. Place the SIM card. Make sure to place the SIM cards in correct position.
  • Page 20 4. Insert the battery with metallic contacts on the bottom right corner. 5. Replace the back cover by putting the phone back.
  • Page 21 2. How to insert / remove the memory card Memory card slot is located under the battery, inside the phone. Before inserting / removing the memory card, turn off the phone first and remove the battery from the phone. Then you can install / remove the memory card.

  • Page 22: How To Charge The Battery

    3. How to Install Batteries 1. Connect the battery separately metal touch points with the touch points of metal batteries, and insert the battery into the base slot. 2. Slide the back cover toward the top of the phone to lock the cover into place.

  • Page 23: Power On And Off

    2. During charging, it is normal that the phone and charger may become hot. 3. If the battery is completely empty, it may take some time before the charging icon appears on the screen. 6. USB Management When plugged in the USB cable, USB charger will be started. If there is a memory card in the phone, the popup dialog box will show you to reboot the phone to be used as USB Flash Disk or not.

  • Page 24: Phone Password

    PUK (Personal Unblocking Key) code is required to unblock a blocked PIN code. This is usually supplied with the SIM package: if not, contact your service provider for the code. Keep your PUK code in a safe place, do not throw it away. Contact your service provider if lost. If your SIM is blocked, your phone will prompt you to enter the PUK code to unblock.

  • Page 25: Overview Of Menu Functions

    Overview of menu functions To access Menu mode, press [Menu] in Idle mode. * Some menus are operator-, network- and subscription-dependent 1. Phone Book 1.1 Quick Search 1.2 Search Contact 1.3 Add New Contact 1.4 Copy All 1.5 Delete 1.6 Caller Groups 1.7 Extra numbers 1.8 Phonebook settings 1.9 Caller picture...
  • Page 26 7. Media 7.1 Image viewer 7.2 Video recorder 7.3 Video player 7.4 Audio player 7.5 Sound recorder 7.6 FM radio 8. Message 8.1 Text message 8.2 MMS 8.3 Email 8.4 Voicemail server 8.5 Broadcast message 9. Calendar 10. Settings 10.1 Dual Mode setting 10.2 Phone setup 10.3 Network setup 10.4 Security setup...
  • Page 27 17. File Manager 18. Bluetooth 18.1 Power 18.2 Inquire audio device 18.3 My device 18.4 Active devices 18.5 Settings...

  • Page 28: Phonebook (Menu 1)

    1. Phone Book (Menu 1) You can store phone numbers on your SIM card and in your phone’s memory. The SIM card and phone’s memory are physically separate, but they are used as a single entity called Phone Book. To access this menu, press [Menu] in Idle mode and select Phone Book.
  • Page 29 2.1.1 Missed Calls This menu displays the most recent 20 received calls that you did not answer. In the missed calls list, you can view the details of the record by pressing the [Ok] soft key (left). In the view screen, you can make a call to the number by pressing the Send Key.

  • Page 30: Extra (Menu 3)

    2.1.7 Text Message Counter You can view the numbers of sent and received SMS. 2.1.8 GPRS Counter You can view how many GPRS message has been sent and received, and reset the counter. 2.2 General call settings A variety of functions can be used in this menu such as black list, IP dial, Auto redial, background sound and speed dial.

  • Page 31: Organizer (Menu 5)

    5. Organizer (Menu 5) Use this menu to keep track of your schedule. You can also use convenient features, such as World Clock and Shortcuts. 5.1 Tasks You can view all saved tasks. 5.2 World Clock Set your local time zone and find out the current time in another part of the world.

  • Page 32: Message (Menu 8)

    Recording and Saving a Video 1. Choose [Video Recorder] menu. 2. Set your video recorder by using [Option] 3. After setting the view, start to record a video by pressing the navy key. 4. The video will be saved automatically to the Video Player when you press the middle navy key.
  • Page 33 Text Message Use this menu to create and send a message as following 1. Select [Text Message] menu in the [Write Message] menu. 2. Make a message. 3. Press [Done] key in the option menu. Then choose appropriate options. 4. You can input the number directly or get from the phone book by pressing the [Search] soft key (left).
  • Page 34 values on common parameters for mobile-originated messages. 8.3 E-MAIL The E-Mail application allows you to send and receive e-mails. The application supports text and attachments. The e-mail application could be either normal POP3 e-mail client or IMAP4 based e-mail service. When highlighting on Inbox, Sent, Unsent and Draft, the number of mails shall be displayed as a popup hint, e.g., “10 mails”.
  • Page 35 This folder helps you to delete all mails in selected folder. Delete marked Emails This folder helps you to delete marked Emails only. Email Account This folder helps you to configure various servers and Profile related settings. Templates Use this menu to make and use templates of frequently used messages.

  • Page 36: Calendar (Menu 9)

    Note: This service may not be available on all networks. For more information about the available subjects, please contact your network service provider. 9. Calendar (Menu 9) You can keep track of your monthly schedule. 10. Settings (Menu 10) The Settings menu provides you with various setting options to customize the phone to your preferences and needs.
  • Page 37 This menu allows you to customize desired phone display items. Key vib setting This menu allows you to vibrate your phone keypad. Greeting text This menu shows you a greeting message which you typed when you power on the phone. Dedicated Key You can use the dedicated keys as shortcut keys to access specific menus directly from idle mode.
  • Page 38 optimize security mode by choosing sub menus in “Security Setup” in “Settings” menu. These security settings will help you to keep privacy and to prevent other people from using the phone without your permission. Note: If you enter an incorrect PIN/PIN2 three times in succession, the SIM card is blocked.

  • Page 39: Services (Menu 11)

    You will need to input password to restore factory settings. The initial password is 1111. 11. Services (Menu 11) This menu allows you to use services including SIM card additional services, WAP and Data Service. 11.1 SIM Toolkit (depends on SIM) If you use a SIM card that provides additional services, the STK menu displays.

  • Page 40: User Profiles (Menu 12)

    12. User profiles (Menu 12) User profiles define how your phone reacts when you receive a call or a message, how your keypad sounds when you press a key, and more. Each of the available profiles can be left at their default setting or customized to suit your needs.

  • Page 41: File Manager (Menu 17)

    17. File Manager (Menu 17) Use this menu to navigate the stored files in the phone or the micro SD (T-Flash) Card. You can open files and use them in a way the phone supports, and see the total memory used and free space in the storage. Note: After selecting Copy or Move option, press the left or right navigation keys to access to the upper or lower folder.
  • Page 42 phone. You can conveniently connect to the frequently using Bluetooth device by using this menu. 18.3 My Device This menu will search for the Bluetooth device(s) within the range of your phone. You can conveniently connect to the frequently using Bluetooth device by using this menu.
  • Page 43 Name your phone name by using this option. When other Bluetooth device searches your phone, this name will be displayed. Authentication Set Authentication On or Off. You can only change this option when the Bluetooth Mode is On. Audio Path (1)Leave in Phone (2)Forward to BT Headset Storage...
  • Page 44 Konformitätserklärung (Funkanlagen und Telekommunikations- endeinrichtungen) We, Mobistel GmbH, declare that the product GSM Mobile Phone: EL400Dual to which this declaration relates, is in conformity with the following standards and/or other normative documents: Wir, Mobistel GmbH, erklären, dass das Produkt GSM-Mobiltelefon: EL400Dual wird die Konformität mit den folgenden Normen und/oder...
