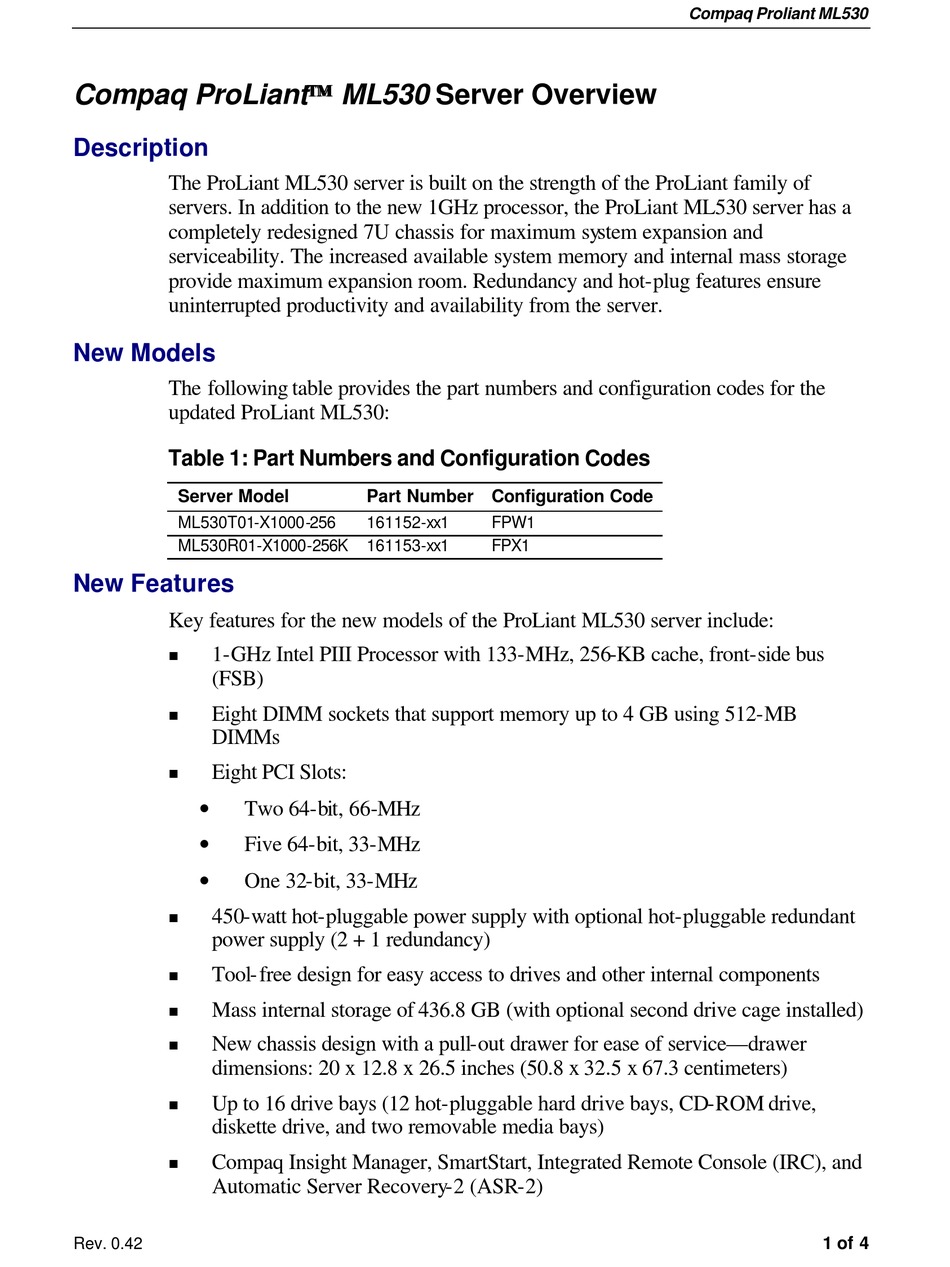

Compaq ProLiant ML530 Overview

Compaq ProLiant

Description

The ProLiant ML530 server is built on the strength of the ProLiant family of
servers. In addition to the new 1GHz processor, the ProLiant ML530 server has a
completely redesigned 7U chassis for maximum system expansion and
serviceability. The increased available system memory and internal mass storage
provide maximum expansion room. Redundancy and hot-plug features ensure
uninterrupted productivity and availability from the server.

New Models

The following table provides the part numbers and configuration codes for the
updated ProLiant ML530:
Table 1: Part Numbers and Configuration Codes
Server Model
ML530T01-X1000-256
ML530R01-X1000-256K

New Features

Key features for the new models of the ProLiant ML530 server include:
1-GHz Intel PIII Processor with 133-MHz, 256-KB cache, front-side bus
n
(FSB)
Eight DIMM sockets that support memory up to 4 GB using 512-MB
n
DIMMs
Eight PCI Slots:
n
Two 64-bit, 66-MHz
Five 64-bit, 33-MHz
One 32-bit, 33-MHz
450-watt hot-pluggable power supply with optional hot-pluggable redundant
n
power supply (2 + 1 redundancy)
Tool- free design for easy access to drives and other internal components
n
Mass internal storage of 436.8 GB (with optional second drive cage installed)
n
New chassis design with a pull-out drawer for ease of service—drawer
n
dimensions: 20 x 12.8 x 26.5 inches (50.8 x 32.5 x 67.3 centimeters)
Up to 16 drive bays (12 hot-pluggable hard drive bays, CD-ROM drive,
n
diskette drive, and two removable media bays)
Compaq Insight Manager, SmartStart, Integrated Remote Console (IRC), and
n
Automatic Server Recovery-2 (ASR-2)
Rev. 0.42
ML530 Server Overview
Part Number Configuration Code
161152-xx1 FPW1
161153-xx1 FPX1
Compaq Proliant ML530
1 of 4
