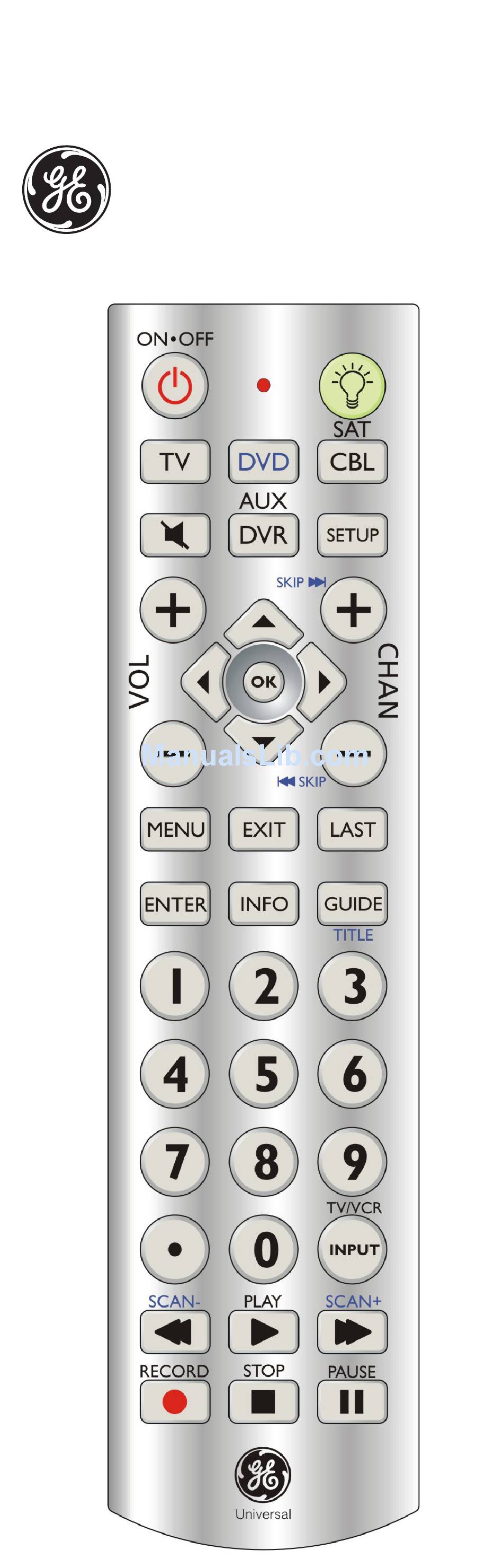

  • Page 1 20626 Universal Remote Instruction Manual...

  • Page 2: Table Of Contents

    Table of Contents Introduction........................3 Button.Functions......................4 Setup..........................6 Battery.Installation...................6 Battery.Saver.......................7 Code.Saver......................7 Power-On.default....................7 Code.Setup......................7 Code.Entry........................8 Direct.Code.Entry....................8 Code.Search......................8 Code.Identification.Feature...................9 Programming.Combo.Device.Codes.............. 10 Controlling.Combo.Devices................10 Controlling.Devices.with.Power.On.and.Off..........10 VCR/DVD/DVR.Punch-Through.Feature............11 Volume/Mute.Control.Feature................11 Setting.Volume/Mute.Control,.Punch-Through.........

  • Page 3: Introduction

    Introduction Congratulations.on.your.purchase.of.this.20626.Universal.Remote. Control..It.is.one.of.the.most.unique.looking,.and.easy.to.use. remote.controls.available.today..With.the.20626.juggling.multiple. remote.controls.is.a.thing.of.the.past!.Your.20626.Universal.Remote. controls.up.to.4.devices,.including.the.most.popular.brands.of.TV,. VCR,.DVD,.SAT,.CBL,.and.audio.equipment.. Note:.Some.functions.from.your.original.remote.may.not.be. controlled.by.the.20626.remote..Use.the.original.remote,.if. available,.to.control.such.functions..Sometimes.buttons.other.than. described.in.these.instructions.may.actually.perform.the.function.. For.example,.the.CHAN.and.VOL.buttons.might.be.used.to.navigate. through.menu.choices..We.recommend.you.experiment.with.the. remote.to.identify.if.such.situations.pertain.to.your.equipment.. The.20626.Universal.Remote.is.easy.to.use,.easy.to.program,.and.it. gives.you.total.control—at.the.touch.of.your.fingertips!

  • Page 4: Button.functions

    Button Functions Note:.The.Record.button.must.be.pressed.TWICE.to.record.from. your.VCR..For.some.brands.of.VCRs,.you.might.need.to.press.the. Record.button.once,.then.press.it.again.for.three.seconds..Some. buttons.on.the.remote.might.have.functions.that.are.referred.to. by.different.names.on.the.device.you.are.controlling..E.G...LAST. may.be.called.RECALL,.or.ENTER may.be.called.DISPLAY..These. differences.depend.on.the.brand.and.model.of.your.product..Also,. this.remote.can.only.operate.features.that.exist.on.your.product.. E.G.,.your.product.must.have.LAST.ability.for.the.LAST.button.to. operate.this.feature.

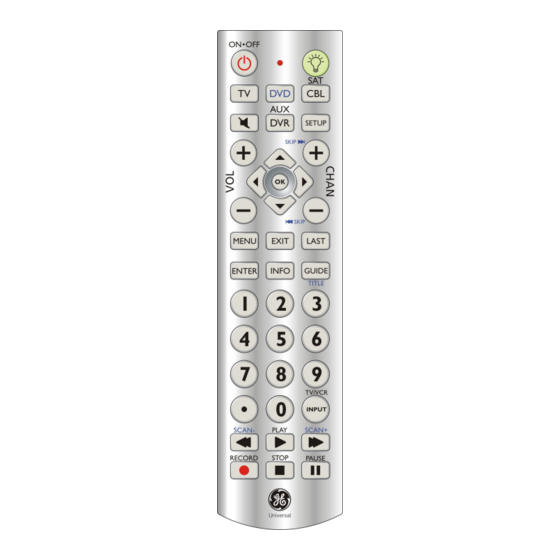

  • Page 5 Button Functions, cont. ON-OFF: Turns.device.On.or.Off. Red Indicator:.Lights.when.any.button.is.pressed. TV, DVD, CBL/SAT, DVR/AUX:.Selects.product.to.be.operated.. MUTE: Turns.off.the.TV.sound.while.the.picture.remains.. VOLUME UP/DOWN: Changes.the.volume.level.of.the.product,.normally.the.TV. UP,.DOWN,.LEFT &.RIGHT: Navigation.buttons. MENU: brings.up.the.DVD.disc.Menu.screen..Use.with.the.UP,.DOWN,.LEFT &. RIGHT navigation.buttons. INPUT Selects.the.video.inputs.of.your.TV.if.equipped.with.that.feature. ENTER:.Used.after.direct.channel.number.entry.to.immediately.change.to.the. selected.channel. NUMBERS:.Enter.numbers.for.direct.channel.selection..Some.products.require. Enter.to.be.pressed.after.channel.selection. ( ).Used.for.digital.channels,.e.g..2.3. • RECORD, PLAY, STOP, REW, FF, PAUSE:...VCR.control.buttons.operate.your.VCR.even. when.the.remote.is.set.to.operate.the.TV..Also.operates.DVD.Scan.-/+. TV/VCR/INPUT: Operates.the.same.as.the.TV/VCR.or.antenna.keys.on.your.original.

  • Page 6: Setup

    Setup Battery Installation 1.. On.the.back.of.the.remote,.push.down.on.the.tab.and.lift.the. cover.off. 2.. Match.the.batteries.to.the.+.and.-.marks.inside.the.battery. case,.then.insert.2.AAA.alkaline.batteries. 3.. Press.the.battery.cover.back.into.place. Battery Saver Your.remote.automatically.turns.off.if.the.buttons.are.depressed. more.than.30.seconds..This.will.save.your.batteries.should.your. remote.get.stuck.in.a.place.where.the.buttons.remain.depressed. (e.g.,.between.the.sofa.cushions). Code Saver You.will.have.up.to.10.minutes.to.change.the.batteries.in.your. remote.without.losing.codes.you.have.programmed..However,.do. not.press.any.buttons.until.batteries.are.installed.in.the.remote..If. buttons.are.pressed.without.batteries.in.the.remote,.all.codes.will. be.lost.. Power-On Default The.remote.powers.on.in.TV.mode. Code Setup The.SETUP.button.is.used.to.setup.the.remote..You.can.either.setup. the.remote.using.the.code.for.your.brand.of.product,.from.the.code. tables.(on.separate.sheet),.or.you.can.search.through.the.library.of. codes.until.you.find.a.code.that.works.for.your.product. Please.refer.to.“Programming.with.Code.Search”.on.page.8.for. more.information.on.using.the.code.search.feature.to.learn.how.to. search.through.the.library.of.codes.for.your.products. NOTE:.You.can.store.any.kind.of.code.under.any.mode.(except.TV).. I.E..you.can.store.a.VCR.code.under.the.CBL button,.or.a.SAT.code. under.the.DVD button,.etc..However,.you.can.only.store.TV.codes. under.the.TV button.

  • Page 7: Direct.code.entry

    Direct Code Entry 1..Press.and.hold.the.SETUP.button.until.the.red.indicator.stays. on,.then.release.the SETUP.button. 2..Press.and.release.the.desired.mode.button.(TV, DVD,.etc.)..The. red.indicator.blinks,.then.stays.lit... 3.. Enter.the.4.digit.code.from.the.code.tables.(on.separate.sheet).. Note:.after.a.valid.code.entry,.the.red.indicator.turns.off...For. an.invalid.code,.the.red.indicator.flashes. 4.. With.your.device.on,.press CHANNEL UP..If.the.device. responds,.no.further.programming.is.required..Note:.If.some. buttons.do.not.operate.your.equipment,.try.one.of.the.other. codes.for.your.brand. Write.your.codes.down.here.for.easy.reference.later. Device........Device.stored....Code ..........TV DVD. . CBL/SAT DVR/AUX...

  • Page 8: Code.search

    Code Search If.your.product.does.not.respond.after.you.have.tried.all.the.codes. for.your.brand,.or.if.your.brand.is.not.listed,.try.searching.for.your. code.by.following.these.steps. 1.. Manually.turn.on.the.device.(TV,.DVD,.etc.).to.be.controlled. 2.. Press.and.hold.the.SETUP.button.until.the.red.indicator.stays. on,.then.release.the.SETUP button. 3... Press.and.quickly.release.the.desired.mode.button.(TV,.DVD,. etc.)..The.red.indicator.blinks.off.once. 4.. Press.the.CHANNEL UP.button.repeatedly.(up.to.300.times). until.the.device.to.be.controlled.changes.channel..The.red. indicator.blinks.off.with.each.button.press...If.you.accidentally. overshoot.the.code.required,.press.the.CHANNEL DOWN button.to.backtrack.through.the.library.until.the.device. changes.channel..Pressing.CHANNEL UP.changes.direction.to. forward.again.. .. Press.and.release.ENTER to.install.the.code.. Most.users.will.store.DVD.codes.under.the.DVD button,.Cable. codes.under.CABLE,.etc..If.(for.example).you.want.to.store.a.DVD. code.under.CABLE,.first.follow.the.procedure.for.Direct.Code.Entry. (previous.page).and.press.CABLE in.step.2.of.Direct.Code.Entry,. then.enter.ANY.DVD.code.in.step.3.of.Direct.Code.Entry..Then.follow. the.steps.for.Code.Search.on.the.previous.page..Note:..If.the.device. does.not.have.a CHANNEL UP.button,.use.PLAY (DVD.only).or.ON- OFF instead..Code.Search.starts.from.the.currently.stored.4.digit.

  • Page 9: Code.identification.feature

    Code Identification Feature The.Code.Identification.Feature.allows.you.to.identify.the.three.digit. library.code.stored.under.your.device.key..For.example,.if.you.want. to.find.out.what.4.digit.code.is.stored.under.your.TV.device.key,. follow.the.six.steps.below: 1.. Press.and.hold.the.SETUP.button.until.the.red.indicator.stays. on..Release.the SETUP.button. 2.. Press.and.release.the.desired.mode.button.(TV,.DVD,.etc.)..The. red.indicator.blinks,.then.stays.lit... 3.. Press.and.release.the.SETUP.button..The.red.indicator.blinks. off. 4.. To.find.the.first.digit.for.the.code.stored.under.the.mode.key. pressed.in.step.2,.press.each.numeric.key.from.0-9.in.turn.. When.the.red.indicator.blinks.off.the.number.you.pressed.is. the.first.digit.for.the.code.you.are.searching.for. .. To.find.the.second.digit,.repeat.step.4,.this.time.when.the.red. indicator.blinks.off.this.is.the.second.digit. 6.. Repeat.step.4.to.find.the.third.and.fourth.digits.

  • Page 10: Programming.combo.device.codes

    Setup, cont. Programming Combo Device Codes Some.Combo.devices.(e.g..TV/VCR,.TV/DVD,.DVD/VCR,.etc.).will. require.you.to.set.up.two.different.Mode.buttons.to.control.both. parts.of.the.Combo.device..For.example,.if.you.have.a.TV/DVD. Combo,.you.might.need.to.set.up.one.code.under.the.TV button.to. control.the.TV.part.AND.a.separate.code.(under.any.other.Mode. button).to.control.the.DVD.part. Controlling Combo Devices Some.Combo.devices.(e.g..TV/VCR,.TV/DVD,.DVD/VCR,.etc.).have. separate.buttons.on.the.original.remote.to.select.the.part.of.the. Combo.device.to.be.controlled..For.example,.if.your.Combo.device. is.a.DVD/VCR.then.its.original.remote.might.have.separate.DVD. and.VCR.buttons.for.selection.of.the.Combo.part.you.would.control.. The.equivalent.button.functions.can.be.found.on.your.new.remote. by.using.the.device.Mode.and.SETUP buttons... Referring.to.“Programming.with.Code.Search”.on.page.8,.setup. a.device.Mode.(e.g..DVD).with.the.correct.code.for.your.Combo. device..Assuming.the.DVD/VCR.Combo.device.is.the.example.and. its.code.is.programmed.under.DVD Mode,.press.and.hold.the.DVD. Mode.button.for.more.than.one.second.to.send.the.DVD.button. command..To.send.the.VCR.button.command,.quickly.press.and. release.the.SETUP button.followed.by.pressing.and.releasing. the.DVD.Mode.button..This.method.can.be.applied.similarly.to. all.Combo.devices.(e.g..TV/VCR,.TV/DVD,.DVD/VCR,.etc.).and.is. available.for.all.Modes..Note.this.feature.is.not.supported.by.all. codes.. Controlling Devices Requiring Separate Power On and Off Buttons Some.devices.(e.g..certain.RCA.TVs).require.separate.Power.On.and.

  • Page 11: Vcr/Dvd/Dvr.punch-Through.feature

    Setup, cont. Controlling Devices Requiring Separate Power On and Off Buttons, cont. To.turn.the.TV.off,.press.and.release.the.ON-OFF.button.to.transmit. the.Power.Off.button.command..This.method.can.be.applied. similarly.to.any.device.and.is.available.for.all.Modes..Note.this. feature.is.not.supported.by.all.codes.. VCR/DVD/DVR Punch-Through Feature This.remote.allows.the.6.VCR.transport.buttons.(i.e..PLAY,.PAUSE,. STOP,.FF,.REWIND,.and.REC).to.Punch-Through.control.from.any. Mode.programmed.with.TV,.SAT.or.Cable.codes.to.the.last.VCR,. DVD.or.DVR.programmed.Mode.you.used...Normally.other.types. of.remotes.only.punch-through.(from.another.Mode).on.the.6.VCR. buttons.to.the.device.programmed.under.the.VCR Mode.button.. This.is.not.much.use.if.you.are.using.a.DVD.programmed.under.a. Mode.other.than.VCR..For.example,.if.you.have.3.DVD,.VCR.or.DVR. devices.programmed.into.this.remote,.the.last.one.you.accessed. on.the.remote.will.be.the.one.that.has.control.of.the.6.VCR. transport.buttons.when.in.any.other.Mode...This.feature.will.not. operate.if.the.programmed.TV,.SAT.or.Cable.code.has.its.own.VCR. transport.button.control.e.g..a.TV.Combo,.SAT/PVR,.etc. Volume/Mute Control and Punch-Through Feature This.remote.lets.you.select.which.device.Mode.controls.your. Volume/Mute.buttons..The.remote.is.initially.set.(factory.default). for.all.device.Modes.programmed.with.“Visual”.codes.(e.g..TV,.VCR,.

  • Page 12: Setting.any.mode.to.use.its.own.volume/Mute

    Setup, cont. Any Mode chosen for Volume/Mute control MUST have its own Volume/Mute function or the Volume/Mute buttons will do nothing. Setting ALL Volume/Mute Control to any one Mode This.routine.can.set.all.Modes.to.“punch-through”.to.any.one. chosen.Mode.for.Volume/Mute.button.control.without.the.needing. to.change.to.that.Mode. 1... Press.and.hold.the.SETUP button.until.the.red.indicator.turns. on,.then.release.the.button. 2... Press.and.hold.the.MUTE.button.until.the.red.indicator.blinks. off,.then.release.the.button. 3... Press.and.release.the.desired.Mode.button.(TV,.DVD,.etc.).for. Volume/Mute.control,.the.red.indicator.blinks.then.stays.on.

  • Page 13: Troubleshooting

    Troubleshooting Remote does not operate your product. •.. Press.the.mode.button.of.the.product.you.want.to.control. •.. Program.the.remote.with.a.new.code. •.. Install.new.batteries..(You.might.have.to.reprogram.your.remote. after.installing.new.batteries.) •.. Remote.may.not.be.compatible.with.your.product. Remote does not operate some features of your product. •.. Program.remote.with.a.new.code. •.. Remote.may.not.be.able.to.operate.all.features.of.your.product. or.button.names.might.be.different.than.your.product. Red Indicator blinks after you program a product code. •.. Remote.did.not.accept.the.code. •..
  • Page 14 90 Day Limited Warranty Jasco.Products.Company.warrants.this.product.to.be.free.from. manufacturing.defects.for.a.period.of.ninety.days.from.the.original. date.of.consumer.purchase...This.warranty.is.limited.to.the.repair. or.replacement.of.this.product.only.and.does.not.extend.to. consequential.or.incidental.damage.to.other.products.that.may.be. used.with.this.unit...This.warranty.is.in.lieu.of.all.other.warranties. express.or.implied...Some.states.do.not.allow.limitations.on.how. long.an.implied.warranty.lasts.or.permit.the.exclusion.or.limitation. of.incidental.or.consequential.damages,.so.the.above.limitations. may.not.apply.to.you...This.warranty.gives.you.specific.rights,.and. you.may.also.have.other.rights.which.vary.from.state.to.state..If. unit.should.prove.defective.within.the.warranty.period,.return. prepaid.with.dated.proof.of.purchase.to: Jasco.Products.Company 10.E..Memorial.Road Oklahoma.City,.OK..73114...
  • Page 15 20626 Universal Remote Instruction Manual Jasco.Products.Company 10.E..Memorial.Road Oklahoma.City,.OK..73114 Made.in.China....... 20626-04/09...
