Summary of Contents for Jasco 45246

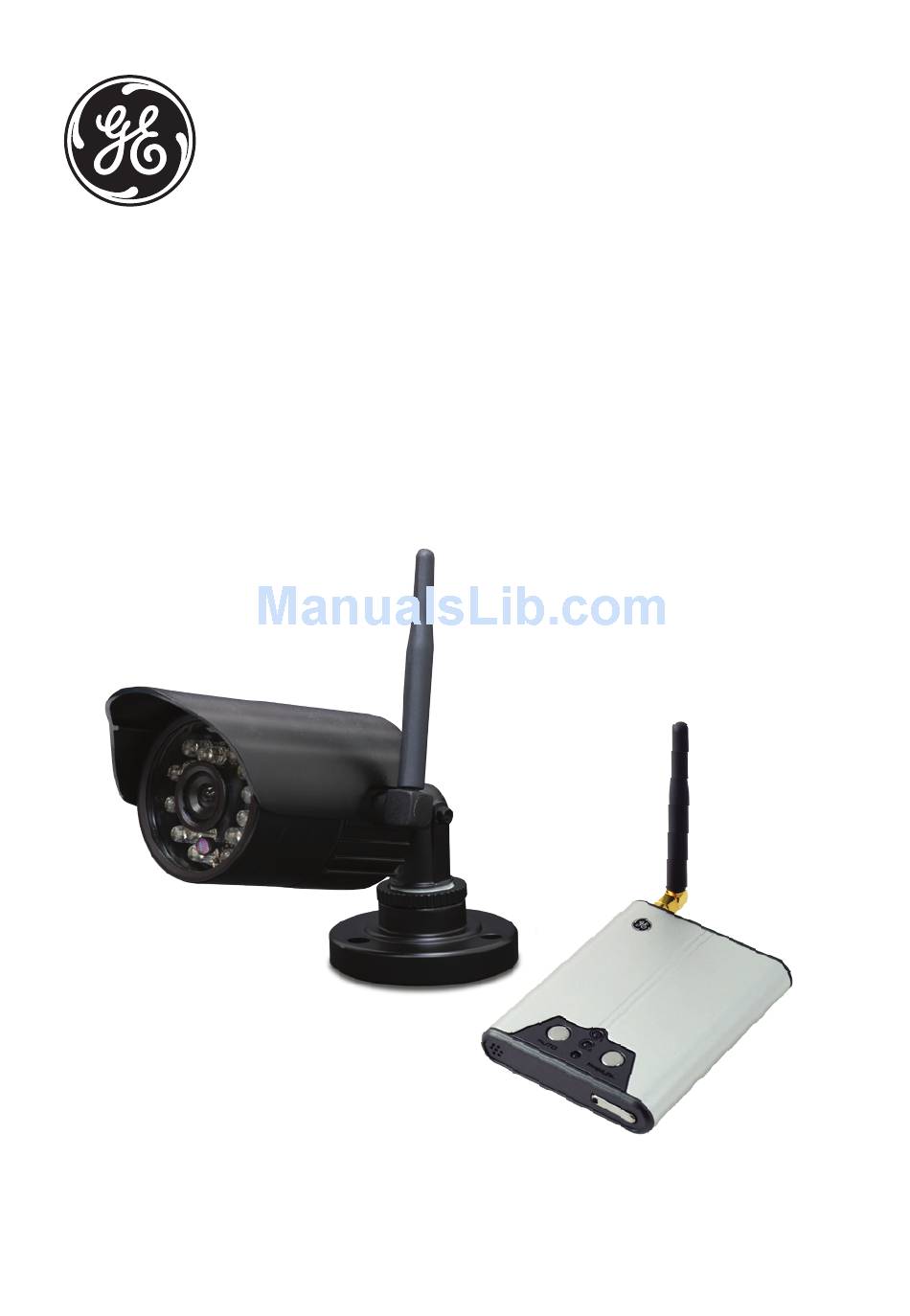

- Page 1 Indoor | Outdoor 45246 Home Monitoring Wireless Color Camera and Receiver User Manual www.jascoproducts.com 1-800-654-8483...
-
Page 2: Table Of Contents
Table of Contents Product Features ..............3 Package Contents ..............4 Before you Install ..............4 Choosing A Camera Mounting Location ..... 5 Receiver Channel Selection ..........7 Manual Mode ................7 Auto Mode (two camera operation) ......8 Cycle Time Setting (Time Interval between camera selections) ............ -
Page 3: Product Features
Thank you for purchasing the GE 45246 Wireless Color Camera System with Receiver. Please review these instructions carefully before attempting to operate the unit. PRODUCT FEATURES • Weather resistant metal camera casing, designed for outdoor use • Black anodized finish prevents rust and unwanted reflections •... -
Page 4: Package Contents
PACKAGE CONTENTS Please check and identify all the parts before proceeding with the installation. 1. Wireless camera and receiver 2. Mounting hardware for camera (3 screws, 3 plastic anchors) 3. 2 AC adapters 4. AV cable 5. Adjustment wrench BEFORE YOU INSTALL When choosing the best location for the placement of the camera and receiver, it is best to avoid any sources of possible RF interference such as... -
Page 5: Choosing A Camera Mounting Location
CHOOSING A CAMERA MOUNTING LOCATION The Wireless Color Camera is suitable for indoor or outdoor use. When choosing a mounting location, please be advised: • This camera is designed to be reliable for outdoor use; and its flexible design allows it to be used indoors as well. - Page 6 • Avoid positioning the camera so that it is viewing areas where half of the area is in bright sunlight and the other half is dark, such as the shadow of a building. All types of cameras have difficulty “seeing” into areas of such divergent light levels. •...
-
Page 7: Receiver Channel Selection
RECEIVER CHANNEL SELECTION The receiver system can monitor up to 2 wireless cameras. You can operate the receiver in either Manual or Auto mode. To view more than one camera, locate the camera channel selection switch (1 2 1/2) on the rear panel of the receiver. -
Page 8: Auto Mode (Two Camera Operation)
channel (1 or 2) LED will turn on. The receiver will switch to a different channel each time the MANUAL button is pressed. The video image for the channel with an active camera selected will appear on the monitor. Each camera must be assigned to a specific channel;... -
Page 9: Cycle Time Setting (Time Interval Between Camera Selections)
CYCLE TIME SETTING (Time interval between camera selections) The default cycle time for the receiver to switch between cameras in auto mode is preset to 4 seconds. To change the cycle time, press and hold both of the buttons (Auto and Manual) on top of the receiver simultaneously. - Page 10 Channel Selection Switch The camera will be set to channel 1 from the factory. To change the camera to channel 2, you will need to remove the sun shield and unscrew the lens cover. Locate the channel selector. Slide the switch to channel 2 and screw on the lens cover back on until it’s snug.
-
Page 11: Connecting To A Tv Or Monitor
CONNECTING TO A TV OR MONITOR To prepare for installation of the system, we recommend that you temporarily connect the Wireless Receiver to a TV or Monitor to help you choose the best location for installing the camera. The camera connects wirelessly and automatically to the receiver when both are powered on and are located within 200 ft (unobstructed view) of each other. - Page 12 1. Plug the AC adapter for the Wireless Receiver (labeled ‘Receiver’) into the power jack (marked ‘DC 9V’ on the back of the receiver), then into an AC outlet. Select the desired channel on the back of the receiver (see Receiver Channel Selection). 2.
-
Page 13: Using The Wireless Color Camera System With A Vcr Or Dvr
USING THE WIRELESS COLOR CAMERA SYSTEM WITH A VCR or DVR You can connect the receiver to a VCR or DVR in order to record the images received from up to two cameras. The VCR or DVR must also be connected to a TV/Monitor in order to see live or recorded images. -
Page 14: Auto Detection And Notification Feature
It turns on/off the high-powered Infrared (IR) LEDs on the front of the camera. These LEDs provide artificial light that allows the camera to see in the dark. Long Range Night Vision will appear as a Black and White image. When the image sensor detects enough light, color will return to the images. - Page 15 - 3/16" drill bit (for drilling holes, if using plastic anchors to mount onto drywall or brick material) - Screwdriver - Adjustment wrench (included) Step 1. Mounting preparation Once a suitable location for the camera has been selected and the cable route has been determined, you will need to use the camera’s mounting bracket as a template to mark holes for...
- Page 16 Figure A (Running cable on surface of wall) Pilot holes for mounting screws (b) If the cable needs to be ran through a wall or ceiling, then an additional hole will need to be drilled using the 3/8” drill bit. Drill the hole in the center of the three mounting screw holes (see figure B).
- Page 17 Step 3. Mounting bracket (a) If mounting to a stud, wood surface or other non-brick material, use the 1/8” drill bit to drill pilot holes; drill holes. Align holes in mounting bracket to drilled holes, insert screws and screw in until plate has secure fit.
- Page 18 (d) Take care to position the Proper Position camera in the correct Channel orientation. To ensure Selection the camera image is not Lens positioned upside down, Light you may have to rotate Sensor the camera housing so the channel slelection switch is positioned above the lens and the light sensor is below the lens.
-
Page 19: Troubleshooting
Step 5. AC Power Locate the power cable end connection. Attach the AC adapter (labeled ‘camera’) to end of cable coming from the camera. Plug-in AC adapter to nearest AC outlet. Adapter must be used in a dry location. AC power extension cables are available from the Call Center 1-800-654-8483 or visit online at www. - Page 20 Blank monitor 1. Make sure receiver or monitor is switched ON. Ensure the correct video input on the TV/monitor has been selected. 2. Make sure video cable is connected to TV/monitor. Interference on camera picture 1. Make sure each camera (transmitter) is within range, and that no large obstructions are blocking the signal.
-
Page 21: Specifications
2. Make sure the sound is within the microphone range. 3. If the unit emits a loud wailing sound (feed back), try moving the camera away from the receiver or angle the receiver differently. 4. Make sure the audio cable is connected to the TV/ monitor. -
Page 22: Warranty
ONE-YEAR LIMITED WARRANTY Jasco Products Company warrants this product to be free from manufacturing defects for a period of one year from the original date of consumer purchase. This warranty is limited to the repair or replacement of this product only and does not extend to consequential or incidental damage to other products that may be used with this unit. -
Page 23: Fcc Statement
FCC STATEMENT WARNING This device complies with part 15 of the FCC rules. Operation is subject Risk of fire and shock • Only use the supplied cUL listed AC to DC adapter. to the following two conditions: • The supplied adapter is for indoor use only. (1) This device may not cause •... - Page 24 General Electric Company and is used under license to Jasco Products Company LLC, 10 E. Memorial Road, Oklahoma City, OK 73114 www.jascoproducts.com 45246 rev. 5-18-10...
