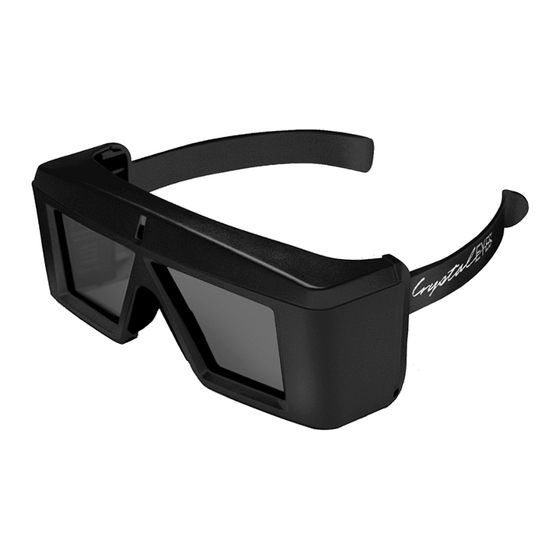

INSTALLATION & SETUP
CrystalEyes is designed to be worn with or without prescription eyewear with no adjustment needed. A compatible stereo
computer graphics or video system must be available to check the operation of the eyewear. Each pair of CrystalEyes eyewear
includes two fresh batteries, which are installed at the factory. To activate the eyewear, unfold the temple pieces; to turn off the
eyewear, fold the temple pieces. Always fold the eyewear when not in use to maximize the battery life.

Installing the StereoGraphics Emitter

StereoGraphics CrystalEyes requires the use of an infrared emitter in order to synchronize the eyewear in conjunction with the left
and right image sequence on screen. The infrared receiver (located in the center of the eyewear) must be in line of sight and in
range of the emitter for successful operation of CrystalEyes. Please consult the documentation accompanying your emitter for
installation and operation details. For best results in using CrystalEyes with standard workstation
displays, set the emitter slightly behind the top edge of the monitor, as shown in Figure 1. In addition:
• For EPRO, ESGI and ELR emitters, make sure the emitter is switched to the ON
position. Depending on the emitter range needed, switch the emitter to either the high
or low setting.
• The ENT emitter will switch on and off automatically whenever a sync signal is
presented by the graphics card.
• Users of the EPC-2 must switch the emitter from BYPASS to STEREO MODE and
set the emitter range separately.

Optional add-on Nosepiece

The new optional nosepiece has been designed to give a better fit for people with smaller noses or who wear prescription eyeglasses
and where the CrystalEyes do not rest comfortably on the nose bridge.
The nosepiece simply 'sticks on' over the current built-in nosepiece. To attach the nosepiece, remove the backing tape to the
adhesive strip on the add-on nosepiece and slide the nosepiece into position with the flange facing out. Press into place until the
adhesive 'sticks' (approximately 2 seconds).

Battery Indicator -- New for CrystalEyes 3

The battery indicator light is positioned inside the CrystalEyes frame above the right lens. The LED indicator will illuminate for
approximately 2 seconds only when the eyewear is switched on (by opening the right temple). After approximately 2 seconds the
LED will switch off and remain off until the temple reactivates the on/off switch.
Indicator light: ON for 2 seconds:
Flashing for 2 seconds:
OFF:
Note: If temples are closed and re-opened within 4 seconds, the battery indicator will not illuminate. Wait 4 seconds to check the battery.

SPECIFICATIONS

Optics
Shutters:
Transmittance:
Dynamic Range:
Close Time:
Open Time :
Field Rate:
Brite Mode:
Infrared Sensor-
Angle of View:
Weight
3.3 oz. (93 grams)
User's Guide
Liquid Crystal
32% typical
1500:1 typical
Less than 0.2 milliseconds
Less than 3 milliseconds
80 to 160 fields per second
Automatically selected
90 degrees horizontal
140 degrees vertical
battery OK
batteries should be replaced
batteries are dead or on/off switch reactivated within 2 seconds;
replace batteries.
Controls
On/Off: Eyewear operation is switched on and off by
unfolding and folding the eyewear temple pieces.
Brite mode: Both lenses automatically switch to full
transparency for up to 8 minutes when shielded from
infrared signals. Restoring the infrared signal returns the
eyewear to full operation.
Batteries
Two 3 V lithium/manganese dioxide (NEDA 5004L),
including:
Eveready
Maxell
Panasonic CR2032
Ray-O-Vac CR2032
Saft
Battery Life: >250 hours (continuous usage)
Figure 1. Display and Emitter
Sanyo
E-CR2032
Seiko
CR2032
Technacell
Varta
Duracell
LM2032
CR2032
CR2032
CR2032
CR2032
DL2032
