AEG COMPETENCE B4000-1 Operating Instructions Manual

The versatile built-in oven
Hide thumbs
Table of Contents

Advertisement

Quick Links

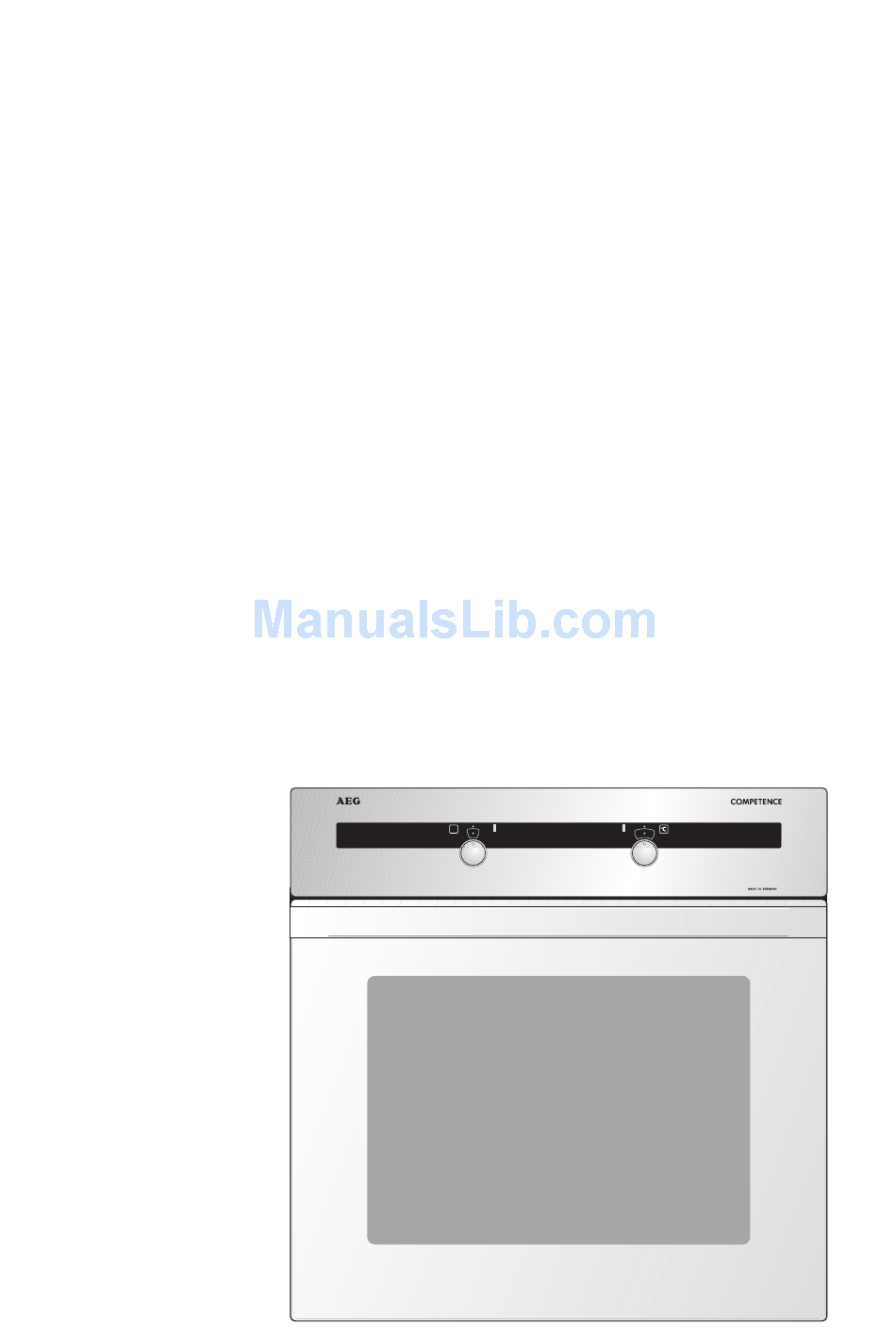

COMPETENCE B4000-1
The Versatile Built-in Oven
Operating Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COMPETENCE B4000-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AEG COMPETENCE B4000-1

Summary of Contents for AEG COMPETENCE B4000-1

  • Page 1 COMPETENCE B4000-1 The Versatile Built-in Oven Operating Instructions...

  • Page 2: Dear Customer

    Dear customer, Please read these operating instructions carefully. Pay particular attention to the section “Safety information” on the first few pages. Please retain these operating instructions for later refer- ence. Pass them on to possible new owners of the appliance. The following symbols are used in the text: Safety instructions Warning: Information concerning your personal safety.

  • Page 3: Table Of Contents

    Contents Safety ............Disposal .
  • Page 4 Cleaning the Oven Ceiling ........36 Oven Door .

  • Page 5: Safety

    If your appliance needs repairing, please contact your local AEG Service Force Centre or your specialist dealer. Child Safety • Never leave children unsupervised when the appliance is in use.
  • Page 6 To Avoid Damaging Your Appliance • Do not line your oven with aluminium foil and do not place a baking tray or dish on the oven floor, otherwise the oven enamel will be damaged by the resulting build up of heat. •...

  • Page 7: Disposal

    Disposal Disposing of the packaging material All materials used can be fully recycled. Plastics are marked as follows: • >PE< for polyethylene, as used for the outer wrapping and the bags inside. • >PS< for polystyrene foam, e.g., as used for the padding materials. They are completely free of CFCs.

  • Page 8: Description Of The Appliance

    Description of the Appliance General Overview Control Panel...

  • Page 9: Oven Features

    Oven Features Oven Steam Outlet Steam from the oven is fed out between the upper edge of the door and the control panel.

  • Page 10: Oven Accessories

    Oven accessories Combination shelf For dishes, cake tins, items for roasting and grilling. Fat tray For roasting or for collecting fat. Baking tray For cakes and biscuits...

  • Page 11: Before Using For The First Time

    Before Using for the First Time Initial Cleaning Before using the oven for the first time you should clean the oven floor. Caution: Do not use any caustic, abrasive cleaners! The surface could be damaged. To clean metal fronts use commercially available cleaning agents. 1.

  • Page 12: Using The Oven

    Using the Oven Switching the Oven On and Off 1. Turn the “oven functions” switch to the required function. 2. Turn the “temperature selection” switch to the required temperature. The yellow oven power indicator will remain on while the oven is in use. The red temperature pilot light comes on while the oven is heating up.

  • Page 13: Oven Functions

    Oven Functions The oven has the following functions: Oven lighting With this function you can illuminate the oven interior, e.g., for clean- ing. The heating element is not in use. S Pizza & baking For baking cakes on one level and for pastries that need more brown- ing and a crispy base.

  • Page 14: Dual Grill

    A Defrost To begin to thaw and to defrost such items as flan, butter, bread, fruit or other frozen foods. For this function the fan operates without heating. F Grill For grilling flat foods placed on the middle of the shelf such as steaks, escalopes or fish, or for toasting.

  • Page 15: Inserting/Removing The Fat Filter

    Inserting/Removing the Fat Filter The fat filter protects the rear wall heating element against splashes of fat when roasting. Inserting the fat filter Holding the fat filter by the tab, in- sert the two retainers into the opening on the rear wall of the oven (fan opening) from the top downwards.

  • Page 16: Mechanical Door Lock

    Mechanical Door Lock When the appliance is delivered, the door lock is deactivated. Activate the door lock Pull the safety catch forwards until it locks in place. Open the oven door: 1. Shut the door. 2. Press the safety catch and keep it depressed.

  • Page 17: Uses, Tables And Tips

    Uses, Tables and Tips Baking Use the pizza & baking S, fan cooking U or conventional O oven functions for baking. Remove the fat filter when baking, as otherwise the baking time is longer and the surface will brown unevenly. Baking tins •...
  • Page 18 General information • Always count the shelf positions from the bottom upwards. • Insert baking trays with the sloped edge to the front! • Always place cake tins in the middle of the shelf. • With pizza & baking S or conventional O you can also bake two items simultaneously by placing the tins next to one another on the shelf.

  • Page 19: Baking Table

    Baking Table Baking on one shelf position Pizza & baking S Conventional O Type of cake or pastry Time Shelf Tempera- Shelf po- Tempera- For both position ture sition ture functions from ºC from ºC Hrs.: Mins. bottom bottom Cakes in cake tins Ring-shaped or 150-160 160-180...
  • Page 20 Pizza & baking S Conventional O Type of cake or pastry Time Shelf Tempera- Shelf po- Tempera- For both position ture sition ture functions from ºC from ºC Hrs.: Mins. bottom bottom Fruit flan (with a yeast 150-170 170-190 0:25-0:50 dough/sponge base) Fruit flans on shortcrust 160-170...
  • Page 21 Baking on several shelf positions Fan cooking U Time Type of cake or pastry Hours: Shelf position from bottom Tempera- Mins. ture ºC 2 Levels 3 Levels Cakes and pastries on baking sheets Cream puffs/eclairs 0:35-0:60 160-180 Dry streusel cake 140-160 0:30-0:60 Biscuits...

  • Page 22: Tips For Baking

    Tips for baking Baking result Possible cause Solution Insert the cake at a lower The cake is under- Wrong shelf position shelf position cooked at the bottom Cooking temperature too high Set to a lower temperature The cake collapses (is sticky, soft in the middle, damp patches)

  • Page 23: Pies And Gratin Table

    Pies and Gratin Table Conventional O Rotitherm I Time Shelf Shelf Temp. Temp. Hrs: Mins. position position °C °C from from bottom bottom Pasta bake 180-200 160-170 0:45-1:00 Lasagne 180-200 160-170 0:25-0:40 Vegetables au 200-220 160-170 0:15-0:30 gratin Pizza ba- 200-220 160-170 0:15-0:30...

  • Page 24: Frozen Ready Meals Table

    Frozen Ready Meals Table Food to be Shelf Temperature Time cooked position Oven function from bottom in accordance in accordance Conventional with the Frozen pizza with the maker's maker's instruc- instructions tions Chips Rotitherm I 200-220 °C 15-25 Mins. (300-600 g) in accordance in accordance Conventional...

  • Page 25: Roasting

    Roasting Use the rotitherm I or conventional O oven functions for roasting. Ovenware for roasting • Any heat-resistant dish is suitable for roasting (refer to the manufac- turer's instructions!). • If the dish has plastic handles, check that they are heat-resistant (re- fer to manufacturer's instructions!).
  • Page 26 Notes on the roasting table Information is given in the table on suitable oven functions, tempera- ture settings, cooking times and shelf positions for various types of meat. The information is for guidance. • We recommend roasting meat and fish with a minimum weight of 1kg in the oven.

  • Page 27: Roasting Table

    Roasting table Conventional O Rotitherm I Type of meat Quantity Time Weight Shelf po- Tempera- Shelf Tempera- Hours:Mi sition ture position ture from bot- ºC from ºC bottom Beef Pot roast 1-1.5 kg 200-250 2:00-2:30 Roast beef or fil- per cm of thickness per cm of - rare...
  • Page 28 Conventional O Rotitherm I Type of meat Quantity Time Weight Shelf po- Tempera- Shelf Tempera- Hours:Mi sition ture position ture from bot- ºC from ºC bottom Game Saddle of hare, up to 1 160-170 0:25-0:40 220-250 haunch of hare Saddle of venison 1.5-2 kg 210-220 160-180...

  • Page 29: Grilling

    Grilling To grill use the grill F oven function or dual grill Z with temperature setting z. Important: Always grill with the oven door closed. Always pre-heat the empty oven for 5 minutes using the grill func- tions! Ovenware for grilling •...

  • Page 30: Defrosting

    Defrosting To defrost, use the defrost oven function without setting a tempera- ture. Dishes for defrosting • Remove packaging and place the food on a plate on the shelf. • Do not use a plate or dish to cover as these significantly increase the defrosting time.

  • Page 31: Preserving

    Preserving For making preserves, use the bottom heat Ü oven function. Preserving jars • When making preserves, use only commercially available jars of the same size. Jars with twist-off tops or with a bayonet fastening and metal containers are not suitable. Shelf positions •...

  • Page 32: Preserving Table

    Preserving Table The stated times and temperatures are for guidance only. Temperature Preserving Continued in switched time until cooking off oven Preserves bubbles form at 100°C standing time °C Mins. Mins. Soft fruit Strawberries, blue- berries, raspberries, 160-170 35-45 ripe gooseberries Unripe gooseberries 160-170 35-45...

  • Page 33: Cleaning And Care

    Cleaning and Care Warning: For safety reasons cleaning the appliance with a steam jet cleaner or high-pressure water cleaner is not permissible! Exterior of the Appliance Wipe the front of the appliance with a soft cloth dipped in warm soapy water.

  • Page 34: Shelf Support Rails

    Shelf Support Rails The shelf support rails on the left and right hand sides of the oven can be removed for cleaning the side walls. Removing the shelf support rails First pull the front of the rail away from the oven wall (1) and then un- hitch at the back (2).

  • Page 35: Oven Lighting

    Oven Lighting Warning: There is a danger of electric shock! Prior to changing the oven light bulb: – Switch off the oven! – Remove the fuses in the fuse box or switch off the circuit breaker. Place a cloth on the oven floor to protect the oven light and glass cover.

  • Page 36: Cleaning The Oven Ceiling

    Cleaning the Oven Ceiling The upper heating element can be folded down to make it easier to clean the oven ceiling. Folding down the heating ele- ment Warning: Only fold down the heat- ing element when the oven is switched off and there is no risk of being burnt! 1.

  • Page 37: Oven Door

    Oven Door The oven door of your appliance may be removed for cleaning. Removing the oven door 1. Open the oven door completely. 2. Completely fold back the brass- coloured clamping lever on both door hinges. 3. Grip the oven door with both hands on the sides and close it to about 3/4 going past the point of resist- ance.

  • Page 38: Oven Door Glass

    Oven Door Glass The oven door is fitted with three glass panels mounted one behind the other. The inner panels may be removed for cleaning. Warning: Carry out the following steps only when the oven door is un- hinged! When left on its hinges, the door could rise rapidly due to the lighter weight when the glass is removed and could cause injury.
  • Page 39 Inserting the middle door glass 1. Insert the middle glass panel at an angle from above into the section of the door in which the handle is located. 2. Lower the middle glass panel and slide it under the lower bracket to- wards the lower door edge as far as it will go.

  • Page 40: What To Do If

    (see Cleaning and Care). If you are unable to remedy the fault with the above assistance, please contact your specialist dealer or AEG Service Force Centre. Warning: Repairs to the applicance may only be carried out by ap- proved service engineers! Repairs carried out by inexperienced persons may cause serious injury to the user.

  • Page 41: Technical Data

    Technical Data Oven Interior Dimensions Height x Width x Depth 31 cm x 41 cm x 41 cm Capacity (usable capacity) 52 l Regulations, Standards, Directives This appliance meets the following standards: • EN 60 335-1 and EN 60 335-2-6 relating to the safety of electric appliances for household use and similar purposes and •...

  • Page 42: Index

    Index Accessories ......10 Ready meals ......24 Repairs .

  • Page 43: Service

    Service The section "What do I do if...“ lists some faults that you can remedy yourself. Look there first if a fault occurs. Is it a technical fault? Then contact your nearest customer service centre. (Addresses and tele- phone numbers can be found under "Customer Service Centres“.) Always prepare in advance for the discussion.
  • Page 44 AEG Hausgeräte GmbH Postfach 1036 D-90327 Nürnberg http://www.aeg.hausgeraete.de © Copyright by AEG 822 947 710-A-080302-04 Subject to change without notice...
