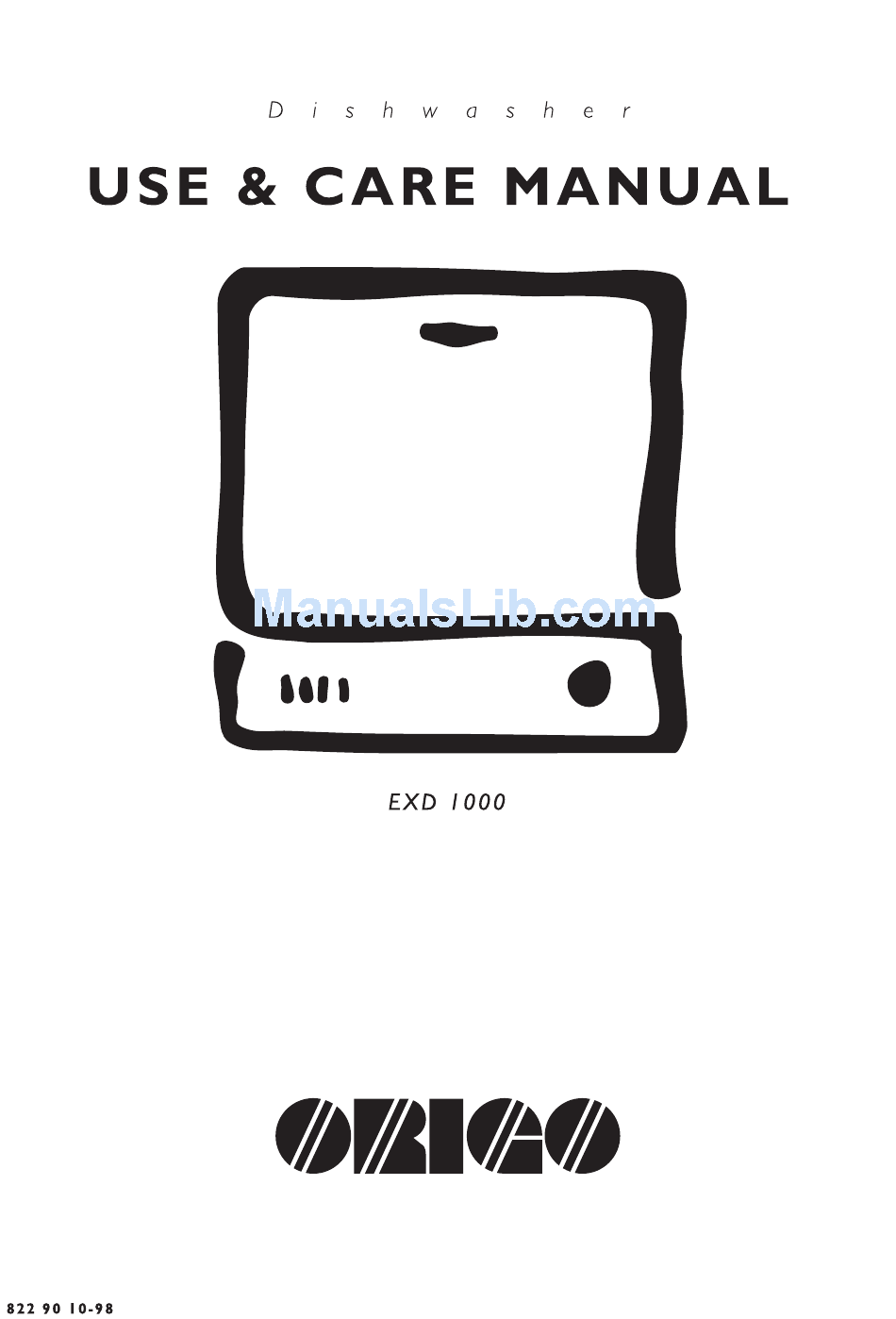

Summary of Contents for ORIGO EXD 1000
-
Page 2: Table Of Contents
Contents For the User Safety instructions Information de sécurité General advice Damage in transit Applications Protecting the machine against freezing Operating instructions Test the machine by running a cycle Care and cleaning Rinse conditioner dispenser Spray arm Coarse strainer Fine filter Detergent dispenser Cleaning Loading... -
Page 3: Safety Instructions
Safety instructions Please read all instructions before using your • To avoid entrapment and/or suffocation, remove dishwasher. Use your dishwasher only as inst- the door from any dishwasher that is discarded or ructed in this Use and Care Manual. Installation otherwise not in use. -
Page 4: Information De Sécurité
Information de sécurité Lisez attentivement cette notice et prenez con- • Enlevez la porte du lave-vaisselle lorsque vous le naissance des indications, conseils et mises en remplacez ou le mettez au rebus. garde concernant l’installation et l’utilisation de • Ne pas laver d’articles en plastique à moins qu’ils votre lave-vaisselle. -
Page 5: General Advice
THANK YOU for choosing a new Origo dishwasher. We hope it will give you every satisfaction. Please read through these instructions carefully. You will then quickly learn how to use the machine and make the most of its features. Pull up a chair beside the machine so that you can familiarise yourself with the various controls and functions as you read the instructions. -
Page 6: Operating Instructions
Operating Instructions Test the machine by running a cycle Scrape or rinse off solid food Load the dishwasher. remnants. (See page 8: "LOADING") Fill up the rinse conditioner dispenser. Put the correct amount of detergent on the inner door. Close the door. Start the dishwasher by tur- ning the programme knob to the start position. -
Page 7: Care And Cleaning
Care and cleaning Rinse conditioner dispenser (1) Coarse strainer (3) Use of a rinse conditioner will result in cleaner and The purpose of the coarse strainer is to catch large faster drying of the load, since it helps water and soil objects such as toothpicks and pieces of eggshell. -
Page 8: Loading
Loading How to load the dishwasher The illustration shows the machine loaded with five place settings. Your own dishes are not likely to be identical to this load, but if you follow the advice below we are sure you will be pleased with the results. -
Page 9: Controls And Programme Table
Controls and programme table Selector knob To start the machine: - Turn the selector knob to the programme start. The ON/OFF switch is built into the programselector. To isolate the dishwasher from the electric circuit completely, unplug it from the wall socket. Door lock To open the door, press the handle down. -
Page 10: Installation
Installation Countertop Use Positioning In its standard version the machine is intended for instal- lation on a kitchen counter or worktop. TO FUNCTION PROPERLY THE MACHINE MUST BE FULLY LEVEL. Its height can be adjusted with the adjus- table feet (8 mm each). Water supply The temperature of the water supply should not exceed 150°... -
Page 11: Built-In Use
Built-In Use Installation Tips Direct from the box, the dishwasher may be installed in a built-in manner. The use of the Origo Built-In Kit is recom- mended. Clean dishes require adequate hot water. Supply water tem- perature of 140° F (60° C) is desirable; 120° F (49° C) is minimum;... -
Page 12: Discharge Connection
Installation Built-In Use Installation Tips Connection to Sink Drain Discharge connection Connect the discharge hose to the pipe stub at the rear of the dishwasher, using the hose clamp supplied. It is important to push the drain hose onto the drain port as far as possible. -
Page 13: In The Event Of A Fault
In the event of a fault Trouble shooting list • If water leaks from the machine • Turn off the water supply tap or stopcock immediately and isolate the machine from the electrical supply by removing the plug from the wall socket. -
Page 14: Service And Spare Parts
Service and spare parts If you still cannot remedy the problem after following Before calling the dealer or a service centre, make a the steps above, call a repairman. note of the details on the data plate affixed to the rear of the dishwasher. - Page 15 - 15 -...
- Page 16 99-09...
