Summary of Contents for Global Machinery Company GEN

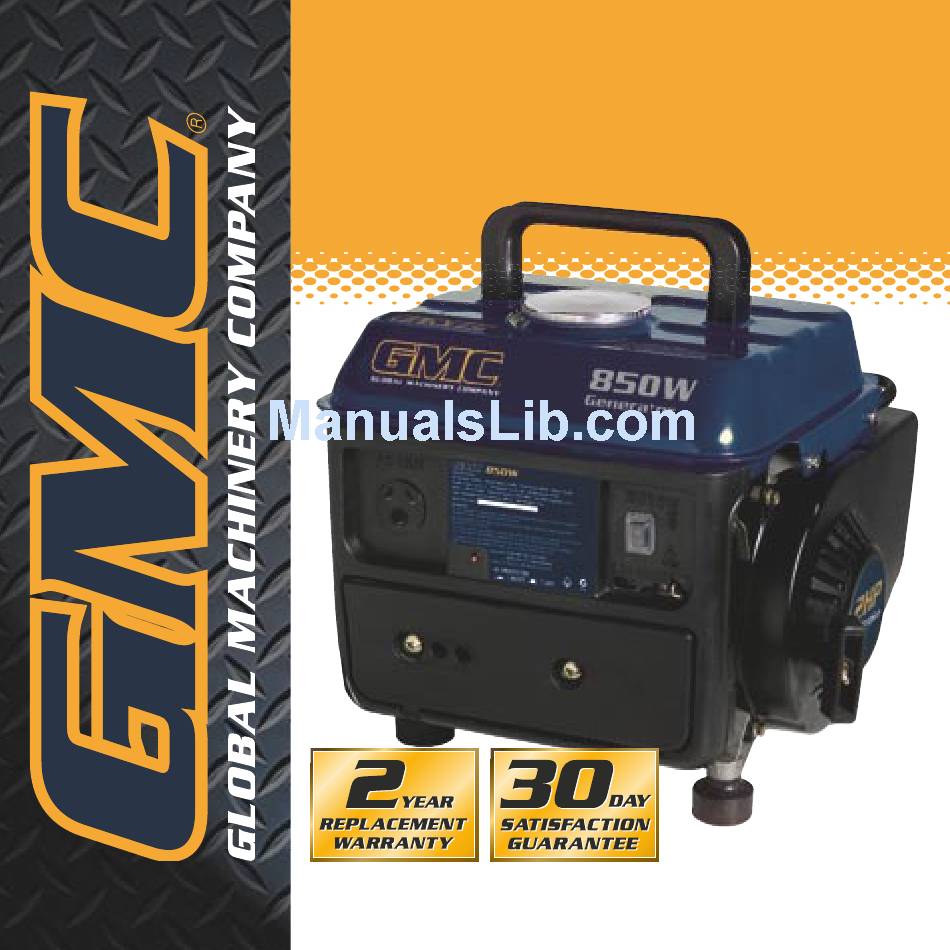

- Page 1 INSTRUCTION MANUAL 850W Generator Ideal for Home & Camping • Melbourne • Perth • Auckland • Hong Kong • Shanghai • Taipei • New York • Verona • London • Paris 031208 PR ED9...
-
Page 2: Table Of Contents
Contents Warranty Introduction Environmental protection Scope of product Description of symbols General safety instructions for power tools Risk of electrocution and fire Risk of fire Risk of injury and property damage when transporting generator Risk of breathing - inhalation hazard Risk of unsafe operation Risk of hot surfaces Risk of moving parts... -
Page 3: Introduction
Dear Customer If you require any help with your product, whether it is a Warranty claim, spare part or user information, please phone our Help Line for an immediate response. Phone 1300 880 001 in Australia or 0800 445 721 in New Zealand. Introduction Your new GMC tool will more than satisfy your expectations. -
Page 4: General Safety Instructions For Power Tools
General safety instructions for power tools To use this tool properly, you must observe the safety regulations, the assembly instructions and the operating instructions to be found in this Manual. All persons who use and service the machine have to be acquainted with this Manual and must be informed about its potential hazards. -
Page 5: Risk Of Electrocution And Fire
Save these instructions important safety instructions Hazard Improper storage of extension cord. Operation of generator in rain, wet, icy, or flooded conditions. Placing generator on or against highly conductive surface, such as a steel walkway or metal roof. Use of worn, damaged or ungrounded extension cords. -
Page 6: Risk Of Fire
Hazard Attempting to fill the fuel tank while the engine is running. Sparks, fire, hot objects Improper storage of fuel Tampering with factory set engine speed settings. Inadequate ventilation for generator Overfilling the fuel tank – fuel spillage. Risk of fire What could happen Fuel and fuel vapors can become ignited by coming in contact with... -
Page 7: Risk Of Injury And Property Damage When Transporting Generator
Risk of injury and property damage when transporting generator Hazard Fire, Inhalation, Damage to Vehicle Surfaces Hazard Gasoline engines produce toxic carbon monoxide exhaust fumes. Hazard Operation of generator in careless manner. What could happen Fuel or oil can leak or spill and could result in fire or breathing hazard, serious injury or death can result. -
Page 8: Risk Of Hot Surfaces
Operating generator while suspended Hazard Contact with hot engine and generator components. Hazard Contact with moving parts can result in serious injury. Hazard Lifting a very heavy object. Risk of unsafe operation (cont.) Generator will not operate properly and will cause damage to the generator and could cause serious injury or death to you or others. -
Page 9: Additional Safety Rules For Generators
Additional safety rules for generators 1.Do not operate in a hazardous location. include where there is a risk of explosion of petrol fumes, leaking gas or explosive dust. 2.Do not operate in a confined area. smoke or fumes could reach dangerous concentrations. 3.The output of this generator is potentially lethal. -
Page 10: Know Your Product
Know your product 1. Handle 2. Fuel cap 3. Fuel tank 4. Fuel cock valve 5. Recoil starter 6. On/off switch 7. Choke 8. Cover 9. DC Output 14.4V 10. AC Output 240V 11. AC circuit breaker 12. DC circuit breaker... -
Page 11: Fitting The Handle
Fitting the handle Firstly, place the 2 handle gaskets (supplied with the generator) over the holes on the petrol tank. Then proceed by placing the handle on top of the gaskets ensuring the 2 holes in the handles line up with the holes on the tank. Screw the handle onto the petrol tank using the 2 screws provided with the unit. -
Page 12: Stopping The Engine
Stopping the engine 1. Before stopping, ensure that no electrical apparatus is connected to the generator. 2. Turn the engine switch to the ‘stop’ position. 3. Turn the fuel cock lever anti clockwise to the ‘off’ position. Connecting apparatus to the generator 1. -
Page 13: Periodic Maintenance
Periodic maintenance Items Remarks Every 50hrs or every month Spark Plug Remove Carbon Air Filter Cleaning Fuel Filter Clean Decarbon- Clean isation Generator maintenance Your generator should be kept clean and dry at all times. The generator should not be stored or operated in environments that includes excessive moisture, dust or any corrosive vapors. -
Page 14: Petrol Tank Filter
Petrol tank filter 1. Stop the engine. 2. Turn the fuel cock lever to the ‘off’ position. 3. The petrol tank filter is located directly under the petrol cap. This protects impurities entering the fuel tank during refuelling. 4. Remove the filter & wash thoroughly in a solvent. 5. -
Page 15: Troubleshooting
Troubleshooting Trouble Possible cause Engine will not start 1. Low on fuel/oil content 2. Ignition switch in “Off” position 3. Faulty spark plug 4. Choke in wrong position 5. Fuel shut-off valve in closed position 6. Unit loaded during start-up 7. - Page 16 Carefully read the entire Instruction Manual Before returning this product for a Warranty Claim or any other reason Please Call 1300 880 001 (Australia) or 0800 445 721 (New Zealand) When you make your call, please have the following information at hand: •...
