GMC MX100MAG Instruction Manual

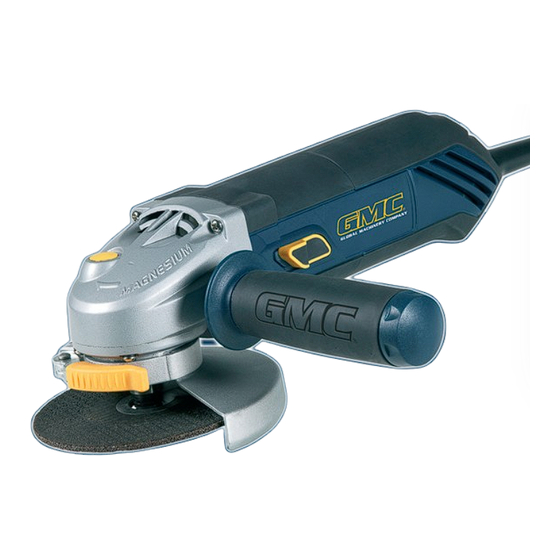

950w 100mm (4”) angle grinder
Hide thumbs
Table of Contents

Advertisement

Quick Links

INSTRUCTION MANUAL
950W
100MM (4")
ANGLE GRINDER
MX100MAG
INSTRUCTION MANUAL
1

Advertisement

Table of Contents
loading

Related Manuals for GMC MX100MAG

Summary of Contents for GMC MX100MAG

  • Page 1 INSTRUCTION MANUAL 950W 100MM (4”) ANGLE GRINDER MX100MAG INSTRUCTION MANUAL...

  • Page 2: Table Of Contents

    Contents Warranty Introduction Environmental protection Description of symbols Specifications Safety instructions Additional safety rules for angle grinders Contents of carton Unpacking Know your product Disc assembly showing flange requirements Setting up Operation Switching on and off Replacing a disc Lubrication Power cord maintenance Cleaning General inspection...

  • Page 3: Introduction

    Introduction Your new GMC power tool will more than satisfy your expectations. It has been manufactured under stringent GMC Quality Standards to meet superior performance criteria. You will find your new tool easy and safe to operate, and, with proper care, it will give you many years of dependable service.

  • Page 4: Safety Instructions

    Safety instructions WARNING. Read and understand all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term “power tool” in all of the warnings below refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

  • Page 5: Additional Safety Rules For Angle Grinders

    • Do not secure the angle grinder in a vice or work bench and use it as a static grinder. It can lead to serious injury. • Never apply excessive pressure to the disc. It might shatter causing personal injury.

  • Page 6: Contents Of Carton

    ALWAYS WEAR EYE PROTECTION Wear goggles Wear hearing protection Wear a breathing mask Contents of carton The GMC MX100MAG Angle Grinder is supplied with the following accessories as standard: • Pin wrench • Side handle •...

  • Page 7: Know Your Product

    Know your product Before using the angle grinder, familiarise yourself with all the operating features and safety requirements. Use the tool and accessories only for the applications intended. All other applications are expressly ruled out. 1. Motor housing 2. Spindle lock button 3.

  • Page 8: Setting Up

    NOTE. Grinding operations normally require the angle grinder to be held with the grinding disc parallel to the plane of the workpiece whilst cutting operations normally require the angle grinder to be held with the cutting disc at right angles to the workpiece. Take the time to find the best combination of front handle and main handle positions to suit the task on hand.

  • Page 9: Replacing A Disc

    Switch off the grinder and disconnect it from the power point. 1. Turn the angle grinder on to its back and press the spindle lock button (2) and rotate the spindle until it locks. 2. Insert the pins of the wrench (7) into the holes in the outer flange (8) and remove it and the old disc.

  • Page 10: Lubrication

    Lubrication The grease in the gearbox will require replacement after extensive use of the tool. Please go to a qualified service agent to perform this service. Power cord maintenance If the supply cord needs replacing, the task must be carried out by the manufacturer, the manufacturer’s agent, or an authorised service centre in order to avoid a safety hazard.
  • Page 12 GMC customer assist If your product needs repairing, replacing, technical service or you simply need help or advice, please contact us on our Customer Assist Line 1300 880 001 (Australia) or 0800 445 721 (New Zealand). For prompt service we suggest you log your service request online at www.gmcservice.com.au.
