Summary of Contents for Harman Consumer Infinity Primus P143

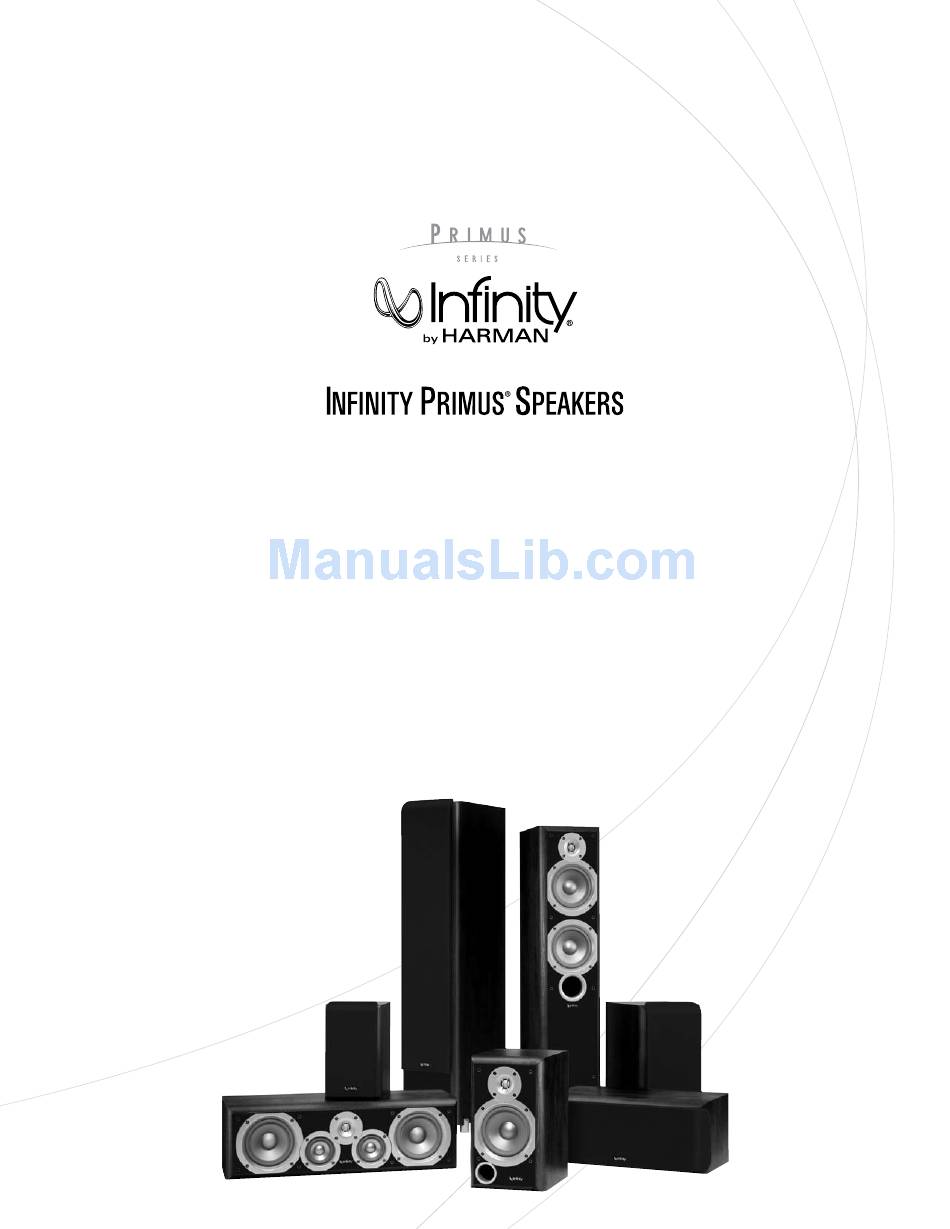

- Page 1 Owner’s Manual P143 P153 P163 P253 P363 PC251 PC351...
-
Page 2: Unpacking The Speakers
Home Theater NFINITY RIMUS ERIES ® For front-channel use, place one speaker on the left and another on The Primus series of loudspeakers continues the longstanding Infinity the right of the television monitor. Since the speakers are magnetically commitment to accurate sound reproduction. Our proprietary MMD ®... - Page 3 P143, P153 P253 P363 F OUNTING THE HANGING THE PC251 The P253 and P363 feature attractive outboard feet, installed at the factory. However, if you would like to replace them with the less visible We have designed the P143, P153 and PC251 speakers to mount directly inboard feet (included), follow the instructions below.
-
Page 4: Final Adjustment
IRING THE YSTEM INAL DJUSTMENT IMPORTANT: Make sure that all equipment is turned off before making Check the speakers for playback, first by setting the system volume control to a minimum level and then by applying power to your audio system. any connections. -
Page 5: Specifications
PECIFICATIONS P143 P153 P163 Frequency range (±3dB): 100Hz – 20kHz 58Hz – 20kHz 49Hz – 20kHz Recommended amplifier power: 10 – 100 watts 10 – 100 watts 10 – 150 watts Sensitivity: 86dB 88dB 90dB (2.83V @ 1 meter) Nominal impedance: 8 ohms 8 ohms 8 ohms... - Page 6 OTES INFINITY PRIMUS SPEAKERS...
- Page 7 OTES INFINITY PRIMUS SPEAKERS...
- Page 8 Harman Consumer, Inc. 8500 Balboa Blvd., Northridge, CA 91329 USA © 2010 Harman International Industries, Incorporated. All rights reserved. Infinity, Infinity Primus and MMD are trademarks of Harman International Industries, Incorporated, registered in the United States and/or other countries. Dolby is a registered trademark of Dolby Laboratories.
