- Page 1 RD610/RD620 Paper Shredder Operation Manual Ningbo R.D.C Office Equipment Co.,Ltd...
-
Page 2: Preface
Preface The operation manual will guide you how to operate and maintain paper shredder, and also include security guides. The paper shredder could keep in a good performance and work condition which is closely related to right operation and maintenance. So please read the manual and security guides carefully and take it with you .If you operate as the manual, it can be in working order to avoid accident. -
Page 3: Table Of Contents
Catalog Preface ——————————————————————————————1 Paper shredder nameplate ———————————————————------4 1． Security —————————————————————————-----5 Points for attention on safety———————————————————--5 1.1.1 Security symbols——————————————————————------5 1.1.2 Attention symbols——————————————————————-----5 Safe operation guides—————————————————————-----5 Operation as manual——————————————————————---7 Inspecting security device——————————————————--------7 1.4.1 Inspecting process —————————————————————-------8 Technology parameter ———————————————————----10 Assembly summary—————————————————————-----10 Specification and feature—————————————————-----------11 Shred data—————————————————————————----11 Motor————————————————————————————-12 Power supply specification and fuse protection———————---------------12... - Page 4 4.1.3 Control panel———————————————————————------16 Paper delivery ————————————————————-------17 Deliver paper too much—motor overload————————————------17 Shut down——————————————————————————-18 Replace shred bag——————————————————————----18 5． Inspection and maintenance ——————————————————--19 5.1 Maintenance of delivery belt—————————————————--------19 5.1.1 Inspecting the tightness of delivery belt——————————----------------19 5.1.2 Inspecting the abrasion of delivery belt———————————--------------20 5.1.3 Cleaning the delivery belt—————————————————------------20 5.2 Inspecting the tightness of chain belt—————-----------------------------------20 5.3 Lubricating paper shredder——————————————————-------21...
-
Page 5: Paper Shredder Nameplate
RONGDA Paper shredder Model： RD610/RD620 serial No： Motor： voltage： current： 结 构： If you couldn’t offer the serial No, you will not get the right of claim and guarantee for all repairs The serial No is showed on nameplate as indicated above... -
Page 6: Security
1. Security 1.1 Points for attention on safety 1.1.1 Security symbol The symbol means dangerous, it may cause serious harm to health and even life if ignoring it .Please pay attention to it and inform of other users. 1.1.2 Attention symbol You should pay much attention to the symbols .make sure to operate the machine as manual guide to avoid damaging the machine and other devices. - Page 7 and maintenance (including inspection, maintenance and repair) must read and understand the manual totally, especially the contents involve “security” --- The person who is engaged in operation, maintenance, repairing for the machine should be trained and guided and know potential danger of the machine. --- The procedure of installation, disassembly, reassembly, operation and maintenance should clearly know the responsibility of each other to avoid potential danger.
-
Page 8: Operation As Manual
1.3 Operate as manual The paper shredder is apply to shred paper, cardboard, CD, and card. But it is not apply to shred loose-leaf book, paper clip and staple. The operator will take on after effect by incorrectly using the machine. Manufacturer will be derelict of duty Operating as manual and working conform to factory’s instruction of installation, disassembly, reassembly, operation. -
Page 9: Inspecting Process
into paper feed system, otherwise it will be grievously hurt. Please start shredding after all the security devices is checked normally Please inspect as all the following points. Eliminate the error first before using the machine 1.4.1 Inspection List Please inspecting all the following points before using the machine 1. - Page 10 4. Inspecting security switch of checking door When open the checking door, the machine stop immediately. ”shred box full” light is on, close it, the light is off. 5. Install all security cover and tighten them. record： Date：________________ note：_________________...
-
Page 11: Technology Parameter

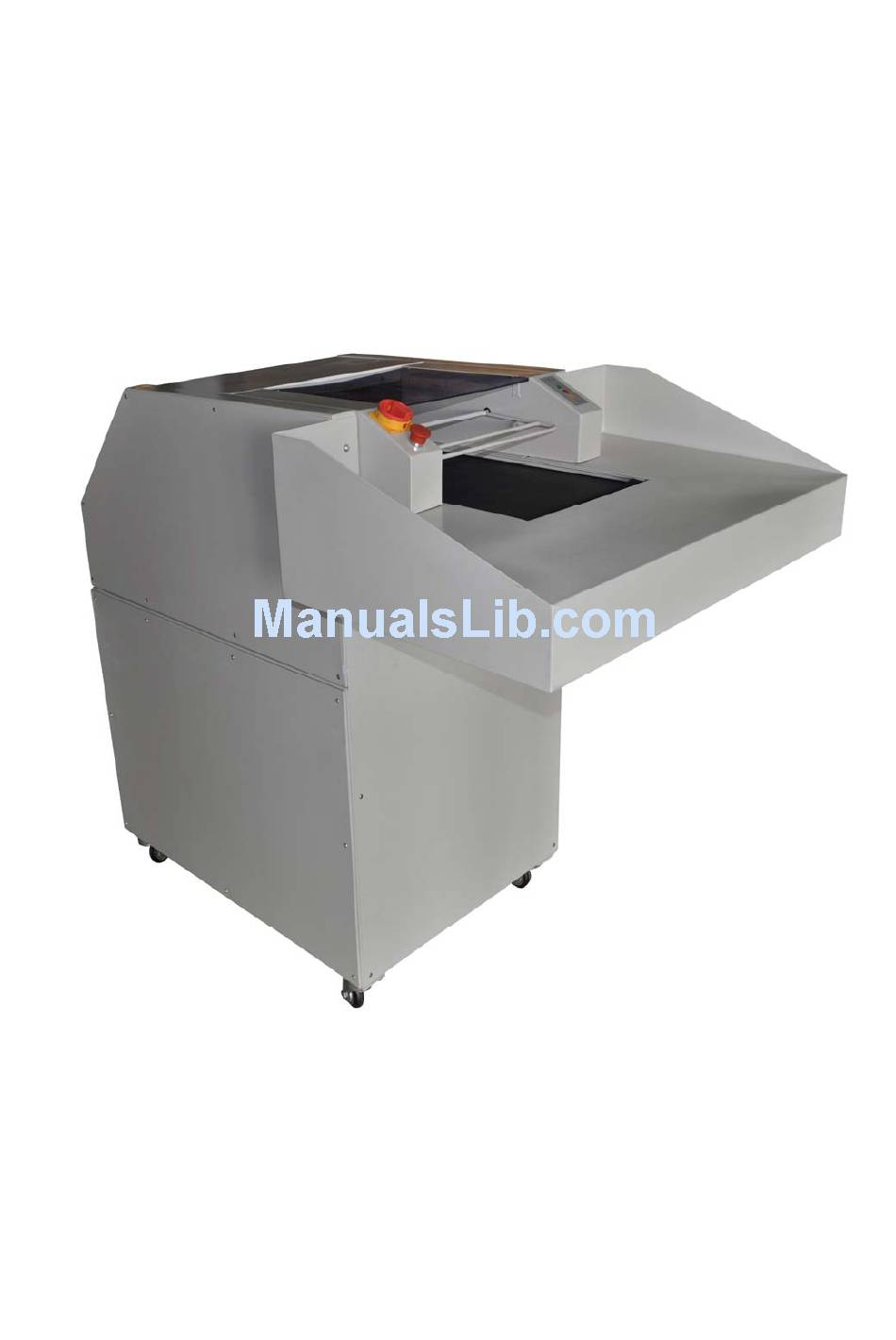

2. Technology parameter 2.1 Assembly summary （Picture） The model with shred box 1．Paper feed table 2．Paper delivery belt 3．Security top cover 4．Control panel 5．Checking door 6．Switch 7．Emergency switch 8．Machine frame 9．Moving wheel... -
Page 12: Specification And Feature
2.2 Machine specification and feature Body design： Delivery belt Model： Net weight： 360KG Color: Machine frame: gray and white RAL 9002 Paper feeding table and box: gray and white RAL 9002 Technology devices Large paper feed table Paper feed delivery belt Feed roller Automatic reversing control Moving wheel... -
Page 13: Motor
2.4 Motor Model: Motor with transmission box Rated power: 4.0kw Frequency: 50Hz Rated current: 8.7A (voltage=380v) Output speed: 177circle/min Frame type: Pole quantity： Induction motor 3 pole 2.5 Power supply specification and fuse protection（400V/50Hz） Total rated power: 4.0KW Total rated current: 8.7A Fuse total current: 2.5A（coil in）... -
Page 14: Space Demand
2.7 Space demand Width： Min. 2010mm Length： Min. 2600mm Height： Min. 1700mm 2.8 Noise index Operating the machine as manual, the noise index as follows: Machine working but not shredding:63DB (A) Shredding：87DB (A) The above data is applied to the machine in correct installation without another noise condition The data will change if the machine work over 8 hours or have extra noise When the machine continuous loading 50% document quantity, the noise can... -
Page 15: Installation
3. Installation 3.1 Space demand 3.2 Power supply connection The installation location must offer the socket of A32 CEE 3.3 Transfer paper shredder to installation location The paper shredder that sent out from factory is not installed totally. The paper feeding table has removed from the machine and must be installed to the machine on installation location --- When transfer the machine, please pay attention to the center of gravity of the... -
Page 16: Installation Of Paper Shredder
Fix the paper feeding table on machine frame with six M8 screws Refix the belt to paper feeding table(The rubber of belt must touch delivery belt) Fix the protection cover under paper feeding table with four M5 screws 3.4 Installation of paper shredder --- Put the machine on a level and steady place (without carpet) The model with shred box：... -
Page 17: Control Panel
4.1.3 Control panel 1. Paper jam ---Motor overload Red light 2. Security top cover open No shred box or put wrong shred box Red light 3. Shred box full –checking door open Red light (it is apply to the model with shred box) 4. -
Page 18: Paper Delivery
4.2 Paper delivery ---Turn on main switch “on” ---Release “emergency stop “switch ---Make sure security top cover is closed ---Make sure shred box put in the right position, checking door is closed (it is apply to the model with shred box) ---Checking the “on”... -
Page 19: Shut Down
---The paper shredder reverses and stops automatically ---“Paper jam” red light is off --- Detach the paper and press start key again --- Paper shedder run --- Put a little paper again Notice: If the automatic reserving can’t take out the paper, please press the manual reserving button . -
Page 20: Inspection And Maintenance
--- 0pen checking door --- Press the jam paper into the shred box --- Close the checking door --- Pull out the shred box totally --- Take out the shred bag --- Insert new shred bag, and make sure the shred bag is high 5cm than the frame. -
Page 21: Inspecting The Abrasion Of Delivery Belt
Notice： It only exert pressure to skidding point when tighten the delivery belt. tighten the delivery belt over will damage the bearing of delivery belt --- Tighten the screw of tightness pulley again --- Reinstall the paper feeding table 5.1.2 Inspecting the abrasion of delivery belt It will cause abrasion after a long time work .when the weave of the belt can be saw, you should replace the belt. -
Page 22: Lubricating Paper Shredder
Notice： Tighten the chain over will lead to abrasion of chain and gear. The chain should droop min 2.5mm in the first month, then up 4 to 10mm Lubricating shredder 5.3.1 Paper shredder system Attention ！ Shred roller: the shredder maybe hurt person without using condition. -
Page 23: Replacing Parts
6. Replacing parts 6.1 After-service department address Please send your order of consumable and parts to the below address: Add928 chengxin road, yinzhou investment & innovation Center, Ningbo, China Post No：315105 --- Please use the original parts from RONGDA company... -
Page 24: Circuit Diagram
7．Circuit diagram...
