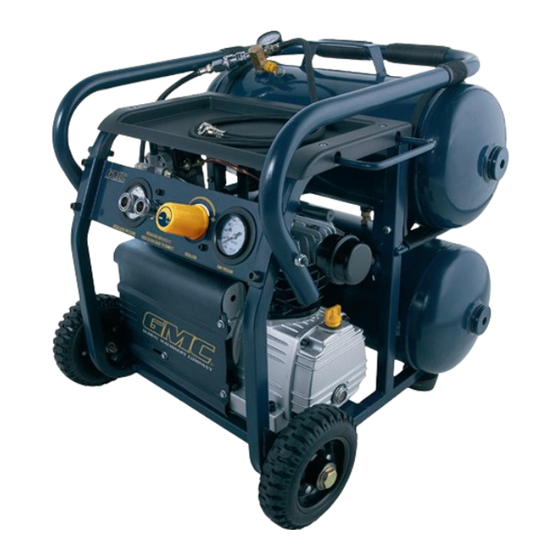

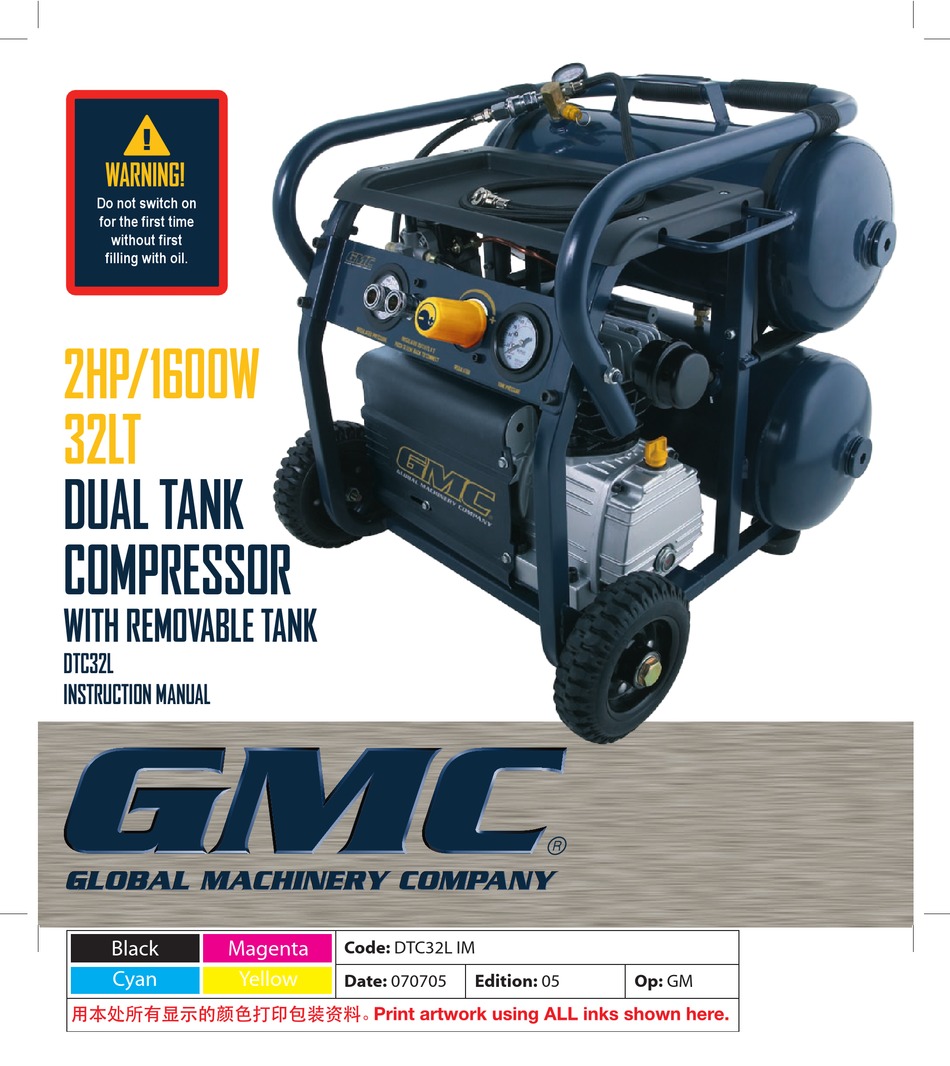

Global Machinery Company 2HP/1600W 32LT DUAL TANK COMPRESSOR WITH REMOVABLE TANK DTC32L Instruction Manual

��������
Do not switch on
for the first time
without first
filling with oil.
2HP/1600W
32LT
DUAL TANK
COMPRESSOR
WITH REMOVABLE TANK
DTC32L
INSTRUCTION MANUAL
Black Magenta
Cyan Yellow
Check the oil level before starting the
To prevent build-up of
compressor every time.
condensation, open
Make sure the compressor is on a level
drain cock daily
surface prior to checking the oil level.
The oil level is required to be at the
red dot on the oil level sight glass
prior to use.
Use only oil grade specified in the
instruction manual.
���������
DTC32L Air Compressor
Read instruction manual
Tank capacity:
prior to starting unit.
32 litres
Pump displacement:
This equipment
206 l/m
operates from
Free air delivery:
AC mains only.
114 l/m
Max. working pressure:
0.8 MPa
�������
��������
High voltage used on
Air discharged from
this equipment. Prior to
this unit is not
servicing or removing the
suitable for human
cover, switch off the
consumption.
power supply & remove
plug from mains. Ensure
mains outlet is adequately
rated for this unit.
Code: DTC32L IM
Date: 070705
����������������
When filter becomes
dirty or oily, clean or
replace filter. Refer to
instruction manual.
��������
��������
Unit starts
automatically.
Switch off power supply,
remove plug & relieve
air pressure prior to
commencing service
tasks.
��������
Test the safety relief
valves daily.
Refer the instruction
manual.
1
Edition: 05 Op: GM
