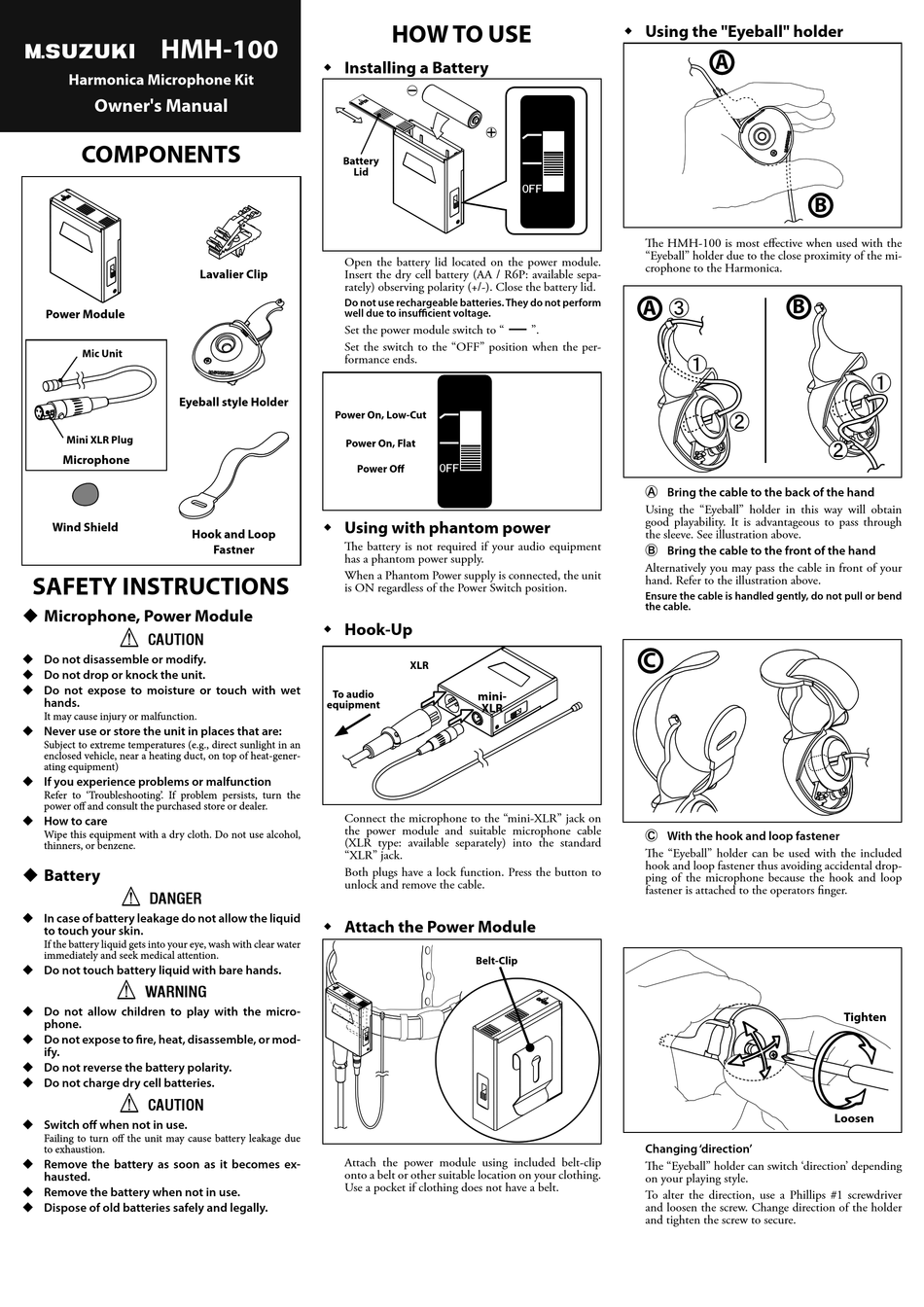

Suzuki Musical Instrument Corp. HMH-100 Owner's Manual

HMH-100
Harmonica Microphone Kit
Owner's Manual
COMPONENTS
Lavalier Clip
Power Module
Mic Unit
Eyeball style Holder
Mini XLR Plug
Microphone
Wind Shield
Hook and Loop

SAFETY INSTRUCTIONS

Microphone, Power Module
CAUTION
Do not disassemble or modify.
Do not drop or knock the unit.
Do not expose to moisture or touch with wet
hands.
It may cause injury or malfunction.
Never use or store the unit in places that are:
Subject to extreme temperatures (e.g., direct sunlight in an
enclosed vehicle, near a heating duct, on top of heat-gener-
ating equipment)
If you experience problems or malfunction
Refer to 'Troubleshooting' . If problem persists, turn the
power off and consult the purchased store or dealer.
How to care
Wipe this equipment with a dry cloth. Do not use alcohol,
thinners, or benzene.
Battery
DANGER
In case of battery leakage do not allow the liquid
to touch your skin.
If the battery liquid gets into your eye, wash with clear water
immediately and seek medical attention.
Do not touch battery liquid with bare hands.
WARNING
Do not allow children to play with the micro-
phone.
Do not expose to fi re, heat, disassemble, or mod-
ify.
Do not reverse the battery polarity.
Do not charge dry cell batteries.
CAUTION
Switch off when not in use.
Failing to turn off the unit may cause battery leakage due
to exhaustion.
Remove the battery as soon as it becomes ex-
hausted.
Remove the battery when not in use.
Dispose of old batteries safely and legally.

Installing a Battery

Battery
Lid
Open the battery lid located on the power module.
Insert the dry cell battery (AA / R6P: available sepa-
rately) observing polarity (+/-). Close the battery lid.
Do not use rechargeable batteries. They do not perform
well due to insuffi cient voltage.
Set the power module switch to "
Set the switch to the "OFF" position when the per-
formance ends.
Power On, Low-Cut
Power On, Flat
Power Off

Using with phantom power

Th e battery is not required if your audio equipment
Fastner
has a phantom power supply.
When a Phantom Power supply is connected, the unit
is ON regardless of the Power Switch position.

Hook-Up

To audio
equipment
Connect the microphone to the "mini-XLR" jack on
the power module and suitable microphone cable
(XLR type: available separately) into the standard
"XLR" jack.
Both plugs have a lock function. Press the button to
unlock and remove the cable.

Attach the Power Module

Attach the power module using included belt-clip
onto a belt or other suitable location on your clothing.
Use a pocket if clothing does not have a belt.

HOW TO USE

OFF
".
OFF
XLR
mini-
XLR
Belt-Clip

Using the "Eyeball" holder

A
B
Th e HMH-100 is most eff ective when used with the
"Eyeball" holder due to the close proximity of the mi-
crophone to the Harmonica.
B
A
③
①
②
Bring the cable to the back of the hand
Using the "Eyeball" holder in this way will obtain
good playability. It is advantageous to pass through
the sleeve. See illustration above.
Bring the cable to the front of the hand
Alternatively you may pass the cable in front of your
hand. Refer to the illustration above.
Ensure the cable is handled gently, do not pull or bend
the cable.
C
With the hook and loop fastener
Th e "Eyeball" holder can be used with the included
hook and loop fastener thus avoiding accidental drop-
ping of the microphone because the hook and loop
fastener is attached to the operators fi nger.
Changing 'direction'
Th e "Eyeball" holder can switch 'direction' depending
on your playing style.
To alter the direction, use a Phillips #1 screwdriver
and loosen the screw. Change direction of the holder
and tighten the screw to secure.
①
②
Tighten
Loosen
