Summary of Contents for Dutch Security Solutions 10X PTZ
-

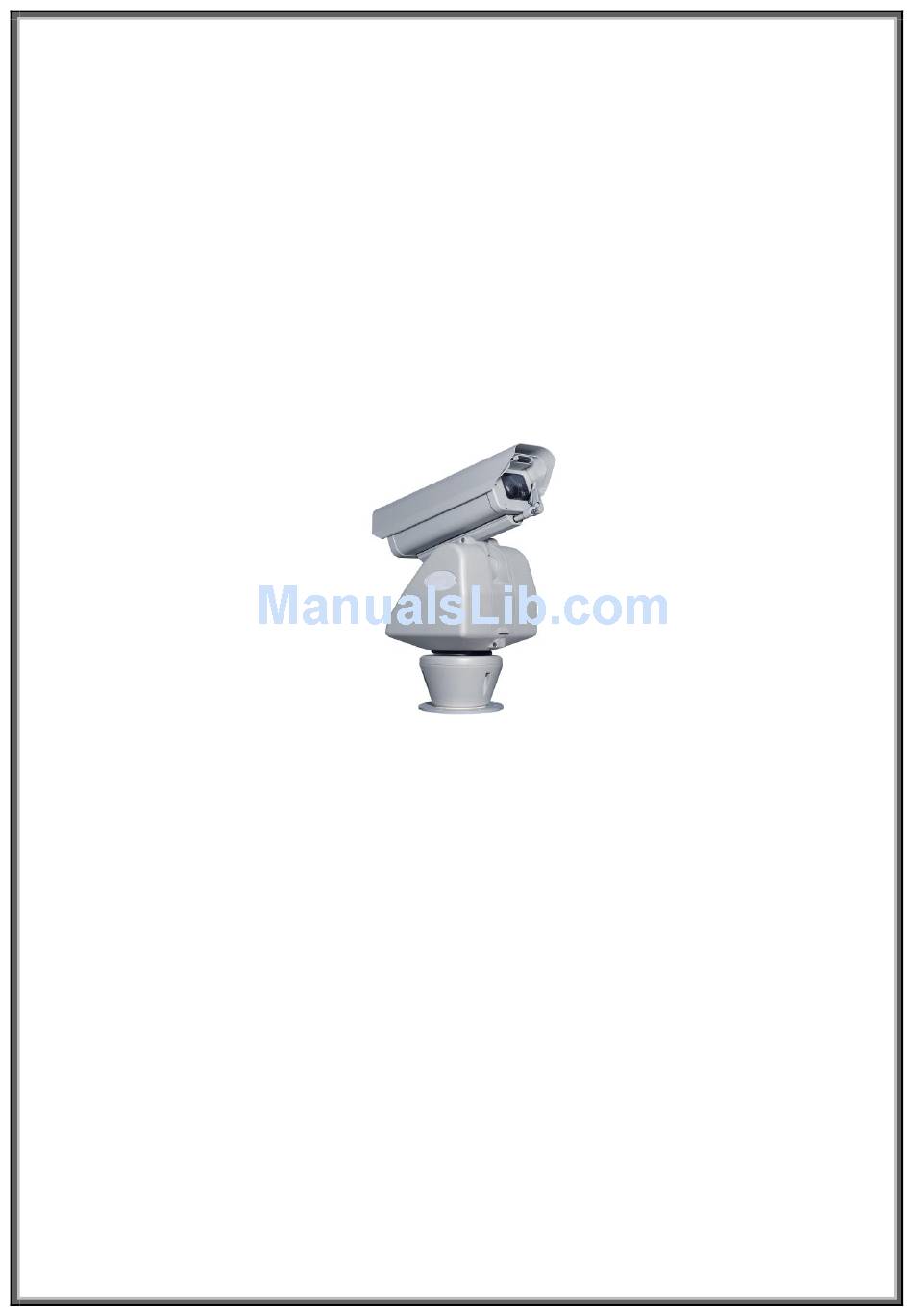

Page 1: Speed Dome Camera
Installation and Operation Manual Speed Dome Camera Please read the operation manual carefully before installing and using this unit VER:1.0... -
Page 2: Table Of Contents
CONTENTS Packing List -------------------------------------------------------------2 CAMERA SPECIFICATION--------------------------------------------- 3 1. PRECAUTIONS-------------------------------------------------------- 4 2. OPERATION------------------------------------------------------------ 5 3. ID SETTING------------------------------------------------------------- 8 4. PROTOCOL SETTING----------------------------------------------- 5. CONSTRUCTION----------------------------------------------------- 9 6. TROUBLESHOTING------------------------------------------------- 7. CONNECTION OF RS485 BUS AND TERMINATION RESISTER----------------------------------------- 8. INSTALLATION-------------------------------------------------------- 12 APPENDIX -------------------------------------------------------- Warnings！ ● Lightning proof equipment must be installed when the speed dome camera is installed in open area. -
Page 3: Speed Dome Camera
10X PTZ Packing List Name QTY/ Unit Remark Speed Dome Camera DC12V power supply adapter English Operation Manual Bracket (Standard) Wall Bracket (Option) Cable Accessories packing... -
Page 4: Camera Specification
CAMERA SPECIFICATION ITEMS IQ952 Internal Mode SYNC System / External (AC Lock) Mode (±1Hz) Scanning System 1:2 Interlace Chipset Sony HAD II Effective Pixels 976 (H) X 582 (V) (PAL) More than 46 dB ( γ = 1，AGC OFF，APC OFF，Y-out) Horizontal Resolution 540 TV Lines F1.6(W) ～1.9(T) -
Page 5: Precautions
Sizes 295 Ø x 322 mm 1. PRECAUTIONS (1) Do not attempt to disassemble the camera. To prevent electric shock, do not remove screws or covers. There are no user-serviceable parts inside. Ask qualified service personnel for servicing. (2) Handle the camera with care. Do not abuse the camera. -
Page 6: Normal Function
soft cloth. (9) Consumables Parts having contacts such as the lens-drive motors, cooling fan motor and slip-rings built inside the camera are subject to wear with time. About replacement and maintenance of such parts, please ask the nearest service center. (10) Do not aim the camera at the same object for a long time. - Page 7 4） The dwell time of “starting point” and “ending point” of Pan scan is 4 seconds. 5） Stop it by operate “Pan”or “Tilt”. 6） You can cancel the point by pressing ―PRESET+52+OFF‖ 2. 5 Operation instruction about the tour scan movement： 1）...
-
Page 8: Operation
3.2 Auxiliary Functions List Operation Function IQ750 Preset + N + Enter Set the number N preset position (1≤N≤32) Preset + N + OFF Clear the number N preset position (1≤N≤32) Call + N + Enter Call the number N preset position (1≤N≤32) Call + 50 + Enter Auto Intelligent Tour Pan Scan... -
Page 9: Id Setting
Call + 68 + Enter Image Mirror ON Preset + 68 + Image Mirror OFF Enter Call + 69 + Enter Image Up-side down ON Preset + 69 + Image Up-side down OFF Enter Call + 70 + Enter Image Negative Preset + 70 + Image Positive... -
Page 10: Protocol Setting
This switch “S2” (ID NUMBER setting) located on PCB in the dome device. 4.PROTOCOL SETTING Protocol of this speed dome can be set by the switch with 3 protocol codes. Below is the detail of setting protocol code: Note：All setting must be operated after power off. Power on until it is completed.！... -
Page 11: Construction
4.5 PelcoD9600: When the N0.4 is set to “ON” and the N0.5 is set to “OFF” and the N0.6 is set to “OFF” ,the protocol is PELCO-D,the baud rate is 9600bps. 4.6 CHIPER9600: When the N0.4 is set to “ON” and the N0.5 is set to “OFF” and the N0.6 is set to “ON” ,the protocol is CHIPER,the baud rate is 9600bps. -
Page 12: Troubleshoting
Note: When powered up, the camera performs a self-check for about 20 seconds (including one panning, tilting, zooming and focusing operation). During the period, control operations are not executed. 6. TROUBLESHOTING Trouble Possible Causes Solution Power supply is not well Replace connected No action, no video... -
Page 13: Connection Of Rs485 Bus And
7. CONNECTION OF RS485 BUS AND TERMINATION RESISTOR (1) Characteristics of RS485 Bus As specified by RS485 standards. RS485 Bus is of half duplexed data transmission cables with characteristic impedance as 12. The maximum load is 32 unit loads (including main controller and controlled equipment.) (2) The RS485standarda require a daisy-chain connection between the equipment. -
Page 14: Installation
RS485 Distributor Each connection can connect 32 terminations, and practical connections must be considered. 8. INSTALLATION 8.1 Standard Installation 8.11 Setting Protocol and ID (1)Disassemble the glass Hood and the black Hood in the dome housing by the screwdriver, change the switch “S1”... - Page 15 8.13 Install the Speed dome mounting base (1) Cut three holes in the ceiling. (2) Put the cable through the Speed dome mounting base.(Fig.2) (3) Let the RJ45 left about 15mm from the Speed dome mounting base. (Fig.3) (4) Mount the Speed dome mounting base with three screws (4*35 type) on the ceiling. (5) Connect the RJ45 with the bottom of the speed dome.
- Page 16 Fig.3 Fig.4 8.2 Wall Bracket Installation (Option) 8.21 Setting Protocol and ID (1)Disassemble the glass Hood and the black Hood in the dome housing by the screwdriver, change the switch “S1” to set the ID of this speed dome and change the switch “S2” to set the protocol. The detail can see the 3.ID SETTING and the 4.PROTOCOL SETTING (2) Assemble the glass Hood and the black Hood in the dome housing again.
- Page 17 Fig.5 Fig.6 Fig.7 How to enter the menu of zoom module? To execute the order CALL+64+ENTER into the menu. Then you will see the menu of the module Main Menu ( Page 1. ) T U P M E N U ...
- Page 18 P O W E R M A S K O S D Z O O M + A F L A N G U A G E C O M M ･ Main Menu ( Page 3. ) C R O S P O S Sub Menu ...
- Page 19 P E A K O F A ■ A L C A U ■ ■ ■ F This is used to control the iris & shutter speed of the lens. It included 3 items “PEAK”, “ALC”, “AES”.
- Page 20 2. 「 AREA 」 : 48 BLC zones can be set separatly. According to the mask area (BLC zone) signal to decide the iris and shutter speed. 3. 「 SENS 」 ： Is used to enhance the BLC effect. ENHANCER E N H A N C E R ▪...
- Page 21 5. 「 FOCUS 」 ： AUTO / MANUAL setting H/V REVERSE H / V R E V E R S H ▪ R E V E R S O F V ▪ R E V E R S ...
- Page 22 This is used to select the camera go back to “PRESET”, “INITIAL”, “PHASE” condition 1.「PRESET」 ： Set to ON camera will be reset and set to default data. 2. 「 INITIAL 」 select ： Set to ON lens is action,Set to OFF lens is not action. 3.
- Page 23 1. 「 ALARM NO. 」 ： Set alarm position(1~64),if set to (0) alarm position is not enable. 2. 「 Freeze 」 ： Set ON mode, 「 ALARM-IN 」 is freeze trigger input. 3. 「 POSITION 」 ： The alarm position have 64 steps (position) can be programed. By this program,the zoom &...
- Page 24 This is used to select mask area size and position for each setable lens position. 1. Lens position no. select(1~64) 2. MASK NO. select(1~4) 3. MASK area display ON / OFF select. 4. Hor. direction start position. 5. Hor. direction end position. 6.
- Page 25 J A P A N E This is used to select OSD manu display language. OSD display language select, ENGLISH / CHINESE (Simp.) / JAPANESE COMM ･ ID C O M M ▪ C O M M ▪ D = 1 M O D E ...
- Page 26 N E G A This is used to select image 「 Positive 」 and 「 Negative 」 function. 「POSI/NEGA」 ： Image positive & negative select.
