Summary of Contents for OmniSense G-3 Series

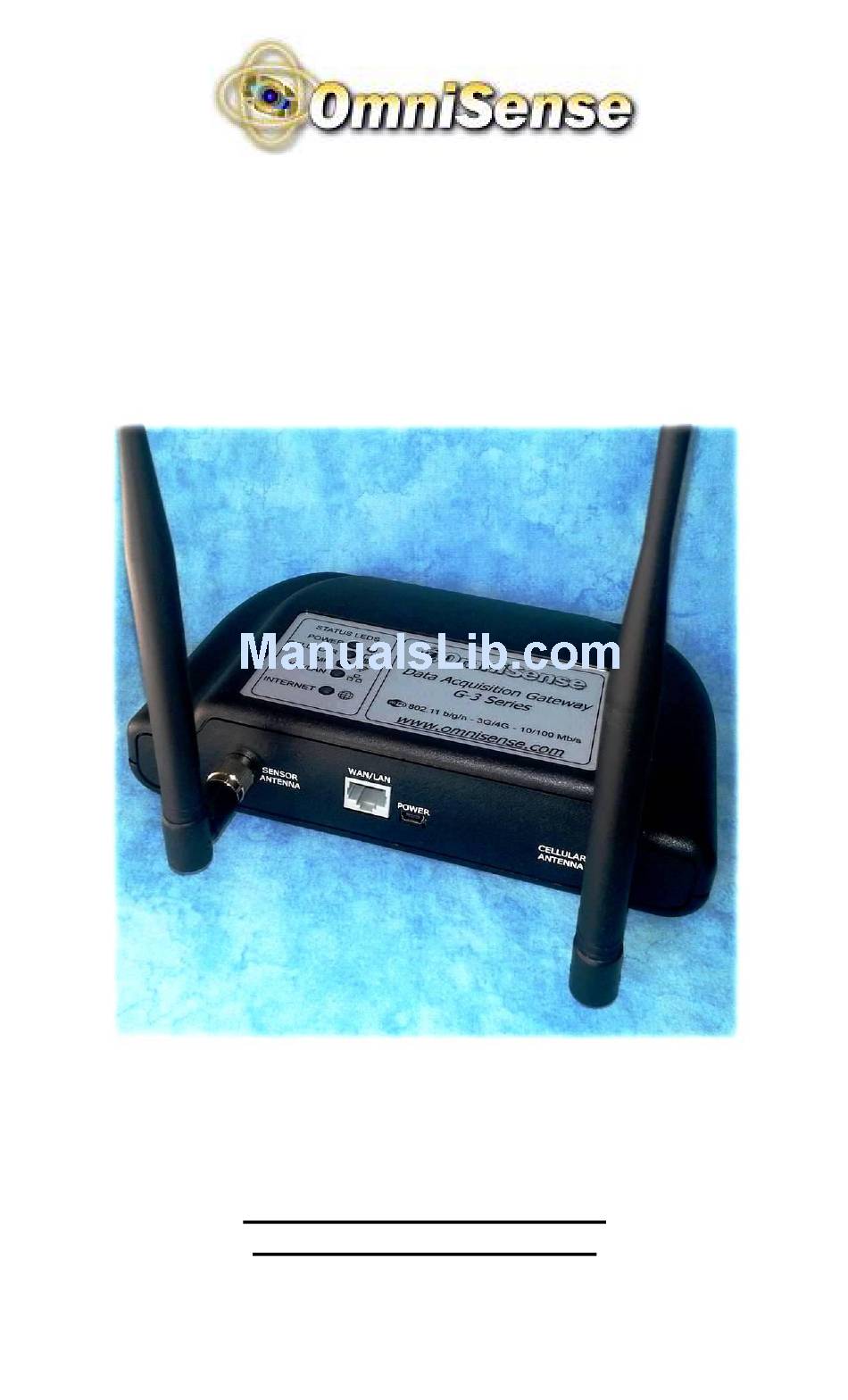

- Page 1 G-3 Series Gateway User Manual OmniSense LLC 72 Sams Point Road Ladys Island SC 29907 USA http://www.omnisense.com support@omnisense.com 1.805.340.9625 1.843.522.0350 Revision 1.0 Released 5/7/2013...
-
Page 3: Table Of Contents
Table of Contents SUPPORT ..................1 OVERVIEW ..................1 WHAT IS INCLUDED ............... 1 IDENTIFYING GATEWAY MODEL NUMBER AND ID ....1 POWERING UP THE G-3 GATEWAY ..........2 STATUS LEDS AND THEIR MEANING .......... 2 ACCESSING G-3 MANAGEMENT WEB PAGE ......3 CONNECTING G-3 GATEWAY TO THE INTERNET ..... -
Page 4: Support
We want you to be a really happy customer! 2. Overview The G-3 series gateway is compatible with all OmniSense and GE HygroTrac sensors. This manual describes how to get your G-3 gateway online and begin monitoring. -
Page 5: Powering Up The G-3 Gateway
When ON indicates the G-3 has a working internet connection. When OFF the G-3 does NOT have a working internet connection. If its NOT ON the gateway is NOT ONLINE. Figure 1 - LEDs OmniSense G-3 Series Gateway Page 2... -
Page 6: Accessing G-3 Management Web Page
You should see the "WAN/LAN" Link LED go on solid or blink open a web browser and enter "http://omnisense" in the address field You should then see a login page (see Error! Reference ource not found.) prompting for username and password. - Page 7 1.805.340.9625 Figure 2 - G-3 Management Login Web Page OmniSense G-3 Series Gateway Page 4...
-
Page 8: Connecting G-3 Gateway To The Internet
Internet LED does not go on the gateway is not talking to our server and your internet connection is not working. Check the troubleshooting guide in section 15 and/or our web site forum at shop.omnisense.com for troubleshooting tips. 8.1. Wired Ethernet Internet Connection ... -
Page 9: G-3-C-X 3G Cellular Data Internet Connection
2. Pull out the SIM card holder 3. Insert your SIM card into the holder as shown 4. Place the SIM card holder (with the fitted SIM) back in your USB modem Figure 3 - Inserting the SIM Card OmniSense G-3 Series Gateway Page 6... -
Page 10: Gsm Connection Status
(i.e. "T-Mobile") and other SIM and MODEM information. While its a good idea to write this down this same information will be available on the OmniSense web site's gateway detail page should you need it. 8.5. GSM Connection Status ... -
Page 11: Create A Monitoring Account
10. Create a Monitoring Account If you already have an account you do not need to create a new account. The OmniSense G-3 gateway can be used with existing GE HygroTrac accounts however all new accounts should be opened on the OmniSense Web site. -
Page 12: Network Configuration
Contact your IT wireless Ethernet, the department and ask them to "Internet" LED never comes enable access The network uses a Proxy Configure the proxy server IP Server address on the "OmniSense" Settings web page Page 9 OmniSense G-3 Series Gateway... -
Page 13: Specifications
64 channels in 902- FCC ISM band RF frequency 928 MHZ Sensor transmitter 3 channels in 868 RF frequency (-EU MHz band models) Datalogging Memory Default 262,144 Contact us to readings, 32M increase limit possible OmniSense G-3 Series Gateway Page 10... -
Page 14: Declaration Of Conformity
• Increase the separation between the equipment and receiver. • Connect the equipment into an outlet or on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Page 11 OmniSense G-3 Series Gateway... - Page 15 NOTICE: The Industry Canada (IC) label identifies certified equipment. The Department does not guarantee the equipment will operate to the user’s satisfaction. For EU Models Only Data Acquisition Gateway The G-3 Series Gateway is in conformity with the following standards: EN55022:2006+A1:2007 ...
-
Page 16: Warranty
Products not subjected to misuse will be repaired or replaced. OmniSense LLC reserves the right to make changes without further notice to any products herein. OmniSense LLC makes no warranty, representation or guarantee regarding the suitability of its products for any particular application nor does OmniSense...
