Coastal HONDA/ACURA IPOD LOCKPICK Installation Manual

HONDA/ACURA IPOD LOCKPICK
Thank you for your purchase of the HONDA/ACURA IPOD LOCKPICK. This unit is designed for
applications in a wide variety of HONDA and ACURA vehicles across many years and models. Advanced
features including on-screen text, steering wheel, radio and touch screen control of your iPOD. The IPOD
LOCKPICK will operate in XM capable HONDA or ACURA radios (button labeled XM present) without the loss
of any factory functions, even if a factory XM tuner is present. Included with your interface are licensed
connectors for reliable iPOD operation and stereo AUX input jacks for connection to any other source you would
like to play through your factory sound system.

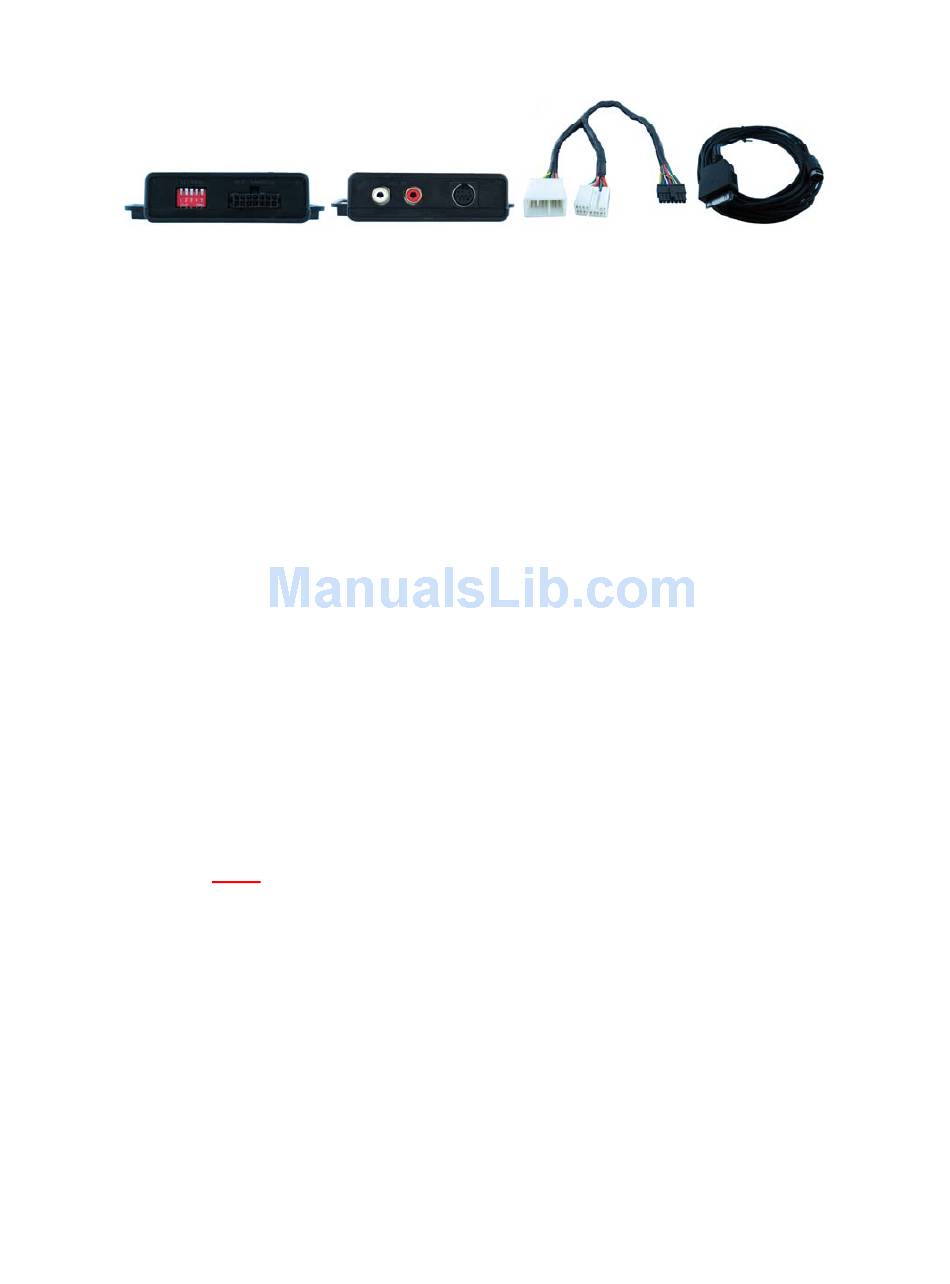

The HONDA/ACURA IPOD LOCKPICK uses a simple "T" harness for installation using factory
connectors so there is no need to cut/splice any wires, or locate power, ground and audio. The interface is truly
plug and play. The factory connectors are individually keyed so you cannot plug them into the wrong location.
1. VEHICLES WITH OR WITHOUT A FACTORY XM TUNER PRESENT
•
The installation of the HONDA/ACURA LOCKPICK is the same for vehicles with or without a
factory XM tuner present. After gaining access to the back of the radio, locate the 14 pin
connector which matches the connectors of your IPOD LOCKPICK harness. Unplug the factory
14 pin connector and plug it into the female connector of the LOCKPICK harness. Then plug the
male end of the harness into the former factory location
PROGRAMMING YOUR INTERFACE
2.
•
The HONDA/ACURA IPOD interface is universal in application and requires only a simple
switch setting to properly program it to match your vehicle and options. The IPOD LOCKPICK
is shipped with all switches in the UP position. If your vehicle is already equipped with a factory
XM tuner then place switch 4 in the DOWN position. This will program the LOCKPICK for use
while in the presence of an XM tuner and prevent conflict between the components. If you have
an XM tuner but are not currently subscribed, still place switch 4 in the DOWN position. All
other applications where an XM tuner is not present will leave all interface switches in the UP
position.
lock in the setting you have selected. If you have made a mistake and need to change the
programming setting, unplug the LOCKPICK module first and then change the switch position.
If the interface is not unplugged while changing the programming settings, the new programming
will not be performed and improper operation may result.
3. CONNECT THE IPOD HARNESS AND/OR AUX INPUT
•
Included with your interface is a cable designed to connect an iPOD/iPHONE to the Lockpick.
Plug the cable into the Lockpick and the other end into the bottom of the iPOD/iPHONE. If your
iPOD does not have a bottom docking connector, it is not compatible with the LOCKPICK
interface. Compatible iPODs include NANO, MINI, 4
photo/video. Also available on your LOCKPICK are AUX input jacks which may be connected to
any stereo audio and source and played through your factory sound system.
INSTALLATION AND OPERATION MANUAL

INSTALLATION PROCEDURE

After positioning the programming switch, plug the interface into the harness.
th th
and 5 generation iPODs including
This will
