Summary of Contents for Gil Brothers Technology XL21
-
Page 1: User Manual

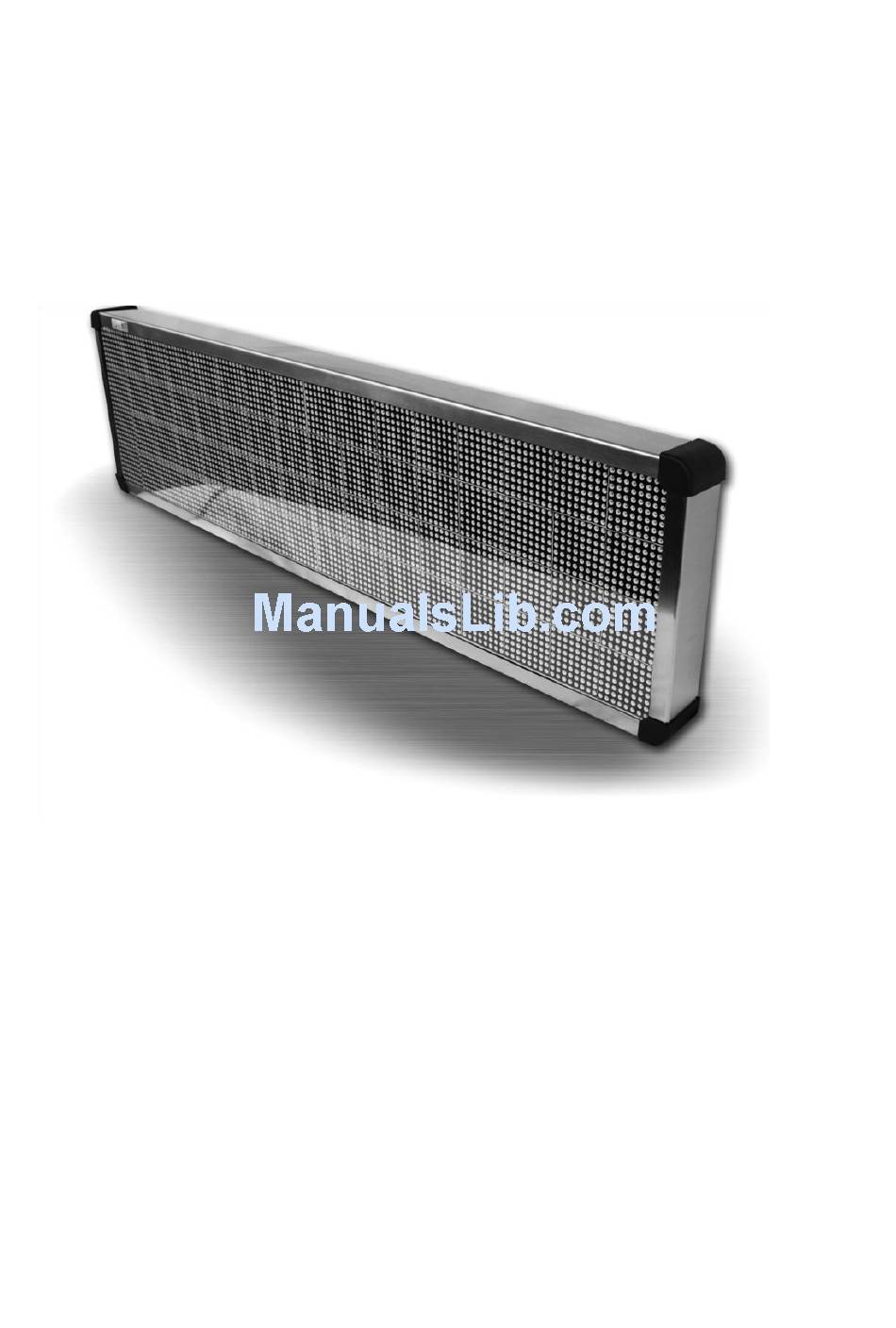

BT - LED display User manual Models : XL21, XL31, XL41, XL22, XL32, XL42 Product of Gil Brothers Technology all copyrights © reserved... -
Page 2: Table Of Contents
Introduction Congratulations and thank you for your confidence. The subject of the purchase is high quality LED display - suitable for indoor and also outdoor use. LED display allows you to send general information and advertising spots to the viewers. Our product is characterized by innovative technical solutions to facilitate its service and also to maximize the economy and the strength of the device. -
Page 3: Installation
Installation Important! If the assembly does not execute a person authorized by GilBT. The company is not liable for any damage caused by incorrect installation. Before installation, make sure that surface dedicated for installation is suitable to support weight of given device. We do not recommend soft and fragile surfaces, such as polystyrene foam, mineral wool, plaster boards and wooden walls with a thickness of less than 30mm, etc. -
Page 4: Installation Process
1.1 Installation process: • fix two mounting brackets on dedicated surface, according to above dimensions • loosen the four screws on the device to enable them to settle freely in the bracket holders • slide the display into the bracket holders from the left or right side (depends on the fixing direction of the brackets) •... -
Page 5: Handling
2. Handling LED screen displays presentation saved by user on the provided SD card. Each presentation consists of slides; their quantity, display order and type depends on user’s preferences. Given presentations are being saved as a *.prs file. These files can be created thanks to LPD software ( LED Presentation Designer). The LPD software and also its manual can be downloaded directly from our official website, please refer to the below link: http://www.gilbt.com/_eindex.html... -
Page 6: Presentation Selection
2.2. Presentation selection GilBT LED screens has ability to handle as many presentation files as can be saved on the provided SD card. If there is more than one presentation saved on the flash memory there is ability to select preferred *.prs file which will be played over and over again. The pocket controller has 4 buttons, the easiest way to switch played presentation is to press “C”... -
Page 7: Time Setup
Once you entered, list of saved *.prs files should appear on the screen. Choose wanted presentation using up and down buttons and accept by pressing “OK”. b. time setup In order to set a current time and date enter to the menu and select “Clock”. The device will display the time saved in memory. -
Page 8: Auto Standby
appear on the screen. Set the value: 1 – 10 or Disabled. In that last case display will use standard contrast through all day long. Do not forget to save the changes by clicking next, otherwise alerted settings will be lost. Hint! The night time lasts from time of sunset to the time of sunrise, therefore this option requires correct time and date to be set. -
Page 9: Temperature Adjustment
In the menu under position “Pulsation” is an option to do a little bit more about this effect. There are three options to choose; set the pulsation programmed by user in LPD, switch to constant pulsation applied to all displayed content, disable pulsation at all. Select preferred setting and accept it. - Page 10 Warranty does not cover: • any defects resulting from the cleaning, repairs, etc. performed by an entity other than an authorized by GilBT. • mechanical, chemical, thermal damages and any other defects resulting from careless or improper storage (eg storage of goods in the inappropriate conditions such a temperature out of specified range, storage close to chemicals such as naphthalene or other harmful chemicals),improper maintenance, etc.
-
Page 11: Technical Specification
4. Technical specification models XLX1 model RL21; YL21; GL21; BL21 RL31; YL31; GL31; BL31 RL41; YL41; GL41; BL41 dimensions [cm] 103x30x7 152x30x7 201x30x7 resolution 128x32px 192x32px 256x32px LED quantity 4096 6144 8192 max power consumption 115W 150W avg power consumption weight 13.5kg 18kg... - Page 12 GilBT – production ul. Szkolna 10 62-060 Stęszew Poland Sale and marketing +48 794 107 400 +48 61 281 74 91 Technical department +48 790 597 322 Product of Gil Brothers Technology all copyrights © reserved – LED displays manufacturer www.gilbt.com...
