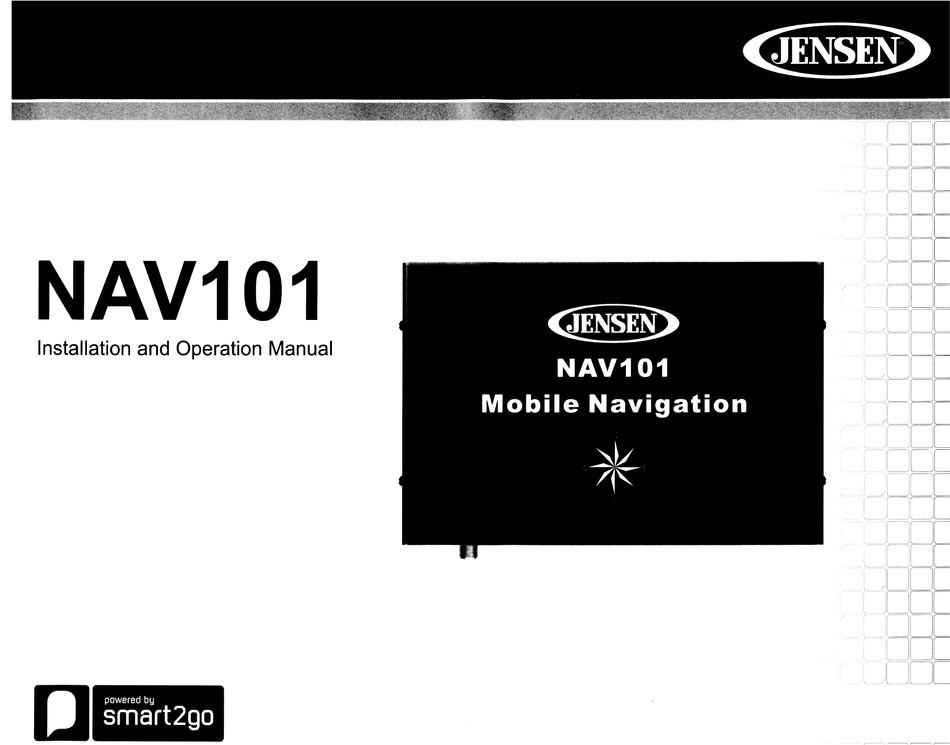

- Page 1 NAV101 Installation and Operation Manual ;=~~' " 'c""J '"~ " powered by smart2go...
-
Page 2: Table Of Contents
NAV101 CONTENTS Thank you for choosing a Jensen product. We hope you will find the instructions in this owner's manual clear and easy to follow. If you take a few minutes to look through it, you'll learn how to use all the features of your new Jensen NAV101 navigation system for maximum enjoyment. - Page 3 NAV101...
-
Page 4: Introduction
SIRF III Antenna with magnetic mount Left and right mounting brackets Four rubber feet (to affix to the bottom of the NAV101 in the recessed area near each corner) SmartBus cable (used to connect the NAV101 to the Jensen navigation-ready radio) Four 6mm (.25in) screws (to secure the left and right mounting brackets to the NAV101... -
Page 5: Safety Information
It is your responsibility to comply with all traffic laws. The NAV101 is designed to assist you in the process of reaching your destination. It is not a substitute for attentiveness and good judgement. It is your responsibility to disregard any unsafe, hazardous, or illegal route suggestions. -
Page 6: Installation
NAV10l Placement The NAV101 should be installed under the back or front seat. It can also be installed in the trunk, if necessary. Do not install the NAV1 01 where it will come in contact with water or direct sunlight. - Page 7 Mobile Navigation GPSAntenna Attach the GPS Antenna to the "ANTENNA" jack on the side of the NAV101. Insert SD card into the SD card slot and gently press the card in against the spring latch until it stops, then release. The card will "lock" firmly into place inside the SD card slot.
-
Page 8: Getting Started
Set time zone Your NAV101 automatically determines the time through the GPS signal. However, you must set your time zone. Select your time zone from the list. You can change the time zone later (see "General Settings"... -
Page 9: Main Features
NAV101 MAIN FEATURES Main Menu In Tracking mode, the map follows your actual position (GPS position), displaying information about your geographic position, your speed, etc. The GPS position is indicated by a green The main menu is your central point of access to all functions of your NAV1 01. It allows you to arrow. - Page 10 I , ' NAV101 NOTE: Pressing an icon on the map opens an overlay window with information about the selected item. To zoom in or out, press the + or - icons. After pressing one of the icons, the zoom slider will appear, enabling smooth zooming.
-
Page 11: Choosing And Finding Locations
Address Book, or select a location on the Map. and so on. NOTE: If route is in progress when you exit the NAV101 system, the unit will prompt "Do you want to resume the last route?" when you resume operation. Finding an Address Find addresses through the Address search. - Page 12 NAV101 Press the "No." data field to access the "Enter. .." screen. Select an area for the POI search. Although the text in the white "Where?" box shows your current location, you must press the Where? button to set your current location for Use the on-screen keypad to enter the street Number.
- Page 13 NAV101 Select a sub-category from the POI Search list. A list of POls will be shown. Choosing a Location on the Map From the "Main Menu", press View Map. The "Map - Tracking" window will be displayed, indicating your last location:...
- Page 14 tNAV101 From the "Drive to ..." menu, select Recents. A list of recent locations will appear on the Continue navigation as instructed in the previous sections. screen: Press to select a recent destination from the "Recents" list. (Use the scroll bar on the righl side of the screen to see all of the choices.) A screen with navigation options appears.
-
Page 15: Navigating
NAV101 NAVIGATING Browsing the Map During Navigation The powerful navigation capabilities of your NAV1 01 will guide you along the shortest or quickest route from A to B - with voice commands and in 3D (optional). You can browse the map while navigating without interrupting the current route - you will still To begin navigation, select a location using the Drive to ... -
Page 16: Planning A Route
(NAV101 PLANNING A ROUTE This section describes the route planning feature. This feature allows you to plan your route in Once you have chosen your route, press the MENU button in the bottom right-hand corner of the screen. The following options are available: advance, choosing multiple stopovers along your journey. -
Page 17: Managing Your Address Book
NAV101 MANAGING YOUR ADDRESS BOOK The Address Book allows you to save your home and work locations, as well as other frequent set the initial default address for work or home, press Home or Work and then choose one of destinations for easy recall. - Page 18 (NAV101 Favorites NOTE: All user information such as settings, bookmarks and recently visited locations To access your list of favorites, press the Favorites button. The "Favorites" screen appears: are stored on the SD memory card and not on the device.
-
Page 19: Settings Menu
NAV101 SETTINGS MENU When using the NAV101 for the first time, it is recommended that you customize the system Press Set Time to select the appropriate time zone from the "Time zone" menu (use the parameter settings. For example, regarding navigation, you can choose to avoid or allow toll up/down arrows and scroll bar to view the entire list). - Page 20 NAV101 Route Settings To select which and how many icons are displayed on the map, press Display POI. Select Route Settings to modify the following options Check the boxes of any category you want to have displayed on the map. Uncheck those that should be hidden.
- Page 21 NAV101 Traffic Avoidance Technology (Smart Routing) Volume Traffic Avoidance Technology (Smart Routing) uses a massive quantity of data that has been From the "Settings" menu, select Volume to modify the volume of voice commands. compiled over many years to provide a 'rolling average' database of the speeds that traffic actually moves on any given road within the continental USA.
-
Page 22: Troubleshooting
GPS fix. Turn the unit off and back on. If this does not help, reset the unit by using a small metal object to press the The NAV101 stops responding Unknown RESET bullon located on the side of the NAV1 01 unit between the ANTENNA connection and the SD card slot. - Page 23 NAV101...
- Page 24 Limited Warranty DO NOT RETURN THIS PRODUCT TO THE STORE CD or Multimedia Radios/Headunits/Navigation Audiovox Electronics Corporation ("the Company") is committed to Limitations quality and customer service, and are pleased to offer you this THE EXTENT OF THE COMPANY'S LIABILITY UNDER THIS WARRANTY Warranty.
- Page 25 LOUD you're too OLD! Audiovox Electronics Corporation Hauppauge, NY 11788 Technical Assistance: 1-800-323-4815 www.jensen.com © 2007 Audiovox Ver.081307 Printed in China...
- Page 26 1. Insert one end of the Smartbus cable into the "DATA BUS" slot on the side of the NAV101 and secure it with a 11 mm (.4in) screw (provided). Connect the other end of the cable to the NAV101 input on the back of your Jensen navigation-ready head unit (VM9412, ~NSE8>...
- Page 27 /;7 . ,. '< '--'" INSTALLATION e,y( '<.'11<.'/7('(' --------~-----~- Three easy steps! Visit www.jensen.com. Click on the Victory Technology Installation Excellence logo as shown above. Enter your product serial number (example: xxxx_xxxxxxx_xx). .4.>¥Qllow the on-screen steps to C:fawnload the Installation...
- Page 30 VM9022 Software Update Updating the VM9022 Note: When updating the VM9022, make certain that power is not interrupted while the update is in progress. If power is lost or interrupted the unit may become inoperable. This update is for the VM9022 ONLY.
- Page 31 Source Selection with NAV101 Listening to a Source, while navigating, is possible with the VM9412 / VM9512 and VM9022. VM9412 / VM9512 • After navigation has begun, press the SRC button to select the Source Menu. • Select a Source.
