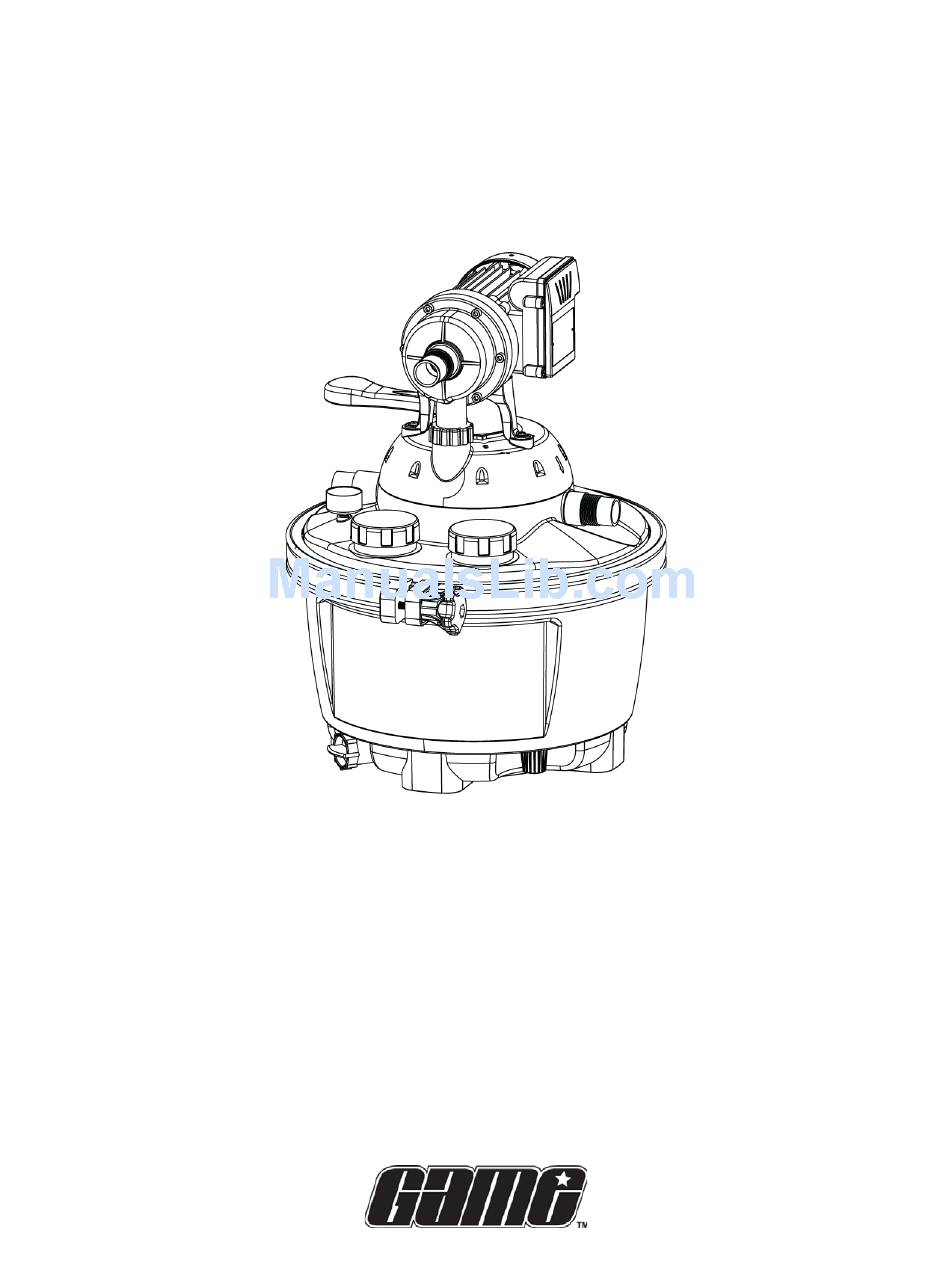

SandPro™ POOL FILTER SYSTEM
OWNER'S MANUAL
Model 4515
IMPORTANT
SAFETY RULES
Read all instructions BEFORE assembling and using this product.
KEEP THIS MANUAL.
Sand not included. USE ONLY No. 20 Silica Sand with a particle size of 0.45 mm – 0.55 mm
IMPORTANT
DO NOT RETURN PRODUCT TO STORE
For technical assistance and missing parts, call Customer Service toll-free
1.888.339.2546
(press 135 at any time)
Monday through Friday, 8 am to 5:00 pm MST
Saturday, 8:00 am to 1:00 pm MST
NOTE: SEE WEB (www.game-group.com) FOR INSTRUCTION UPDATES.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4515 and is the answer not in the manual?

Questions and answers

Summary of Contents for GAME 4515

  • Page 1 SandPro™ POOL FILTER SYSTEM OWNER’S MANUAL Model 4515 IMPORTANT SAFETY RULES Read all instructions BEFORE assembling and using this product. KEEP THIS MANUAL. Sand not included. USE ONLY No. 20 Silica Sand with a particle size of 0.45 mm – 0.55 mm...

  • Page 2: Important Safety Instructions

    SAFETY WARNINGS READ ALL WARNINGS BELOW. FAILURE TO DO SO COULD RESULT IN SERIOUS PERSONAL INJURY OR DEATH. IMPORTANT SAFETY INSTRUCTIONS When installing and using this electrical equipment, basic safety precautions should always be followed, including the following: READ AND FOLLOW ALL INSTRUCTIONS •...
  • Page 3 Pump Assembly Screw Collar Seal Tank Cover/Valve Assembly Retaining Ring Filter Tank Drain Plug...
  • Page 4 Assembly Instructions: 1. Open the filter tank by removing retaining ring and remove all parts. 2. Fill sand chamber with sand (See figure 2) Water Chamber Sand Chamber Separator Plate Base Strainer Figure 2 Note: The tank should be in its permanent location before filling the chamber with sand. Otherwise, the unit will be heavy and difficult to move around.
  • Page 5 Note: Using a rubber mallet to lightly tap around the outside of the ring assembly as you are tightening. This will ease the installation of the ring assembly. 4. Attach motor to top and secure with the 2 screws and washers included. Tighten collar, making sure the seal is installed to prevent leaks (See figure 4) Screw &...
  • Page 6 First time use: The filtering system is ready for use when the filter tank has been filled in accordance with the instructions, and the hoses have correctly attached. Ensure that the pump is placed below the water line and that the water flows to the pump from the pool via the intake hose.
  • Page 7 3 way valve: The filtering system is an economic basic model that is equipped with a 3-way valve on the filter tank’s lid, so that the cleaning can be controlled manually. Press the handle down with the palm of your and turn it to the desired position.

  • Page 8: Limited Warranty Statement

    Product. No employee or representative of GAME or any other party is authorized to make any warranty in addition to the limited warranty set forth above. 4515-10 R1A INSTR (060210)
