Azooga 10 in 1 User Manual

10 in 1 multi-game table
Hide thumbs

Advertisement

Quick Links

Download this manual
User Manual
for Azooga 10 in 1 Multi-game table
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 10 in 1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Azooga 10 in 1

  • Page 1 User Manual for Azooga 10 in 1 Multi-game table...

  • Page 2: Assembly Manual

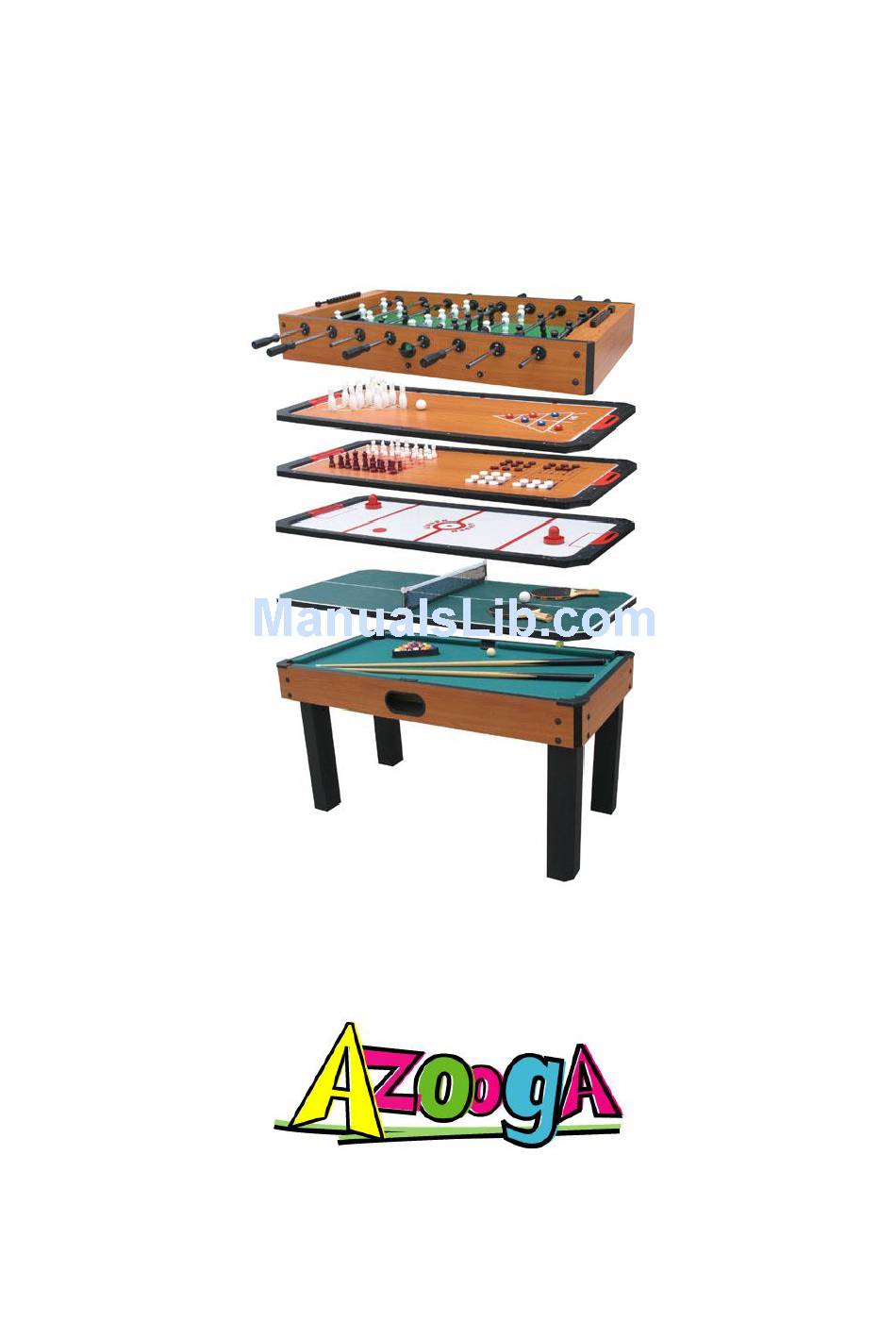

    Assembly Manual Parts Pool, foosball/table soccer, table tennis, chess, checkers, shuffle board, backgammon, bowling, deck of cards and dice all together compose the 10 in 1 multi-game table. Using the parts list，please check and confirm all of the parts are complete before assembling.
  • Page 3 table top. Attach the leg to the pool table top by using four screws with full thread (#23) and four washers (#24). Two screws and washers are to be inserted into two precut holes on each side of the leg. 5.
  • Page 4 upward. 2. Put the table tennis net in place by inserting two small metal rods (#20) into the precut holes on each side of the table tennis surface. Attach the net (#31) onto each of the metal rods. D. Table soccer/ foosball table assembly. For assembly of the table soccer table, you will need the following pieces: a.
  • Page 5 box. 4. Connect the final side panel to the table soccer field box by using two screws with full thread and two washers on each end. Turn your newly constructed soccer field box upside down insert supporting beams. (#12) Connect the supporting beams to the box using 2 long screws (#13) and 4 washers (#14).
  • Page 6 assistance): a. Three figurine hole rod, handle on the right side b. Two figurine hole rod, handle on the right side c. Three figurine hole rod, handle on the left side d. Five figurine hole rod, handle on the right side e.
  • Page 7 red figurine and another goalie rod stopper onto the rod. 13. Create a second bumper group by sliding one rubber washer, one foam bumper and another rubber washer onto the rod and pushing these three pieces together. Goalie Rod Stopper and Bumper Group 14.
  • Page 8 bumper and another rubber washer onto the rod. Push these three pieces together to make the bumper group. 23. Next slide two red figurines onto this rod. 24. Create a second bumper group by sliding one rubber washer, one foam bumper and another rubber washer onto the rod and pushing these three pieces together.
  • Page 9 33. Create a second bumper group by sliding one rubber washer, one foam bumper and another rubber washer onto the rod and pushing these three pieces together. 34. Once these pieces are placed on the rod, you may slide the rod back through the remaining hole in the side of the table soccer field box.
  • Page 10 the rod to the right of all of the precut holes. 46. Attach the red figurines to the five precut holes in the rod using five small metal screws. 47. Slide both bumper groups so that they are positioned on the rod directly next to the outside figurines as done with other rods.

  • Page 11: Parts List

    Parts List Name Unit Quantity Side panel piece Goal panel piece Play field surface piece Rod for 5 player piece Rod for 3 player piece Rod for 2 player piece Rod for 1 player piece Handle piece End cap for rod piece Screw for scorers piece...
  • Page 12 Five in row Spanner piece Spanner with inner hexagon piece Leveler piece Table tennis ball piece Screw driver piece Dice cup piece Bowling ball piece Bowling bottle piece Graphics for assembly parts...
