Summary of Contents for TAIWAN VIDEO SYSTEM LR804

  • Page 1: User Manual

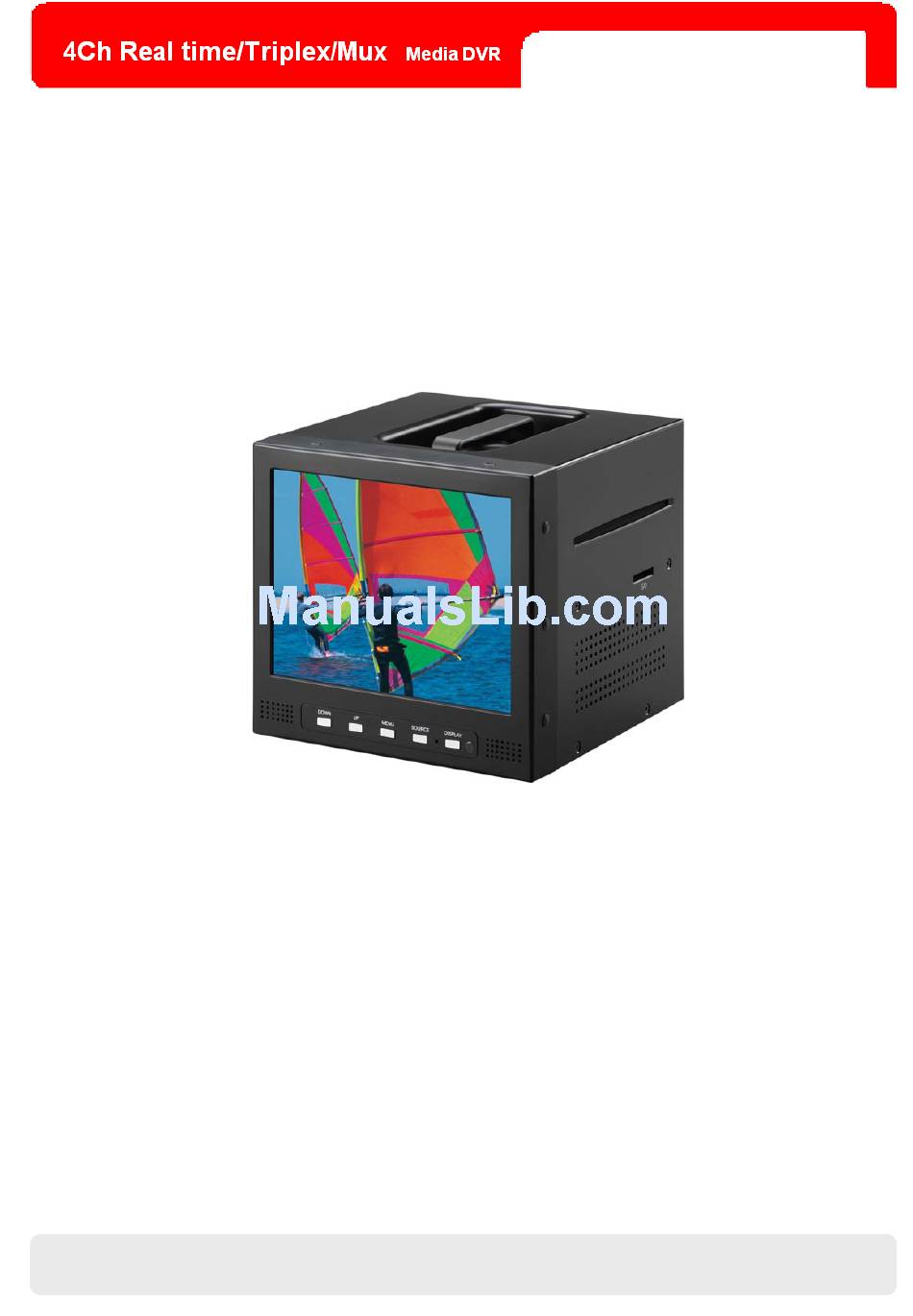

    User Manual 8”TFT/4CH MJPEG Media DVR LR804 4ch Media LCD DVR User Manual...
  • Page 2 Revision Revision Update Modified Content Editor V0.90 2007/07/19 Draft Roland V1.00 2007/08/24 Primary Release Roland...
  • Page 3 Installation & Safeguards INSTALLATION & SAFEGUARDS 1. All the safety and operating instructions should be read before the DVR is operated. 2. Keep and follow all instructions. 3. Heed all warnings. 4. Clean only with dry cloth. 5. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other.
  • Page 4 Installation & Safeguards WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: To reduce the risk of electric shock, do not remove the front or back covers. No user-serviceable parts inside. Refer servicing to qualified service personnel only. The lightning flash with arrow-head within a The exclamation point within a triangle is triangle is intended to inform the user that intended to tell the user that important...

  • Page 5: Table Of Contents

    Table of Contents CHAP.1 FEATURES & PACKAGE CONTENTS ......... 8 1-1. F ..............................8 EATURES 1-2. P ............................9 ACKAGE ONTENTS CHAP.2 OUTLOOK..................10 2-1. F ................................10 RONT 2-2. R ................................11 CHAP.3 INSTALLATION ................13 3-1. I ........................13 NSTALLATION ONFIGURATION 3-2. D ...........................14 ETAILED NSTALLATION...
  • Page 6 Table of Contents ................................24 2. RECORD ............................24 (1) RECORD SETUP ............................24 2) SCHEDULE SETUP ............................25 2) SCHEDULE SETUP ............................26 3. CONFIGURATION ............................26 (1) HDD MANAGEMENT ............................27 (2) CAMERA SETUP ............................27 (3) MOTION SETUP ..............................28 (4) ALARM SETUP ............................28 (5) INTERVAL SETUP ............................29 (6) TIME/DATE SETUP ............................29...
  • Page 7 Table of Contents ............................52 4. PTZ/SAVE S ETTING ................53 5. P DVR R LAYBACK NTERFACE THROUGH EMOTE IEWER 6-7. B CD P ...........................55 ACKUP LAYER CHAP.7 MEDIA PLAYER ....57 THIS CHAPTER IS FOR LR-804J02 ONLY) ※ 7-1. R ..........................57 EMOTE ONTROLLER ■...

  • Page 8: Chap.1 Features & Package Contents

    CHAP.1 Features & Package Contents CHAP.1 Features & Package Contents 1-1. Features ░ Live Display Real-time display for 4 cameras ● Auto sequence ● PIP (picture in picture) ● Digital zoom of display ● Simple playback modes ● Easy PTZ camera control ●...

  • Page 9: Package Contents

    CHAP.1 Features & Package Contents 1-2. Package Contents 2. Power Cable 1. Main Unit 3. Power Adapter 4. Quick Guide 5. Software CD 6. Mouse 7 Remote Controller 8. Screws (X 4) 9. Audio Cable 10. BNC Adapter Package Contents Description DVR Main Unit Stand-alone Digital Video Recorder with Media Player...

  • Page 10: Chap.2 Outlook

    CHAP.2 Outlook CHAP.2 Outlook 2-1. Front Items Function 8” LCD Display Displays images. Speakers Gives sounds. Receiver (IR Port) Receives IR signals out of the remote controller. Power LED Gives red light when the power is on. Control Buttons Control the OSD menu of the LCD. DISPLAY LCD Power Switch (On / Off) SOURCE...

  • Page 11: Rear

    CHAP.2 Outlook 2-2. Rear Items Function Power Switch Media DVR Power Switch (On/Off) MONITOR Connects a monitor (NTSC / PAL). MOUSE Connects a USB mouse. HOST (1) For Backup of DVR Video Images (2) For DVR Firmware Upgrade MEDIA AUDIO OUT Connects a monitor for the Media Player.
  • Page 12 CHAP.2 Outlook 2-3. Side Items Function DVD Driver For Media Player Only (CD / VCD / DVD) SD Slot For Media Player Only (SD Card / MMC Card) Item 1 and 2 are for LR-804J02 only.) ※...

  • Page 13: Chap.3 Installation

    CHAP.3 Installation CHAP.3 Installation 3-1. Installation Configuration...

  • Page 14: Detailed Installation

    CHAP.3 Installation 3-2. Detailed Installation 1. HDD 1. Connect the main board with an HDD by an IDE cable plus an HDD power wire. 2. To install the HDD, the jumper setting must be master. 3. Combine the HDD with the HDD drawer by using the 4 screws. 4.

  • Page 15: Monitor / Spot

    CHAP.3 Installation 3. MONITOR (LOOP) / SPOT VIDEO A VIDEO B VIDEO C Rear View of A Monitor Connect the MINOTOR (LOOP) or SPOT video output of the DVR with a video input of a main monitor. ※NOTE : 1. A monitor combined with the video output jack MONITOR displays the identical images to the DVR’s. 2.

  • Page 16: Other External Devices

    CHAP.3 Installation 5. OTHER EXTERNAL DEVICES External Speakers External Display Device Camera Computer Alarm Sensors Siren (1) FUNCTION PORT: ■ RS 485 D -/+ (Function Pin 1,2): Control external devices such as PTZ cameras. ■ RELAY COM /NC/NO (Function Pin 3~5): Relay output for devices such as sirens. ■...

  • Page 17: Chap.4 Dvr Operation

    CHAP.4 DVR Operation CHAP.4 DVR Operation 4-1. Mouse Control Mouse Control Functions Left Button (1) Executes. (2) Confirms. (3) Enters. (4) Increases setting values. Right Button (1) Cancels. (2) Recovers. (3) Decreases setting values. (1) Increases/Decreases setting values. Wheel (2) Speeds up/down playback. (3) Zooms in/out in a PTZ mode.

  • Page 18: Format The Hdd

    CHAP.4 DVR Operation 4-3. Format The HDD When an HDD is combined with the DVR, you must format it initially. You can format this HDD in HDD MANAGEMENT (MAIN . In this menu, click the FORMAT, and the HDD will be formatted just in seconds. MENU →...

  • Page 19: Live Recording Mode

    CHAP.4 DVR Operation 4-5. Live Recording Mode ETHERNET Status: Recording Overwriting Status: Camera Title Current Time/Date Not Recording Overwriting the HDD switched on ※ ※ Please refer to the page 22.) Please refer to the page 26.) ETHERNET Status: HDD Status (Recording Mode): Connected Amount of Recorded Data Disconnected...

  • Page 20: Search

    CHAP.4 DVR Operation 2. SEARCH There are 3 approaches for a user to search for the recorded images via SEARCH: Mode Function Searches by the percentage of total recorded images. Click on the search bar or the percent number PERCENT SEARCH and click PLAY, and the DVR will replay from the corresponding recorded image.

  • Page 21: Sequence

    CHAP.4 DVR Operation 3. SEQUENCE To make the DVR automatically display channel 1~4 in full-screen sequentially, click . In addition, you can set the channel switching interval in SEQUENCE SCREEN (MAIN MENU → CONFIGURATION → INTERVAL SETUP → SEQUENCE SCREEN). CH04 CH03 CH02...

  • Page 22: Schedule Record

    CHAP.4 DVR Operation 7. SCHEDULE RECORD The DVR records as the setting in SCHEDULE SETUP (MAIN MENU→RECORD→SCHEDULE SETUP) , or in red indicates the DVR is now recording in the mode of continuous recording, motion recording, or alarm recording. Oppositely, if a recording mode is disabled, its icon will turn white. Record [RED] Stop recording [WHITE] ※NOTE :...

  • Page 23: Main Menu

    CHAP.4 DVR Operation 4-6. Main Menu MAIN MENU Click and then input the password, and you can log onto DISPLAY SETUP MAIN MENU shown as right: ※NOTE : RECORD CONFIGURATION 1. For quick search and overview on all parameter ranges. users are EXTERNAL DEVICE highly advised to take advantage of the menu parameters table in BACK –...

  • Page 24: Record

    CHAP.4 DVR Operation RECORD 2. RECORD RECORD SETUP SCHEDULE SETUP This is a premier setting for the DVR to operate, which determines all details concerning recording modes. (1) RECORD SETUP RECORD SETUP ◎ CHANNEL: CHANNEL Select a channel to adjust setting. RESOLUTION 352 * 240 ◎...

  • Page 25: Schedule Setup

    CHAP.4 DVR Operation 2) SCHEDULE SETUP Unless you select another recording mode, DVR system will record in continuous recording mode. In SCHEDULE SETUP, you can set recording type of one-hour intervals. The frame rate default for continuous recording speed is 30 FPS. HOUR Click “ALL”...

  • Page 26: Configuration

    CHAP.4 DVR Operation CONFIGURATION HDD MANAGEMENT HDD MANAGEMENT CAMERA SETUP MODEL MAXTOR 6Y080L0 MOTION SETUP SERIAL S3243212 ALARM SETUP BLOCKS 320173056 LBA INTERVAL SETUP SIZE 160 GB TIME/DATE SETUP SPEED PIO4 PASSWORD SETUP ------------------------------------------------------------- BUZZER SETUP OVERWRITE DISABLE FORMAT 3. CONFIGURATION Click CONFIGURATION, and you can open the menu shown below, containing eight configuration items: (1) HDD MANAGEMENT Items above the line clearly present the Information of the HDD, covering the model name, the serial number, the number of blocks,...

  • Page 27: Camera Setup

    CHAP.4 DVR Operation (2) CAMERA SETUP On this menu you can adjust the camera setting. ◎ CHANNEL: Select a channel to adjust setting. CAMERA SETUP ◎ TITLE: Name a camera with a combination of up to 8 digits or letters. CHANNEL ◎...

  • Page 28: Alarm Setup

    CHAP.4 DVR Operation (4) ALARM SETUP Users can rectify the alarm sensor setting here.◎ CHANNEL: ALRAM SETUP Select a channel to adjust setting. CHANNEL ◎ INPUT: INPUT NORMAL OPEN Select the type of the alarm sensor connected to the DVR. DURATION 05 SEC -NORMAL OPEN: For an alarm type triggered once a normally...

  • Page 29: Time/Date Setup

    CHAP.4 DVR Operation (6) TIME/DATE SETUP TIME/DATE SETUP On this menu, you can set the time/date and their formats the DVR displays. DATE 2007/JUL/01 TIME 12:00 :00 ◎ DATE: Regulate the date of the DVR. ◎ TIME: Regulate the time of the DVR. DATE FORMAT ASIAN ◎...

  • Page 30: External Device

    CHAP.4 DVR Operation 4. EXTERNAL DEVICE EXTERNAL DEVICE In this menu, you can set parameters of external devices, a computer TCP/IP SETUP via the network, a PTZ camera, and a SPOT monitor, connected to the PAN/TILT SETUP DVR. SPOT SETUP (1) TCP/IP SETUP The function enables you to see live and recorded images via the network.

  • Page 31: Pan/Tilt Setup

    CHAP.4 DVR Operation (2). PAN/TILT SETUP PAN/TILT SETUP COMMAND SETUP (A) COMMAND SETUP SPEED SETUP ◎ CHANNEL: Select a channel to adjust setting. DEFAULT ◎ MODEL: Select a camera model (protocol type) that corresponds with your PTZ camera. ◎ PTZ ID: Adjust the camera ID. COMMAND SETUP ◎...

  • Page 32: Back-Up

    CHAP.4 DVR Operation 5. BACK-UP USB SETUP Users can backup the recorded images into an USB mass-storage device via the HOST slot on the rear of the DVR. Set the starting time and the backup size first, and the DVR will automatically detect the ending time. Afterwards, click BACKUP, and the data will be recorded into the storage device.

  • Page 33: Chap.5 Network Setup

    CHAP.5 Network Setup CHAP.5 Network Setup 5-1 DVR Network Configuration Please inquire your network provider first to identify what type of Internet service it provides. You need to know what follows: (1) Upload speed: expected frame rates. (2) Download speed: expected frame rates. (3) Addressing: to make sure which scenario you should follow.

  • Page 34: Static Ip

    CHAP.5 Network Setup 5-2 Static IP The TCP/IP function enables you to: (1) See live images and recorded images (2) Control a PTZ camera via Internet (3) Backup. In IP SETUP for the DVR, please input an IP address assigned from the ISP. (MENU→EXTERNAL DEVICE→TCP/IP SETUP→IP SETUP) Operation Steps (1) Verify the IP address is correct for your PC before connecting it with the DVR.

  • Page 35: Dynamic Ip

    CHAP.5 Network Setup 5-3 Dynamic IP If you set DHCP MODE as AUTOMATIC in IP SETUIP , IP information will be (MENU→EXTERNAL DEVICE→TCP/IP SETUP→IP SETUP) automatically assigned from the ISP of DHCP. Operation Steps (1) Verify the IP address is correct for your PC before connecting the DVR. (2) Connect an LAN cable to the DVR after confirmation.

  • Page 36: Dynamic Ip Of Pppoe (Dsl)

    CHAP.5 Network Setup 5-4 Dynamic IP of PPPoE (DSL) The DVR doesn’t support DSL (PPPoE), so users have to set the network with a router (for IP sharing) if they need to access it remotely. In this case, they have to port forward on the DVR. ※NOTE : Please contact the router’s manufacturer if you need to know how to do.

  • Page 37: Chap.6 Dvr Program Setup

    CHAP.6 DVR Program Setup CHAP.6 DVR Program Setup 6-1. Registering DVR for DDNS (DDNS Web-server) (1) To connect the DVR via the Internet, registration to the DDNS web-server is necessary. Please access www.j2kip.com first. In this homepage, click Member Register to create a member ID. After filling up the form and confirmation, a message of Success! will show, and you will be automatically returned to the previous page.
  • Page 38 CHAP.6 DVR Program Setup (3) Please click Confirm after filling out this form shown as below. (4) Now, some information of the DVR is listed on the DDNS web server, short of the IP address and the port number.

  • Page 39: Ddns Setup In Dvr

    CHAP.6 DVR Program Setup 6-2. DDNS Setup in DVR Configuration for a cable modem connected to DVR directly is illustrated as below. (1)Open IP SETUP and set DHCP MODE as AUTOMATIC, letting the DVR (MENU→EXTERNAL DEVICE→TCP/IP SETUP→IP SETUP) detect an IP address automatically. (2) Shift to DDNS SETUP .
  • Page 40 CHAP.6 DVR Program Setup (3) Return to your computer after you see a message of SUCCESS TO REGISTER DVR INFO. Then, click (Refresh) to let the DDNS server automatically fetch your DVR’s IP address and port number. ※NOTE :Prior to using the Web Viewer, please add www.j2kip.com into Trusted Sites first as illustrated below (Tools→Internet Options→Security→Trusted Sites→Sites) Refresh it.
  • Page 41 CHAP.6 DVR Program Setup...

  • Page 42: Dvr Web Viewer (Via Ie)

    CHAP.6 DVR Program Setup 6-3. DVR Web Viewer (via IE) DVR WEB VIEWER is a program for users to remotely monitor via the IE. (1) Please click to execute DVR WEB VIEWER as following illustration: ※ NOTE : 1. If ActiveX control installation is required in the first access, please click Yes. 2.
  • Page 43 CHAP.6 DVR Program Setup (3) The live images are displayed as below:...

  • Page 44: Dvr Backup Player (Via Ie)

    CHAP.6 DVR Program Setup 6-4. DVR Backup Player (via IE) DVR BAKCUP PLAYER is a program for users to replay backup image files through the IE. (1) To execute DVR BACKUP PLAYER, click shown as below: ※ NOTE 1. If ActiveX control installation is required in the first access, please click Yes. 2.
  • Page 45 CHAP.6 DVR Program Setup (4) You can see the recorded images shown as below.

  • Page 46: Web Network Backup (Via Ie)

    CHAP.6 DVR Program Setup 6-5. Web Network Backup (via IE) This is a program for users to backup recorded images via the IE. (1) Go to www.j2kip.com, and click DVR Web Backup on the left. ※NOTE : Users can also execute this program by clicking the file named WEB_BACKUP.html in the software CD. (2) To execute backup via the network, input the IP address as well as the network port and then click Connect Test.
  • Page 47 CHAP.6 DVR Program Setup (3) When the connection test is done, a message of Success Connect Test will show. Then, click Lock to set backup time. (4) Now, please set well Recorded Start Time, Recorded End Time, Save File Path, and Maximum Save File Size. Right after that, click Apply.
  • Page 48 CHAP.6 DVR Program Setup (5) Next, click Start Backup to start recording images. Finally, you can review the backup files via the path you have already determined.

  • Page 49: Dvr Remote Viewer

    CHAP.6 DVR Program Setup 6-6. DVR Remote Viewer DVR Remote Viewer is a program for distant users to monitor, replay, and backup recorded images via the network. ※NOTE : Prior to making use of this program, users have to install it from the software CD. 1.

  • Page 50: Ip/Port Setting

    CHAP.6 DVR Program Setup 2. IP/PORT Setting MANUAL: Input an IP address and a port manually. DDNS: Receive an IP address and a port from the DDNS Server. For further information of DDNS, please contact your vendor. NAME: The name of the IP address on the list. ADDRESS: Input an IP address set in the DVR.

  • Page 51: Ddns Setting

    CHAP.6 DVR Program Setup 3. DDNS Setting Member ID: Input the member ID registered at the DDNS server. Name: Input the DVR name registered at the DDNS server. Save: Save the member ID and the name. Load: Search for a member ID & name saved in the Remote Viewer. User ID: Input the ID set in the DVR.

  • Page 52: Ptz/Save Setting

    CHAP.6 DVR Program Setup 4. PTZ/SAVE Setting Circular Monitoring Interval: Select the switching interval of channel sequence when users active the sequence function on the main interface. Scan Rate: Set the speed of playback. PTZ Type: Select the PTZ camera type connected to the DVR. PTZ Baudrate: Enter the baud rate of your PTZ camera.

  • Page 53: Iewer

    CHAP.6 DVR Program Setup 5. Playback Interface through The DVR Remote Viewer Functions of all buttons in Search window are delineated below: ① Exit: Exit to the live window. ② Full-screen mode: Select a certain camera to view in the full-screen mode. ③...

  • Page 54: Playback

    CHAP.6 DVR Program Setup — — Play Backward Fast — Move to the Start of Recording — Play Backward — Move to the Previous Hour — Play Forward — Move to the Next Hour — Play Forward Fast — Move to the End of Recording —...

  • Page 55: Backup Cd Player

    CHAP.6 DVR Program Setup 6-7. Backup CD Player Using Backup CD Player, users can replay backup image files, and function of each button in Backup CD player is as below. ※NOTE : Before making use of this program, users have to install it from the software CD. ①...
  • Page 56 Setup CHAP.6 DVR Program Image EDIT ..(a). (b) (c) ① Image Edit Status Window: Shows the recording time/date, the image size, and the command status. ② Edit Button: Users can adjust color tone of copied images using these buttons. (a) Contrast Plus: Enhance light and shade of an image. (b) Brightness Plus: Make an image brighter .

  • Page 57: Chap.7 Media Player

    CHAP.7 Media Player CHAP.7 Media Player This chapter is for LR-804J02 only) ※ 7-1. Remote Controller ■ Preparing The Remote Controller for First Use 1. Activate the Remote Controller The remote control ships with a plastic contact breaker between the battery and contact. You must remove the contact breaker prior to use by pulling out the tab.

  • Page 58: Supported Media

    CHAP.7 Media Player ■ Function Overview of Buttons BUTTON DESCRIPITON Power Power on/off the Media Player. Setup Display the setup menu. Menu Display the root menu of the disc. Eject Eject/Draw in the disc. Audio Select the audio language. Subtitle Select the subtitle language or turn it on/off.

  • Page 59: Introduction Of

    CHAP.7 Media Player 7-3. Introduction of On-screen Displays 1. Screen Information OSD (1) Media Playing: In media playing, press DISPLAY and an screen information OSD will show as introduced below: ▓ DVD DVD TT 1/8 CH 1/5 00:01:39 ▓ VCD VCD TRK 1/1 00:42:05 ▓...
  • Page 60 CHAP.7 Media Player 2. Selection Menu OSD ▓ DVD In DVD playing, press MENU and a selection menu will pop up as below (※The screen depends on the DVD): TITLE. 1 …………………………………………… TITLE. 2 …………………………………………… CHAPTER. 1 …………………………………… CHAPTER. 2 …………………………………… TITLE.

  • Page 61: Setup Menu

    CHAP.7 Media Player 7-4. Setup Menu In playing mode, press SETUP to open the setting menu of the Media Player. In the setting menu, please press , and to navigate and perform. ▓ SYSTEM SETUP 1. TV SYSTEM: Select a TV system for video output. (NTSC/PAL 60/PAL/AUTO) 2.
  • Page 62 CHAP.7 Media Player ▓ VIDEO SETUP 1. BRIGHTNESS: Adjust the brightness for the displayed images. (12,10, 8, 6, 4, 2, 0) 2. CONTRAST: Adjust the brightness for the displayed images. (12,10, 8, 6, 4, 2, 0) 3. HUE: Adjust the hue for the displayed images. (+6, +4, +2, 0, -2, -4, -6) 4.

  • Page 63: Appendix

    Appendix Appendix I. Specification Model LR-804J02 LR-804J03 Video Compression MJPEG Compression Rate Lowest/ Low/ Normal/ High/ Highest Video Input Video Display Full screen, 4 Screen Split, PIP, Sequence, Digital Zoom Video Display Resolution 704x240 (NTSC) or 704x288 (PAL) Display Speed Full Motion: 30FPS(NTSC), 25(PAL) Camera Configuration Adjustable Camera ID and Color...
  • Page 64 CHAP.8 Specification Display 8" LCD Monitor Resolution 800(H) x 600(V) LCD Spec. Brightness 350 cd/m2 Contrast Ratio 500:1 Viewing Angel 70/70 (L/R) 70/70 (U/D) Media Video Storage SD Card Media Player VCD, SVCD, MP3, CDDA, HDCD, CDG, Video Display Format (DVD Player) WMA, JPEG, MPEG 1/2/4 DVD-5, DVD-9, DVD-10, DVD-18,...

  • Page 65: Imensions

    Appendix II. List of All Supported HDDs Supported HDD Type Capacity (GB) Model Number Seagate ST3160812A ST3200822A ST3250824A ST3300622A ST3500641A Western Digital WD1600JD-00GVC0 WD2000BB-22KEA0 WD2500JB-00GVC0 WD3000JB-00KFA0 III. Dimensions...

  • Page 66: A 250 Gb Hdd)

    Appendix IV. Table of HDD Recording Time (For A 250 GB HDD): ※ Unit: Hour Recorded Images Quality Recorded Images (KB) Frame Rate (FPS) LOWEST NORMAL HIGH HIGHEST 30.0 75.90 69.10 62.56 53.83 46.76 15.0 151.79 138.20 125.13 107.67 93.53 NTSC 10.0 227.69...
  • Page 67 Appendix ※ Unit: Hour Recorded Images Quality Recorded Images (KB) Frame Rate (FPS) LOWEST NORMAL HIGH HIGHEST 30.0 136.17 121.83 110.23 96.45 82.67 15.0 272.33 243.66 220.46 192.90 165.34 NTSC 10.0 408.50 365.50 330.69 289.35 248.02 (352x240) 544.66 487.33 440.92 385.80 330.69 680.83...

  • Page 68: Table

    Appendix V. Menu Parameters Table Menu Parameters Table Menu Level Menu Items Parameter Range (Increment) VERTICAL POSITION 00~63 (1) HORIZONTAL POSITION 00~63 (1) SCREEN DISPLAY BORDER ENABLE ON/OFF DISPLAY SETUP BORDER WIDTH 01~10 (1) BORDER COLOR GRAY, DARK GRAY, BLACK, WHITE, LIGHT GRAY TOP OSD OFFSET -10~9 (1) OSD SETUP...
  • Page 69 Appendix CH1~4 CHANNEL SENSITIVITY MOTION SETUP DURATION 01~99 DETECT CELL NUMBER 0~15 CHANNEL CH1~4 INPUT NORMAL OPEN, NORMAL CLOSE, DISABLE ALARM SETUP DURATION 01~99 SEC (1) SEQUENC SCREEN 01~99 SEC (1) INTERNAL SETUP PIP SCREEN 01~99 SEC (1) EVENT UPDATE 010~990 SEC (10) DATE (Indication)
  • Page 70 Appendix LAST REGISTRATION DATE (Indication) SPEED SPEED CHANNEL CH1~4 PELCO-D, DRX502A, HID2404, AECD-2000, VIDD AU-GXX, SCC-641, HMC 250, MODEL ACCUDOME, PELCO-P, YOKO, ON-D, TS-2211 PTZ ID 000-255 COMMAND BAUDRATE 001200, 002400, 004800, 009600, 019200, 034800, 057600, 115200 SETUP CMD DELAY 0.25~5.00 MSE (0.25) PAN/TILT SETUP PAN LEFT, PAN RIGHT, TILT UP, TILT DOWN, P/T LEFT-UP, P/T RIGHT-UP, P/T...
