Howard Electronic Instruments 8” Operating Manual

Lcd zoom microscope
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

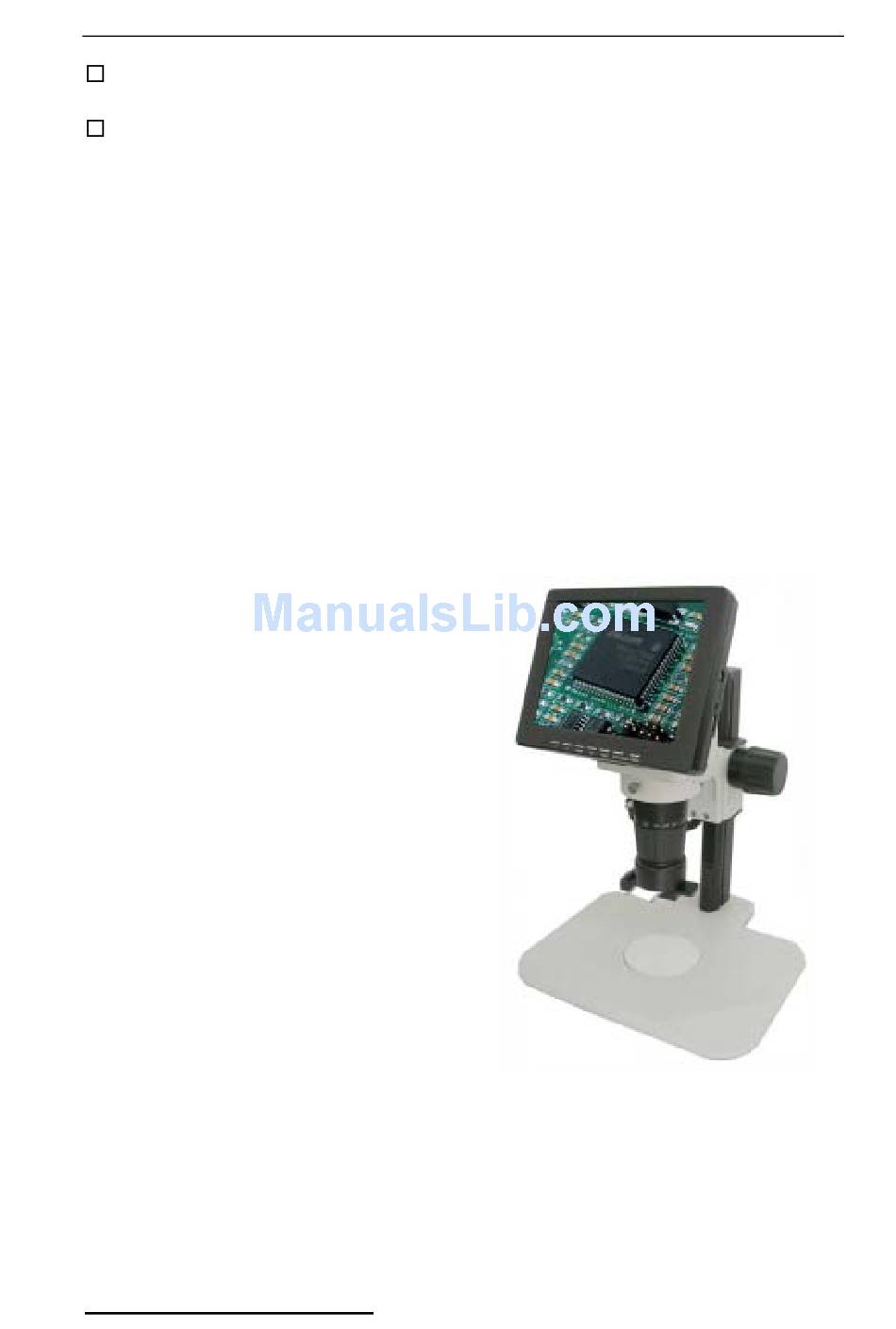

LCD ZOOM MICROSCOPE
8" LCD Screen
10.4" LCD Screen
LCD Zoom Microscope
Operating Manual
Please read the operating instructions
attentively before installation and application
and keep it for future use.
1
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8” and is the answer not in the manual?

Questions and answers

Summary of Contents for Howard Electronic Instruments 8”

  • Page 1 LCD ZOOM MICROSCOPE 8” LCD Screen 10.4” LCD Screen LCD Zoom Microscope Operating Manual Please read the operating instructions attentively before installation and application and keep it for future use. INSTRUCTION MANUAL...

  • Page 2: Table Of Contents

    LCD ZOOM MICROSCOPE 1. CONTENTS 1. Contents 2. Specifications 2.1. Brief introduction 2.2. LCD monitor 2.3. Optics 2.4. LED ring light, brightness adjustable. 2.5. Optical Data (1/3” CCD, 8” monitor, 0.5x CCD Coupler) 3. Packing list 4. Installation 5. Adjustment and operating instructions 5.1.

  • Page 3: Specifications

    LCD ZOOM MICROSCOPE 2. SPECIFICATIONS 2.1. Brief introduction Total Magnification: 3.3x-147x (For 8” LCD Monitor) or 3.2x-198x (For 10.4” LCD Monitor) Compact and light weight, low power consumption 16MS high definition color, Intelligent screen image setting High contrast and brightness Additional Video out delivers high resolution color images for microscopy documentation with capture software compatible with Windows based system.

  • Page 4: Optical Data (1/3" Ccd, 8" Monitor, 0.5X Ccd Coupler)

    LCD ZOOM MICROSCOPE 2.5. Optical Data (1/3” CCD, 8” monitor, 0.5x CCD Coupler) Coupler 0.5x Auxiliary Lens Mag. FOV mm W. D. mm 0.3x 3.3x~22x 58.8~8.9 0.5x 6x~37x 35.2~5.3 0.75x 8x~55x 23.5~3.6 1.0x 11x~74x 17.6~2.7 1.5x 17x~110x 11.8~1.8 2.0x 22x~147x 8.8~1.3 Note: The working distance is 52.5mm for 0.75x objective lens with 35º...

  • Page 5: Adjustment And Operating Instructions

    LCD ZOOM MICROSCOPE Microscope body as shown. 4.2.5. Connect the power cord with the mains as shown. To attached the View Angle Attachment Never put the microscope body with view angle attachment into the scope holder. Before take out the scope body from the scope holder, take off the view angle attachment first.

  • Page 6: Rotate 3D Attachment To View The Object To Be Inspected

    LCD ZOOM MICROSCOPE 5.2.2. Move the object to be inspected to the laser point and then turn off laser pointer. On the 2D position On the 3D position Push or Pull to changing the view angle attachment position. 5.3. Rotate 3D attachment to view the object to be inspected.

  • Page 7: Lcd Adjustment

    LCD ZOOM MICROSCOPE 5.7. LCD Adjustment 5.7.1. Specifications Model Name 8” Monitor 10.4”Monitor Display size 800¡ Á 600 1024¡ Á 768 Pixel pitch 0.213 0.253 Viewing angle 170/170 (H/V) Horizontal 30-61KHz Vertical 60-75Hz Display color 16£ ¬ 777£ ¬ 216 colors Maximum mode 1024X 768@75Hz Sync.
  • Page 8 LCD ZOOM MICROSCOPE 5.7.3. Setup Picture You can select the type of picture which best corresponds to your viewing requirements. Press the “Menu” button, display the OSD main menu. Press the “CH+” or “CH-” button, select the option. Press the “VOL+” or “VOL-” button, adjust the option. For example , adjust the brightness: Press the “CH+”...
  • Page 9 LCD ZOOM MICROSCOPE When no TV signal , you can open the Blue Background . You can choose 15 to 20 minutes Auto Power Down time . On PC mode ,you can use the Auto adjust to do adjusting Automatically . Use the Reset , You can replace all settings with the factory default values.

  • Page 10: Troubleshooting

    LCD ZOOM MICROSCOPE 5.7.5. Display Mode Display Mode V-Frequency Pixel Rate Resolution H Frequency Standard Type Remark (KHz) (MHz) 720x400 31.46 28.32 VESA Standard 31.46 25.17 Industry Standard 640x480 37.86 31.50 VESA Standard 37.50 31.50 VESA Standard 37.88 40.00 VESA Guidelines 800x600 48.08 50.00...
  • Page 11 LCD ZOOM MICROSCOPE Select appropriate “color temperature”, use” automatic color Image is too bright or dark adjustment” or adjust” RGB” manually; please refer to “screen menu system”. Jamming lines appear while Use ”automatic adjustment” function or adjust “phase” and closing Windows “clock”...
  • Page 12 LCD ZOOM MICROSCOPE and add repairing work for serviceman; In case of replacing accessory, confirm with serviceman the new accessory is the one specified by manufacturer or its function is equal to the old one; improper use of accessory may cause fire, electric shock or damage to the monitor; Mount the monitor on the wall or ceiling with the installing method recommended by manufacturer;...
