Summary of Contents for Tivizen Pico
-

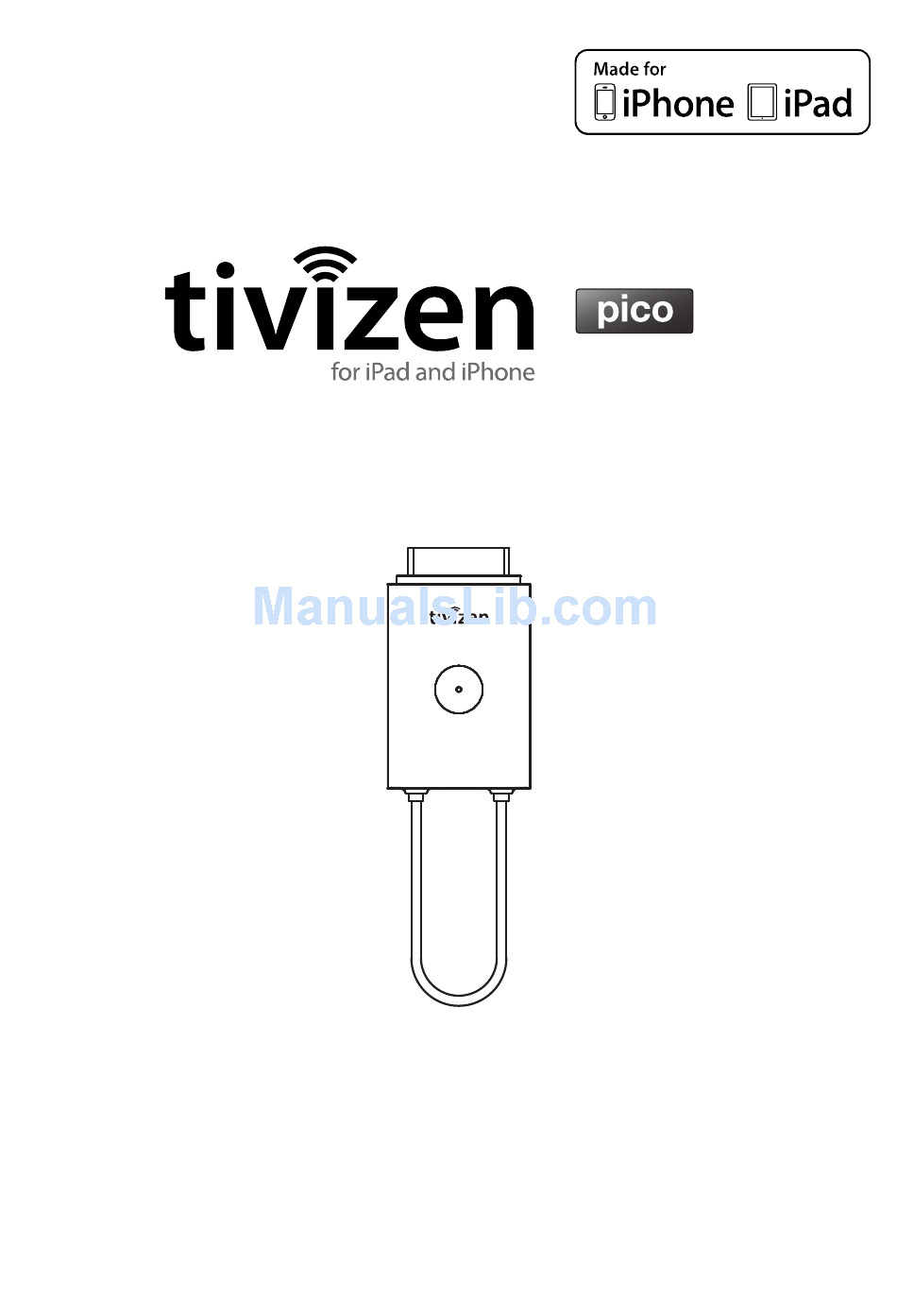

Page 1: User Manual
User Manual Thank you for purchasing tivizen! This user manual provides the use instructions of tivizen and safety instructions as well as the warranty card. ROA-00111O... -
Page 2: System Requirements
Sometimes the battery of the product will be discharged, even when you purchased the product newly. The battery will also discharge itself, if you do not use the product for a certain period of time. Please make sure that the product has enough remaining battery power when you plug the product to work. -
Page 3: Product Features
Watching Live TV Program The accessory is a mobile TV receiver that enables you to watch Live TV program on your iPad. To enjoy Live TV, you need to install the app (tivizen DVB-T Dongle) on your iPad. Providing Program Guide (EPG) Info... -
Page 4: What's Included
What's Included The product package contains the following contents. Unpack the product package and check if the main unit and accessories are all included. Main Unit Charging Cable User Manual / Warranty Product at a Glance ① 30-pin Connector Connect it to the dock connector of your iPad. - Page 5 Step1) Recharging the Accessory For the first time use after purchasing the product, the battery may not be sufficient. Make sure to fully recharge the battery before use. ① Use the provided charging cable to connect between USB micro AB port of the accessory and USB port of the PC.
-
Page 6: Step2) Installing The App
TV, remove the accessory from iPad and insert it back again. Step2) Installing the App ① From App Store, search for “tivizen DVB-T Dongle” and download the app from Valups Corporation to your iPad. ② When you have completed the installation, you will see an icon to the app on your iPad as shown. -
Page 7: Step4) Watching Tv
* The next time you run the app, the above step will be skipped. * When you move to other city or region, you may have to scan channels again since each city or region may use different frequencies for the same channels. ④... -
Page 8: Troubleshooting
③ Tap [ i ] to open the program description. ④ If you tap TV play screen, TV play screen will be displayed in full screen mode. Tap on TV play screen in full screen mode, and then return to the TV play screen with channel list. - Page 9 Q1) When I running the app, a message of “Cannot Find Accessory” is displayed. This happens if the accessory is not connected properly to iPad, or if you do nothing for more than 5 minutes (1 minute if the battery is insufficient) with the accessory connected to iPad.
-
Page 10: Product Specifications
You can check the recording file in . You can play or delete a recording file from the list. ① If you run the app without connecting the tivizen accessory to iPad, you will see a message of "Cannot Find Accessory" on the screen. - Page 11 (for recharging the battery) Integrated Lithium-polymer Battery Battery (3.7V 250mAh) Input Voltage DC 5V (supplied using the charging cable) Less than 340mW In operation Power Consumption Less than 1mW Power Off Time to complete Approx. 120 min. recharging Operation 0-40 degrees in Celsius Temperature 30x50.6x12mm(WxDxH) Dimension...
-
Page 12: Safety Instructions
Safety Instructions The safety instructions are provided for your safety to prevent a possible physical damage from an accident and damage to the product. Please read them through carefully before starting the product, and keep it in a safe place for later use. - Page 13 - Otherwise, it may cause electric shock or fire. Do not use the product in a restricted area such as in the hospital or on the airplane. - Otherwise, it may affect the electric devices of the hospital or airplane. Do not use the product while walking or driving a vehicle.
- Page 14 - Do not apply force to the antenna. Otherwise, the antenna may get broken or loose, causing to be damaged. - Do not touch the antenna by hand, and do not get it in contact with your body. An extended use of the product may generate excessive heat, causing to deteriorate the performance.
-
Page 15: Product Disposal
Product Disposal You should replace the tivizen battery only with a battery pack designed for tivizen. Caution: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to their instructions. Do not Short circuit, disassemble or expose the battery to fire or water. -
Page 17: Warranty
(If this is not available, contact the nearest customer center.) Product Name tivizen Dongle Model Name iEU-100 Serial No. Purchase Date... - Page 18 You can get free-of-charge service repair if you encounter a problem in normal use conditions within the warranty period. ■ Chargeable If the warranty period expires, or if the problem is considered chargeable even within the warranty period. 1. Mistake by the customer If the customer dismantled or modified the product at will, or if ...
