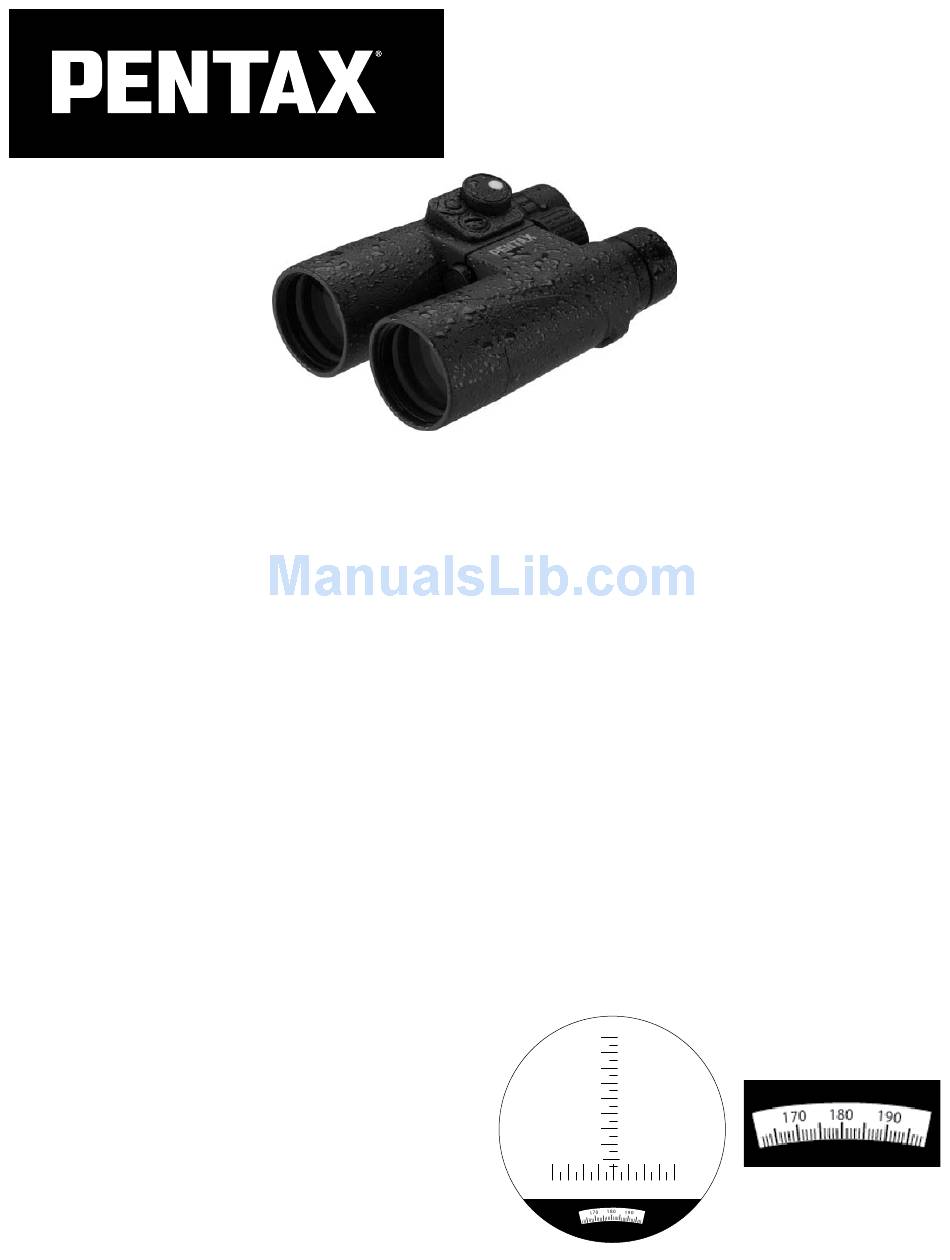

Pentax MARINE 7x50 Owner's Manual

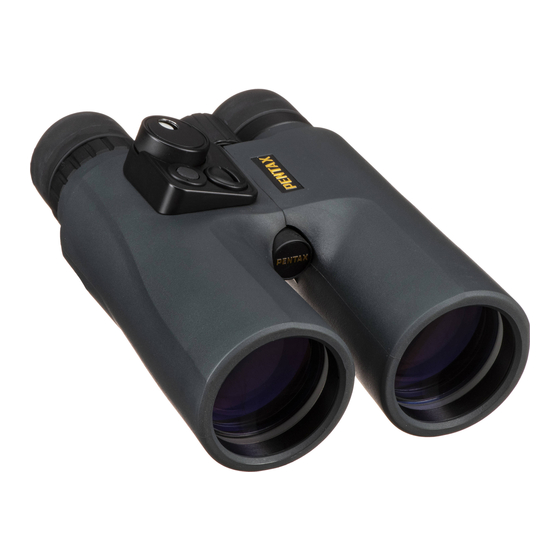

The PENTAX Marine roof prism binocular is de-
signed particularly for the boating enthusiast, but
is also ideal for any demanding environment or ap-
plication where accuracy and durability is required.
Featuring a liquid-filled compass built in to the
viewing optics, compass "swing" stops immediately
due to an advanced dampening design. Bearings are
defined in easy-to-read precise 1-degree increments,
ideal for navigation and locating objects accurately.
A range-finding scale allows the user to estimate
range based on objects of known size. The PENTAX
Marine binocular is fully waterproof, fogproof, and
shock-protected with sure-grip rubber armoring and
twist-out eyecups for easy use. PENTAX Optics are
fully multi-coated for excellent light transmission
and clarity. The PENTAX Marine binocular comes
complete with a rugged nylon case and neck strap.
Built to last, the PENTAX Marine binocular features
our lifetime Worry-Free Warranty.

SPECIFICATIONS:

Lens Construction
Lens Coating
Magnification
Objective Lens Diameter
Prism Type / Coating
Eye Relief
Real Field of View
Field of View @ 1000 yds.
Field of View @ 1000 m
Exit Pupil Diameter
Relative Brightness
Diopter Adjustment Range
Interpupilary Adj. Range
Focus Range
7 elements / 5 groups
Fully multi-coated
7X
50mm
BaK4 – silver deposited
17.6mm
6.6 degrees
348 ft.
116m
6.8mm
51
+/-3
56mm-73mm
3.3 feet – infinity (3m –infinity)
MARINE 7x50
Binocular
Owner's Manual
Eyecup
Waterproof
Dimensions
Weight

How to Use:

1. Adjust interpupilary distance until a single image
circle is formed.
2. Acquire a test subject and sharply focus the left
eye using the center focusing knob.
3. Looking through the right eyepiece turn the di-
opter to sharply focus on the same subject.
Each user may have to re-adjust the binocular to suit
their particular vision correction.
Using The Compass:
The built-in precision compass features extremely
fast dampening, so there is almost no "swing" and
it is corrected for latitude (dip). The compass scale is
defined in 1 degree increments and is aligned with
the vertical range finding scale. When using the
compass, always keep in mind the local variation
between magnetic and true North.
80
60
40
20
0 20 60
Helicoid type
Nitrogen-filled, 1.5m depth
7" H x 5.4"
34.4 oz (976 g)
80
