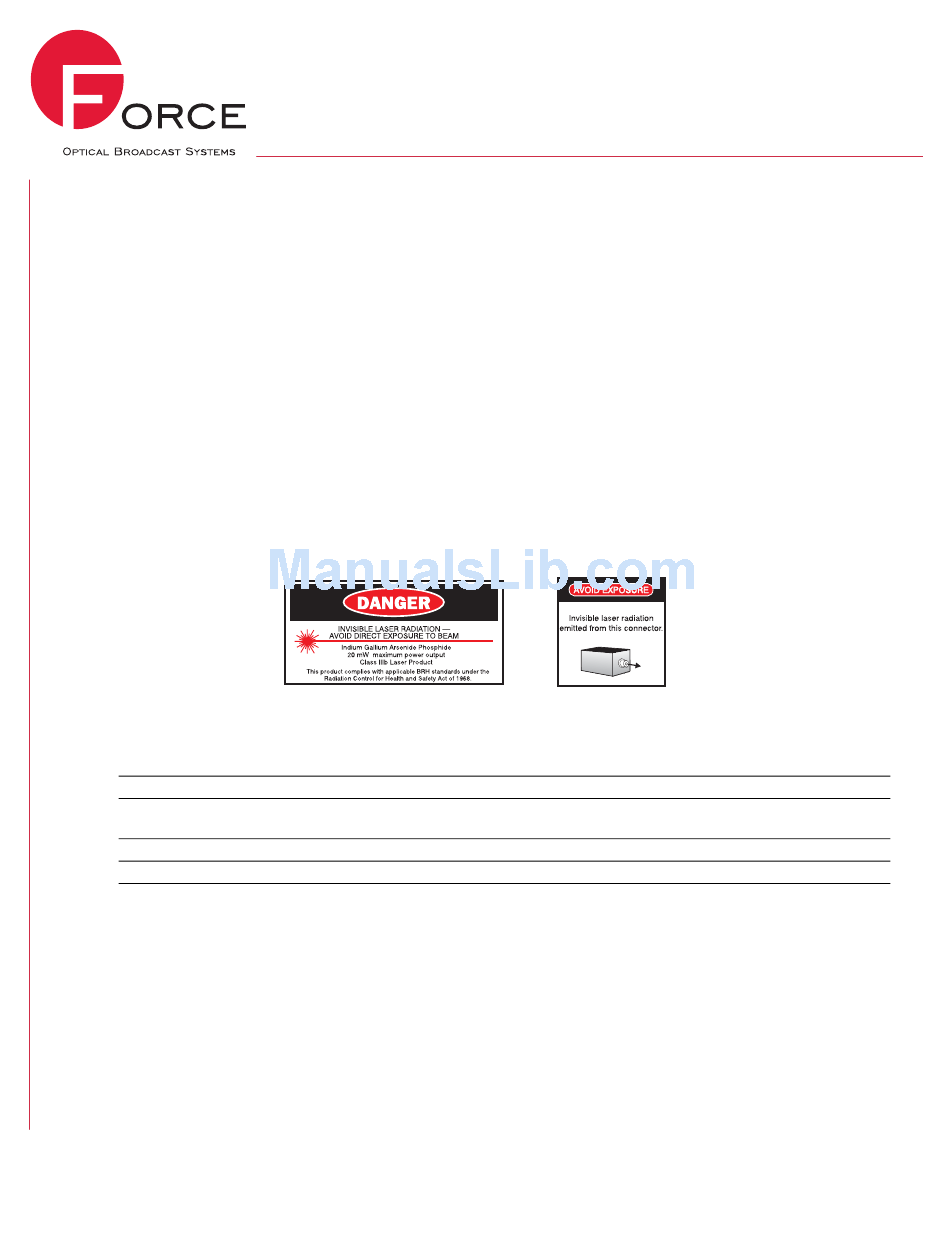

Warning
The optical emissions from the chassis and connected optical fiber are laser-based and may present eye haz-
ards. Follow all safety precautions
Technical Support
If you encounter any kind of problem after reading this manual, contact your local distributor or a Force, Inc.
Applications Engineer. To reach technical support:
On the Web:
By Phone (Monday through Friday 8:00 am to 5:00 pm EST):
By Fax:
By Email:
825 Park Street, Christiansburg, VA 24073 • USA (800) 732-5252• TEL (540) 382-0462 • FAX (540) 381-0392 • csr-sales@forceinc.com • www.forceinc.com
© 2005 by Force, Inc. Force reserves the right to make changes to the product described in this document in the interest of product improvement.
Model 2804: Professional
Distribution Solution (PDS) 110
Channel Transmitter
Installation Guide and User Manual
IOM2804
Revision 5.2, November 2005
http://www.forceinc.com
USA (800) 732-5252
TEL (540) 382-0462
(540) 381-0392
sales@forceinc.com
Advertisement
Summary of Contents for Force 2804
- Page 1 825 Park Street, Christiansburg, VA 24073 • USA (800) 732-5252• TEL (540) 382-0462 • FAX (540) 381-0392 • csr-sales@forceinc.com • www.forceinc.com © 2005 by Force, Inc. Force reserves the right to make changes to the product described in this document in the interest of product improvement.
- Page 2 Model 2804 Professional Distribution Solution (PDS) 110 Channel Transmitter User Manual Contents 3.5 Cleaning17 3.5.1 Optical Connector Cleaning Equipment17 3.5.2 Directions for Optical Connector Cleaning18 Prefaceii 3.5.3 Connector Handling18 3.6 Troubleshooting18 Section 1 Product Technical Bulletin1 3.7 Problems and Comments19 1.1 Product Overview1...
-
Page 3: Product Specifications
Model 2804 Professional Distribution Solution (PDS) 110 Channel Transmitter User Manual Product Specifications Optical and Video Characteristics: @ 25 °C, SM Fiber (Note 1) Min. Typ. Max. Units Notes Channel Loading Bandwidth Operating Wavelength 1290 1310 1330 Optical Output Power (P/N ends in /06) - Page 4 Specification Notes 1) The Model 2804 has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 5 4) Be sure to compute your fiber bandwidth (end-to-end) as well as attenuation. The Model 2804 incorporates an optical isolator in the laser package that reduces the effect of optical backreflections on the laser performance. However, all analog lasers are affected by optical backreflec- tions.
- Page 6 Model 2804 Professional Distribution Solution (PDS) 110 Channel Transmitter User Manual 5) Figure Figure 3 presents a tremendous amount of performance data for the 2804 link. The horizontal axis is the amount of optical light that reaches the receiver. (It is not the loss between the transmitter and receiver.) The vertical axis shows the carrier-to-noise ratio at a given optical input level.
- Page 7 Figure 5 Transmitter Level/Channel vs. Log (Number of Channels) Figure Figure 6 shows the response of the Model 2804 transmitter’s integral RF power meter. This meter is accessed via pin 5 of the 9-pin D-sub connector on the rear of the transmitter.
- Page 8 Model 2804 Professional Distribution Solution (PDS) 110 Channel Transmitter User Manual Figure 6 Response of Model 2804 RF Power Meter 7) Each transmitter has a label such as the one shown in Figure 7 that gives the RF input levels for the trans- mitter.
- Page 9 Model 2804 Professional Distribution Solution (PDS) 110 Channel Transmitter User Manual 9) Fuse Rating is 1.25A, Slow-Blow. CAUTION Risk of fire. Only use fuses with same type and rating as marked. 10) Most parameters are relatively unaffected by varying temperature. A moving air environment is recom- mended at ambient temperatures above +35°C.
-
Page 10: Installation And Operation
Section , page 4. WARNING Potentially hazardous uninsulated voltages exist beneath the top panel. Items Provided The following is a list of items provided with each Model 2804 PDS Fiber Optic Video Transmitter: Qty. Mfr. Description Force, Inc. - Page 11 Model 2804 Professional Distribution Solution (PDS) 110 Channel Transmitter User Manual Qty. Mfr. Description 9/125 µm Single-mode Fiber 1 per 2807 Force, Inc. PS200 Wall-mount Power Supply (Model 2807R only) 1 per 2808 Three-wire ground AC power cable. Front Panel Physical Description A.
- Page 12 A dust cover should be placed over the connector when not in F. Unit Serial Number: The unit serial number is a code that identifies the use. product’s warranty start date. See page iii for Force’s standard war- ranty. WARNING OPTICAL LASER RADIATION IS PRESENT AT THE TRANSMIT- TER’S CONNECTOR WHEN THE UNIT IS TURNED ON.
- Page 13 Ideally, the RF level should be checked with an instrument such as a spectrum analyzer to verify that the levels are appropriate. If instrumentation is not available to actually measure the RF levels, Force recommends add- ing 40 dB of attenuation at the transmitter input; 40 dB of attenuation will adequately protect the unit from the highest RF levels that might be seen in a typical CATV installation.
- Page 14 For Model 2807: The power supply must be from +12 to +16 Volts DC. It is critical that the supply voltage never drops below +12 Volts. If the voltage drops below +12 Volts, the link may not operate. Force, Inc.
- Page 15 3) The RF input spectrum may not be flat. It is possible to have a green RF Level LED even if the input spec- trum has a large amount of tilt. All Force CATV products are designed to operate with a flat input spec- trum.
- Page 16 Model 2804 Professional Distribution Solution (PDS) 110 Channel Transmitter User Manual Problem Check Comments If there is optical power out of the Tx, verify that all optical connections are Low optical power at the Rx Check optical output power at the Tx.
-
Page 17: Warranty And Return Policy
If during the warranty period, Force is unable to repair the product to the original warranted state within a rea- sonable time, or if subcomponents of the unit have been obsoleted or discontinued, then Force has the option to provide an equivalent unit. - Page 18 Active Out of Warranty Force will accept return of product under this category as long as the sale of the product occurred less than five (5) years prior to the return request. The product serial number should aid in determining the age in cases where information is not in the data base.
- Page 19 The CSM is responsible for providing any necessary instructions to the customer to ensure proper handling of the retuned material. Upon receipt of the product, all Force personnel are to process the return as per SP002,”Handling of Customer Returns”. Contact the factory at USA (800) 732-5252 or TEL (540) 382- 0462 to request an RMA.
