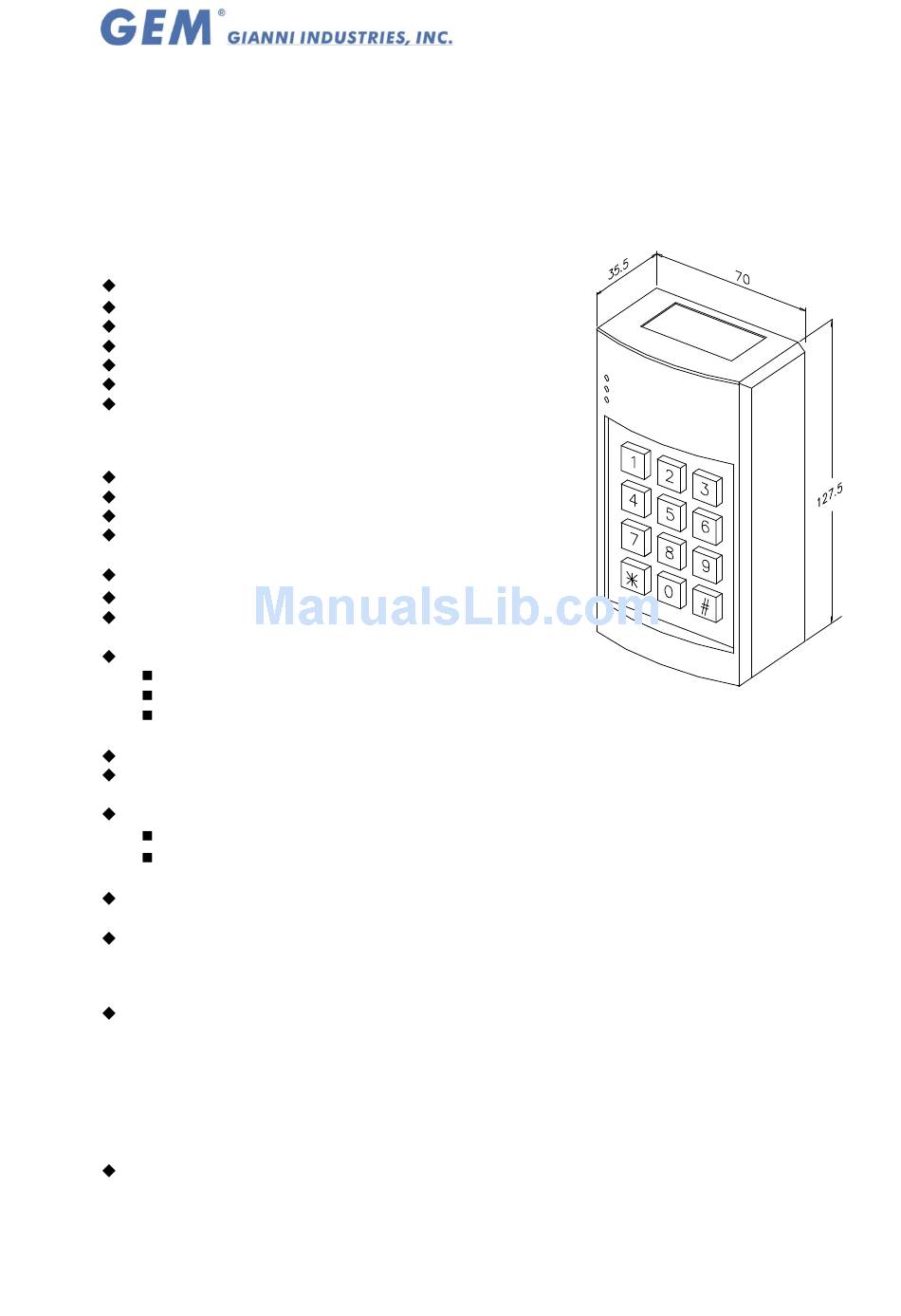

Gianni Industries DG-5 Operation User's Manual

DG-5 The Digital Keyless Entry System

1. Features:

4 digit codes （5 digit codes available by special order）
Tamper Switch Included
Door Reed Switch Input for Anti-Trailing
10 user PINs
Fully Programmable via keypad and master code
Non-Volatile Memory
Invalid PIN Lock-out

2. Specifications:

Operating Voltage: 9~14 Vdc
Current Draw: Average 20mA, Peak 70mA @ 12Vdc
Input: One request-to-exit, and time out reed switch
Relays: N.O./N.C./Com. Output (free voltage contact),
3A@ 125Vac or 30Vdc
Case Material: ABS （UL94V0）
Operating Temperature:-20~+70℃
Ambient Humidity:0~95% relative humidity non-
condensing
Visual Signals:
Green: Power on
Red: Relay activated
Yellow: Program Mode、Lock-out
Factory Master Code: 1234
Invalid PIN Lockout: System will shut down 60 seconds while 6 times of incorrectly
password attempted.
Relay Activation Time: （＊20）
Pulse mode：1~99 seconds（01~99）
Latching mode（00）
EPROM: Non-volatile memory, System will retain all programs and codes after a total
loss of power.
User PINs: （＊01~＊10）It is possible to program 10 different user PIN codes.

3. Program Instruction:

Enter Program Mode:
1. Enter the master code twice (Factory master is 「1234」)
→2 beeps and the Yellow LED will light up.
→ you are now in the "programming mode".
2. Note: After 60 seconds if you have not entered any codes or data, the system will
automatically exit from the programming mode. After 6 wrong attempts at the master
code the lockout facility will operate.
Exiting from the program mode:
1. Press「#」 to exit from the programming mode.
