Elgato EyeTV Netstream 4Sat Quick Start Manual

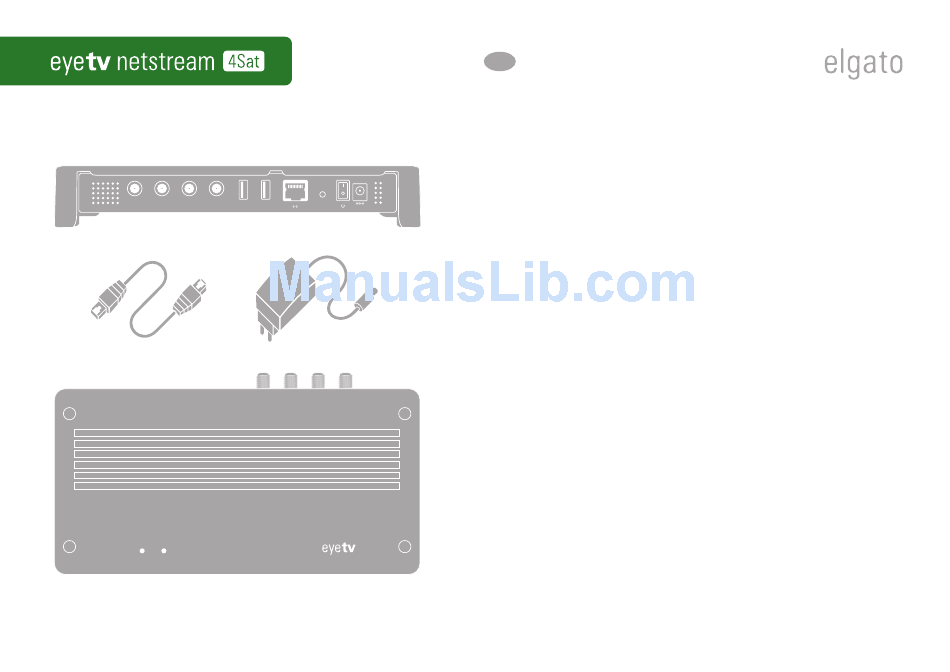

This is EyeTV Netstream 4Sat
V low V high H low H high
Sat 1 Sat 2 Sat 3 Sat 4
1 2 3 4
10
12 13
help.elgato.com

Quick Start Guide

USB USB Reset DC 12V 3A
5 5 6 7 8 9
11
EN
Setting up EyeTV Netstream 4Sat
1.
(1) (2) (3) (4) Satellite inputs
Select a suitable location for your EyeTV Netstream 4Sat where there is access
(5) USB 2.0 ports
to your satellite equipment and your local network.
(for maintenance)
2.
Connect the satellite feed:
(6) Network socket
• Single LNB: Connect the LNB output to input (1).
(7) Reset button
• Twin or Dual LNB: Connect the LNB outputs to inputs (1) and (2).
(8) Power button
• Quad LNB or DiSEqC-compatible multiswitch: Connect up to four outputs
(9) Socket for supplied
with inputs
power supply
(1) (2) (3) (4). Always connect them in succession starting with input (1).
• Connect a Quattro LNB to inputs (1) (2) (3) (4) according to the polarization
planes or frequency ranges.
• Always feed the signal from a unicable system into input (1).
3.
Plug the supplied Ethernet cable (10) into the network socket (6) and connect the
(10) Ethernet cable
EyeTV Netstream 4Sat to your router or switch.
(11) Power supply (DC 12V 3A)
4.
Connect the supplied power supply (11) to the EyeTV Netstream 4Sat power-
supply socket (9) and plug it into a mains socket.
5.
Switch on your EyeTV Netstream 4Sat by pressing the power button (8).
On your mobile device:
6.
Download the free EyeTV Netstream app by Elgato Systems from the App Store
for iOS, or Google Play or the Amazon Appstore for Android.
(12) Status LED
7.
Start the EyeTV Netstream app and follow the on-screen instructions.
The LED glows yellow when
starting up. It glows green when
Note: EyeTV Netstream 4Sat has four integrated tuners. Signals present on inputs
EyeTV Netstream 4Sat is ready
(1) (2) (3) (4) are allocated to these. All tuners are enabled by default. You can use
the app to disable tuners where no signal is present (Settings > Scan Channels >
(13) Tuner-utilization LED Tuner/LNB Setup).
Indicates the number of active
tuners by flashing one to four
Install Mac & PC software
times in quick succession
followed by a short pause To also enjoy live TV on a Mac or PC using your EyeTV Netstream 4Sat you need
EyeTV 3 or TerraTec Home Cinema.
