IC-15 INTERCOM

Installation/Operation Manual

OLK AVIONICS

AVIONIC SERVICE ALEKSANDROWICE AIRPORT

Cieszynska 325a street

POLAND

tel/fax. +48 33 496 48 77

e-mail: biuro@olk.com.pl

http: www.olk.com.pl

Table of Contents

Need help?

Do you have a question about the IC-15 and is the answer not in the manual?

Questions and answers

Summary of Contents for Olk Avionics IC-15

Page 1 IC-15 INTERCOM Installation/Operation Manual OLK AVIONICS AVIONIC SERVICE ALEKSANDROWICE AIRPORT Cieszynska 325a street POLAND tel/fax. +48 33 496 48 77 e-mail: biuro@olk.com.pl http: www.olk.com.pl...
Page 2: Table Of Contents
SECTION 1 - OPERATION INFORMATION Table of contents: OPERATION INFORMATION ................. 2 Destination /Characteristic ................2 Front Panel: ..................... 3 Adjustment Procedure: ................... 3 Pilot Isolate Switch ALL/ISOL: ..............5 PTT Transmission System: ................5 Phone Calls: ....................6 SERVICING INFORMATION ................7 Installation: .....................
Page 3: Operation Information

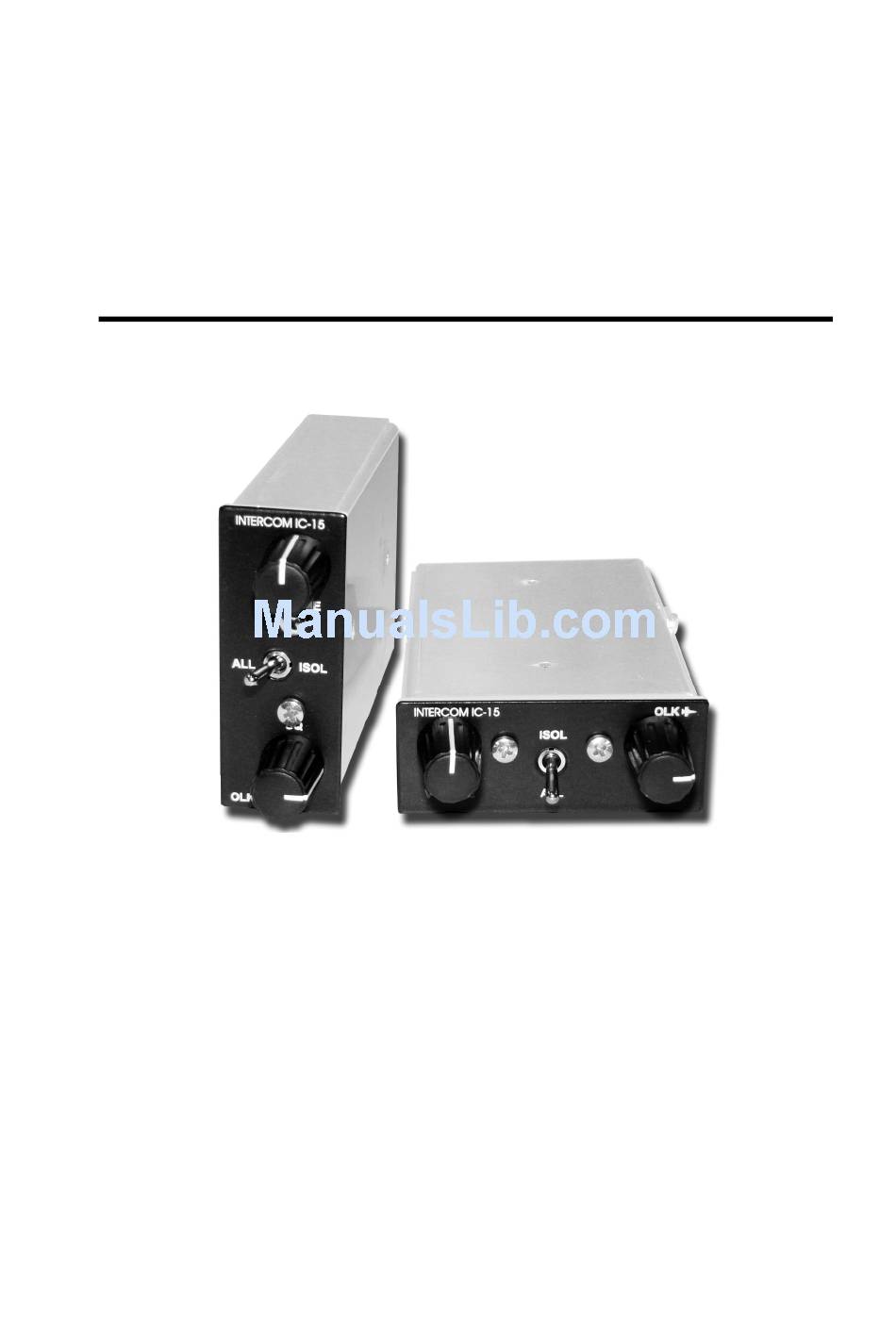

SECTION 1 - OPERATION INFORMATION OPERATION INFORMATION Destination /Characteristic Intercom IC-15 is planned for installation in light-, and ultralight aircraft, with 2 or 4 -person on-board: pilot and co-pilot, or pilot and passenger or pilot and 3 passengers Unit design facilitates installation in vertical or horizontal position, in separate panel or in aircraft instrument panel.
Page 4: Front Panel
SECTION 1 - OPERATION INFORMATION Front Panel: Adjustment Procedure: For correct adjustment, the given below sequence of proceeding must be observed. - initial settings: set the VOLUME control knob to the mid of range. Set the SQ knob of VOX system activation threshold adjustment to maximum available clockwise position.
Page 5 SECTION 1 - OPERATION INFORMATION are equipped with extra volume control. In such case: in first instance set the volume control to mid of range , than adjust the overall intercom volume, after which each crew member can adjust the volume individually at his own headset. With intercom overall volume set to maximum, certain headset models may retune the intercom microphone channel.
Page 6: Pilot Isolate Switch All/Isol
SECTION 1 - OPERATION INFORMATION All adjustments are to be done once, and corrected slightly if necessary. There is no need for often corrections e.g. before each flight. Pilot Isolate Switch ALL/ISOL: Function ISOL is for isolation of pilot from co-pilot (passenger) e.g. for radio transmission.
Page 7: Phone Calls
Intercom IC-15 renders possible connection of mobile phones: at input No 1 Nokia 3210; 3310; 3330; 5210; 6510; 8210; 8310; 8850; and compatible with these models, and on input No 2: Nokia 6310 and compatible with this model, also produced by other manufacturer.
Page 8: Servicing Information
SECTION 2 - SERVICING INFORMATION SERVICING INFORMATION Installation: When selecting the intercom location, following aspects are to be taken into account: service accessibility, available space in, or under the accessory-, or instrument panel, control stick, or –wheel travel included! Intercom must be installed in a way not interfering with any other object, in particular with movable details of e.g.
Page 9 SECTION 2 - SERVICING INFORMATION Installation in the aircraft The mounting washers are used to support the intercom block so, that the block rests with all area of its front face against mounting panel. If the aircraft mounting panel is thick enough, to allow the intercom front face to rest on it, there is no need for spacing washers.
Page 10 SECTION 2 - SERVICING INFORMATION Electric wiring: Intercom switch Włącznik intercomu OPTION OPCJA 3A fuse Bezpiecznik 3 A Sieć pokładowa samolotu 11 - 29 V aircraft board system 11-29V aircraft earth Masa samolotu PILOT CO-PILOT Phone call switch PHONE PHONE Przełacznik rozm.
Page 11 SECTION 2 - SERVICING INFORMATION Electric wiring for four passengers:...
Page 12: Transceiver
SECTION 2 - SERVICING INFORMATION Pins identification Identification of pins in DB 25 connector Supply + 12 - 33 VDC Supply earth + Mic of mobile phone NOKIA 6310 & compatible + Mic of mobile phone NOKIA 3310 & compatible PTT transmission button pilot 1 PTT transmission button pilot 2 (co-pilot) PTT transceiver...
Page 13 SECTION 2 - SERVICING INFORMATION Configuration: In basic version, complete Intercom consists of: Intercom block DB-25D connector + case Intercom panel 2 knobs 2 spacing washers Extended version consists of basic configuration + ordered optional accessories.
Page 14: Options
SECTION 3 - OPTIONS OPTIONS Optional accessories: Producer is offering the following optional accessories for intercom: complete wiring partial cabling Ready made cabling, composed of components case for headset jacks panel for headset jacks headset jacks Complete wiring Complete wiring facilitates easy installation and connection of intercom.
Page 15 SECTION 3 - OPTIONS connection to power source, and to transceiver. All wires are distinctly marked with colours , in accordance with the following list. Number of wire corresponds to a number in the DB-25D intercom connector. wire No Specification of wire line in transceiver Supply + 11 - 30 V Black Earth...
Page 16 SECTION 3 - OPTIONS Partial cabling This is the intercom adopted cabling, to which the power supply, the transceiver and the headphone sockets are to be connected. It is best suited to airplane on which the headphone sockets are located close to each other in the nose, or on airplane where the cabling of headphone sockets is provided.
Page 17 SECTION 3 - OPTIONS All wires to be connected are distinctly marked with colour code, to the following specification. The standard length of wiring branches is given in millimeters.
Page 18 The detailed information on available components is to be found in the Web site at: www.olk.com.pl. Installation connecting the IC-15 intercom with the AR 4201 transceiver. In the offer, also installations for different transceiver model are to be found.
Page 19 SECTION 3 - OPTIONS The connector card is a terminal connecting the selected intercom- transceiver wiring with other avionics components. Every wiring is equipped with connector mating with socket in the connector card. The card is to be attached to the selected wiring, while remaining components of avionic system i.e.
Page 20 SECTION 3 - OPTIONS Case for Headset Jacks The presented case allows to install the headset sockets so that the jacks are parallel to cockpit side-board. Particularly helpful in aircraft, where the sockets are installed close to seats, and the adjustable seat is passing the headset jacks.
Page 21: Headset Sockets
SECTION 3 - OPTIONS This is a decorative stopper with "PILOT" on one side, and "CO- PILOT" on opposite. Prevents erroneous connection of pilot and co- pilot headsets. Headset Sockets Sockets are necessary for connection of pilot, and co-pilot headsets.
