SDIO WLAN Card
User's Manual
ver. 1.30

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SDIO WLAN Card and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Spectec SDIO WLAN Card

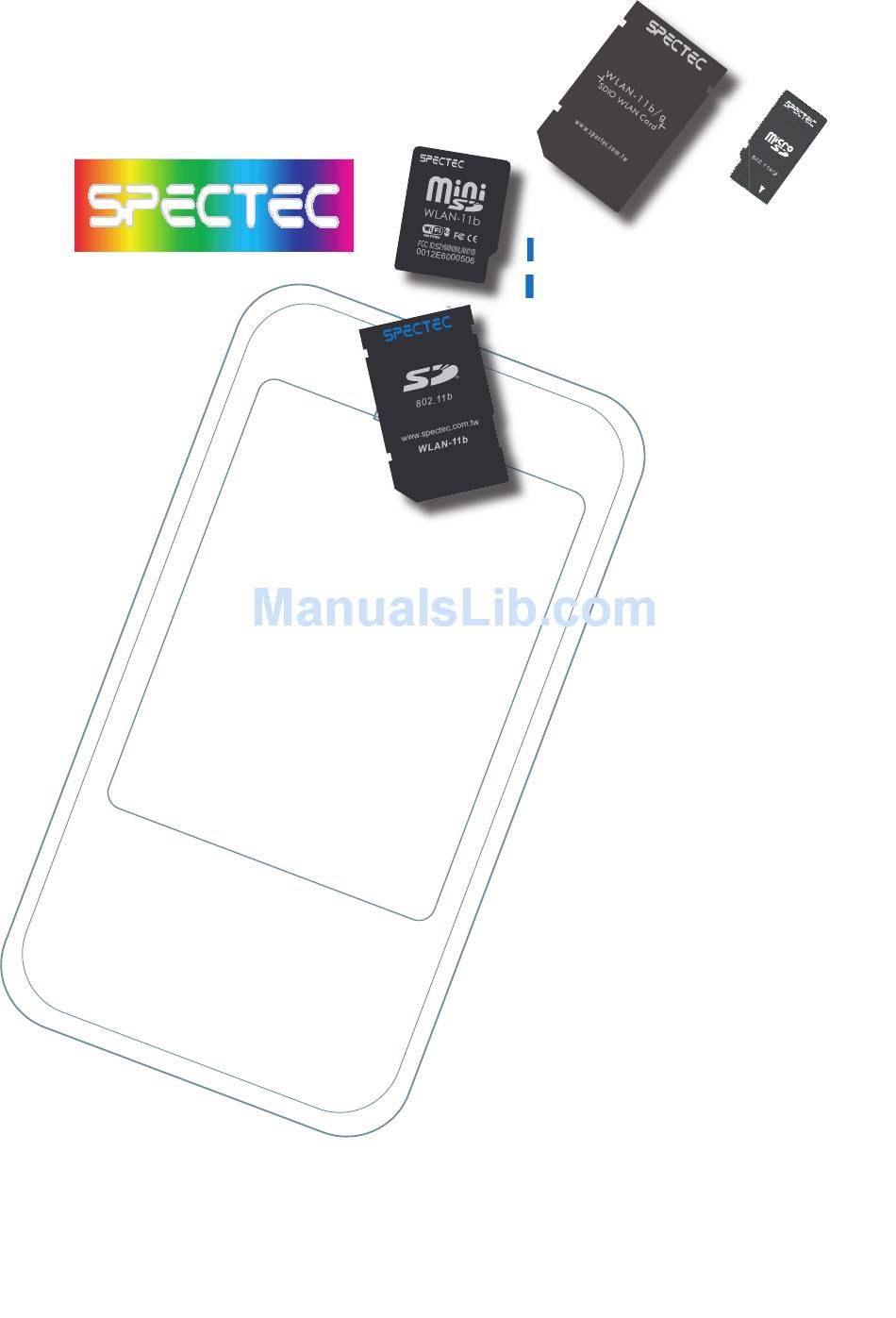

  • Page 1 Wireless/Internet Wireless/Internet SDIO WLAN card SDIO WLAN card SDIO WLAN Card User’s Manual ver. 1.30...
  • Page 2: Table Of Contents

    System Requirements & Installation Description...........P.1 Installation Procedure .................P.2~5 Inserting the SDIO WLAN Card into a PDA ..........P.6 How to take a SDIO WLAN card out of a PDA..........P.6 How to check Connect status ................P.7~8 How to Connect Ad-hoc................P.9 How to Remove Settings................P.9 Wireless/Internet Speed Dial ................P.10~11...
  • Page 3 Thank you for choosing SDIO WLAN card, it is the smallest SDIO Wireless/Internet WLAN card available on the market today. It is easy to install and use, and pro- vides unlimited online usage and connectivity wherever you are. 802.11b www.spectec.com.tw...
  • Page 4: Installation Procedure

    Installation Procedure < First, connect PDA to your computer with a USB wire. < Main menu window will pop-up when you insert the "Spectec SDIO Series" Installation CD by autorun: <click the SDW-820/ SDW-822 item.
  • Page 5 < Choose the desired Language, then click OK. < The Installation menu will automatically appear on the screen. < Click Next...
  • Page 6 < Enter user information, then click Next. < Chose Setup type, then click Next...
  • Page 7 < The driver will be installed automatically. < Click to proceed with installation. Click finish installation. < Click Finish to complete the driver installation process.
  • Page 8: Inserting The Sdio Wlan Card Into A Pda

    * Please do not keep inserting & removing the card, different PDAs needs an interval of 5 to 7 seconds to process. How to take a SDIO WLAN card out of a PDA < When removing the SDIO WLAN < This card is designed to be locked card from a PDA, simply press into the slot.
  • Page 9: How To Check Connect Status

    How to check Connect Status < After install the software, start path as Start\Programs. < After inserting the card into the PDA, click Start. Click Programs on the pull-down menu, then select .(Only built-in 11b card for PCC2003) 802.11b www.spectec.com.tw WLAN-11b to open the WLAN <...
  • Page 10 In “Radio” page of WLAN Utility, you may check S/W Radio Off/on for Enable/ Disable Wi-Fi card, or you can also find a shortcut icon at the lower right hand corner of the screen. < Click , shortcut icon to switch on/off Wi-Fi radio * Note : The WLAN Utility can be only compatibility on PPC 2003(CE4.X) and few windows mobile 5.0(CE5.0) OS...
  • Page 11: How To Connect Ad-Hoc

    How to Connect Ad-hoc 802.11b www.spectec.com.tw WLAN-11b PS: Channe 12 is the channel in America 1. In WLAN Utility, select Ad-Hoc Channel (must be channel1). 2. Click OK to exit WLAN Utility. 3. Remove the card from PDA, then re-insert the card.
  • Page 12: Wireless/Internet Speed Dial

    Wireless/Internet Speed Dial < Click 1. Make quick changes to the wireless card On/Off function. 2. “Open” to go directly to WLAN Utility screen for more information. WLAN Utility has 3 features (Status/Radio/About): *Status - Shows SSID, IP Address, Mac Address, Signal Strength, and Signal Quality information.
  • Page 13 *About -- Shows SPECTEC connections info. < Driver: Current version of driver you installed. < Utility: Current version of utility you installed. < SPECTEC Web Site: http//:www.spectec.com.tw 802.11b < Technical Support: www.spectec.com.tw support@spectec.com.tw WLAN-11b...
  • Page 14: How To Select Networks Manually

    To Select Networks Manually After inserting SDIO WLAN card into PDA, if the icon does not appear on the upper window, the network may be connected manually. 802.11b www.spectec.com.tw WLAN-11b < From Start Menu/Settings/ Connections/Network Cards, select icon for a pull-down menu.
  • Page 15: Cd Info

    CD info < Click Browse Contents button to review all the files on CD < Review all the files list on CD...
  • Page 16: How To Install Software With Cab File

    How to Install Software with CAB File 1. Driver and Utility (cab file) Take out the WLAN card, click “reset”, connect computer through Microsoft Active Sync, download Driver cab file 802.11b copy to any list of PDA, double-click it to finish install. www.spectec.com.tw WLAN-11b 2.
  • Page 17: Ap Compatibility List

    AP Compatibility List Test condition and test environment DUT: WLAN-11b Vendor Accton ASUS Atheros BENQ BELKIN Buffalo Model IG 2004W WL-500b WL-530g AR5002AP AWL700 F5D7230 AG54 WLA-L11G-L Rate Auto 1.55 2.62 1.71 2.88 1.49 2.43 1.61 2.84 1.67 2.39 1.59 2.43 1.61 2.82...
  • Page 18: Frequently Ask Question

    Frequently Ask Question Q: After installing the CD-ROM, how many files will be installed onto the device? A: After installation, some dll files are installed in My Device\Windows, and the WLAN Utility in Programs. However, these files are quite small, and total about 300 KB.
  • Page 19 Warranty hank you for your purchase of our product. For Spectec’s quality service, please read the following for your rights. 1. Warranty period is 1 year, starting from the date of original purchase. Please provide original purchase receipt with purchase date when inquiring for service.
  • Page 20 ENTIRE AGREEMENT: This License Agreement sets forth the entire understanding and agreement between you and SPECTEC and may be amended only in a writing signed by both parties. Spectec Computer Co., Ltd. 6F No. 92, Nanking E. Rd. Sec. 5, Taipei, Taiwan, R.O.C.

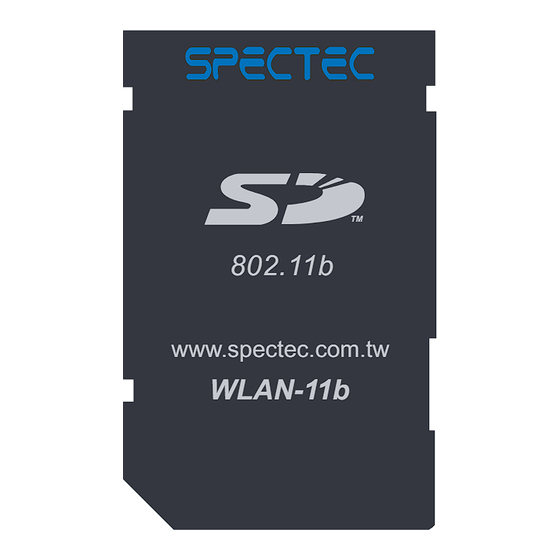

  • Page 21 SDW-820 SDIO WLAN-11b Card 802.11b www.spectec.com.tw WLAN-11b Specifications Interface: Support SDIO 1.0 Frequency: Fully integrated, 2.4 GHz band direct conversion transceiver Security: High performance engine for WEP, WPA, TKIP and AES support Radio Type: IEEE 802.11b support DSSS system Operating Channels: 1~14 channels TX Data Rate: 1, 2, 5.5, 11 Mbps Data Rate Low Voltage: <...
  • Page 22 SDW-821 SDIO WLAN-11b/g Card Specifications Network Standard Support: IEEE 802.11b/g Network Architectures: Infrastructure, Ad-Hoc Data Rates: < 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps < 802.11b: 1, 2, 5.5, 11 Mbps Modulation Techniques: BPSK, QPSK, 16QAM, 64QAM, CCK, OFDM, DSSS Receiver Sensitivity: <...
  • Page 23 SDW-822 SDIO WLAN-11b Card WLAN-11b FCC ID:S2YMINIWLAN11B 0012E6000506 Specifications Interface: Support SDIO 1.0 Frequency: Fully integrated, 2.4 GHz band direct conversion transceiver Security: High performance engine for WEP, WPA, TKIP and AES support Radio Type: IEEE 802.11b support DSSS system Operating Channels: 1~14 channels TX Data Rate: 1, 2, 5.5, 11 Mbps Data Rate Power consumption:...
  • Page 24 SDW-823 SDIO WLAN-11b/g Card Specifications Network Standard Support: IEEE 802.11b/g Network Architectures: Infrastructure, Ad-Hoc Data Rates: < 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps < 802.11b: 1, 2, 5.5, 11 Mbps Modulation Techniques: BPSK, QPSK, 16QAM, 64QAM, CCK, OFDM, DSSS Receiver Sensitivity: <...
  • Page 25 NOTE: The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. To comply with the FCC RF exposure compliance requirements, this device and its antenna must not to be co-located or operating to conjunction with any other antenna or transmitter. FCC INFORMATION The Federal Communication Commission Radio Frequency Interference Statement includes the following paragraph:...
  • Page 26 Thank You for Purchasing Spectec’s Products...
