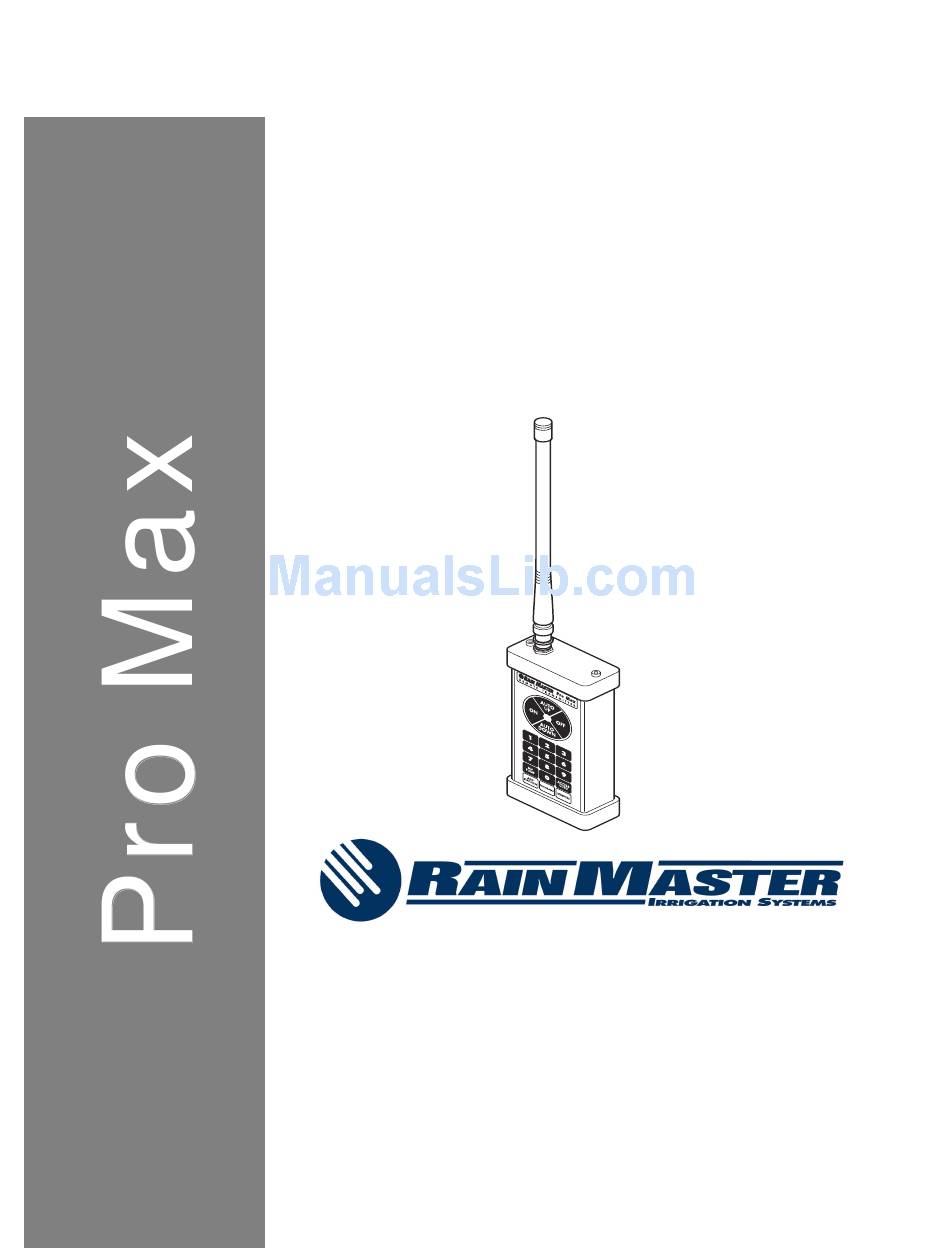

Page 1: User Manual
FM Remote Control System User Manual Models: PROMAX PROMAX-UA March 2001 Document No. 500055 Rev. C... -
Page 2: Table Of Contents
2.3.1 Evolution DX2 Keystroke Operations ............12 3.0 Model PROMAX-UA Remote Control System (Universal) ......... 13 3.1 Using the Promax-UA Universal Adapter with a Non Rain Master Controller..14 3.2 Installing the PROMAX-UA System..............14 3.3 Temporary Connector Installation ................ 16 3.4 Disconnecting the PROMAX-UA from a Non-Rain Master Controller .... - Page 3 Figure 6: Complete PROMAX-UA System ..............13 Figure 7: Relay (such as Rain Master RLY1) ..............15 Figure 8: PROMAX-UA Installation to a Non-Rain Master Controller ......17 Figure 9: Non-Rain Master Controller 24 Volts AC............18 Figure 10: PROMAX-UA Permanent Connection ............19 Figure 11: Battery Replacement..................
-
Page 4: Figure 1: Pro Max Fm Remote Control System
Pro Max Congratulations… you have chosen one of the ultimate weapons to use in keeping maintenance costs down and satisfaction high – the Rain Master Pro Max Remote Control System. Rain Master engineers take great pride in all their work, but they are especially proud of Pro Max. -
Page 5: Introduction
• Auto-up and auto-down station operation. Flexibility • Can be used with any manufacturers’ 24-volt AC controller (Model PROMAX- UA). • Independent control of the master valve and/or pump. • Single or multi-station capabilities for testing system hydraulics. -
Page 6: Ranges And Method Of Transmission
Intelligence • Detects and provides an audible alert against field wiring short circuits (Model PROMAX-UA). • No more tripped circuit breakers or blown fuses during installation checkout. • Receiver has built-in safety default to automatically turn station OFF after 60 minutes. -
Page 7: Licensing Information
Rain Master Irrigation Systems Pro Max User’s Manual locations, which are indoors, especially basements, or structures, which are concrete and steel. It may be possible to remotely locate an external antenna whenever poor Pro Max receiver locations exist. Call Rain Master Technical support for assistance, telephone (805) 527-4498. -
Page 8: Model Promax Remote Control System (Rain Master Only)
Mexico, D.F. 06700 Model PROMAX Remote Control System (Rain Master Only) The PROMAX Pro Max receiver is designed to connect directly to any Rain Master controller by plugging the 9-pin connector from the Pro Max receiver into the front panel remote control jack found ON Rain Master controllers. -
Page 9: Using The Receiver With A Rain Master Controller
Rain Master Irrigation Systems Pro Max User’s Manual PROMAX Parts List Part No. Ref. Description PM-XMTR Pro Max Remote radio transmitter PM-RCVR Pro Max Remote receiver PM-SER99 36” remote cable 500055 Pro Max User’s manual PM-CASE Pro Max carrying case... -
Page 10: Disconnecting The Receiver From A Rain Master Controller
Rain Master Irrigation Systems Pro Max User’s Manual Upon Receiver Connection Beep Response Description 1 Beep (1/2 sec) Ready Multi-Pro Max receiver mode: • Requires corresponding access code 2 Beeps to enable Pro Max receiver operation. Failed internal diagnostic tests. Contact Rain 3 Beeps Master. -
Page 11: Figure 4: Permanent Mount Pro Max Receiver
Access codes are required whenever one Pro Max transmitter controls multiple Pro Max Pro Max receivers. 2. Part No. PMRKIT • Permanently mounted Pro Max receiver • Antenna PROMAX-ANT • All interconnecting cables and hardware Note: Operation of a permanent mount Pro Max receiver requires usage of the ACCESS CODE feature key. -
Page 12: Figure 5: Pro Max Transmitter (Pm-Xmtr)
Rain Master Irrigation Systems Pro Max User’s Manual Figure 5: Pro Max Transmitter (PM-XMTR) Page 9... -
Page 13: Keystroke Operation
Rain Master Irrigation Systems Pro Max User’s Manual Keystroke Operation The Pro Max keyboard layout is shown in Figure 4. Basic Operation Function Keystrokes Increment to next Station Decrement to next Station Turn On Station 12 Turn Off Station 12 Turn On Master Valve/Pump PUMP Turn Off Master Valve/Pump... - Page 14 Rain Master Irrigation Systems Pro Max User’s Manual Multiple Stations On (Add Stations) Function Keystrokes Turn On Multiple STATIONS STATIONS STATIONS Stations 1, 2, 6, Turn Station 6 OFF (Station 1, 2 remain) Turn All Stations OFF Turn All Stations OFF and Increment the stations selected From Last Station...
-
Page 15: Evolution Dx2 Keystroke Operations
Rain Master Irrigation Systems Pro Max User’s Manual Using Multiple Receivers (Access Code) Function Keystrokes Enable Pro Max Receiver ACCESS #15. Controller now accepts CODE all remote keys. ACCESS Disable Pro Max Receiver CODE Disable All Pro Max ACCESS CODE Receivers ** This function only works with the following Rain Master controllers: RME Sentar, RME Hawk, Evolution DX2 controllers. -
Page 16: Model Promax-Ua Remote Control System (Universal)
Rain Master Irrigation Systems Pro Max User’s Manual Model PROMAX-UA Remote Control System (Universal) The PROMAX-UA Universal Adapter Model offers the capability to connect to virtually any controller, regardless of manufacturer. This system consists of: Figure 6: Complete PROMAX-UA System PROMAX-UA Parts List Part No. -
Page 17: Using The Promax-Ua Universal Adapter With A Non Rain Master Controller
In cases where the controller does not provide the required 24 Volts AC, a step-down transformer is employed to convert standard 117 Volts AC or 220 Volts AC to 24 Volts Using the Promax-UA Universal Adapter with a Non Rain Master Controller The controller serves only two purposes when using the Universal Adapter. -
Page 18: Figure 7: Relay (Such As Rain Master Rly1)
Note: The chart defines the connections for the following cables: RMIS Part Number 32PC (supplied with PROMAX-UA), RMIS Part Number 24PC, 12PC, and RMIS Part Number 32TC. Make sure that any unused station wires on the PC cables are insulated and will not short to any metal object. -
Page 19: Temporary Connector Installation
Rain Master Irrigation Systems Pro Max User’s Manual Step 5 Connect the wire from the PC cables 24 Volts AC to the 24 Volts AC terminal of the controller. Note that the PC cable has only one wire for 24 Volts AC despite the controller having two 24 Volts AC terminals. -
Page 20: Disconnecting The Promax-Ua From A Non-Rain Master Controller
COMMON wire to the controller’s COMMON terminal. Do not connect the PC cables 24 Volts AC wire to the controller. Figure 8: PROMAX-UA Installation to a Non-Rain Master Controller Disconnecting the PROMAX-UA from a Non-Rain Master Controller To disconnect the universal adaptor, use the following procedure:... -
Page 21: Non-Rain Master Controllers Lacking 24 Volts Ac
Figure 9: Non-Rain Master Controller 24 Volts AC Permanent Wire Connections A permanent mount connector can be installed on any controller so that the PROMAX- UA can be easily installed and disconnected without having to deal with wiring connections. Three parts are required (see Figure 9). -
Page 22: Detailed Operation
Refer to section 2.3. 32EX 32PC CMAD Figure 10: PROMAX-UA Permanent Connection Detailed Operation Remote Operation When the remote Pro Max receiver is connected to a Rain Master controller, all running programs are aborted, any stations and/or any master valves or pumps that are ON will be turned OFF. -
Page 23: Stations On And Off
Note: If the last station in a Rain Master controller is reached and Auto-Up is pressed, wrap-around occurs (station 1 turns on). In a PROMAX- UA model, wrap-around occurs after station 32 is reached. Similarly, pressing Auto Down will turn off the current station and turn on the next lower station number. -
Page 24: On And Off Keys
Rain Master Irrigation Systems Pro Max User’s Manual On and Off Keys When the ON key is pressed, the station previously entered will be turned on, any other station that was on will be turned off. The previous station may have been entered explicitly by the digit keys or implicitly by using the AUTO UP or AUTO DOWN keys. -
Page 25: Add Stations
Rain Master Irrigation Systems Pro Max User’s Manual Example: To enable Pro Max receiver number 7, ACCESS Press: CODE Receiver number 7 is now enabled and responds to all commands. Example: To disable Pro Max receiver number 7, ACCESS Press: CODE Pro Max receiver number 7 is now disabled and will not respond to any commands. -
Page 26: Add Stations - On Key
Rain Master Irrigation Systems Pro Max User’s Manual universal adapter is protected against over-current, it is possible that non-Rain Master controllers may blow a fuse and/or damage the controller if excessive current is drawn. Caution should be exercised when using this feature. Note: The Add Stations only allows up to 5 stations and 1 master valve to be turned ON at the same time. -
Page 27: Program - Off Key
Rain Master Irrigation Systems Pro Max User’s Manual Once started, the program will run to completion whether or not the Pro Max receiver remains connected, whether the Access Code is turned off, or whether 60 minutes have elapsed. 4.8.1 Program – Off Key Pressing the OFF key while the program is running will turn the program off and the controller returns to the Automatic Mode of the operation. -
Page 28: Beeper Operation
Rain Master Irrigation Systems Pro Max User’s Manual When the station run time is complete, either by the operator pressing the OFF key or the run time as elapsed, the controller will return to the status of a newly connected remote. -
Page 29: Checking Out Electrical Problems
Rain Master Irrigation Systems Pro Max User’s Manual Figure 11: Battery Replacement To replace the battery refer to Figure 11 and do the following steps: Step 1 Remove the two screws from the Pro Max transmitter bottom end cap. Pull the end cap off to expose the battery. Step 2 Remove the battery from the battery compartment. -
Page 30: Field Wiring Shorts, The Receiver, And Non Rain Master Controllers
Rain Master Irrigation Systems Pro Max User’s Manual Example: If there is a short circuit on station 3 and you send a command to turn on Station 3, the controller will attempt to turn it on. If the controller has a built-in over-current detector (standard on the Rain Master RME Sentar, RME Hawk, and Evolution DX2 controllers), the station will not be allowed to turn on. -
Page 31: Troubleshooting
Rain Master Irrigation Systems Pro Max User’s Manual Troubleshooting Pro Max System Troubleshooting Symptom Action No beep tone when Pro Replace Battery. Max transmitter key is pressed. No beep tone when Pro Remove end cap and press the Pro Max Max transmitter is transmitter-reset button. - Page 32 For non- turn ON a station. Rain Master controller. Check the valve solenoid and replace (Model PROMAX-UA) if necessary. Check the station wiring for short circuit common, check insulation nicks and exposed wiring in standing water.
-
Page 33: Pro Max Specifications
Rain Master Irrigation Systems Pro Max User’s Manual Pro Max Specifications Pro Max Transmitter Operating Frequency………….… 154.600 MHz Modulation type ………………… Frequency Modulation Frequency Stability……………..005% Power Output……………………. 1 Watt nominal Power Source…………………… One 6 volt type CR-P2 lithium battery 0 to 60 degrees Celsius (32 to 140 °... -
Page 34: Pro Max Carrying Case
Pro Max Carrying Case Dimensions……………………….. 12 ½”L x 7 ½”W x 10”H Pro Max Series Parts List Model Description PROMAX The complete remote set for Rain Master Controllers PROMAX-UA The complete remote set for Non-Rain Master Controllers, include universal adaptor. - Page 35 Rain Master Irrigation Systems Pro Max User’s Manual JACK-IRC Factory installed rear permanent interface RME Hawk, RME Sentar & Evolution DX2 only. Includes access code • (Add – T to these parts for telescope high gain version.) Page 32...
-
Page 36: Rain Master Limited Warranty
Rain Master Irrigation Systems Pro Max User’s Manual Rain Master Limited Warranty Rain Master Irrigation Systems Inc. warrants to the first customer purchaser that this Rain Master brand product (the “product”), when shipped in its original container, will be free from defective workmanship, and materials and agrees that it will, at its option, either repair the defect or replace the defective product or part thereof at no charge to the purchaser for parts or labor for the time period set forth below. - Page 37 Rain Master Irrigation Systems Pro Max User’s Manual 3. If required to ship, ensure the unit is properly packaged, preferably in the original shipping case. Include all cables and components, and make sure adequate packaging material is used to protect the unit(s) from shipping abuse. 4.
- Page 38 Rain Master Irrigation Systems Pro Max User’s Manual Wiring List for PROMAX-UA Station Base Color Stripe Color Stripe Color Cable Black Large White Large Large Green Large Orange Large Blue Large White Black Large Black Large Green Black Large Orange...
