FUJISOUND TM-M1 Owner's Manual

Music / video player
Hide thumbs

Advertisement

Quick Links

Download this manual
TM-M1
MUSIC / VIDEO PLAYER
Thank you for purchasing this product. R
For safe use, please read this manual carefully and use it accordingly.

Advertisement

loading
Need help?

Need help?

Do you have a question about the TM-M1 and is the answer not in the manual?

Questions and answers

Summary of Contents for FUJISOUND TM-M1

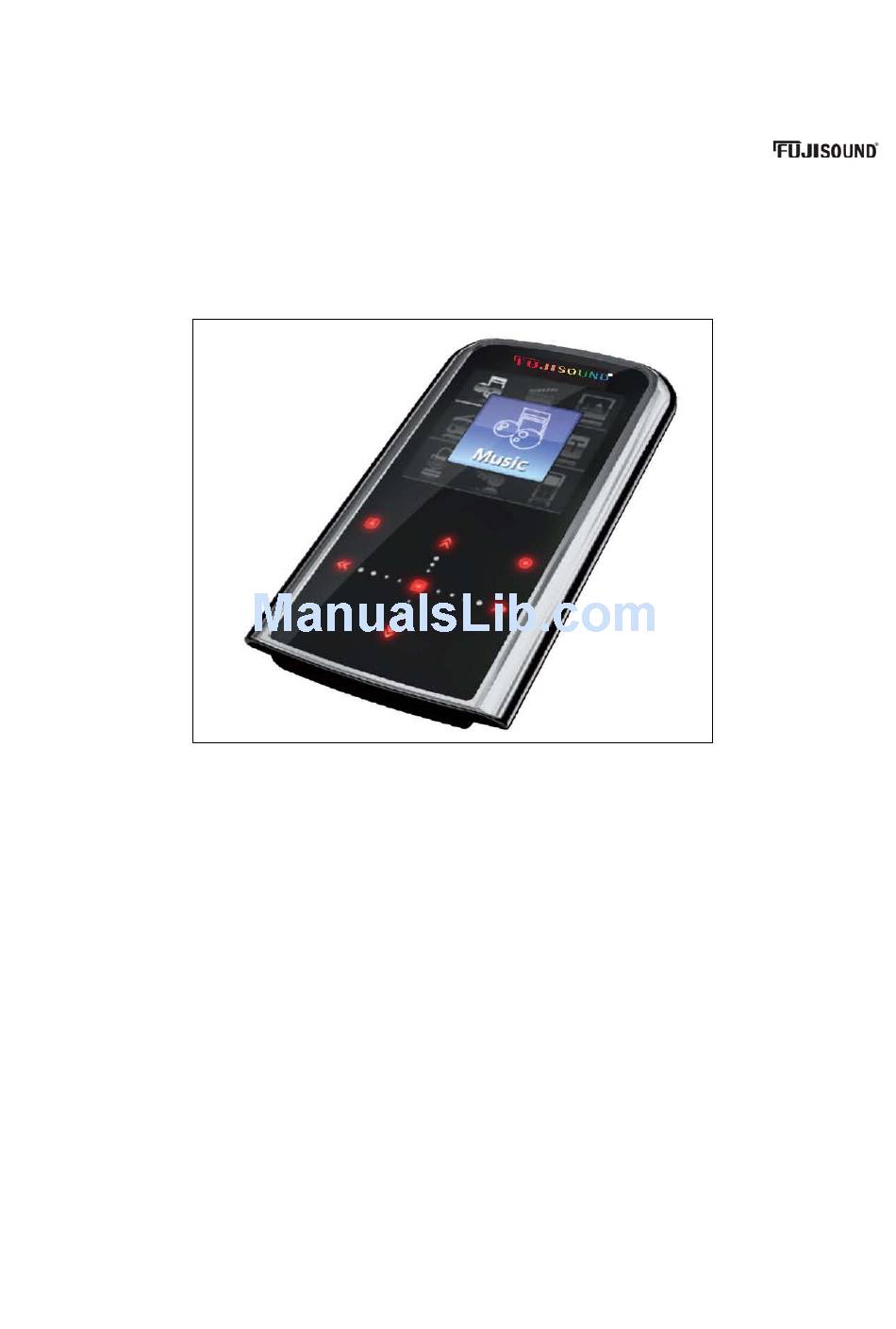

  • Page 1 TM-M1 MUSIC / VIDEO PLAYER Thank you for purchasing this product. R For safe use, please read this manual carefully and use it accordingly.
  • Page 2 Contents 1. Preparation for use Precaution Product characteristics Product components Name of each part Screen composition and caution when operating the touch button Button function description System requirement and charging Connecting to the computer Disconnecting the USB cable 2. Basic functionality Turning power on/off and lock function Menu switching Listening to music...
  • Page 3 Preparation for use Precaution These details are intended to protect the safety of the user and to prevent property damage. Please read carefully and use the product accordingly. Do not leave the product near heating device of 35℃ degrees or higher, location of high temperature or inside a parked car.
  • Page 4 Preparation for use Precaution Note the following details on the battery. It can cause fire and damage to the product. The battery used in this product is a Lithium-Polymer battery. Do not use other batteries by disassembling the main unit. Be careful not to have any dust or alien particle get inside the product.
  • Page 5 Preparation for use Product characteristics Slim design and touch button By adopting the slim and simple design and using the touch button, you can lightly touch and access various menus and functions with your fingers. Full Color OLED By adopting a 38.1cm(1.5”) full color OLED, you can enjoy intuitive menu and MP3 play screen in wider and fancier screen.
  • Page 6 Playlist function You can just listen to the songs you want . whenever you want. You can check the songs you want during the MP3 navigation to create your own playlist.
  • Page 7 Preparation for use Product components Components can change without prior notice for performance improvement. Windows98SE users must install a separate driver program included in the CD. 1 / XXS player 5/ silicon case (option) 2/ earphones 6/ arm band (option) 3/ necklace strap 7/ CDROM 4/ USB cable...
  • Page 8 Preparation for use Name of each part 1/ reset hole 8/ play / pause / select 2/ Select music : backward / move left 9/ select music : forward / move right 3/ Repeat / start / stop recording 10/ Menu / previous menu 4/ Necklace strap hole 11/ Volume / Move up / down 5/ Power ON/OFF / hold...
  • Page 9 Preparation for use Name of each part...
  • Page 10 Preparation for use Screen composition OLED screen composition 1/ Current time 7/ Graphic EQ 2/ Volume 8/ Singer / file name / File type 3/ Alarm and reserving to record FM 9/ Current music time length 4/ Lock 10/ Play bar 5/ Battery 11/ Play time of current music 6/ Current music / total number of music...
  • Page 11 Preparation for use Button function description Button Function and how to operate Slide right to turn on power Slide right and hold one second or longer to turn off Slide left to hold the button operation Slide center to release the hold button Shortly press to play/pause, select and set Shortly press M button while playing to go to “file search”...
  • Page 12 Preparation for use System requirement 200MHz Pentium processor or higher version - Windows 98SE/ME/2000/XP - Mac OS X (Support ver 9.2 or higher version) USB port SVGA graphic card Memory of 64MB or above Mouse CD-ROM drive (X2 or faster) HDD 100MB or more free space Charging - Use the PC USB cable supplied with the product to connect the main body to the PC...
  • Page 13 Preparation for use Connecting to the computer By utilizing the PC USB cable included with the product, you can charge the main unit by connecting it to the PC. 1. Connect the USB cable to the USB port of the computer. 2.
  • Page 14 Preparation for use Connecting to the computer Using as removable disk 1. By using the USB cable included in the product, connect the main unit to the PC. 2. Run Windows Explorer (or My Computer). 3. Check whether there is a removable disk(XXS). 4.
  • Page 15 Preparation for use Disconnecting the USB cable After sending a file is completed, disconnect the cable as shown at the below. Disconnecting the cable arbitrarily may cause the incorrect file copy or the malfunction at some system. 1. Double click on the green arrow on the system tray on the bottom right side of the window screen.
  • Page 16 Basic functionality Turning power on/off Power on : Slide right to turn on the power Power off : Slide right and hold for one second or longer to turn off ※ If there is no button operation in paused condition for a set period of time, the power will automatically be turned off.
  • Page 17 Basic functionality Menu switching Press [∧∨<>] button at the main menu to go to the desired menu, and then [>|] button to go to the related menu. Press [M] button while listening to music, viewing video, photo or text file to move by the order of [File search] - [Main menu] - [Current menu].
  • Page 18 Basic functionality Listening to music Playing Press [>|] button while playing music to pause. Press [>|] button again to play music. Fast forward/Rewind When you press and hold [<>] button while the current music is playing, the status icon is changed and it quickly moves to the beginning/end of the music. (Normally resumed at the point where the button is released) When the beginning or the end of the music is passed while searching, it moves to the previous/next music.
  • Page 19 Basic functionality Listening to music Playing the repeat It is used to repeat the desired section while playing. - When you press [A-B] button at the point to repeat, [A-] is displayed at the play icon of the top. When you shortly press [A-B] button at the end point to repeat, the play icon at the top is switched to [A-B].
  • Page 20 Basic functionality Viewing video OLED screen composition 1/ Play status 2/ Play time of current video 3/ Play bar 4/ Current video time lenght Playing Press [>|] button at Video mode to play the video. When you press [>|] button again, the status icon is displayed and playing is paused.
  • Page 21 Basic functionality Viewing video Fast forward/Rewind Press and hold [<>] button while the current video is playing to quickly go to the beginning/end of the video. (The video is normally played at the point that the button is released.) When the video is reached to the beginning, it is played at the paused point or from the beginning.
  • Page 22 Basic functionality Viewing photo Viewing photo Select the photo album from the menu to view the photo. Press [>|] button to start the slide show and press [>|] button again to pause the slide show. Going to the next/previous photo Press [<>] button to go to the next/previous photo.
  • Page 23 RADIO Basic functionality Listening to FM radio LCD screen composition 1/ current mode 2/radiosound quality 3/ current frequency 4/ current frequency position 5/ preset channel Seeking the frequency If there is no stored preset channel, the automatic preset is automatically performed. The channels can be stored up to 30.
  • Page 24 Basic functionality Listening to FM radio Setting the preset Press and hold [>|] button to automatically preset. [Add/Delete the preset] : Press and hold [M] button to add or delete a channel. Press [>|] button to select [Add/Delete the channel] and use [<>] button to select the channel to add or delete.
  • Page 25 Basic functionality Viewing Text Viewing Text Select ‘Viewing Text’ from the menu to view the text file. Going to the next/previous page Press [<>] button to go to the next/previous page. 1/ No text file 2/ Not supported file 3/ Viewing the text...
  • Page 26 Basic functionality Recording OLED screen composition 1/ Recording input information 6/ Total time to record 2/ Recording quality information 7/ Processing bar 3/ Recording file 8/ VOR display 4/ Current recording information 9/ Recording state 5/ recorder file name Recording Select the recording from the menu to record.
  • Page 27 If there is no signal, the VOR function automatically stops recording, but if there is any signal,...
  • Page 28 Basic functionality Product information OLED screen composition 1/ Model name 2/ Firmware version 3/ usage bar 4/ used capacity 5/ total capacity...
  • Page 29 Setting Sound setting Sound It sets the preset sound. Move to [Sound] at the setting menu and press [>|] button. Press [∧∨] button to set [Normal / Classic / Rock / Jazz / Live / Pop / Dance / User ] and press [>|] button to complete.
  • Page 30 Setting Play back setting Random play It sets to play the music at random. Move to [Play]-[Random] at the setting menu and press [>|] button. Press [∧∨] button to set [On/Off] and press [>|] button to complete. Intro It sets to play the first 10-second of the music. Move to [Play]-[Intro] at the setting menu and press [>|] button.
  • Page 31 Setting Play back setting Resume It sets to resume playing the stopped music after turning off/on. Move to [Play]-[Resume] at the setting menu and press [>|] button. Press [∧∨] button to set [On/Off] and press [>|] button to complete Auto play It sets to automatically play when the power is turned on.
  • Page 32 Setting Display setting Turning off the button It sets to turn off the touch LED. Move to [Display]-[LED Off] at the setting menu and press [>|] button. Press [∧∨] button to set [None / 3 sec / 5 sec / 7 sec / 10 sec] and press [>|] button to complete.
  • Page 33 Setting Display setting Song title It sets the display type of the music file when playing. Move to [Display]-[Song title] at the setting menu and press [>|] button. Press [∧∨] button to set [File name / ID3 Tag] and press [>|] button to complete.
  • Page 34 Setting Time setting Time setting It sets the time displayed on the screen. Move to [Time]-[Clock] at the setting menu and press [>|] button. - Press [<>] button to go to the position to set. - Press [∧∨] button to adjust the setting. - Press [>|] button to complete.
  • Page 35 Setting Time setting Power off It sets to automatically turn off the power when the music or the video is not playing. Move to [Time]-[Power Off] at the setting menu and press [>|] button. Press [∧∨] button to set [None / 5 min / 10 min / 15 min / 30 min / 45 min / 60 min] and press [>|] button to complete.
  • Page 36 Setting Recording setting Radio quality It sets the sound quality for the radio recording. Move to [Record]-[Radio quality] at the setting menu and press [>|] button. Press [∧∨] button to set [96Kbps / 128Kbps / 160Kbps / 192Kbps] and press [>|] button to complete.
  • Page 37 Setting General setting FM sound It sets the sound of the FM radio. Move to [General]-[FM ST/MO] at the setting menu and press [>|] button. Press [∧∨] button to set [Stereo/Mono] and press [>|] button to complete. Press [A-B] button while listening to the FM radio to change the setting. Auto FM seek It automatically seeks the FM radio frequency and sets to store at the channel.
  • Page 38 Setting General setting Initializing the setting It sets the setting of the product to the default value at the time of shipping the product. Move to [General]-[Initialize] at the setting menu and press [>|] button. Press [∧∨] button to set [On/Off] and press [>|] button to complete. When you press this button to complete, it automatically turns off and on to initialize.
  • Page 39 PC software PC software system requirement Classification Required Recommended Supported Operating Win 2000 Pro Win XP Pro SP2 system Win XP home edition Win XP Pro Win VISTA Processor 233Mhz or higher 866Mhz or higher Memory 256MB or higher 512MB or higher Hard disk More than...
  • Page 40 PC software Installing converter program Please use the mpmanager software which is in your player to organize your music, video files! For Window 98SE User, ensure the USB Driver is installed before connecting the MP3 player.
  • Page 41 Customer support System reset When problems occur including when the main unit is not operating or when the power cannot be turned off, you can reset the system of the main unit. Press the Reset button with a sharp object. The system will be initialized.
  • Page 42 Customer support Checklist before requesting for service Symptoms Check and actions cannot turn When the battery is completely discharged, the power cannot be on the power turned on. Turn on the power after charging the unit. Press the reset button Check whether the Hold Button is pushed in the arrow direction.
  • Page 43 Customer support Checklist before requesting for service Symptoms Check and actions I cannot hear the sound and Check whether the volume is set to “0” only hear noise Check if the earphones are connected properly there are any alien particles in the terminal/ When the data is damaged for MP3 and WMA, it can create noise or disconnected sounds.
  • Page 44 Customer support Product specification Model name : FUJISOUND TM-M1 Display : 1.5inch Full color OLED Dimension : 41 x 72 x 5.6mm Weight: 20grs Memory : flash internal memory Play time : audio 10hours, video 2hours USB : Earphone ouput :...
