Summary of Contents for Uclear WT300

  • Page 1: User Manual

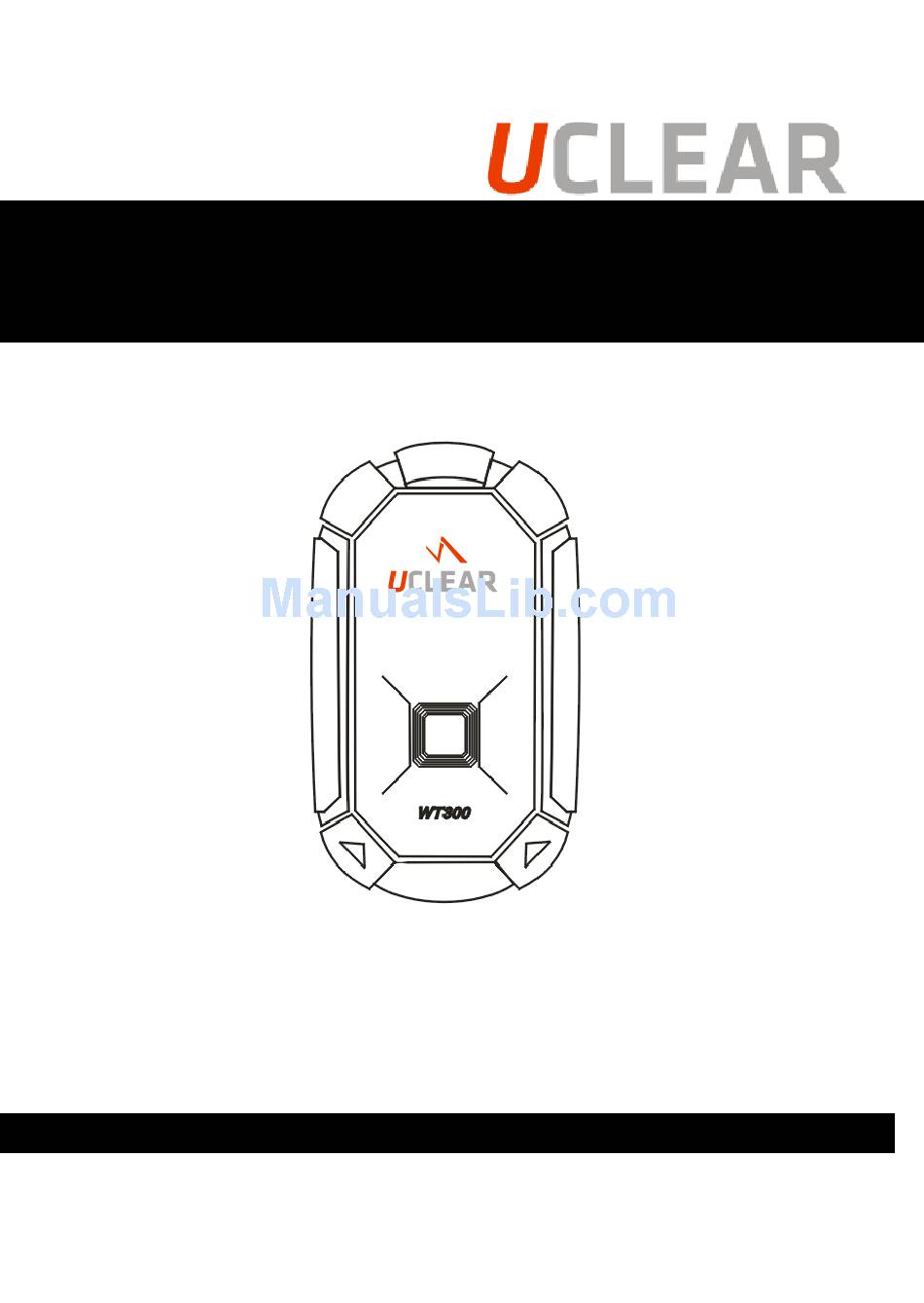

    Bluetooth Communication Adapter WT300 User Manual...

  • Page 2: Contents Of The Retail Box

    Welcome to WT300 Bluetooth Audio Adaptor User Manual Contents of the retail box Remote Control WT300 Audio Adaptor Charging Cables Stereo cable Walkie Talkie Cables AC/USB Charger Rubber grip User Manual...

  • Page 3: Table Of Contents

    PTT Remote Control MMI Table using HFP ----------- 22 Music streaming Mode Pairing as Music Adaptor (A2DP) --------------------- 23 WT300 MMI Table in Music streaming Mode --------- 25 Walkie Talkie Volume Setting ----------------------------- 26 Aux Input Mode Aux Input Mode for GPS/Radar Detector ------------- 27...

  • Page 4: Overview General

    A2DP music streaming mode The device will power up based on the previous successful pairing mode. If the WT300 is previously paired to a HFP Bluetooth headset, then it will always power up in HFP mode. To change the operation mode, eg from HFP mode to A2DP...

  • Page 5: Wt300 At A Glance

    VERVIEW WT300 At A Glance Front View Multi-function LED Status Button Indicator Charging/ Stereo Audio-in/ Walkie Talkie Aux-in Port Reverse Reset Button Before using the device, please charge it first! Charging o Please use the mini-USB charging cable to connect the device to a USB port.
  • Page 6 4 beep tones at 1 minute intervals. Reset o If the WT300 locks up or the unit cannot be powered off properly, press Reset button located at the back of the device. The device will be forced to shutdown immediately.

  • Page 7: Ptt Remote Control At A Glance

    Bluetooth adaptor if the link has not been established. o The indicator will blink blue rapidly while busy making a connection. o If the link with the WT300 adaptor is established, the status indicator will show solid blue when the PTT button is pressed. Using PTT o Press and hold PTT button to talk.

  • Page 8: Walkie-Talkie Cables

    Micro-USB Mini-USB There are 2 type of charging cable included in the package. Cable with micro-USB plug is for charging the remote control whereas mini-USB plug is for the WT300 adaptor. Stereo Audio Cable 3.5mm plug 3.5mm plug Stereo cable has both terminals molded with 3.5mm stereo plug.

  • Page 9: Rubber Grip

    VERVIEW Rubber Grip Rubber grip Remote control PTT Motorbike handle bar The rubber grip can be used to install the remote control unit on the motorbike handle bar.

  • Page 10: Advanced Communication Mode

    Answer and Down buttons for 5 seconds. *This pairing process is not in the HBC100 manual.  With your WT300 in power off mode, press and hold the Multi-function button for 5 seconds. It will go to pairing mode with the UCLEAR headset.

  • Page 11: Linking Walkie Talkie To The Wt300

    Set the walkie talkie volume to mid-range. Please refer to Walkie Talkie Volume Setting section. Before going to Steps 2 & 3, the WT300 and UCLEAR headset must be turned on. Step 2: Link the PTT remote control to WT300 adaptor ...

  • Page 12: Walkie Talkie Mode Operations

    Step3: Connect UCLEAR headset and WT300  Both devices must be switched on.  Press the Multi-function button on the WT300 once, it will attempt to connect to the UCLEAR headset.  The LED indicator of both devices will continue to flash blue light twice every 2 seconds when they are connected.
  • Page 13 Check for the twice flashing blue lights on both devices to ensure that the connection is there.  The WT300 LED will be solid red during talk. Other Feature  The WT300 will power down automatically in 60 minutes if it loses connection with the headset.

  • Page 14: Wt300 Mmi Table

    LEAR EADSET OMMUNICATION MMI Table WT300 Adaptor Button Configuration Command Action Power on Press/hold Multi-function for 2 seconds Power off Press and hold Multi-function for 5 seconds Pairing Device should be switched off; Press and hold Multi-function for 5 seconds...

  • Page 15: Ptt Remote Control Mmi Table

    Low Battery Blink red 3 times every 3 seconds Battery Charging Solid red Battery full The UCLEAR headset will produce four beep tones at 1 minute intervals when the connected WT300 adaptor or the remote control is in low battery state.

  • Page 16: Uclear Headset Mmi Table

    Disable VOX Press Up & down once (manual PTT mode) Manual PTT mode To talk Press & hold Answer To listen WT300 will be in listening mode unless PTT button is pressed Voice PTT Mode To talk ‘Hello’ loudly into mouthpiece trigger.

  • Page 17: Pairing With Bluetooth Headset Using Hfp

    [HFP M LUETOOTH EADSET Pairing This section is a step by step guide to pair the WT300 Bluetooth adaptor with a non-UCLEAR headset or generic Bluetooth headset that supports HFP (handsfree profile). Pairing with Bluetooth Headset using HFP First, you must pair the WT300 with your Bluetooth headset.

  • Page 18: Linking Walkie Talkie To The Wt300

     Set the walkie talkie volume to mid-range. Please refer to Walkie Talkie Volume Setting section. Before going to Steps 2 & 3, the WT300 must be turned on. Step 2: Link the PTT remote control to WT300 adaptor ...

  • Page 19: Walkie Talkie Operations Using Hfp

    Step 3: Link the WT300 adaptor to the Bluetooth headset If the Bluetooth headset is on, press the Multi-function button of the WT300 adaptor to connect it to the headset. The WT300 indicator will blink blue fast. If the Bluetooth headset is off, turn it on. The headset will autoconnect to the WT300 adaptor (switched on).
  • Page 20 You should hear a beep tone indicating VOX is enabled.  To talk, say ‘Hello’ loudly to trigger the PTT. The status indicator on the WT300 will show a red light during talk.  Being silent for 2 seconds will switch to the listening mode.

  • Page 21: Wt300 Mmi Table Using Hfp

    [HFP M LUETOOTH EADSET MMI Table WT300 Adaptor Button Configuration Command Action Power on Press/hold Multi-function button 2 seconds Power off Press/hold Multi-function 5 seconds Pairing Device should be in on state. Press/hold Multi-function 10 seconds Connect to headset Press Multi-function once...

  • Page 22: Ptt Remote Control Mmi Table Using Hfp

    Blink blue fast Low Battery Blink red 3 times every 3 seconds Battery Charging Solid red Battery full You will hear four beep tones in 1 minute intervals when the WT300 adaptor or the remote control is in low battery state.

  • Page 23: Music Streaming Mode

    Bluetooth stereo headsets. The WT300 can connect to most audio sources such as MP3 players via the provided stereo cable. Before you use the WT300 for music streaming, it must be paired with a Bluetooth stereo headset or headphone. Pairing as Music Adaptor Power on the WT300 adaptor first.
  • Page 24  The blue indicator on the WT300 will flash twice at 2- second intervals if a Bluetooth link is established. If you lose the connection between Bluetooth adaptor and the headset, press Multi-function button briefly to reconnect.

  • Page 25: Wt300 Mmi Table In Music Streaming Mode

    Red blinks 3 times every 3 seconds Battery Charging Solid red lights up Battery full Solid blue lights up For A2DP music streaming mode, the stereo cable must be plugged in before the device is powered up, otherwise the WT300 will not enter music mode.

  • Page 26: Walkie Talkie Volume Setting

    Volume through headset is not loud enough ; Speech is muffled and/or has hissing background noise. To setup this tuning process, you must have the WT300 adaptor, Bluetooth headset and walkie talkie completely set up in listening mode. Then you will need a user talking on the other walkie talkie of the set at the far-end.

  • Page 27: Aux Input Mode For Gps/Radar Detector

    NPUT For GPS/Radar Detector Aux In The WT300 Aux-in port can be interfaced to most GPS and Radar detector audio output via the 3.5mm stereo cable. You can listen to the GPS voice navigation information or Radar detector warning at the same time while you are using the Walkie Talkie.

  • Page 28: Remote Control Pairing

    AIRING The remote control PTT unit is already factory paired to the WT300 adaptor. You do not need to re-do pairing for the remote control unless it is absolutely necessary. To pair your remote control to a new WT300 adaptor, make sure both devices are in power-off state.

  • Page 29: Technical Data For Wt300 Bluetooth Adaptor

    Technical Data for WT300 Bluetooth Adaptor WT300 Adaptor Specification Unit Dimensions (L x W x H) 85mm x 52mm x 26mm Weight Audio Frequency response 30Hz to 20kHz Sampling rate 48kHz, 16 bit 0.5% Bluetooth Specifications Version 2.1 EDR, Class 2...

  • Page 30: Technical Data For Remote Control Ptt

    Technical Data for PTT Remote Control Remote Control Specification Unit Dimensions (L x W x H) 101mm x 17mm x 7mm Weight Bluetooth Specifications Version 2.1 EDR, Class 2 Profiles RFCOMM Radio Carrier frequency 2.402 – 2.480 GHz Range Up to 10m (open field) RF output power -6 dBm to 4 dBm Power...

  • Page 31: Notices

    WARNING: BATTERY WARNING: ® The UC Bluetooth WT300 audio adaptor and PTT remote LEAR control contain rechargeable lithium ion polymer batteries. To reduce risks of fire or burns, do not disassemble, crush, puncture, short external contacts or dispose in fire or water.
  • Page 32 Notices The sender will bear all transportation charges for functioning products but which were declared defective. LIMITATIONS OF WARRANTY: ® All product warranties for the product by UC are limited to LEAR those mentioned in the product manual. WAIVER AND DISCLAIMER: BITwave, FSC and all their representatives, agents, distributors, suppliers and resellers shall not be liable and will be held harmless from any and all litigation, claims, debts, demands,...
  • Page 33 Notices agents, distributors, suppliers, resellers and all others in its supply and distribution chain either due to the designer’s or manufacturer’s negligence or omissions or any third parties involved. Always comply with the local law and traffic regulations. Where use of the product is not permitted or allowed by any laws and regulations including the traffic laws of your country, we warn you not to go against such restrictions.
  • Page 34 All information here is accurate as of the date of printing. Please check for the latest version of any modified or upgraded product on the website www.uclear-digital.com from time to time. PERSONAL SAFETY: Do not open the seal of the hardware, tamper, repair or modify any parts.
  • Page 35 Notices TECHNICAL SUPPORT: For additional information please visit our website at www.uclear-digital.com For technical support please contact us at: support@uclear-digital.com Phone: 1-855-BIT-WAVE COPYRIGHTS: Copyright © 2011 BITwave Pte Ltd & FSC. All rights reserved. No part of this guide may be reproduced in any form or by any process whatsoever without prior written consent from BITwave Pte Ltd and FSC.

  • Page 36: Fcc/Ic/Ncc Warning

    Notices FCC COMPLIANCE STATEMENT FCC ID: NMC-WT300,NMC-PTT300 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
  • Page 37 Notices IC COMPLIANCE STATEMENT ICID: 9858A-WT300, 9858A-PTT300 This device complies with Industry Canada license-exempt RSS standard(s). Operation subject following conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
  • Page 38 Notices NCC Warning 經型式認證合格之低功率射頻電機，非經許可，公司、商號 或使用者均不得擅自變更頻率、加大功率或變更原設計之特 性及功能。 低功率射頻電機之使用不得影響飛航安全及干擾合法通信； 經發現有干擾現象時，應立即停用，並改善至無干擾時方得 繼續使用。 前項合法通信，指依電信法規定作業之無線電通信。低功率 射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性 電機設備之干擾。...
