Operation Guide 3M-30
The 3M-30 programmable communicating
thermostat operates via a high-quality, easy-
to-use touch screen. To program or adjust
your 3M-30, simply touch your finger firmly to
the screen. The screen will automatically light
up and you will hear a "beep." The screen will
respond differently to different types of touches,
so you may want to experiment by touching it
different ways, finger, fingernail, etc. Do not use
a sharp or metallic device; it will scratch the
screen.
Statement of use: 100% Compatible with all popular
residential HVAC systems; 24VAC single, two stage
conventional heating systems (gas/oil/electric), heat pumps,
single stage or with auxilliary heat (electric or fossil),
zoned forced air and zoned hot water (2 or 3 wire), millivolt
systems (with 24VAC adapter), one or two stage cooling,
and hybrid systems.

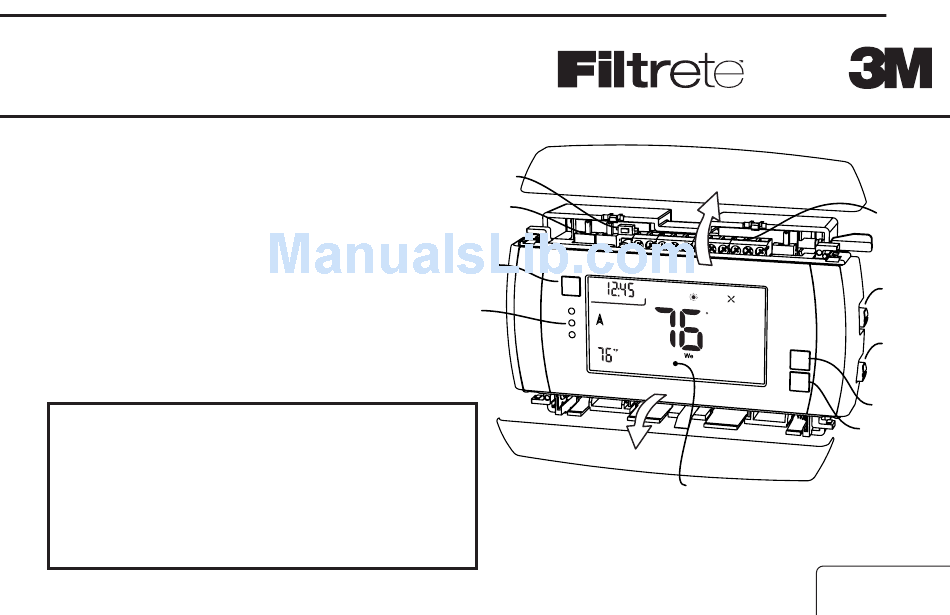

1005-002-001
top cover
Reset
button
HVAC
selections
switches
Save
Energy
button
Power Grid
RAD IO
status
indicator
1
LIN K
TAR GET TEM P
bottom
cover
DAY
AUT O
PM
F
CO OL
Touch screen
1
PG
Wire
terminals
Mode
switch
Fan
switch
MENU
button
PROG
button
ENGLISH
Advertisement
Table of Contents
Related Manuals for 3M 3M-30
Summary of Contents for 3M 3M-30
- Page 1 To program or adjust HVAC Wire selections terminals your 3M-30, simply touch your finger firmly to switches the screen. The screen will automatically light Save Energy up and you will hear a “beep.” The screen will...
-
Page 2: Control Screens
Before you operate the 3M-30 please get familiar with these basic control screens. All the 3M-30 functions are accessed through these screens. HOME, MENU, PROGRAM and MANUAL . The 3M-30 touch screen technology allows you to select (by touching) an item and change it using the +/- arrows or the time arrows. -
Page 3: Menu Screen
MENU Screen The MENU screen is the gateway to many functions or settings of the 3M-30. It is displayed when you press the MENU button. [See page 9 for details] Chirp set Set Time Touch this to set Touch this to turn the Touch this area to set temperature display. -
Page 4: Program Screen
PROGRAM Screen The PROGRAM screen sets the 3M-30 control for your home HVAC system. It is displayed when you press the PROG button. [See page 7 for details] Return HOME Set Time Slot When programming is complete Touch this area to set the touch this to run your program and Time Slot you want to program. -
Page 5: Manual Screen
MANUAL Screen The Manual Screen control screen is where you can make temporary changes to your 3M-30’s operation. Touch the main temperature display to use this screen. [See page 12 for details] Manual Override indicator Target Temperature Shows TEMPORARY when you have modified the Target. -
Page 6: Initial Settings
Initial Settings Press MENU to prepare the thermostat (from HOME screen). Set day of the week - Touch the Day of the week area to cycle through the days of the week to select the current day. Set time of day - Touch the Time of Day arrows to move the time selection forward or backward until it displays the current time. -
Page 7: Auto Run Program
TO CHANGE THE PROGRAM: Make sure the 3M-30 mode switch is set to either HEAT or COOL, then press the PROGRAM button. This puts you at the PROGRAM screen [see page 4]. The programmed start time is diplayed in the upper left. - Page 8 Select the day you want to program. The day of the week starts at SU - Sunday and can be advanced to the day you want to program. Touch the day of the week area to cycle through the days of the week to the desired day. Select the time slot (period) you want to program (MORN,DAY, EVEN, NITE).
-
Page 9: Menu Screen Functions
3M-30 setting and the room temperature required before the heating or cooling system will turn on—from 0.5° to 2.0° F (.25° to 1° C). For example, if SWING is set to 2.0° F and the 3M- 30 is set to 70°F Target Temperature, the heat cycle will start when room temperature drops to 68°F. - Page 10 Set - Touch this to switch the temperature display scale from o F to o C . FILTER - AIR FILTER ALERT - The 3M-30 can be programmed to remind you when the air filter needs changing. Touch FILTER. The display will show the usage to date.
- Page 11 To UNLOCK , Press MENU. Touch and hold icon for 5 seconds for 2 bars (if not there already). Then touch and hold the icon for another 5 seconds. Each 5 second touch and hold must be separate. Return HOME by touching the icon.
-
Page 12: Manual Screen Functions
MANUAL Screen Functions The 3M-30 has 4 manual override commands. The manual screen is accessed by touching the large current temperature display on the middle of the HOME screen. IMPORTANT: The Mode must be in HEAT or COOL to access the manual screen. -
Page 13: Other Functions
EMER (in HEAT PUMP type) If you setup your 3M-30 for HEAT PUMP with auxiliary heat, EMER function is available with a switch under the top cover on the right. If you switch EMER to ON, your heat pump is disabled and auxiliary heat is your sole source of heat. -
Page 14: Fan Switch
Hold down the PROGRAM button for 12 seconds to leave the limited display screen. RESET button The RESET button re-boots the 3M-30 processor. It does not effect the user programs that have been stored in permanent memory. Compressor Protection The 3M-30 has a minimum cycle time of 4 minutes to protect your compressor in cool and in heat pump (if you have one). -
Page 15: Communicating Thermostat
Using USNAP Radios - The USNAP ports allow you to connect your 3M-30 to your home WiFi network. This can give you access to your home’s HVAC system even when you are away [with additional web service]. It can also give you access to web...
