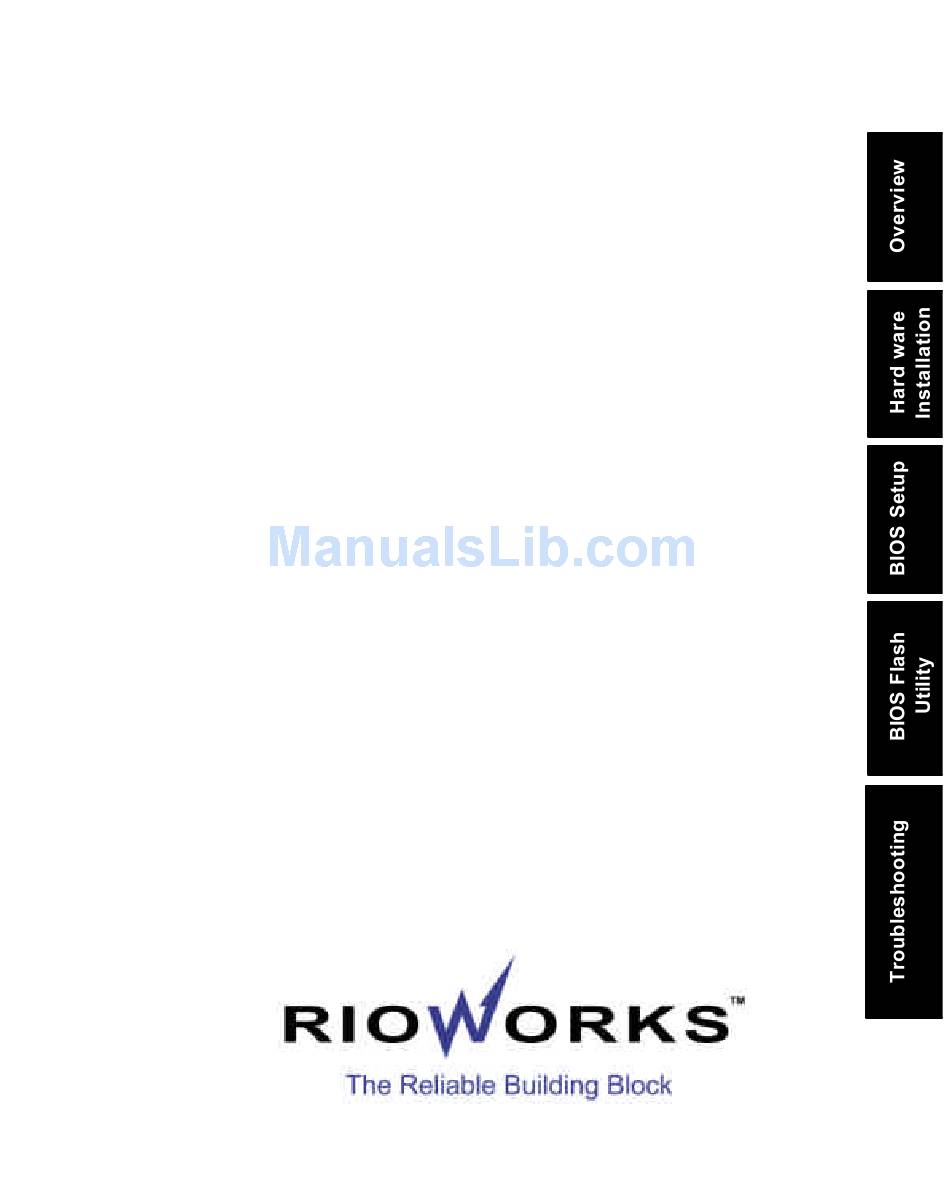

  • Page 1 SDVIC C SDVI User’s Guide User’s Guide...
  • Page 2 Arima Computer Corp. makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.

  • Page 3: Table Of Contents

    Contents OVERVIEW ................I ..................NPACKING ..............EATURES IGHLIGHT ..............BOUT UIDE ................ETTING SDVIC M )........... OTHERBOARD ICTURE SDVIC M ) ............ OTHERBOARD AYOUT VIII CHAPTER 1:HARDWARE INSTALLATION ....1-1 Step 1:Jumper Setting ..............1-2 Step 2:Install Memory..............1-5 Step 3:Install CPU..............
  • Page 4 CHAPTER 3:BIOS FLASH UPGRADE UTILITY .... 3-1 ................3-1 REPARATION ............3-2 UNNING THE ROGRAM ............. 3-3 OMMAND ARAMETERS ................3-4 PDATE ................3-5 LEAR APPENDIX A:TROUBLESHOOTING......... A-1 APPENDIX B................A-5 SYMPTOM REPORT FORM ............A-5...

  • Page 5: Overview

    Dual PIII/Coppermine Socket-370 motherboard (M/B) based on the ATX form factor featuring the VIA Pro 266 Chipset. As the latest VIA chipset is built in the M/B, SDVIC fully supports ® Intel 500MHz-1GHz+ PIII/Coppermine FC-PGA processor at 133/100 MHz FSB (Front Side Bus) frequency or single 667~766Mhz+ Celeron FC-PGA CPU.

  • Page 6: Features Highlight

    § Designed for Socket-370 technology. Chipset § Use the latest high performance VIA chipset in the SDVIC M/B. As known, the VIA chipset architecture consisted main components: The North Bridge ( V T8633) and Open South Bridge (VT8233). Because the...

  • Page 7: Floppy Drive

    IDE RAID § Use AMI MegaRAID ATA-100 IDE RAID Onboard controller. (Optional) § Support RAID level 0/1/10 Super Multi-I/O § Provides two high-speed UART compatible serial ports and one parallel port with EPP and ECP capabilities. UART2 can also be directed from COM2 to the Infrared Module for wireless connections.
  • Page 8 Support DMI through BIOS, which allows Management hardware to communicate within a standard Interface (DMI) protocol creating a higher level of compatibility. PC99 § The SDVIC is fully compliant with the Microsoft Compliant PC99 specification at both the hardware and BIOS levels. Hardware § Support...

  • Page 9: About This User Guide

    About This User Guide This manual explains how to build your system with SDVIC in detail. Please follow the procedures of this User Manual carefully and pay special attention to these icons. This icon informs you for particularly important IMPORTANT details regarding the setup or maintenance of your system.

  • Page 10: Getting Help

    Getting Help If a problem arises with your system during installation or OS operating, you should ask your dealer for help first as your system has most likely be configured by them. They always have the best idea and quick response for your symptoms.

  • Page 11: Sdvic Motherboard (Picture)

    SDVIC Motherboard (Picture) Intel PIII (Coppermine) Intel PIII (Coppermine) 4 DDR DIMM Sockets FC-PGA CPU1 socket FC-PGA CPU2 socket 2 PS/2 ports 2 USB Ports LAN Port Print Port COM1 COM2 Audio/MIDI/ Game Port Primary/ Secondary Connectors IDE_RAID Connecotrs Floppy Drive...
  • Page 12 SDVIC Motherboard (Layout) FSB Force 133Mhz AUX Fan CPU Fan 2 Power Connector CPU 1 CPU 2 VT8633 IDE 1 PCI 1 IDE 2 VT8233 PCI 2 RAID 0 PCI 3 RAID 1 PCI 4 Connector BIOS Front-Panel PCI 5...

  • Page 13: Chapter 1:Hardware Installation

    Chapter 1 Hardware Installation In this chapter, the installation of the SDVIC with the processor and other hardware connected to your system will be explained in detail. Installation Procedures Installation procedures will be broken up into six major parts. Step 1:Jumper setting...

  • Page 14: Step 1:Jumper Setting

    Step 1. Jumper Setting There are two jumpers you can use to change the setting on the motherboard. Item Connectors Page Clear Real Time Clock (RTC) RAM FSB Force 133Mhz Clear Real Time Clock (RTC) RAM The onboard button cell battery powers the CMOS RAM. It contains all the BIOS setup information.
  • Page 15 Note Should you want to clear the RTC data: (1) Soft off your computer (2) Short pin2 and pin3 with jumper for few seconds (3) Connect pin1 and pin2 with jumper again. (4) Turn on your computer by pressing the power-on button from front-panel. (5) Hold down <Delete>...
  • Page 16 ON (CLOSE): DEFAULT OFF(OPEN): Force FSB to 133MHz AUX FAN FSB Force 133 MHZ Header Hardware Installation...

  • Page 17: Step 2:Install Memory

    Step 2 Install Memory SDVIB uses 184-pin Double Data Rate (DDR) Inline Memory Modules (DIMM). Four DIMM sockets are available for 2.5Volts (power level), PC2100/PC1600, Unbuffered/Registered SDRAM with 32MB, 64MB,128MB, 256MB, 512MB and 1GB combinations. And the total memory size is between 32MB and 4GB. IMPORTANT Use only PC2100/PC1600 DIMM.

  • Page 18: Memory Installation Procedures

    Memory Installation Procedures 1. Locate the DIMM modules on the SDVIC. AUX FAN 52 Pins 40 Pins 2. Make sure the DIMM module’s pins face down and match the socket’s size as depicted below. 80 Pins 104 Pins Hardware Installation...
  • Page 19 3. Insert the module down to the DIMM socket in with both hands and press down firmly until the DIMM module is securely in place. (The tabs of the socket will close-up to hold the DIMM in place when the DIMM touches the socket’s bottom.) 3.

  • Page 20: Step 3:Install Cpu

    Step 3 Install CPU ® SDVIC provides two CPU sockets for dual Intel 500~1GHz+ PIII ® (Coppermine) FC-PGA processors at 100/133MHz FSB or single Intel 667~766MHz+ Celeron FC-PGA processors at 66MHz FSB CPU Installation Procedures 1. Lift up the socket lever and carefully place the FC-PGA CPU with the correct orientation as the figures are shown below 2.
  • Page 21 LOCKED 3. Plug the 3-wire fan power core into the connector named CPU1 FAN 4. Repeat to install the other CPU Hardware Installation...

  • Page 22: Step 4:Attach Cable To Connectors

    Step 4. Attach Cable to Connectors This step explains where each connector is inserted on the SDVIC. There will be an SDVIC layout picture following each explanation indicating where the connector is inserted. The motherboard connectors are: Item Connectors Page...

  • Page 23: Hardware Installation

    CD In 1-21 Thermal Connector 1-21 FSB Force 133Mhz AUX Fan CPU Fan 2 Power Connector CPU 1 CPU 2 VT8633 IDE 1 PCI 1 IDE 2 VT8233 PCI 2 RAID 0 PCI 3 RAID 1 Connector PCI 4 BIOS Front-Panel PCI 5 IrDA...

  • Page 24: Atx Power Supply

    1. ATX Power Supply (20-pin ATX power connectors) The connector connects to ATX power supply. Find the proper orientation and push down firmly to make sure that the pins are aligned. For Wake on LAN support, 5-volt Stand-by lead (+5VSB) from ATX power supply must supply at least 720mA.

  • Page 25: Ide Connectors

    Pin 1 Connector AUX FAN Floppy Drive Connectors 3. Primary/Secondary IDE connectors (ATA-100100 IDE connectors (Two 40-pin IDE) The connectors support the provided 80-wire 40-pin IDE hard disk ribbon cable. After connecting the single end to the board, connect the two plugs at the other end to your hard disk(s).
  • Page 26 IMPORTANT Ribbon cables should always be connected with the red stripe on the Pin 1 side of the connector. IDE ribbon cable must be less than 46cm (18inches), with the second drive connector no more than 15cm (6 inches) from the first connector.

  • Page 27: Reset Switch

    AUX FAN Front-Panel Connectors Figure 4-1 Item 4 through 10 are depicted in Figure 4-1 as above. 5. Reset Switch (2-pin RST) This 2-pin connector connects to the case-mounted reset switch for rebooting your computer without turning off and on your power switch. This is a preferred method of rebooting to prolong the life of the system ’s power supply.

  • Page 28: Fan Connectors

    11. ,CPU and Aux Fan Connectors (4 3-pin FAN connectors): There are four 3-pin fan connectors in the SDVIC M/B. Two fans are used for CPU1 and CPU2 and two are for auxiliary power. These connectors support cooling fans of 500mA (6W) or less.

  • Page 29: Irda Compliant Infrared Module

    WARNING The CPU and/or motherboard will overheat if there is not enough airflow across the CPU and onboard heatsink. Damage may occur to the motherboard and/or the CPU fan if these pins are incorrectly used. These are not jumpers, do not place jumper caps over these pins.

  • Page 30: Wake-On-Lan/Modem Header

    13. Wake-On-LAN/Modem (3-pin WOL/WOM) This connector connects to internal LAN/modem cards with a Wake-On- LAN/modem output. The connector powers up the system when a wakeup packet or signal is received through the LAN/modem card. AUX FAN Wake on LAN/Modem Header IMPORTANT This feature requires that your system has an ATX power supply with at least 720mA +5VSB standby...

  • Page 31: Ps/2 Mouse

    14. PS/2 Mouse Connector (6-pin Female) The system will direct IRQ12 to the PS/2 mouse if one is detected. If not detected, expansion cards can use IRQ12. 15. PS/2 Keyboard Connector (6-pin Female) This connection is for a standard keyboard using a PS/2 plug (mini DIN). This connector will not allow standard AT size (large DIN) keyboard plugs.
  • Page 32 18. Onboard LAN Connector (Optional) The RJ45 connector provides both 10Base-T and 100Base-TX connectivity. Please refer to the “Onboard RAID/LAN User Guide” for further information. 19. Serial Port COM1/2 Connectors (9-pin Male ) The serial port COM1 and COM2 can be used for pointing devices or other serial devices.
  • Page 33 23. CD In (4-pin CD Audio_In) (Optional) There is one ‘CD Audio In’ connectors on the motherboard. They can be connected to internal CD-ROM drive or other sound sources. Pin 1 Audio_in AUX FAN CD audio_in Connector 24. Thermal Connector (2-pin Thermal) This two-pin connector provides you to use the thermal sensor to detect the temperature of the components on motherboard Chassis intrusion...

  • Page 34: Step 5:Install Expansion Cards

    Step 5. Install Expansion Cards WARNING Power off your power supply completely when adding removing any expansion cards or other system components. Failure to do so may cause severe damage to both your motherboard and expansion cards. 1. Expansion Card Installation Procedure 1.1 Read the documentation for your expansion card and make any necessary hardware or software setting changes, such as jumpers.

  • Page 35: Step 6:Powering On Your Computer

    Step 6. Powering on Your Computer 1. Be sure that all switches are off (in some systems, marked with “O”). 2. After finishing all jumper settings and connections, close the system case cover. 3. Connect the power supply cord into the power supply located on the back of your system case.
  • Page 36 7. During power-on, hold down <Delete> to enter BIOS setup. Follow the instructions in the next chapter, BIOS Setup. Note Powering Off your computer You have to first exit or shut down your operating system before switching off the power switch. For ATX power supplies, you can press the ATX power switch after exiting or shutting down your operating system.

  • Page 37: Chapter 2:Bios Setup

    Chapter 2 BIOS Setup This chapter discusses the Award™ BIOS Setup program built into the ROM BIOS. The Setup program allows users modifying the basic system configurations according to their requirements. This special information is then stored in battery-backed RAM so that it retains the Setup information when the power is turned off.

  • Page 38: Starting Bios Setup

    Starting BIOS Setup The Award™ BIOS is immediately activated when you power on the computer every time. The BIOS reads the system information contained in the CMOS and begins the process of checking out the system and configuring it. After finishing configuring the whole system, then BIOS will continue to seek an operating system on one of the disks, launch then turn control over to the operating system.
  • Page 39 Function Up Arrow(á) Key Move to the previous item Down Arrow(â) Key Move to the next item Left Arrow(ß) Key Move to the previous item Right Arrow(à) Key Move to the next item Esc key In the Sub-menu: Exit the sub-menu. In the BIOS main category: Quit Without saving changes.

  • Page 40: In Case Of Problems

    In Case of Problems If, after making and saving system changes with Setup, you discover that your computer no longer is able to boot, the Award™ BIOS supports an override to the CMOS setting, which resets your system to its defaults. The other way is clear the present CMOS information.(Refer to the jumper setting on the page1-2 ) The best advice is to only alter settings, which you thoroughly understand.

  • Page 41: Section 1:Setup Categories

    Section 1 Setup Categories Once you enter the Award™ BIOS CMOS Setup Utility, several setup categories will appear on top of the screen. Each setup category may contain several setup sub-categories or setup items . Use the arrow keys to select a category and press <Enter>...

  • Page 42: Setup Items

    Setup Items The main menu includes the following main setup categories. Main Use this menu for basic system configurations, such as system clock settings , hard disk, video card and error handling. See Section 2 for details. Advanced Use this menu to enable and make changes to the advanced features.
  • Page 43 Defaults Use this option to load BIOS default values that are factory settings for optimal performance or minimal/stable performance system operations. See Section 4 for details Security Use this option to set the system security by using passwords. See Section 5 for details PC Health This option allows a user monitoring his CPU, system temperature, fan speed and the voltage of...

  • Page 44: Section 2:Main Menu

    Section 2 Main Menu The <Main> menu will allow a user configuring some basic system hardware, system clock, video type and error handling. Each sub-category may include more than one setup items. Use the arrow keys to highlight the item and then use the <Enter>...
  • Page 45 Item Options Description Date MM:DD:YY Set the system date. Note that the “Day” automatically update after you set this value. Time HH:MM:SS Set the system time. Note that the “Time” automatically update after you set this value. Auto Press <PgUp> or <PgDn> Primary/Seco Manual key to select.
  • Page 46 Base Memory/ Display information only Extended Memory/ Total Memory Item Selection Descriptions Auto- Press the <Enter> key to let Detection BIOS auto-detect the type and capacity of the hard disk in this channel. Auto (Default) If select “Manual”, system Primary/Secondary Manual will fill in all remaining fields Master/Slave...
  • Page 47 other will remain “0”. “None” means no any ATAPI and IDE hard disk device is in the channel. Access Mode Mode “CHS” if for IDE hard disk is smaller than 528MB; Large Mode ”LBA” is for IDE hard Auto (Default) disk over 528MB...
  • Page 48 Landing Zone Min=0 Set the number of landing Max=65535 zone. Please refer to the document of the hard disk in this channel. Sector Min=0 Number of sectors per track. Max=255 Please refer to the document of the hard disk in this channel.

  • Page 49: Section 3:Advanced Menu

    Section 3 Advanced Menu This section “ Advanced: will be divided by five sub-menus. Advanced BIOS Features Advanced Chipset Features Integrated Peripherals Power Management Setup PnP/ PCI Configurations 3-1:Advancd BIOS Features With this section, allows a user to configure your system for basic operation. A user can change the system’s default boot-up sequence, keyboard operation, shadowing and security, and so on.
  • Page 50 Virus This option allows a user to choose the Virus Warning Warning feature for IDE hard disk boot sector protection. If this function is enabled and someone/program attends to write data into this area, BIOS will show a warning message on the screen and alarm beep. Enabled Activates automatically when the system boots up causing a...
  • Page 51 Processor This option allows a user to set whether enable the Number display of processor number if using PIII CPU Feature The choices: Enabled, Disabled(Default) Quick Power Set this option to “Enabled” to instruct BIOS to boot On Self Test quickly when the computer is powered on The choices: Enabled(Default), Disabled First/Second/...
  • Page 52 Boot Up Set this option “On” to turn the Num Lock key On at NumLock system boot. Status The choices: On (Default),Off. Gate A20 Select if the chipset or keyboard controller should Option control Gate A20 Normal A pin in the keyboard controller (Default) controls Gate A20 Fast...
  • Page 53 Setup The system will boot, but access to (Default) Setup will be denied if the correct password(supervisor user password) is not entered at the prompt. Note: To disable security, select PASSWORD SETTING at Main Menu and then you will be asked to enter password.

  • Page 54: 3-2: Advanced Chipset Features

    3-2: Advanced Chipset Features This section allows you to configure the system based on the specific features of the built-in chipset. This chipset manages bus speeds and access to system memory resources, such as SDRAM and the external cache. It must be stated that these items should never need to be altered. The default settings have been chosen carefully for your system in order to provide the optimal system performance.

  • Page 55: Dram Timing

    DRAM Clock This item allows you selecting DRAM clock to fixed specific value or the value of SPD. The choice: Host CLK, HCLK-33M, HCLK+33M, By SPD(Default) The correct choices for DDR memory is shown as below Option Host CLK Host CLK HCLK-33M HCLK-33M HCLK+ + 33M...

  • Page 56: Agp &P2P Bridge Control

    Ø AGP &P2P Bridge Control AGP Aperture This option specifies the amount of system Size memory that can be used by the Accelerated Graphics Port (AGP). The choice: 4 MB, 8 MB, 16 MB, 32 MB, 64 MB(Default)., 128 MB. AGP Mode This field allows a user to enable the 4X mode function for AGP card.
  • Page 57 Ø CPU &P2C Bus Control CPU to PCI When this field is Enabled, writes from the CPU to Write Buffer the PCI bus are buffered, to compensate for the speed difference between the CPU and the PCI bud. Hen Disabled, the writes are not buffered and the CPU must wait until the write is complete before starting another write cycle.

  • Page 58: 3-3: Integrated Peripherals

    3-3: Integrated Peripherals Onboard IDE The integrated peripheral controller contain an IDE RAID Chip interface that is able to support two UDMA 100 IDE channels. Select the option” Enabled” to activate each channel separately. The choice: Enabled(Default), Disabled Ø VIA OnChip IDE Device OnChip IDE The integrated peripheral controller contain an IDE Channel 0/1...

  • Page 59: Via Onchip Pci Device

    IDE Prefetch This option allows a user to set if system prefetch Mode the next data when present data is used. If this option is enabled, it will .make the system more stable. The choice: Enabled(Default), Disabled Primary The four IDE PIO (Programmed Input/ Output) Master/Slave fields let you set a PIO mode (0-4) for each of the PIO;...

  • Page 60: Super Io Device

    Ø Super IO Device Power ON This option allows a user to set the source of Power Function On function. The choice: Button Only(Default), Any Key, Keyboard 98, Password , Hot Key, Mouse Left, Mouse Right KB Power ON If choose to have a password for power on function, Password you need to key in a specific password via this item.
  • Page 61 the same time, this device will not work. The choice: Normal(Default), IrDA,SIR RxD, TxD Active This item allows a user to determine the active of RxD and TxD The choice: <Hi, Lo>(Default), <Hi,Hi>, < Lo,Hi>, <Lo,Lo>. IR Transmission Enable or Disable IR transmission Delay when SIR Delay is changed from RX mode to TX mode.
  • Page 62 Use IR Pin This option specifies which pin will act as the receiver for IR data transmission. Whether the system does or does not use the IR, make sure the you adjust the setting accordingly. To disable IR support, set to <RxD2, TxD2> option. To enable IR support, set this option to IR-Rx2Dx2 The choice: <RxD2, TxD2>...
  • Page 63 Game Port This option allows a user to select the Game Port Address base address. The Choice: 201(Default) ,209, Disabled MIDI Address This option allows a user to select the MIDI Port base address. The Choice: 330(Default) ,300,290, Disabled MIDI Port IRQ This option allows a user to select the MIDI Port base address.

  • Page 64: 3.4: Power Management Setup

    IDE HDD Block If your IDE Hard Disk support block mode, please Mode set this item “Enabled” for automatic detection of the optimal read/write block number. The choice: Enabled (Default ) , Disabled. PWRON After This field allows a user to set power status if power PWR-Fail is on after power fail.
  • Page 65 Power This field allows you to select the type (or degree) Management of power saving and is directly related to the Option following modes: Ø Doze Mode Ø Suspend Mode There are three selections for Power Management, three of which have fixed mode settings. User Define Allows you to set each mode (Default)
  • Page 66 Video Off When enabled, this feature allows the VGA adapter Option to operate in a power saving mode All mode -> Off Monitor will remain Off Suspend -> Off Monitor blanked when (Default) systems enters the Suspend mode. Always On Monitor always ON when the system enters either Suspend or Standby modes.
  • Page 67 Soft-Off by Pressing the power button for more than 4 seconds PWRBTN forces the system to enter the Soft-Off state when the system has “hung”. The choices: Delay 4 Sec, Instant-Off (Default). Ø IRQ/Event Activity Detect When Enabled, your can set the VGA awakens the system.
  • Page 68 When Enabled, your can set the date and time at RTC Alarm Resume which the RTC (real-time clock) alarm awakens the system from Suspend mode. Default is Disabled The choice: Disabled(Default), Enabled Ø IRQ Activity Monitoring When set to On (Default), any event occurring at Primary INTR will awaken a system which has been powered down.

  • Page 69: Pnp/ Pci Configurations

    PnP/ PCI Configurations This section describes configuring the PCI bus system. PCI, or Personal Computer Interconnect, is a system which allows I/O devices to operate at speeds nearing the speed the CPU itself uses when communicating with its own special components. This section covers some very technical items and it is strongly recommended that only experienced users should make any changes to the default settings PNP OS Installed...

  • Page 70: Resource Controlled By

    Resource Controlled By The Award Plug and Play BIOS has the capacity to automatically configure all of the boot and Plug and Play compatible devices. However, this capability means absolutely nothing unless you are using a Plug and Play operating system such as Windows 95/98. The choice: Auto (ESCD) (Default) , Manual.
  • Page 71 PCI 2 IRQ Assign This option allows a user to assign a specific IRQ for specific PCI slot The choice: Auto(Default), 3, 4, 5, 7, 9, 10, 11, 12, 14,15 PCI 3 IRQ Assign This option allows a user to assign a specific IRQ for specific PCI slot The choice: Auto(Default), 3, 4, 5, 7, 9, 10, 11, 12, 14,15...

  • Page 72: Section 4:Defaults Menu

    Section 4 Defaults Menu Selecting “Defaults” from the main menu shows you two options, which are described below Load Fail-Safe When you press <Enter> on this item you get a Defaults confirmation dialog box with a message similar to: Load Fail-Safe Defaults (Y/N)? N Pressing ‘Y’...

  • Page 73: Section 5:Security Menu

    Section 5 Security Menu n this Section, a user can set either supervisor or user password, or both for different level of password securities. In this section, a user also can set the virus protection for boot sector. You can enter and change the options of the setup SUPERVISSOR menus.
  • Page 74 ENTER Type the password, up to eight characters in length, PASSWORD and press <Enter>. The password typed now will clear any previously entered password from CMOS memory. You will be asked to confirm the password. Type the password again and press <Enter>.

  • Page 75: Section 6:Pc Health Menu

    Section 6 PC Health Menu As a hardware monitor function is built in the motherboard. BIOS will automatically detect system health parameters such as CPU temperature, CPU fan speed, CPU voltage, and voltages on the motherboard. Hence, from these data, the healthy status of system will be showed. In this section, Only the item “Chassis Intrusion Message”...
  • Page 76 Current This field only displays the current CPU 0/ CPU1 CPU1/CPU2 operating temperature. Temperature Current This field only displays the current CPU 0/ CPU1 CPUFAN1/ operating speed. CPUFAN2 Speed CPU 1 /CPU2 This field only displays the current CPU 0/ CPU1 Vcore core voltage.

  • Page 77: Section 7:Clk/Voltage Menu

    Section 7 CLK/Voltage Menu In this section, a user can set the operating frequency of the CPU and if let BIOS auto detect the DIMM/PCI Clk. Auto Detect This option allows a user enabling/disabling the DIMM/PCI Clk auto-detection function of DIMM/PCI clock. The choices: Enabled (Default), Disabled Spread Spectrum This item allows a user to set if enable/disable...
  • Page 78 CPU Host /PCI This field allows a user to select various Front Clock Side Bus frequency (FSB) of CPU for over- clocking purpose. In this time, RIOWORKS only allows a user to use the default FSB in the BIOS Setup. The choices for 66/100/133Mhz FSB CPU:: Default CPU Ratio...

  • Page 79: Section 8:Exit Menu

    Section 8 Exit Menu Once you have changed all of set values in the BIOS setup, you should save your changes and exit BIOS Setup program. Select “Exit” from the menu bar to display the following sub-menu Save & Exit Pressing <Enter>...
  • Page 80 Exit Without Pressing <Enter> this item asks Saving confirmation: Quit without saving (Y/N)? Y This allows you exiting Setup without changing previous setting values in CMOS. The previous selections remain in effect. This will exit the Setup utility and restarts your computer when click this selection.

  • Page 81: Chapter 3:Bios Flash Upgrade Utility

    Chapter 3 BIOS Flash Upgrade Utility This chapter briefly discusses the Award BIOS Flash Upgrade utility, with instructions to guide you through updating an Award BIOS. In the examples given here, we use the file name newbios.bin to represent the new BIOS and the file name oldbios.bin to represent the old BIOS.

  • Page 82: Running The Program

    system is left without a working BIOS and needs a correctly programmed flash EPROM installed. Running the Program Boot the system from the bootable floppy diskette you created. Booting from the diskette bypasses loading drivers from the CONFIG.SYS and AUTOEXEC.BAT files on the hard drive, eliminating the possibility of loading a program (e.g., a memory manager) that conflicts with the Award flash utility.

  • Page 83: Command Line Parameters

    If you DO NOT wish to save the old BIOS, type N. Then move to step 8 If you DO wish to save the old BIOS, respond Y. In the File Name to Save field, type a file name for the old BIOS (for example, oldbios.bin), and press <ENTER>...

  • Page 84: Save/Update

    NOTE This document describes parameters implemented in Award flash update utility version 7.08. For a full list of parameters in the version you are running, type awdflash /? and press <ENTER> key. Awdflash 7.08 (C)Award Software 1999 All Rights Reserved Usage: AWDFLASH [FileName1] [FileName2] [/<SW>[/<SW>…]] FileName1 : New BIOS Name For Flash Programming FileName2 : BIOS File For Backing-up the Original BIOS...

  • Page 85: Clear Data

    Example 1 To program a new BIOS and save the old BIOS, enter the following at the command line: awdflash newbios.bin /Py oldbios.bin /Sy The program saves the old BIOS to the file as named and updates it with the new BIOS.
  • Page 86 BIOS Flash Utility...
  • Page 87 Appendix A Troubleshooting The following is a checking procedure for common problem encountered during system assembly. Toubleshooting Procedure Step 1 Unexpected Symptom happens Turn-Off the system power and unplug the AC power cord, then remove all of add-on cards and peripherals inclusive VGA,FDD,IDE,ATAPI Step 2 device and so on Check if all jumper settings are correct (Please refer to...

  • Page 88: Troubleshooting

    Continue Check if POST screen displays on the Step 8-2 monitor VGA card or monitor may be defective Step 8-1 Press <Ctrl>+<Alt><Del> key simultaneously to reboot the system Step 9-2 Check if the system can be rebooted up Keyboard is defective During system booting, press<Del>...
  • Page 89 WARNING Before you insert any add-on card or hardware component in the SDVIC, always disconnect the power cord first. 2.Symptom checking List Symptom Check point No Power (FAN is not Make sure no short circuit exist between the rotating) motherboard and chassis Check if all jumpers are set to the default position.

  • Page 90: Appendix A:troubleshooting

    Check if the memory DDR DIMM module is inserted into DDR DIMM socket properly. Check if different speed memory modules are mixed and used in the SDVIC. Verify the BIOS setup is configuration for the fastest speed of DDR RAM used. RIOWORKS recommend always use the same speed RAM in the system.

  • Page 91: Appendix B

    Appendix B Symptom Report Form Serial Number BIOS version CPU 1 CPU 2 DIMM 0 Size Brand Component Model DIMM 1 Size Brand Component Model DIMM 2 Size Brand Component Model DIMM 3 Size Brand Component Model PCI-1 PCI-2 PCI-3 PCI 4 PCI 5 Onboard IDE 0...
  • Page 92 Power Supply Watt Model Number Other Devices Operating system Symptom Description: Name: Contact email address: Troubleshooting...
