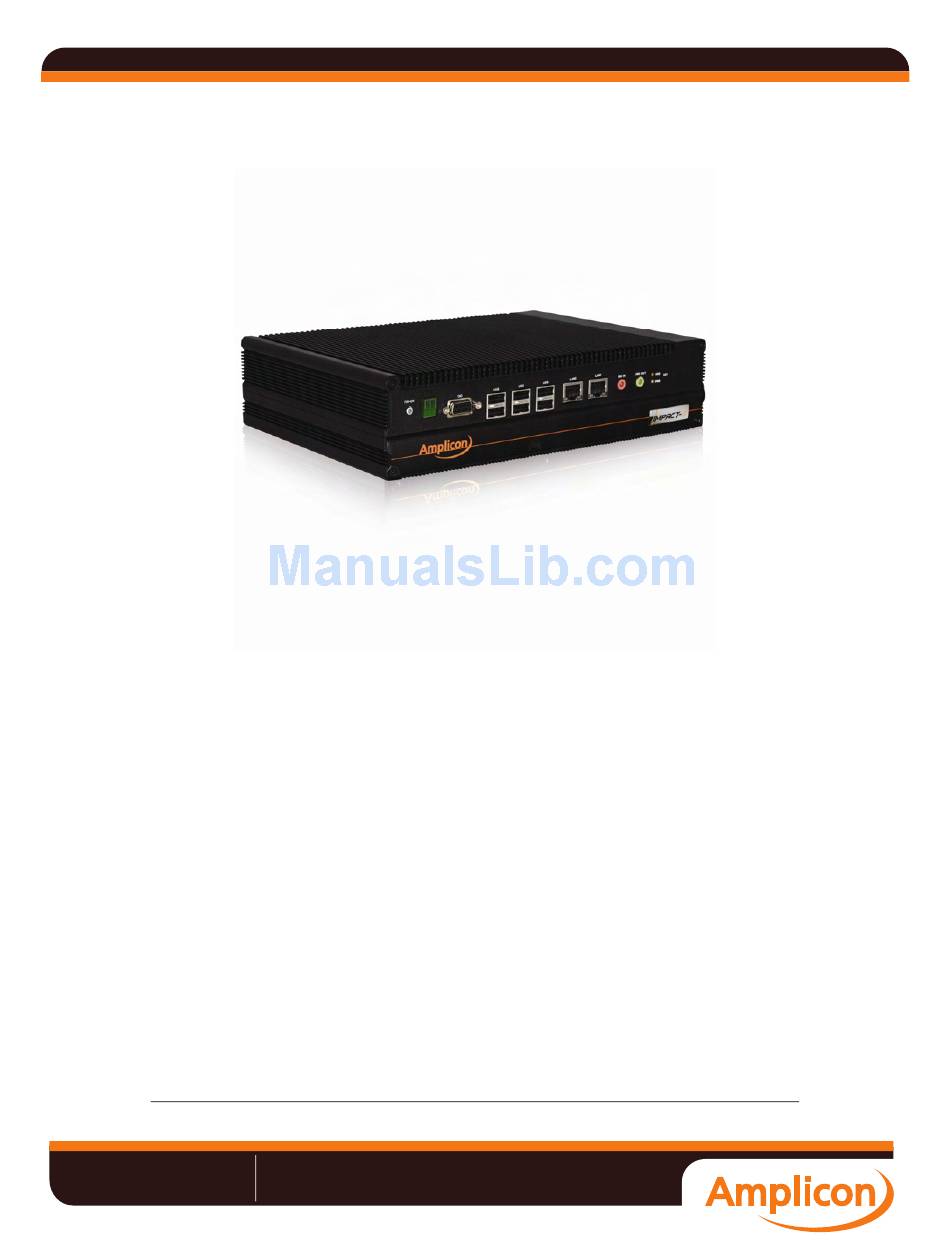

Impact-E 3x series embedded computer user manual
Atom Embedded Computers
Impact-E 3x series
Impact-E 30 / 35
User manual
(Issue A
1 )
Part No: 85090586
Page 1 of 40
Amplicon.com
IT and Instrumentation for industry
Sales:
+44 (0) 1273 570 220
Website:
www.amplicon.com
Email:
sales@amplicon.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Impact-E 3x series and is the answer not in the manual?

Questions and answers

Related Manuals for Amplicon Impact-E 3x series

Summary of Contents for Amplicon Impact-E 3x series

  • Page 1 Manual Impact-E 3x series embedded computer user manual Atom Embedded Computers Impact-E 3x series Impact-E 30 / 35 User manual (Issue A Part No: 85090586 Page 1 of 40 Amplicon.com IT and Instrumentation for industry Sales: +44 (0) 1273 570 220 Website: www.amplicon.com...
  • Page 2 The information contained has been reviewed and is believed to be accurate and reliable. However, Amplicon Liveline Ltd accepts no responsibility for any problems caused by errors and omissions. Specifications and instructions are subject to change without notice.

  • Page 3: Table Of Contents

    Manual Impact-E 3x series embedded computer user manual Table of Contents Safety Precautions C h a p t e r 1 – Introduction General Description Features and Benefits System Specifications Impact-E 30 / 35 dimensions Block Diagram Package List C h a p t e r 2 – System Components...

  • Page 4: Safety Precautions

    Manual Impact-E 3x series embedded computer user manual Safety Precautions • Before you unpack your embedded computer system, ensure you carefully read through this manual and follow any related safety and operational instructions. • Only suitably qualified and experienced personnel should access the internals of the unit.
  • Page 5 Manual Impact-E 3x series embedded computer user manual Electrostatic Discharge Damage • When accessing the internals of the computer, you must be aware that many of the components are electrostatic discharge sensitive (ESD). These components can easily be damaged if suitable precautions are not taken.

  • Page 6: Chapter 1 - Introduction

    Manual Impact-E 3x series embedded computer user manual C h a p t e r 1 Introduction This chapter contains general information and detailed specifications of the Impact-E 3x series Atom embedded computers. Impact-E 30 – Atom embedded computer with 1 x PCI card slot Impact-E 35 –...

  • Page 7: Features And Benefits

    Manual Impact-E 3x series embedded computer user manual Expandable for 1 PCI / PCIe x1 slot The Impact-E 30 has a PCI slot, while the Impact-E 35 has a PCIe x1 slot for card expansion. Compact designed embedded computers Impact-E 3x have a rugged and compact chassis making them ideal for space critical applications.

  • Page 8: System Specifications

    Manual Impact-E 3x series embedded computer user manual 1.3 System Specifications FEATURE DESCRIPTION Form Factor Fanless Embedded System Platform Processor Onboard Intel Atom 1.6 GHz Chipset Intel 945GSE+ICH7M BIOS AMIBIOS with 8Mbit BIOS Flash System Technology 533 MHz DDR2 SDRAM...
  • Page 9 Manual Impact-E 3x series embedded computer user manual Storage Temperature -20° ~ 80° C Shock CFD: 100g peak acceleration (6 msec duration) Mounting Wall mounting kit VESA mounting kit (Optional) Physical Dimensions 190D x 268W x 65H mm Dimensions Weight 2.6Kg (without HDD)

  • Page 10: Impact-E 30 / 35 Dimensions

    Manual Impact-E 3x series embedded computer user manual 1.4 Dimensions • Impact-E 30 / 35 dimensions Page 10 of 40 Amplicon.com IT and Instrumentation for industry Sales: +44 (0) 1273 570 220 Website: www.amplicon.com Email: sales@amplicon.com...

  • Page 11: Block Diagram

    1.5 Block Diagram Figure 2 – Block Diagram 1.6 Package List When you receive the Impact-E 3x series embedded computer, please find the following items in the package. • Impact-E 3x embedded computer • DC +19V 75W power adapter x 1 •...

  • Page 12: Chapter 2 - System Components

    Manual Impact-E 3x series embedded computer user manual C h a p t e r 2 System Components 2.1 Embedded System Board Page 12 of 40 Amplicon.com IT and Instrumentation for industry Sales: +44 (0) 1273 570 220 Website: www.amplicon.com Email: sales@amplicon.com...

  • Page 13: Jumper Settings And I/O Connectors

    Manual Impact-E 3x series embedded computer user manual Jumper Settings and I/O Connectors The jumper settings and I/O connectors of the embedded board have been set to default as standard. Any changes to the schematic or design of these connectors may cause damage to your unit.

  • Page 14: Connector Pin Assignments

    Manual Impact-E 3x series embedded computer user manual 2.2.1 Connector Pin Assignments SC2T1: Select COM2 Type Jumper COM2 TYPE SC2T1 SC2T2 RS-232 (Default) 1-5,2-6,3-7,4-8 RS-422 5-9,6-10,7-11,8-12 RS-485 5-9,6-10,7-11,8-12 COM2 TYPE SC2T1 SC2T2 RS-232 (Default) 1-5,2-6,3-7,4-8 RS-422 5-9,6-10,7-11,8-12 RS-485 5-9,6-10,7-11,8-12 Description...
  • Page 15 Manual Impact-E 3x series embedded computer user manual KM1： ： ： ： Keyboard/Mouse Connector Header (for Factory test only) Description Description MSCLK MSDATA KBDAT KBCLK DESCRIPTION USB_VCC USBD0- USBD0+ Ground Case Ground SC3T2: Select COM3 Type Jumper COM3 TYPE SC3T1...
  • Page 16 Manual Impact-E 3x series embedded computer user manual COM3 TYPE SC3T1 SC3T2 RS-232 (Default) 1-5,2-6,3-7,4-8 RS-422 5-9,6-10,7-11,8-12 RS-485 5-9,6-10,7-11,8-12 Panel Voltage VLCD1 +3.3V ( Default ) LVDS1: LVDS Connector (2Channel 18bits 2x20 1.25mm Connector /Optional) Page 16 of 40 Amplicon.com...
  • Page 17 Manual Impact-E 3x series embedded computer user manual Description CCMOS1 Normal (Default) Clear CMOS Pin No. Description +12V NOTE: System can only house 1 x 2.5” HDD / solid state drive. DESCRIPTION Page 17 of 40 Amplicon.com IT and Instrumentation for industry...
  • Page 18 Manual Impact-E 3x series embedded computer user manual NOTE: When you connect SATA cable, the Pin 7 of cable will automatically switch to GND. (Normal Pin7 is +5V for SATA- DOM) ： ： ： ： Pin No. Description LIN-L CO_GND...
  • Page 19 Manual Impact-E 3x series embedded computer user manual MPCIE1: Mini PCI Express 1X Connector Pin No. Description Pin No. Description +3.3V WAKE# Ground RSV1 RSV2 +1.5V CLKREQ# UIM_PWR Ground UIM_DATA REFCLK- UIM_CLK REFCLK+ UIM_RESET GND3 UIM_VPP RSV3 Ground RSV4 W_DISABLE#...
  • Page 20 Manual Impact-E 3x series embedded computer user manual PCIGF1: 120 Pin PCI G Golden Finger System Environment System Environment Side B Side A Side B Side A AD﹝ ﹝ ﹝ ﹝ 17﹞ ﹞ ﹞ ﹞ AD﹝ ﹝ ﹝ ﹝ 16﹞ ﹞ ﹞ ﹞...
  • Page 21 Manual Impact-E 3x series embedded computer user manual PCIEGF1: PCI Express 1x Golden Finger Pin No. Side B Side A PRSNT1# Ground Ground SMBCLK JTAG2 JTAG3 SMBDATA JTAG4 Ground JTAG5 +3.3V JTAG1 +3.3V +3.3VAUX +3.3V WAKE# PCIE_RESET- Reserved Ground Ground...
  • Page 22 Manual Impact-E 3x series embedded computer user manual Serial Port COM1/2 Connector (D-SUB9 Male) PIN NO. DESCRIPTION TYPE RS-232 RS-422 RS-485 Data Carrier Detect ( DCDA # ) 422TX+ DATA+ Receive Data ( RXDA ) 422TX- DATA- Transmit Data ( TXDA )
  • Page 23 Manual Impact-E 3x series embedded computer user manual CN1: COM3 – 6 Connector COM3 COM4 Pin No. RS-232 RTS3# SIN3 SOUT3 CTS3# RTS4# SIN4 SOUT4 CTS4# RS-422 RS-485 4-wire TX+ RS-485 2-wire DATA+ DATA- COM5 COM6 Pin No. RS-232 RTS5#...
  • Page 24 Manual Impact-E 3x series embedded computer user manual PSBIN1: PW-ON Button (with 2 colour LED) DESCRIPTION DESCRIPTION PAD1 Ground PAD2 Ground Ground BUTTON- Ground BUTTON- PWR_LED+ / PWR_LED- / STB_LED- STB_LED+ NOTE: Power ON: Green LED; Standby: Red LED Page 24 of 40 Amplicon.com...

  • Page 25: System Layout

    Manual Impact-E 3x series embedded computer user manual System Layout This section of the manual describes the mechanical and device nomenclature of the Impact-E 30 / 35. 2.3.1 Front View 2.3.2 Rear View Page 25 of 40 Amplicon.com IT and Instrumentation for industry...

  • Page 26: Chapter 3 - Hardware Installation

    Manual Impact-E 3x series embedded computer user manual C h a p t e r 3 Hardware Installation This chapter shows how to install different components into the Impact-E 3x embedded computer. Impact-E 3x Embedded System Page 26 of 40 Amplicon.com...

  • Page 27: Installation

    Manual Impact-E 3x series embedded computer user manual 3.1.1 Installation 1. Remove the 5 screws and 2 spacers at the front panel 2. Remove the front panel 3. Unscrew the 5 screws and 8 spacers at the rear panel 4. Remove the rear panel Page 27 of 40 Amplicon.com...

  • Page 28: System Memory Installation

    Manual Impact-E 3x series embedded computer user manual 5. Remove the 6 screws at the bottom cover and then remove the bottom cover 3.1.2 System Memory Installation Insert the memory module into the memory socket and push firmly until it is fully seated.

  • Page 29: Hard Disk Drive / Solid State Drive Installation

    Manual Impact-E 3x series embedded computer user manual 3.1.4 Hard Disk Installation HDD mounting components: • Spacer x 4 • HDD Screw x 4 • Serial ATA/Power Cable x 1 Spacer HDD Screw NOTE: Please use these to install 2.5” HDD / solid state drive 1.
  • Page 30 Manual Impact-E 3x series embedded computer user manual 2. Invert aluminium bottom cover Inside View of the bottom cover 3. Position the hard disk on the bottom cover properly so that the screw holes of the hard disk can match the holes with the cover for installation.
  • Page 31 Manual Impact-E 3x series embedded computer user manual 4. Begin to secure the hard disk with the four HDD screws on the right side of the bottom cover ( Please see inset ). Secure with 4 HDD screws on the right side of bottom cover 5.
  • Page 32 Manual Impact-E 3x series embedded computer user manual Plug the Serial ATA cable to the SATA Connector (SATA1 or SATA2) Plug the Serial ATA cable to the SATA Connector 6. Plug the Power cable to the 4-Pin Power Connector (PS4S1) Page 32 of 40 Amplicon.com...

  • Page 33: Reassembly Procedure

    Manual Impact-E 3x series embedded computer user manual 3.1.5 Reassembly Procedure Replace the bottom cover Replace the front panel on the system Refasten the 5 screws and 8 spacers at the front panel Page 33 of 40 Amplicon.com IT and Instrumentation for industry...
  • Page 34 Manual Impact-E 3x series embedded computer user manual Replace the rear panel on the system Refasten the 5 screws and 2 spacers at the rear panel Refasten the 6 screws at the bottom cover then the Impact-E 3x Embedded system installation is complete.

  • Page 35: Mounting Kits

    Manual Impact-E 3x series embedded computer user manual Mounting Kits 3.2.1 Wall Mount (Optional) Wall Mount components: Wall Mount x 2 Screw x 4 Page 35 of 40 Amplicon.com IT and Instrumentation for industry Sales: +44 (0) 1273 570 220 Website: www.amplicon.com...

  • Page 36: Appendix A: Lan Port Led Indicators

    Manual Impact-E 3x series embedded computer user manual A. Appendix A: LAN Port LED Indicators Link/Active (Left LED ) Status Description LED/Colour LAN is link to 10 or 100 or 1000Mbps Yellow Blink LAN port is receiving and transmitting packets.

  • Page 37: Appendix B: Watchdog Timer

    0~255. The system will reboot automatically according to the time-out you set. NOTE: The watchdog function is from the WINBOND 83627UHG. Examples can be found on the Amplicon CD in the watchdog folder. Watchdog Timer is controlled by CRF5, CRF6, CRF7 of Logical Device.
  • Page 38 Manual Impact-E 3x series embedded computer user manual CRF7 (Default 0x00) Bit 7 : Mouse interrupt reset Enable or Disable = 1 Watchdog Timer is reset upon a Mouse interrupt = 0 Watchdog Timer is not affected by Mouse interrupt...

  • Page 39: Appendix C: Dio

    Execute the DIO.EXE file under DOS (DIO.EXE and CWSDPMI.EXE should be placed on same directory). NOTE: The DIO function is from the WINBOND 83627UHG. Examples can be found on the Amplicon Manual/ Driver CD in the located in the 4bit-DIO folder. Page 39 of 40 Amplicon.com...

  • Page 40: D Appendix C: Power Requirements

    Manual Impact-E 3x series embedded computer user manual D. Appendix D: Power Requirements D.1 External DC Adaptor The system is supplied with a mains powered AC adaptor, with the following specification: - Power input: 100 ~ 240V AC, 1.2A, 50 ~ 60 Hz •...
