PD9130, PD9140A, PD9145A, PD9155, PD9160A, PD9180
PROGRESSIVE DYNAMICS, INC.

POWER CONVERTER LIMITED WARRANTY

I.
LIMITED WARRANTY: Progressive Dynamics, Inc. warrants its power converter to be free from defects in
material or workmanship under normal use and service; and limits the remedies to repair or replacement.
II.
DURATION: This warranty shall extend for a period of two years from the original date of purchase, and is
valid only within the continental limits of the United States and Canada.
III.
WARRANTY EXCLUSIONS: This warranty specifically does not apply to:
A.
Any power converter which has been repaired or altered in any way by an unauthorized person or
service station;
B.
Damage caused by excessive input voltage, misuse, negligence or accident; or an external force;
C.
Any power converter installed in a vehicle used for commercial purposes;
D.
Any power converter which has been connected, installed or adjusted or used other than in
accordance with the instructions furnished, or has had the serial number altered, defaced or removed;
E.
Cost of all services performed in removing and re-installing the power converter; and
F.
ANY LOST PROFITS, LOST SAVINGS, LOSS OF USE OF ENJOYMENT OR OTHER
INCIDENTAL DAMAGES ARISING OUT OF THE USE OF, OR INABILITY TO USE, THE
PRODUCT. THIS INCLUDES DAMAGES TO PROPERTY AND, TO THE EXTENT
PERMITTED BY LAW, DAMAGES FOR PERSONAL INJURY. THIS WARRANTY IS IN LIEU
OF ALL OTHER WARRANTIES, INCLUDING IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
IV.
PROOF OF PURCHASE: A warranty claim must be accompanied by proof of the date of purchase.
V.
CLAIM PROCEDURE: Upon discovery of any defect, Progressive Dynamics, Inc. shall be supplied the
following information by mail, telephone or fax, at the address listed below:
A.
Name and address of the claimant;
B.
Name and model of the power converter;
C.
Name, year and model of the recreational vehicle in which the power converter was installed;
D.
Date of purchase; and
E.
Complete description of the claimed defect.
Upon determination that a warranty claim exists (a defect in material or workmanship occurring under normal
use and service,) the power converter shall be shipped postage prepaid to Progressive Dynamics, Inc. together
with proof of purchase. The power converter will be repaired or replaced and returned postage prepaid.
OWNERS MANUAL
Progressive Dynamics Inc.
507 Industrial Rd.
Marshall, MI 49068
269.781.4241 Fax 269.781.7802

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PD9130 and is the answer not in the manual?

Questions and answers

Summary of Contents for Inteli Power 9100 PD9130

  • Page 1 PD9130, PD9140A, PD9145A, PD9155, PD9160A, PD9180 OWNERS MANUAL PROGRESSIVE DYNAMICS, INC. POWER CONVERTER LIMITED WARRANTY LIMITED WARRANTY: Progressive Dynamics, Inc. warrants its power converter to be free from defects in material or workmanship under normal use and service; and limits the remedies to repair or replacement.

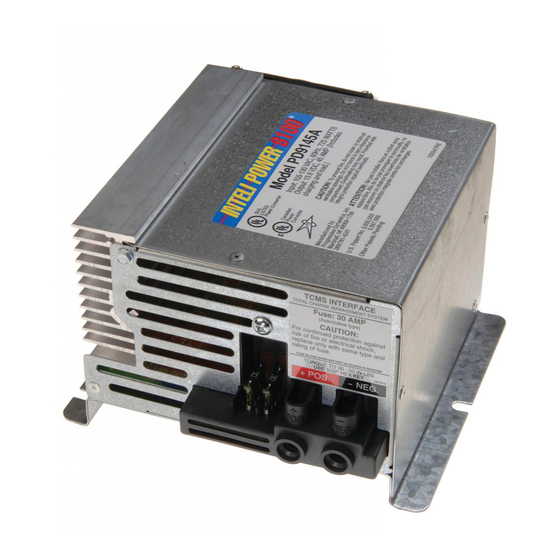

  • Page 2 The INTELI-POWER 9100 line be protected. The PD9130 has one 30 AMP ATC automotive of power converters have undergone tens of thousands of hours style fuse. Models PD9160A, PD9155, PD9145A and of strenuous engineering testing to insure years of trouble free PD9140A have two 30 AMP ATC automotive style fuses.
  • Page 3 INSTALLATION INSTRUCTIONS ! ATTENTION ! USE A 5/32" HEX DRIVER TO TIGHTEN THE Horizontal mounting of the INTELI-POWER 9100, is OUTPUT SCREWS. DO NOT EXCEED 50 IN-LB recommended although it can be mounted in any position TORQUE. PD9160 AND PD9180 USE A SLOTTED that provides unobstructed ventilation to the fan and vent SCREWDRIVER TO TIGHTEN THE OUTPUT holes.
  • Page 4 INPUT/OUTPUT SPECIFICATIONS PD9130 PD9140A PD9145A Input: 105-130 VAC 60 Hz Input: 105-130 VAC 60 Hz Input: 105-130 VAC 60 Hz 500 Watts 600 Watts 725 Watts Output: 13.6 VDC, 30 Amps Output: 13.6 VDC, 40 Amps Output: 13.6 VDC, 45 Amps Dimensions: 4.5H x 7L x 7.25W...
